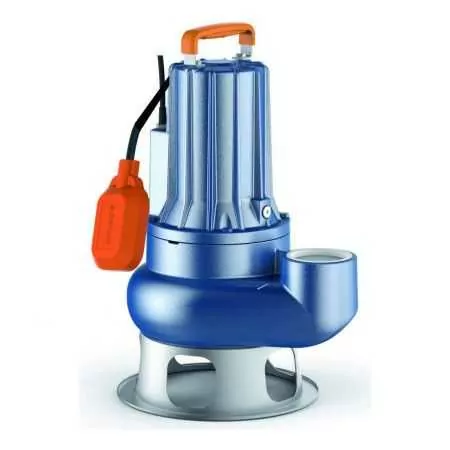

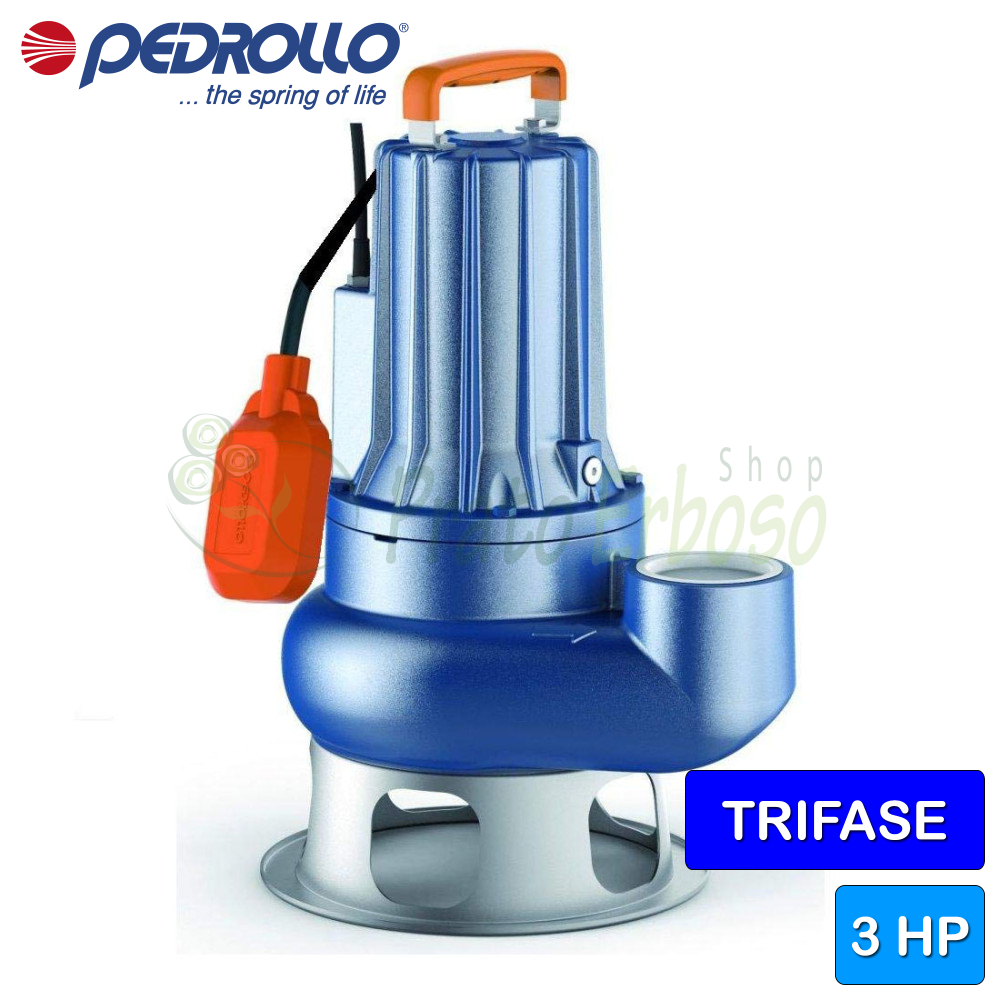

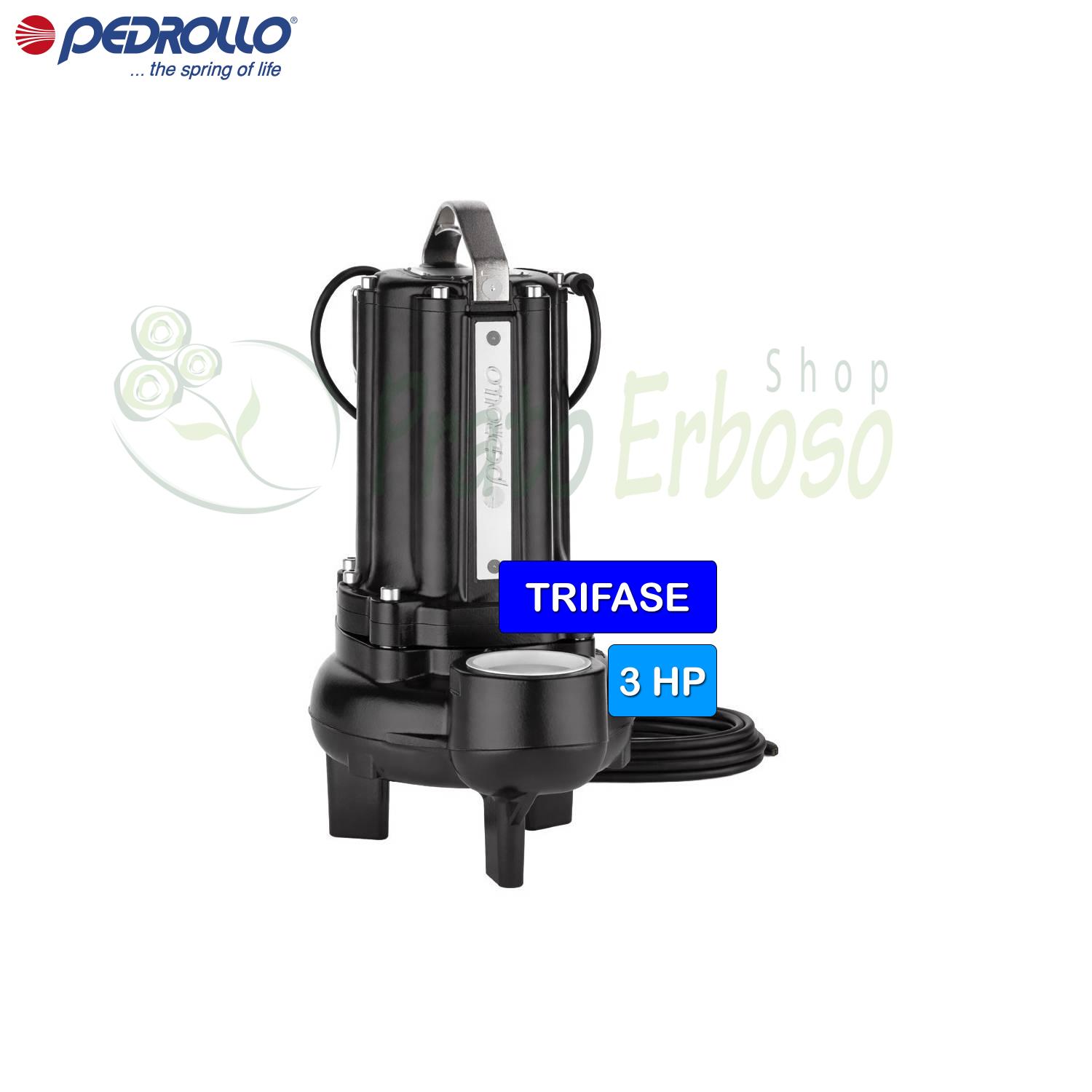

VXC 30/50 - 3 HP three-phase VORTEX sewage pump
Flow rate up to 850 l/min (51 m³/h). Head up to 16.5 m. 2.2 Kw (3 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The VXC 30/50 submersible electric pump from the VXC series by Pedrollo is the right choice when looking for a high-quality product.
This electric pump ensures performance and reliability even in extreme working conditions.
The vortex impeller makes it suitable for draining dirty, sewage, wastewater, water mixed with mud, revived and putrid sludge.
The VXC 30/50 is recommended for installations in the civil and industrial sectors in sewers, tunnels, excavations, canals and underground car parks.
It can be installed up to 10 meters below water level.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Current consumption at 400V (A)
- Delivery mouth
- 2" 1/2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 50
- Crankshaft
- AISI 431 stainless steel
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 850
- Min. head (m.)
- 2.5
- Max. head (m.)
- 16.5
- Cable length (m.)
- 10
- Jobs
- water supply, drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 48.7
- Width (cm)
- Depth (cm)
- Weight (Kg)
- 43
- Warranty (years)
- 2
VXC 50 Models and Performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the VXC 50 - 65 series
Bearings
| Pump side motor bearing | 6305 CM D 6 |
| Opposite side engine bearing | 6204 ZZ-C3 |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-22 |
| LM diameter | 22 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-20 |
| LP diameter | 20 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Cast iron GJL 200 EN 1561 |
