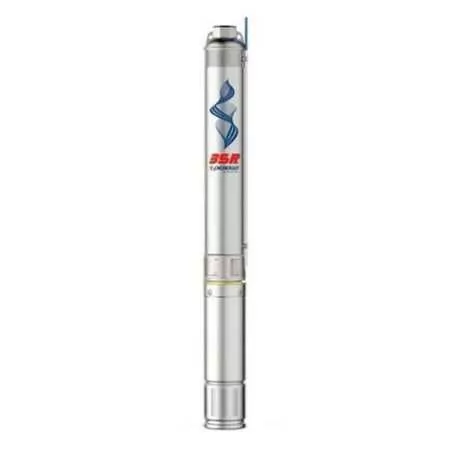

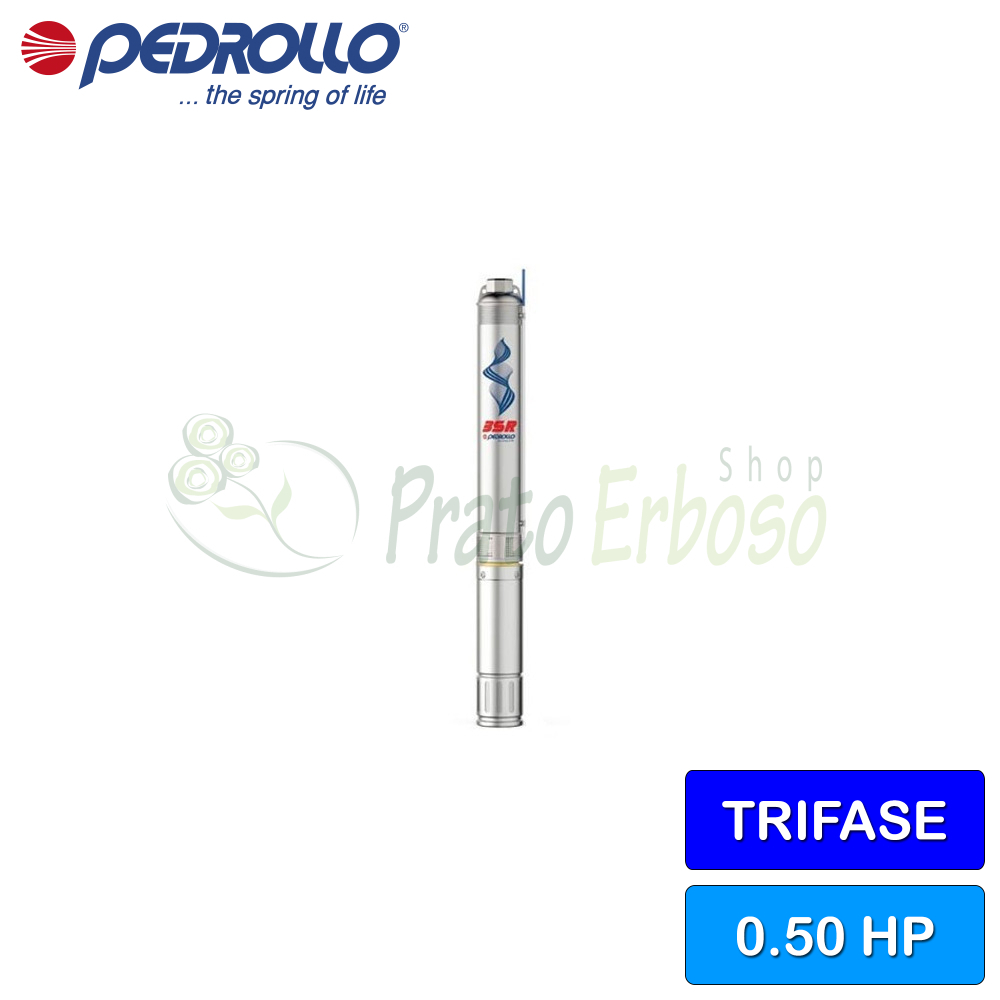

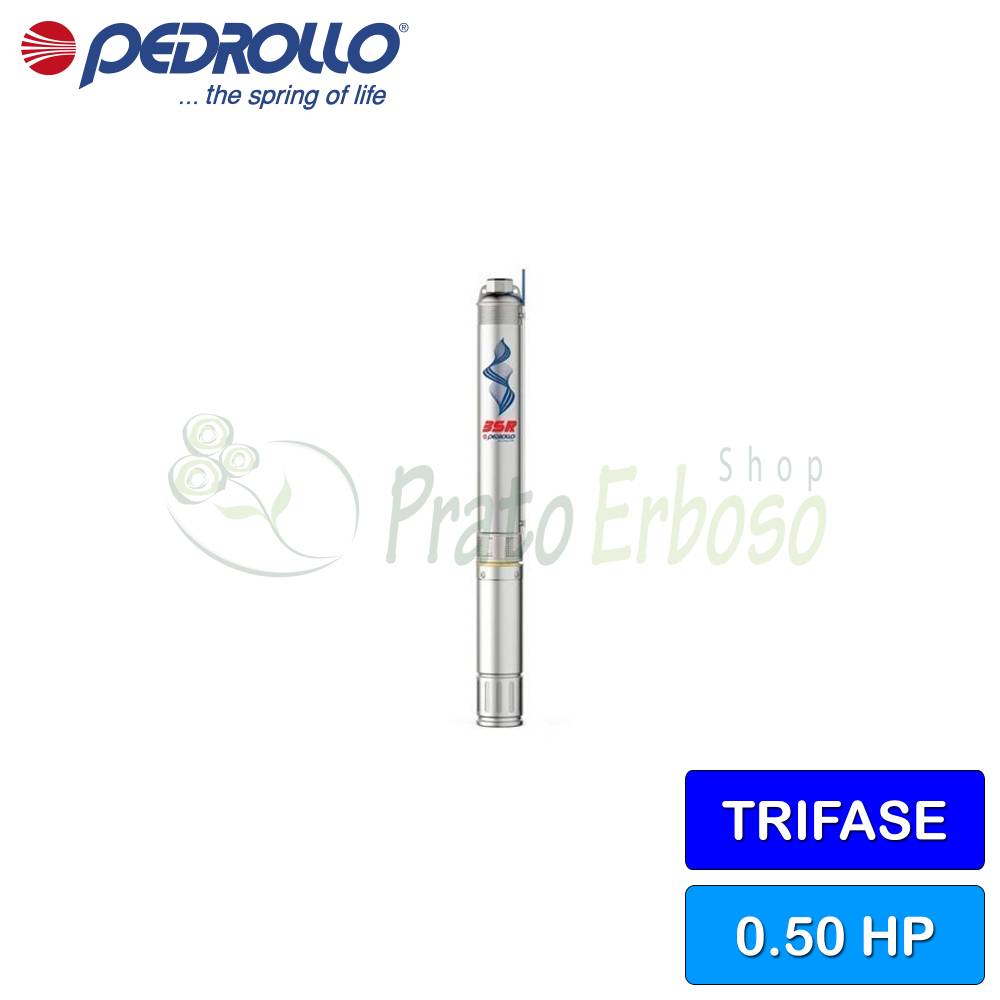

3SR 1/21 - 0.50 HP three-phase submersible electric pump
Flow rate up to 30 l/min (1.8 m³/h). Head up to 90 meters. 0.37 kW (0.50 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The 3SR 1/21 submersible electric pump from the 3SR series by Pedrollo is recommended for domestic and civil installations.
It can pump clean water with sand content up to 150 grams per cubic meter.
Collation can be carried out, using a special cable, up to 100 metres below the water level, exclusively vertically.
Compact and lightweight, the 3SR 1/21 can be easily installed in 3-inch or larger wells.
The use of stainless steel makes the electric pump extremely solid and resistant.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Current consumption at 400V (A)
- 1.5
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- Delrin
- Number of impellers
- 21
- Pump shaft
- AISI 304 stainless steel
- Check valve
- Yes
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 30
- Min. head (m.)
- 24
- Max. head (m.)
- 90
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 90.5
- External diameter (cm)
- 7.6
- Weight (Kg)
- 9.2
- Warranty (years)
- 2
3SR models and performance 1
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3SR construction data
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | POM acetal resin |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
