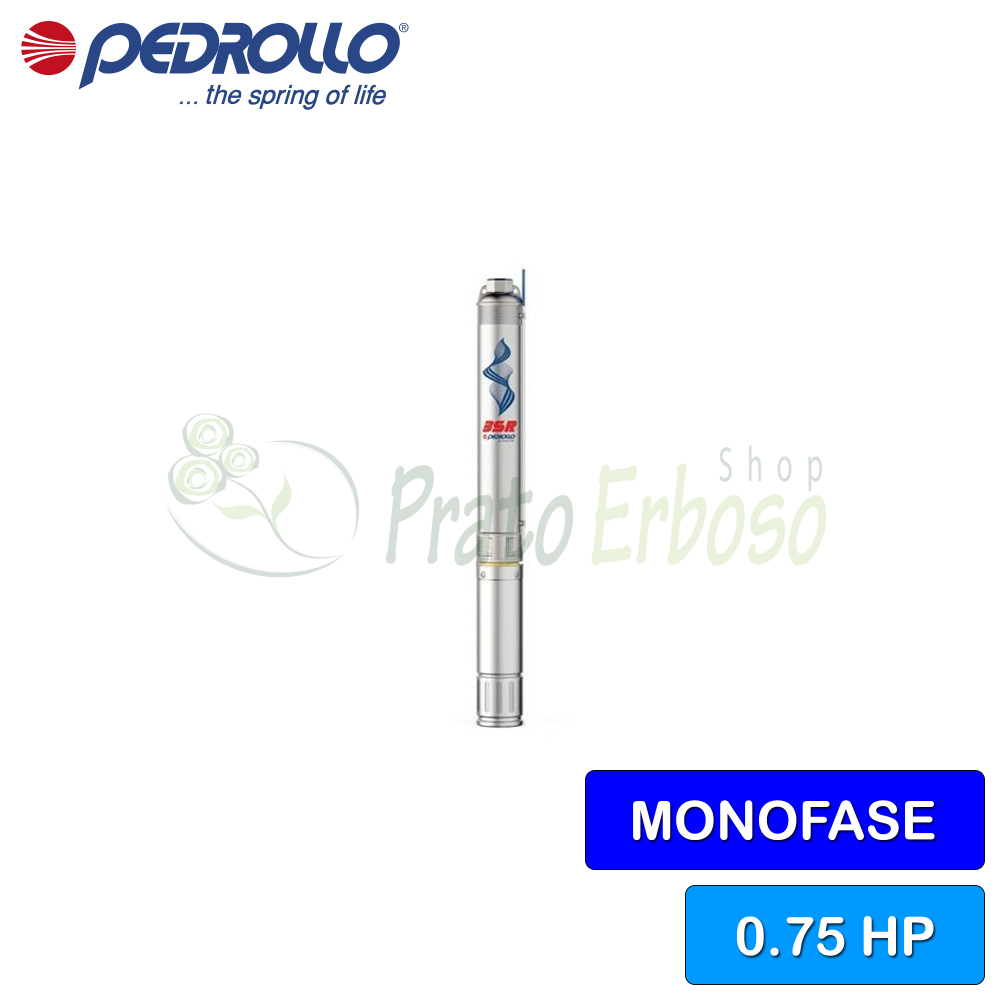

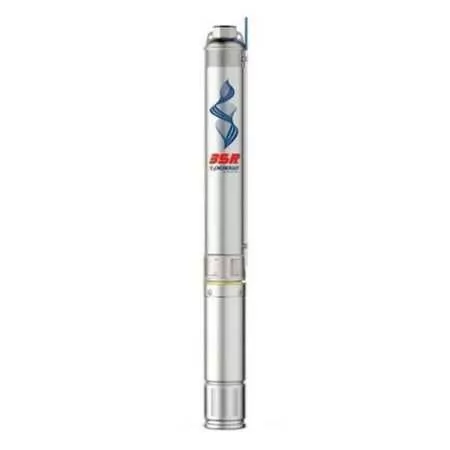

3SRm 1/31 - 0.75 HP single-phase submersible electric pump
Flow rate up to 30 l/min (1.8 m³/h). Head up to 133 meters. 0.55 kW (0.75 HP) motor.
Variants:
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 9 July - Friday 10 July |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 9 July - Friday 10 July |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 9 July - Friday 10 July
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 9 July - Friday 10 July
×
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The 3SRm 1/31 submersible electric pump from the 3SR series by Pedrollo guarantees high performance with consequent economic savings.
The hydraulic components, coupled with a high-efficiency electric motor, make the electric pump extremely efficient in the 3-inch category.
Its construction allows it to pump water with a sand content of up to 50 grams per cubic meter.
The 3SRm 1/31 can only be installed vertically up to 100 meters below water level.
Pedrollo created the electric pump with a mix of AISI 304 and 316L stainless steel to provide resistance and solidity.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 4.5
- Capacitor
- 16 µF 450 VL
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- Delrin
- Number of impellers
- 31
- Crankshaft
- AISI 304 stainless steel
- Pump shaft
- AISI 304 stainless steel
- Check valve
- Yes
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 30
- Min. head (m.)
- 35
- Max. head (m.)
- 133
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 113.4
- External diameter (cm)
- 7.6
- Weight (Kg)
- 11
- Warranty (years)
- 2
3SRm models and performance 1
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3SR construction data
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | POM acetal resin |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
