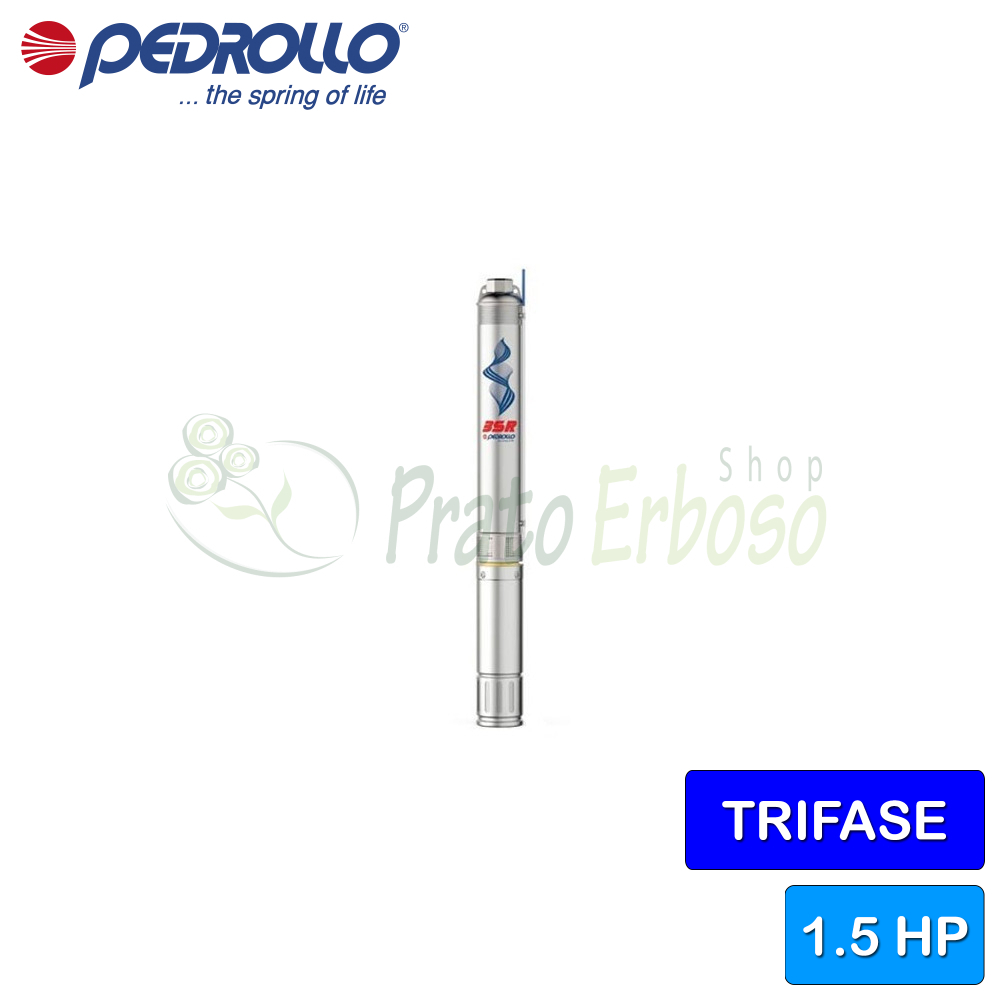

3SR 1/62 - 1.5 HP three-phase submersible electric pump
Flow rate up to 30 l/min (1.8 m³/h). Head up to 267 meters. 1.1 kW (1.5 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description

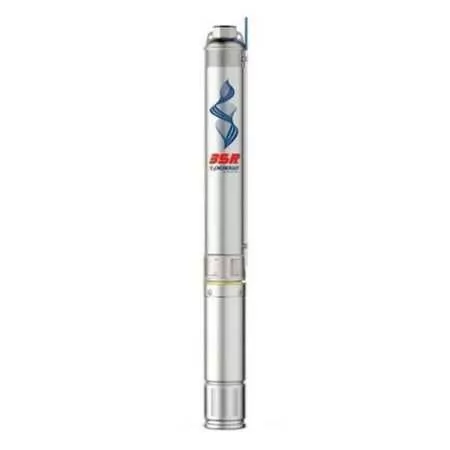

The 3SR 1/62 submersible electric pump from the 3SR series by Pedrollo is compact and lightweight.
Easy to install in wells 3 inches or larger. For vertical installation only, up to 100 meters below the water level.
The hydraulic components, coupled with a high-performance electric motor, make it extremely efficient in the 3-inch category.
The 3SR 1/62 can be used for household supply, irrigation and water systems for small communities.
The electric pump is made of stainless steel which makes it extremely solid and resistant even to the most extreme conditions.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Current consumption at 400V (A)
- 3.5
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- Delrin
- Number of impellers
- 62
- Pump shaft
- AISI 304 stainless steel
- Check valve
- Yes
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 30
- Min. head (m.)
- 70
- Max. head (m.)
- 267
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 18.18
- External diameter (cm)
- 7.6
- Weight (Kg)
- 14.9
- Warranty (years)
- 2
3SR models and performance 1
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3SR construction data
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | POM acetal resin |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
