3SRm 1/62 - 1.5 HP single-phase submersible electric pump
Flow rate up to 30 l/min (1.8 m³/h). Head up to 267 meters. 1.1 kW (1.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 9 July - Friday 10 July |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 9 July - Friday 10 July |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 9 July - Friday 10 July
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 9 July - Friday 10 July

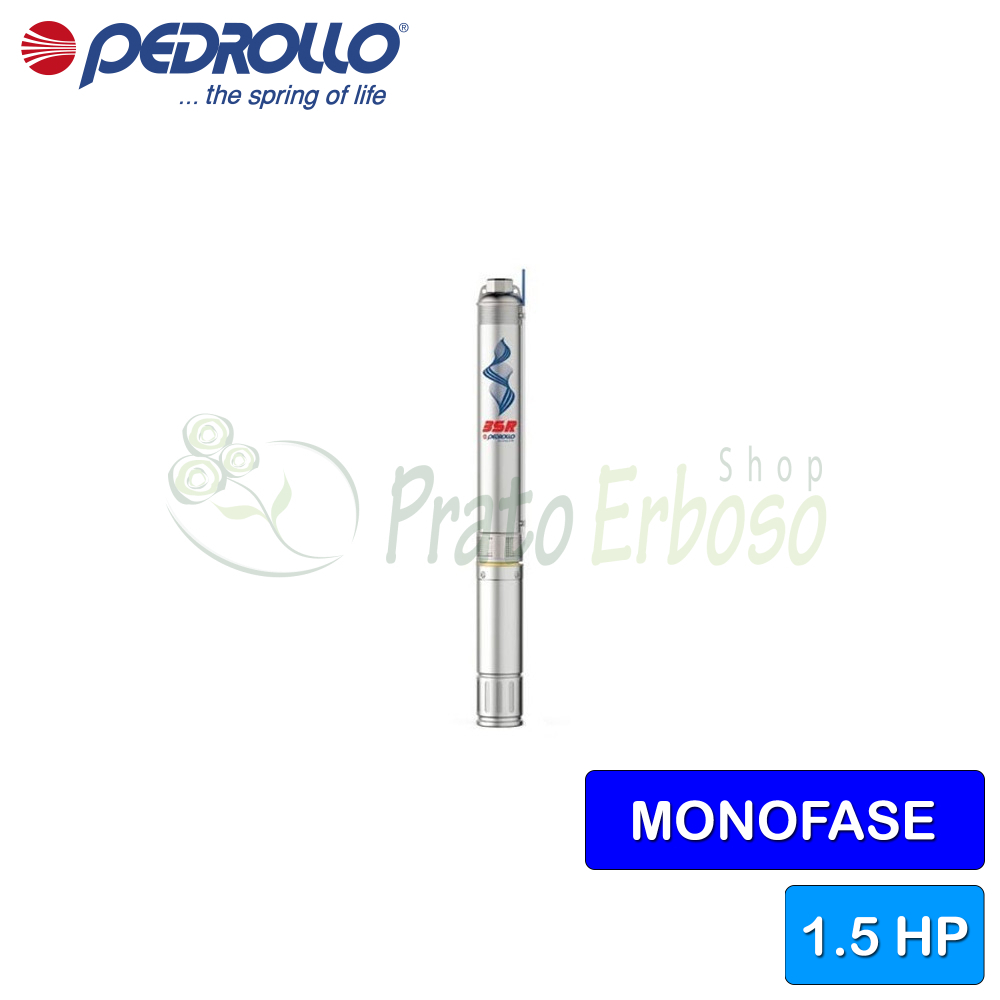

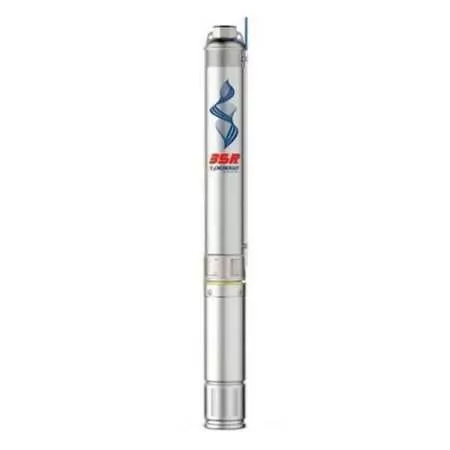

The 3SRm 1/62 submersible electric pump from the 3SR series by Pedrollo is compact and lightweight.
Easy to install in wells 3 inches or larger. For vertical installation only, up to 100 meters below the water level.
The hydraulic components, coupled with a high-performance electric motor, make it extremely efficient in the 3-inch category.
The 3SRm 1/62 can be used for domestic supply, irrigation and water systems for small communities.
The electric pump is made of stainless steel which makes it extremely solid and resistant even to the most extreme conditions.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Capacitor
- 30
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- Delrin
- Number of impellers
- 62
- Pump shaft
- AISI 304 stainless steel
- Check valve
- Yes
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 30
- Min. head (m.)
- 70
- Max. head (m.)
- 267
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 18.58
- External diameter (cm)
- 7.6
- Weight (Kg)
- 16
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | POM acetal resin |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 3SRm 1/62 - 1.5 HP single-phase submersible electric pumpThis product Flow rate up to 30 l/min (1.8 m³/h). Head up to 267 meters. 1.1 kW (1.5 HP) motor. |  4BLOCKm 2/18 (20m) - 1.5 HP single-phase submersible electric pump Flow rate up to 60 l/min (3.6 m³/h). Head up to 140 m. 1.1 kW (1.5 HP) motor. 20 m cable. |  NKm 2/5 (10m) - 1.5 HP single-phase submersible electric pump Flow rate up to 80 l/min (4.8 m³/h). Head up to 80 m. 1.1 kW (1.5 HP) motor. 10 m cable. |  UPm 2/5 (10m) - 1.5 HP single-phase submersible electric pump Flow rate up to 80 l/min (4.8 m³/h). Head up to 80 m. 1.1 kW (1.5 HP) motor. 10 m cable. | |
|---|---|---|---|---|
| Price | Price €1,201.70 -42% €696.99 | Price €786.90 -42% €456.40 | Price €712.48 -42% €413.24 | Price €695.40 -42% €403.33 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 1.1 | Power (Kw) 1.1 | Power (Kw) 1.1 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 1.5 | Power (HP) 1.5 | Power (HP) 1.5 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) 8 | Absorption at 230V (A) 7.6 | Absorption at 230V (A) 7.6 |
| Capacitor | Capacitor 30 | Capacitor -- | Capacitor 25 µF 450 VL | Capacitor 25 µF 450 VL |
| Delivery mouth | Delivery mouth 1" | Delivery mouth -- | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 |
| Pump body | Pump body AISI 304 stainless steel | Pump body -- | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller Delrin | Impeller -- | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 62 | Number of impellers -- | Number of impellers 5 | Number of impellers 5 |
| Crankshaft | Crankshaft -- | Crankshaft -- | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Pump shaft | Pump shaft AISI 304 stainless steel | Pump shaft -- | Pump shaft -- | Pump shaft -- |
| Check valve | Check valve Yes | Check valve -- | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection -- | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 30 | Max. flow rate (l./min.) 60 | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 80 |
| Min. head (m.) | Min. head (m.) 70 | Min. head (m.) 53.5 | Min. head (m.) 40 | Min. head (m.) 40 |
| Max. head (m.) | Max. head (m.) 267 | Max. head (m.) 140 | Max. head (m.) 80 | Max. head (m.) 80 |
| Cable length (m.) | Cable length (m.) -- | Cable length (m.) 20 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs -- | Jobs irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 18.58 | Height (cm) 90.7 | Height (cm) 57 | Height (cm) 50.9 |
| External diameter (cm) | External diameter (cm) 7.6 | External diameter (cm) 10 | External diameter (cm) 13.5 | External diameter (cm) 15 |
| Weight (Kg) | Weight (Kg) 16 | Weight (Kg) 17.2 | Weight (Kg) 15.6 | Weight (Kg) 16.4 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) -- | Warranty (years) 2 | Warranty (years) 2 |
