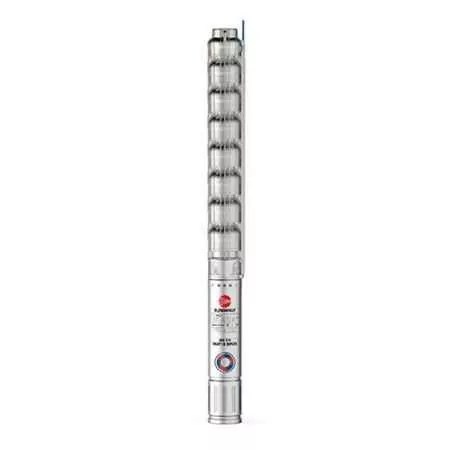

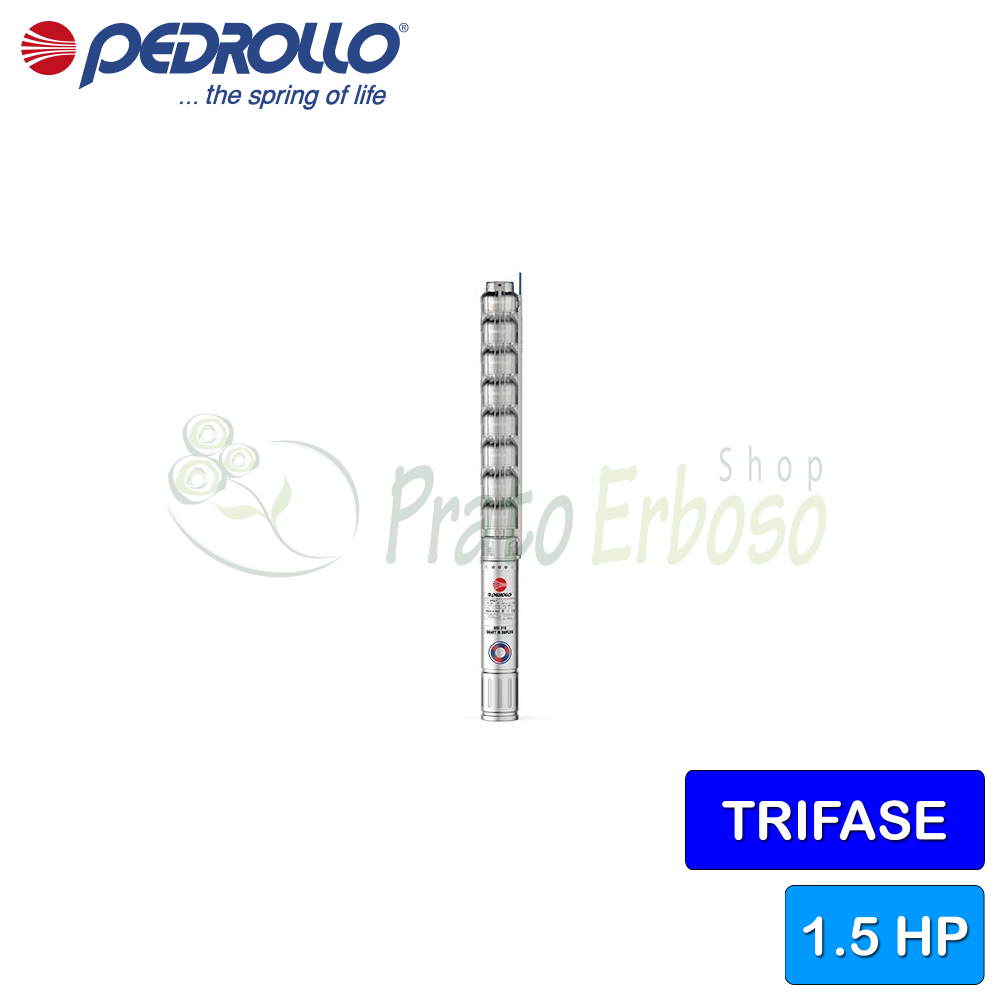

4HR 14/6 - PD - 1.5 HP three-phase submersible electric pump
Flow rate up to 340 l/min (20.4 m³/h). Head up to 31 meters. 1.1 Kw (1.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
Submersible electric pump with pump body in micro-cast AISI 304 stainless steel and rewindable PEDROLLO motor.
The PEDROLLO 4HR 14/6 - PD is recommended for pumping clean water with a sand content not exceeding 100 grams per cubic metre.
It has a flow rate that varies from 50 to 340 litres per minute with a head from 7.5 to 31 metres.
Due to its high performance and reliability, it is suitable for domestic, civil and industrial use, for the distribution of water in combination with pressure tanks, for irrigation of vegetable gardens and gardens, for washing systems, for pressure raising or for fire-fighting systems.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Delivery mouth
- 2"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 6
- Pump shaft
- AISI 304 stainless steel
- Check valve
- Yes
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 340
- Min. head (m.)
- 7.5
- Max. head (m.)
- 31
- Cable length (m)
- 2
- Jobs
- water supply, pressurization systems, irrigation, fire prevention systems
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 95.5
- External diameter (cm)
- 10
- Weight (Kg)
- 20.2
- Warranty (years)
- 2
4HR 14 models and performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

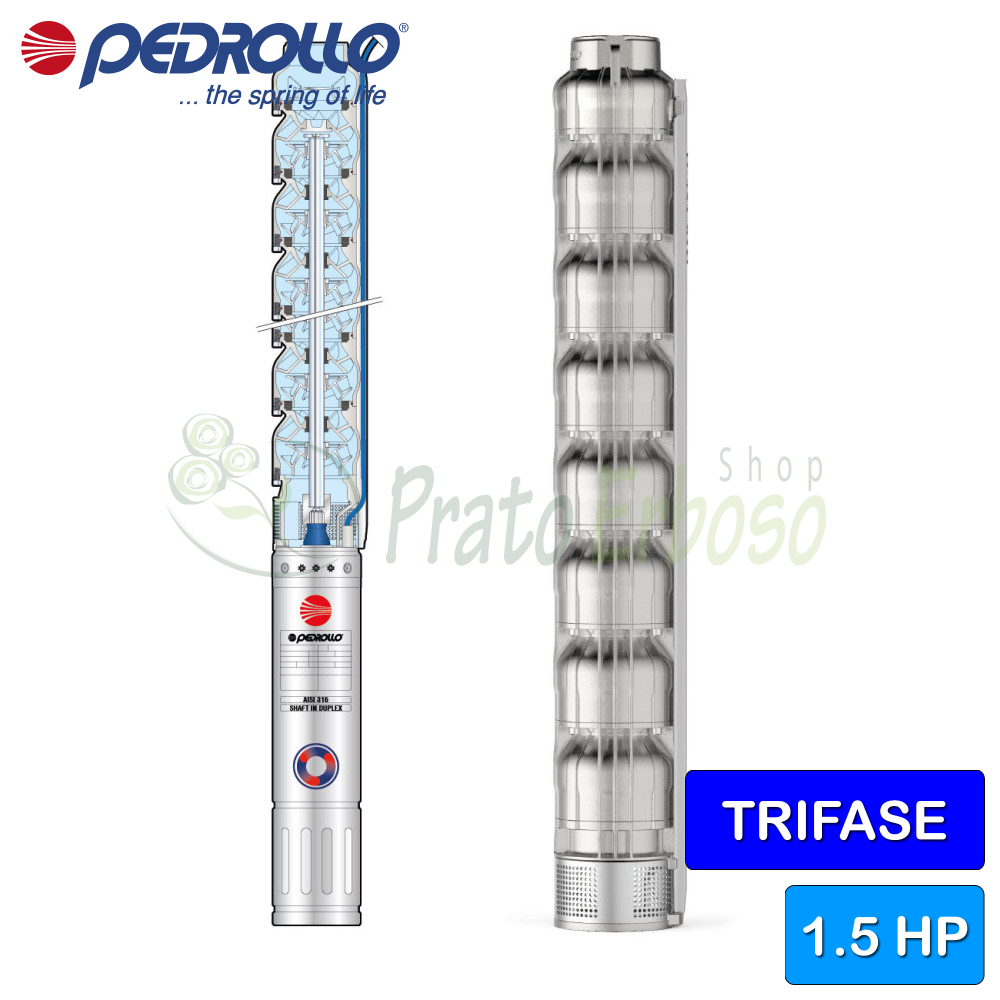

Construction data of the 4HR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Stainless steel EN 1.4301 (AISI 304) |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | Special elastomer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 4HR 14/6 - PD - 1.5 HP three-phase submersible electric pumpThis product Flow rate up to 340 l/min (20.4 m³/h). Head up to 31 meters. 1.1 Kw (1.5 HP) motor. |  4HR 14/8 - PD - 2 HP three-phase submersible electric pumpFlow rate up to 340 l/min (20.4 m³/h). Head up to 41 meters. 1.5 Kw (2 HP) motor. |  4HR 14/12 - PD - 3 HP three-phase submersible electric pumpFlow rate up to 340 l/min (20.4 m³/h). Head up to 62 meters. 2.2 Kw (3 HP) motor. |  4HR 14/16 - PD - 4 HP three-phase submersible pumpFlow rate up to 340 l / min (20.4 m³ / h). Head up to 82 meters. 3 Kw (4 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 1.5 | Power (Kw) 2.2 | Power (Kw) -- |
| Power (HP) | Power (HP) 1.5 | Power (HP) 2 | Power (HP) 3 | Power (HP) 4 |
| Delivery mouth | Delivery mouth 2" | Delivery mouth 2" | Delivery mouth 2" | Delivery mouth 2" |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 6 | Number of impellers 8 | Number of impellers 12 | Number of impellers 16 |
| Pump shaft | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel |
| Check valve | Check valve Yes | Check valve Yes | Check valve Yes | Check valve -- |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) 50 | Min. flow rate (l./min.) 50 | Min. flow rate (l./min.) 50 | Min. flow rate (l./min.) 50 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 340 | Max. flow rate (l./min.) 340 | Max. flow rate (l./min.) 340 | Max. flow rate (l./min.) 340 |
| Min. head (m.) | Min. head (m.) 7.5 | Min. head (m.) 10 | Min. head (m.) 15 | Min. head (m.) 20 |
| Max. head (m.) | Max. head (m.) 31 | Max. head (m.) 41 | Max. head (m.) 62 | Max. head (m.) 82 |
| Cable length (m) | Cable length (m) 2 | Cable length (m) 2 | Cable length (m) 2 | Cable length (m) 3.6 |
| Jobs | Jobs water supply, pressurization systems, irrigation, fire prevention systems | Jobs water supply, pressurization systems, irrigation, fire prevention systems | Jobs water supply, pressurization systems, irrigation, fire prevention systems | Jobs water supply, pressurization systems, irrigation, fire prevention systems |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C |
| Height (cm) | Height (cm) 95.5 | Height (cm) 11.26 | Height (cm) 14.59 | Height (cm) 17.64 |
| External diameter (cm) | External diameter (cm) 10 | External diameter (cm) 10 | External diameter (cm) 10 | External diameter (cm) 10 |
| Weight (Kg) | Weight (Kg) 20.2 | Weight (Kg) 23.6 | Weight (Kg) 30.4 | Weight (Kg) 37.2 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
