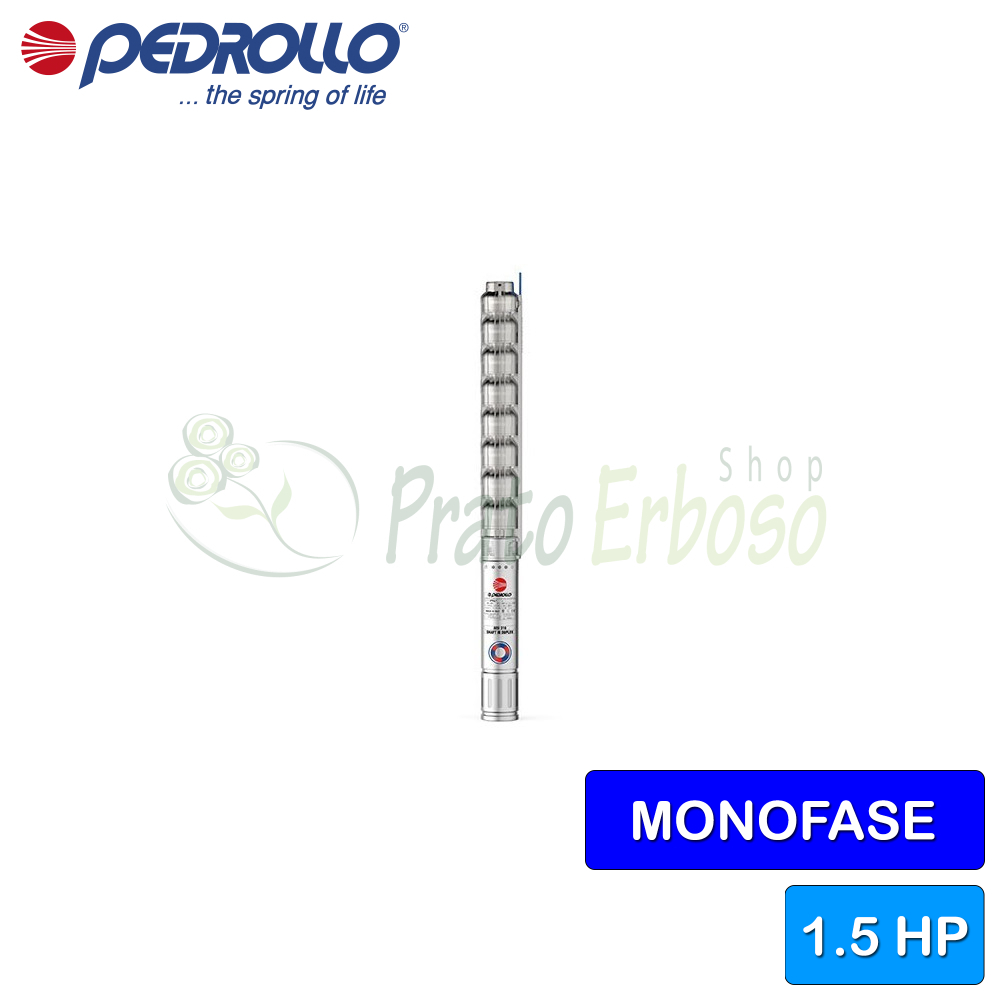

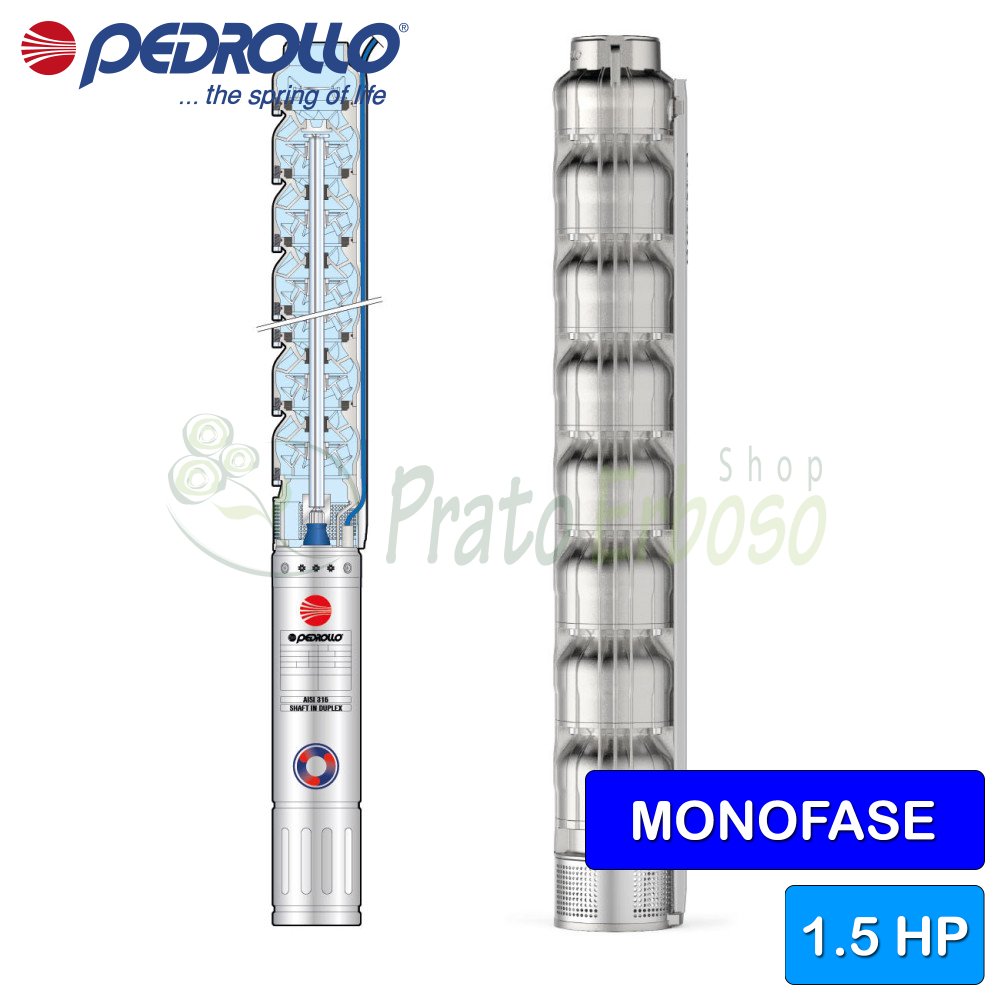

4HRm 18/4 - PS - 1.5 HP single-phase submersible electric pump
Flow rate up to 420 l/min (25.2 m³/h). Head up to 23.4 meters. 1.1 kW (1.5 HP) motor.
The 4HRm 18/4 - PS submersible electric pump from the 4HR series by Pedrollo is characterised by high mechanical resistance.
Its resistance to sand and corrosion makes it ideal for installations in coastal areas and in the presence of brackish water.
It can pump clean water with sand content not exceeding 100 grams per cubic meter of sand.
Made entirely of micro-cast stainless steel of considerable thickness, the 4HRm 18/4 - PS is recommended when a high-quality product that guarantees a long operating life is required.
It can be installed up to 200 meters below water level both horizontally and vertically.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Delivery mouth
- 2"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 30
- Pump shaft
- AISI 304 stainless steel
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 420
- Min. head (m.)
- 5
- Max. head (m.)
- 23.4
- Cable length (m.)
- 3.6
- Jobs
- water supply, pressurization systems, irrigation, fire prevention systems
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 71
- External diameter (cm)
- 10
- Weight (Kg)
- 17.3
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Stainless steel EN 1.4301 (AISI 304) |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | Special elastomer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
-
