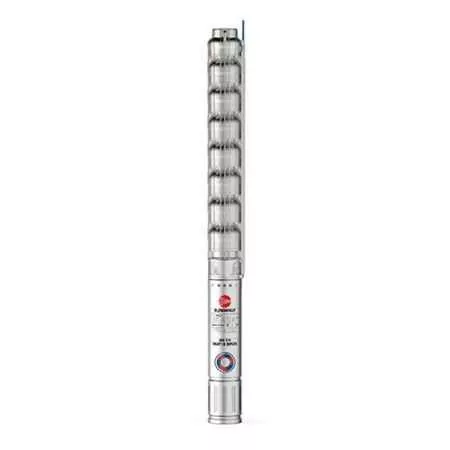

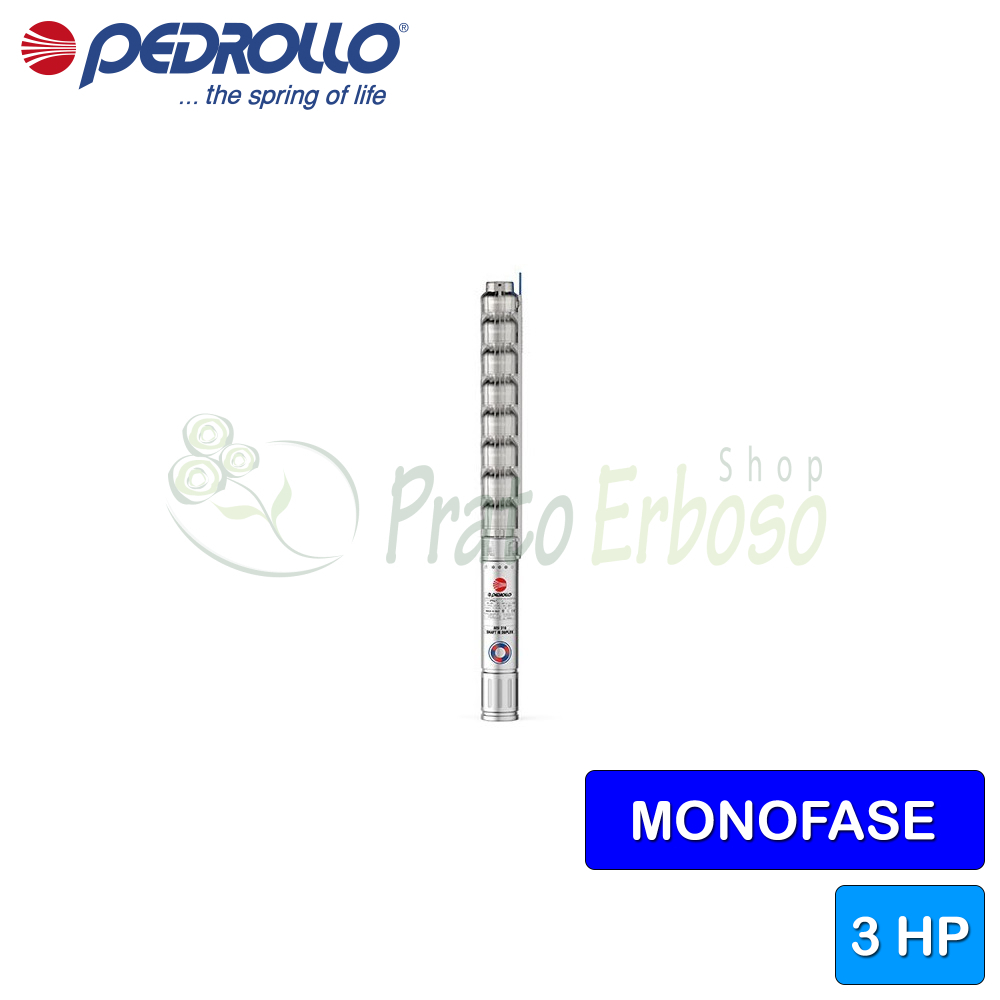

4HRm 18/9 - PS - 3 HP single-phase submersible electric pump
Flow rate up to 420 l/min (25.2 m³/h). Head up to 52.5 metres. 2.2 kW (3 HP) motor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Reinforced packaging to reduce transport damage.
We supply all spare parts on this product.
Description
The 4HRm 18/9 - PS submersible electric pump from the 4HR series by Pedrollo guarantees a long operating life.
Recommended for agricultural, civil and industrial installations.
Suitable for water distribution in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
The engine of the 4HRm 18/9 - PS is encapsulated in a water bath.
It can be installed up to 200 meters below water level both horizontally and vertically.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Delivery mouth
- 2"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 30
- Pump shaft
- AISI 304 stainless steel
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 420
- Min. head (m.)
- 11
- Max. head (m.)
- 52.5
- Cable length (m.)
- 3.6
- Jobs
- water supply, pressurization systems, irrigation, fire prevention systems
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 115.5
- External diameter (cm)
- 10
- Weight (Kg)
- 28.2
- Warranty (years)
- 2
Models and performances 4HRm 18
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

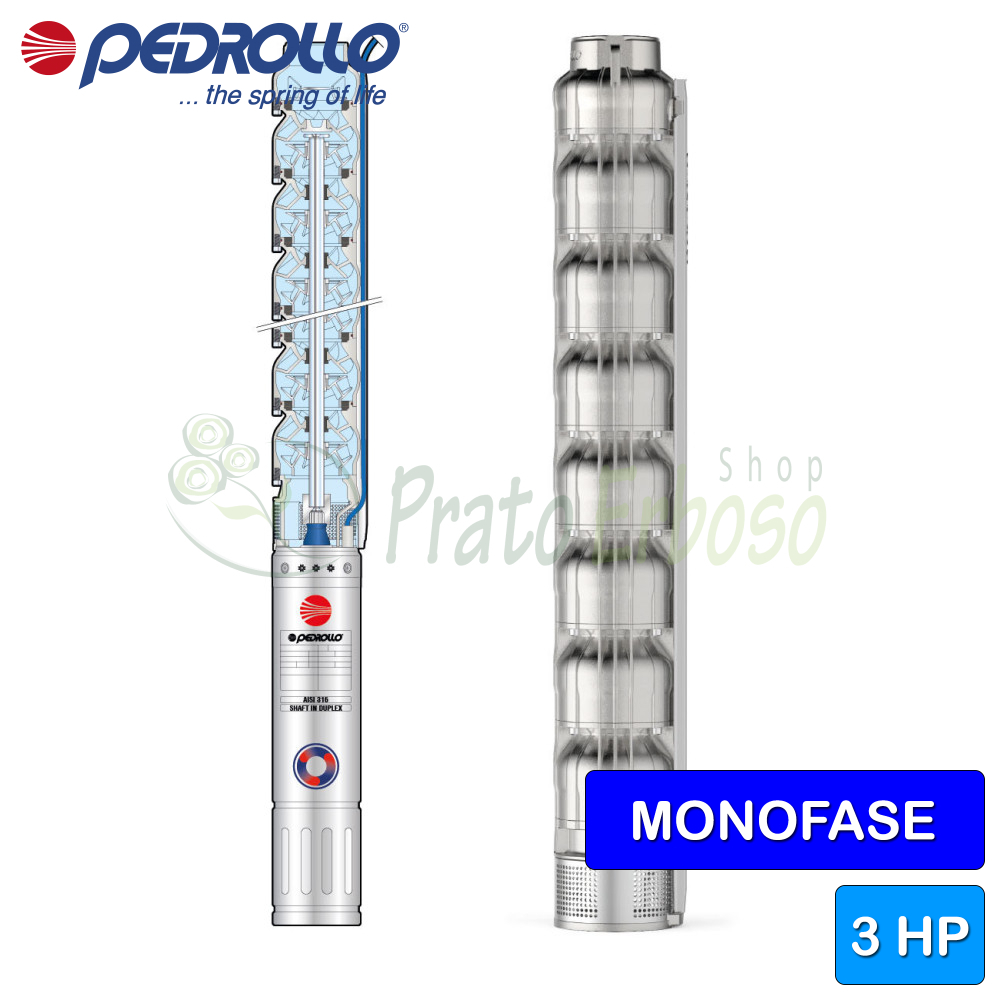

Construction data of the 4HR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Stainless steel EN 1.4301 (AISI 304) |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | Special elastomer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
