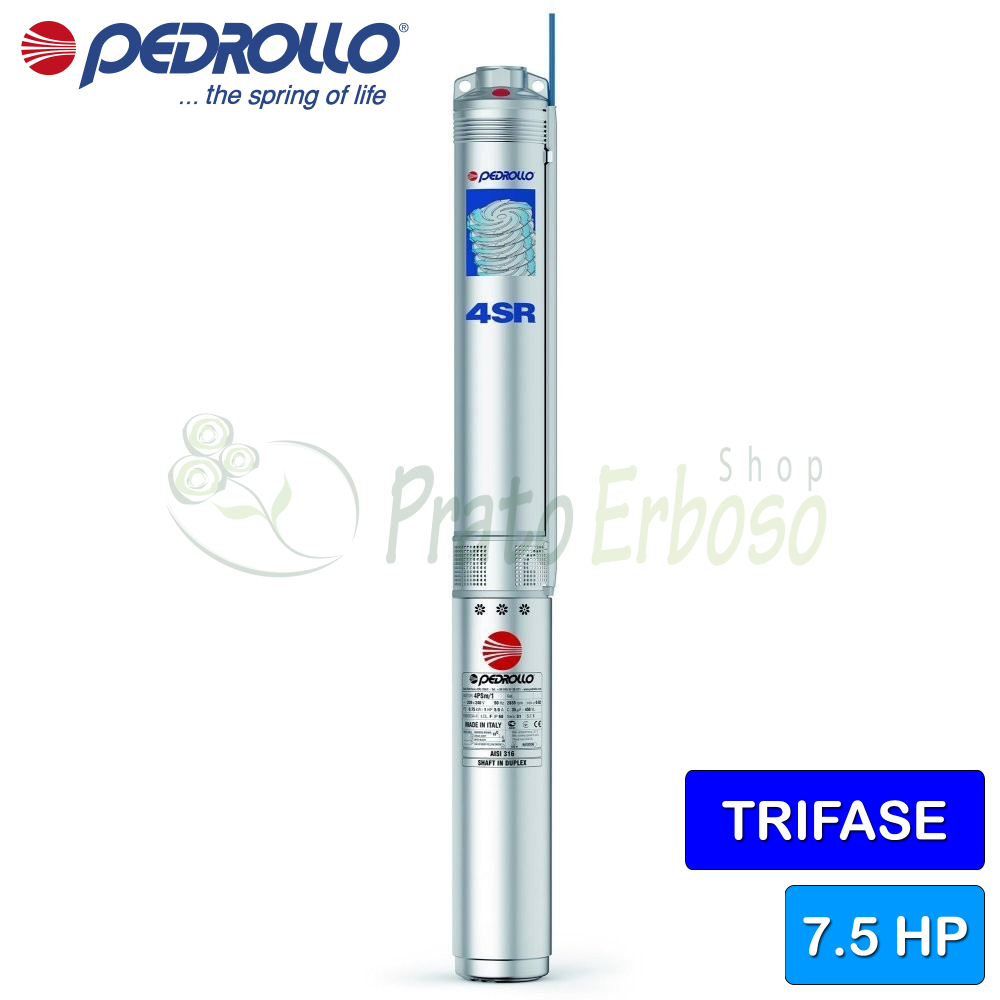

4SR 10/32 N-PS - 7.5 HP three-phase submersible electric pump

Name: 4SR 10/32 N-PS - 7.5 HP three-phase submersible electric pump
Brand: Pedrollo
SKU: 4SR 10/32 N-PS
Price: 1264.84 EUR
Availability: InStock

Flow rate up to 250 l/min (15 m³/h). Head up to 202 meters. 5.5 kW (7.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The 4SR 10/32 N-PS submersible electric pump from the 4SR series by Pedrollo is recommended for domestic, civil and agricultural installations.

Equipped with an innovative inductor that guarantees a high priming capacity for operation in wells with the presence of gas or air mixed in the water.

It can pump clean water with a maximum sand content of 150 grams per cubic meter.

The 4SR 10/32 N-PS delivers exceptional performance and efficiency combined with premium construction.

It also offers excellent resistance to wear, caused by the presence of sand, and to corrosion.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 5.5
Power (HP): 7.5
Current consumption at 400V (A): 12.4
Delivery mouth: 2"
Pump body: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 32
Pump shaft: AISI 304 stainless steel
Check valve: Yes
Degree of protection: IP 68
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 250
Min. head (m.): 38
Max. head (m.): 202
Cable length (m.): 3.6
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): +35°C
Height (cm): 246.9
External diameter (cm): 9.8
Weight (Kg): 44

Attachments

4SR N Technical Data Sheet

Performance, construction characteristics and operating curves of Pedrollo 4SR N series pumps with PD rewindable and PS encapsulated motors.

Download (2.91MB)

Models and performances 4SR 10-N

GUY

three-phase

4SR 10/5-N

4SR 10/7-N

4SR 10/9-N

4SR 10/13-N

4SR 10/18-N

4SR 10/24-N

4SR 10/32-N

4SR 10/43-N

POWER
KW	HP
0.75	1
1.1	1.5
1.5	2
2.2	3
3	4
4	5.5
5.5	7.5
7.5	10

IMPELLERS
number
5
7
9
13
18
24
32
43

PERFORMANCE
Q litres/min	H meters
50 ÷ 250	31.5 ÷ 6
50 ÷ 250	44 ÷ 8.5
50 ÷ 250	56.5÷ 10.5
50 ÷ 250	82 ÷ 15.5
50 ÷ 250	113 ÷ 21
50 ÷ 250	151 ÷ 28.5
50 ÷ 250	202 ÷ 38
50 ÷ 250	230 ÷ 48

MOUTH
DN
2"

Q	m³/hour	0	3.0	6.0	7.5	9.0	10.5	12.0	13.5	15
Q	l/min	0	50	100	125	150	175	200	225	250
H	meters	31.5	29.5	26.2	24	21.4	18.3	14.7	10.6	6
		44	41.5	36.5	33.5	30	25.6	20.6	14.8	8.5
		56.5	53	47	43	38.5	33	26.5	19.1	10.5
		82	77	68	62.5	55.5	47.5	38	27.5	15.5
		113	106	94	86	77	66	53	38	21
		151	141	126	115	103	88	71	51	28.5
		202	189	168	154	137	117	94	68	38
		271	254	226	206	184	157	126	91	51

Construction data of the 4SR-N series

Bearings

Pump bearing - fixed part	Anti-friction polymer
Pump bearing - rotating part	Sintered AISI 316 steel with ceramic coating

Tree holding

Materials

1.3 - Delivery body	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4301 (AISI 304)
4.2 - Towing joint	Stainless steel EN 1.4404 (AISI 316L)
5.0 - Stadium box	Stainless steel EN 1.4301 (AISI 304)
5.1 - Diffuser	Reinforced technopolymer
7.0 - Lantern	Stainless steel EN 1.4301 (AISI 304)
7.1 - Check Valve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)
