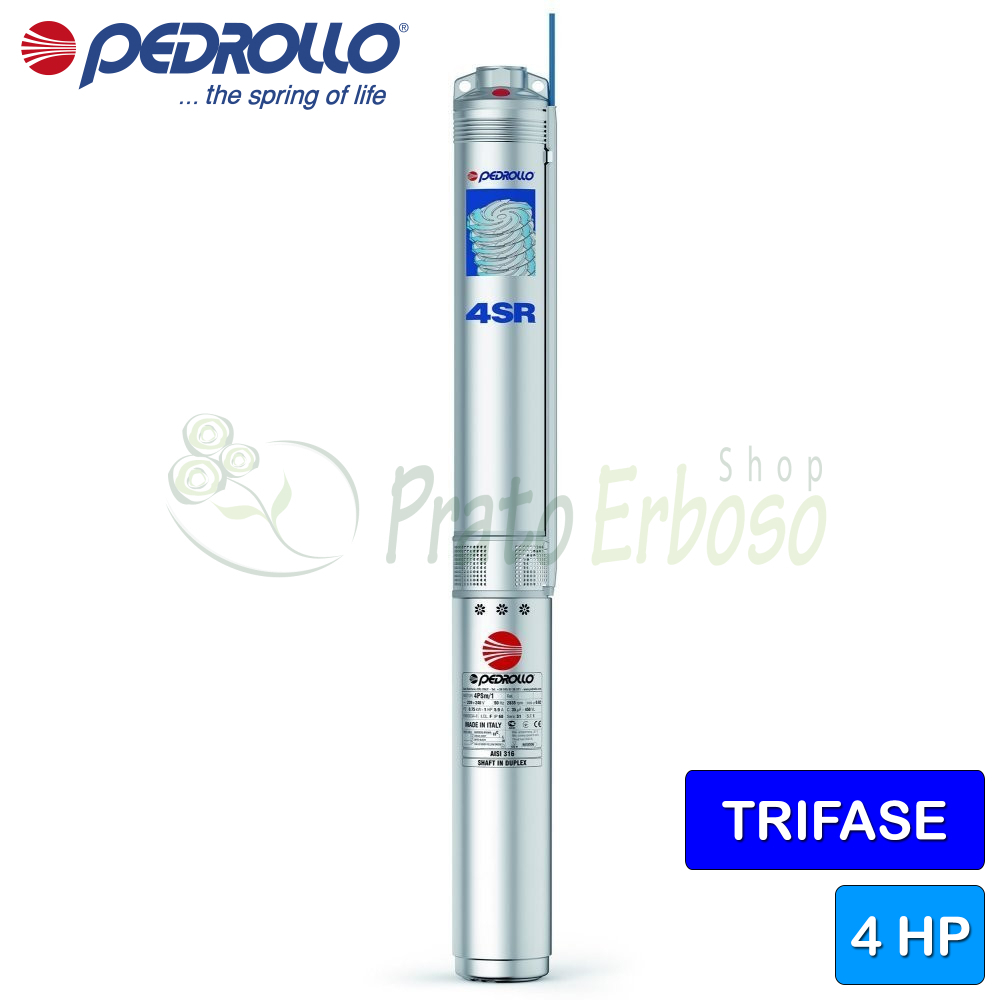

4SR 12/18 N-PS - 4 HP three-phase submersible electric pump

Name: 4SR 12/18 N-PS - 4 HP three-phase submersible electric pump
Brand: Pedrollo
SKU: 4SR 12/18 N-PS
Price: 920.61 EUR
Availability: InStock

Flow rate up to 300 l/min (18 m³/h). Head up to 104 m. 3 kW (4 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The 4SR 12/18 N-PS submersible electric pump from the 4SR series by Pedrollo can pump clean water and chemically non-aggressive liquids for the components.

The hydraulic design ensures exceptional performance and efficiency combined with greater resistance than that found in other series.

It allows for considerable energy savings which also translates into water savings.

The 4SR 12/18 N-PS can be installed both horizontally and vertically up to 300 metres below water level.

Pedrollo has created a solid and robust product, thanks to the use of stainless steel, built to last over time.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 3
Power (HP): 4
Current consumption at 400V (A): 6.9
Capacitor: 12.5 µF 450 VL
Delivery mouth: 2"
Pump body: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 19
Pump shaft: AISI 304 stainless steel
Check valve: Yes
Degree of protection: IP 68
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 300
Min. head (m.): 21.5
Max. head (m.): 104
Cable length (m.): 3.6
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): +35°C
Height (cm): 178.6
External diameter (cm): 9.8
Weight (Kg): 28.5

Attachments

4SR N Technical Data Sheet

Performance, construction characteristics and operating curves of Pedrollo 4SR N series pumps with PD rewindable and PS encapsulated motors.

Download (2.91MB)

Models and performances 4SR 12-N

TYPE

three phase

4SR 12/5-N

4SR 12/7-N

4SR 12/9-N

4SR 12/13-N

4SR 12/18-N

4SR 12/24-N

4SR 12/32-N

4SR 12/43-N

POWER
KW	HP
0.75	1
1.1	1.5
1.5	2
2.2	3
3	4
4	5.5
5.5	7.5
7.5	10

IMPELLERS
number
5
7
9
13
18
24
32
43

PERFORMANCES
Q liters/min	H meters
50 ÷ 300	29 ÷ 6
50 ÷ 300	40.5 ÷ 8.5
50 ÷ 300	52÷11
50 ÷ 300	75 ÷ 15.5
50 ÷ 300	104 ÷ 21.5
50 ÷ 300	138 ÷ 29
50 ÷ 300	184 ÷ 38.5
50 ÷ 300	230 ÷ 48

MOUTH
DN
2"

Q	m³/hour	0	3	6	9	12	15	18
Q	l/min	0	50	100	150	200	250	300
H	meters	29	26	23.2	19.8	15.9	11.3	6
		40.5	36.5	32.5	27.5	22.2	15.8	8.5
		52	47	42	35.5	28.5	20.3	11
		75	68	60.5	51.5	41	29.5	15.5
		104	94	84	71	57	40.5	21.5
		138	126	112	95	76	54	29
		184	168	149	127	101	72	38.5
		230	210	186	159	127	90	48

Construction data of the 4SR-N series

Bearings

Pump bearing - fixed part	Anti-friction polymer
Pump bearing - rotating part	Sintered AISI 316 steel with ceramic coating

Tree holding

Materials

1.3 - Delivery body	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4301 (AISI 304)
4.2 - Towing joint	Stainless steel EN 1.4404 (AISI 316L)
5.0 - Stadium box	Stainless steel EN 1.4301 (AISI 304)
5.1 - Diffuser	Reinforced technopolymer
7.0 - Lantern	Stainless steel EN 1.4301 (AISI 304)
7.1 - Check Valve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)

Reviews (0) - Review moderation

Review the product
Product review processing policy

There are no reviews for this product yet.

Compare with Similar Products

	4SR 12/18 N-PS - 4 HP three-phase submersible electric pump This product Flow rate up to 300 l/min (18 m³/h). Head up to 104 m. 3 kW (4 HP) motor.	4SR 12/13 N-PS - 3 HP three-phase submersible electric pump Quick View Flow rate up to 300 l/min (18 m³/h). Head up to 75 m. 2.2 Kw (3 HP) motor.	4SR 12/24 N-PS - 5.5 HP three-phase submersible electric pump Quick View Flow rate up to 300 l/min (18 m³/h). Head up to 138 m. 4 kW (5.5 HP) motor.	4SR 12/32 N-PS - 7.5 HP three-phase submersible electric pump Quick View Flow rate up to 300 l/min (18 m³/h). Head up to 184 m. 5.5 kW (7.5 HP) motor.
Price	Price €1,673.84 -45% €920.61	Price €1,252.94 -45% €689.12	Price €2,025.20 -45% €1,113.86	Price €2,437.56 -45% €1,340.66
Motor connection	Motor connection THREE-PHASE	Motor connection THREE-PHASE	Motor connection THREE-PHASE	Motor connection THREE-PHASE
Power (Kw)	Power (Kw) 3	Power (Kw) 2.2	Power (Kw) 4	Power (Kw) 5.5
Power (HP)	Power (HP) 4	Power (HP) 3	Power (HP) 5.5	Power (HP) 7.5
Current consumption at 400V (A)	Current consumption at 400V (A) 6.9	Current consumption at 400V (A) 6.0	Current consumption at 400V (A) 9.6	Current consumption at 400V (A) 12.4
Capacitor	Capacitor 12.5 µF 450 VL	Capacitor --	Capacitor --	Capacitor --
Delivery mouth	Delivery mouth 2"	Delivery mouth 2"	Delivery mouth 2"	Delivery mouth 2"
Pump body	Pump body AISI 304 stainless steel	Pump body AISI 304 stainless steel	Pump body AISI 304 stainless steel	Pump body AISI 304 stainless steel
Impeller	Impeller Noryl	Impeller Noryl	Impeller Noryl	Impeller Noryl
Number of impellers	Number of impellers 19	Number of impellers 14	Number of impellers 25	Number of impellers 34
Pump shaft	Pump shaft AISI 304 stainless steel	Pump shaft AISI 304 stainless steel	Pump shaft AISI 304 stainless steel	Pump shaft AISI 304 stainless steel
Check valve	Check valve Yes	Check valve Yes	Check valve Yes	Check valve Yes
Degree of protection	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 50	Minimum flow rate (l./min.) 50	Minimum flow rate (l./min.) 50	Minimum flow rate (l./min.) 50
Max. flow rate (l./min.)	Max. flow rate (l./min.) 300	Max. flow rate (l./min.) 300	Max. flow rate (l./min.) 300	Max. flow rate (l./min.) 300
Min. head (m.)	Min. head (m.) 21.5	Min. head (m.) 15.5	Min. head (m.) 29	Min. head (m.) 38.5
Max. head (m.)	Max. head (m.) 104	Max. head (m.) 75	Max. head (m.) 138	Max. head (m.) 184
Cable length (m.)	Cable length (m.) 3.6	Cable length (m.) 2	Cable length (m.) 3.6	Cable length (m.) 3.6
Jobs	Jobs water supply, pressurization systems, irrigation	Jobs water supply, pressurization systems, irrigation	Jobs water supply, pressurization systems, irrigation	Jobs water supply, pressurization systems, irrigation
Max. liquid temperature (°C)	Max. liquid temperature (°C) +35°C	Max. liquid temperature (°C) +35°C	Max. liquid temperature (°C) +35°C	Max. liquid temperature (°C) +35°C
Height (cm)	Height (cm) 178.6	Height (cm) 134.1	Height (cm) 225.1	Height (cm) 284.2
External diameter (cm)	External diameter (cm) 9.8	External diameter (cm) 9.8	External diameter (cm) 9.8	External diameter (cm) 9.8
Weight (Kg)	Weight (Kg) 28.5	Weight (Kg) 22	Weight (Kg) 38	Weight (Kg) 46.5
