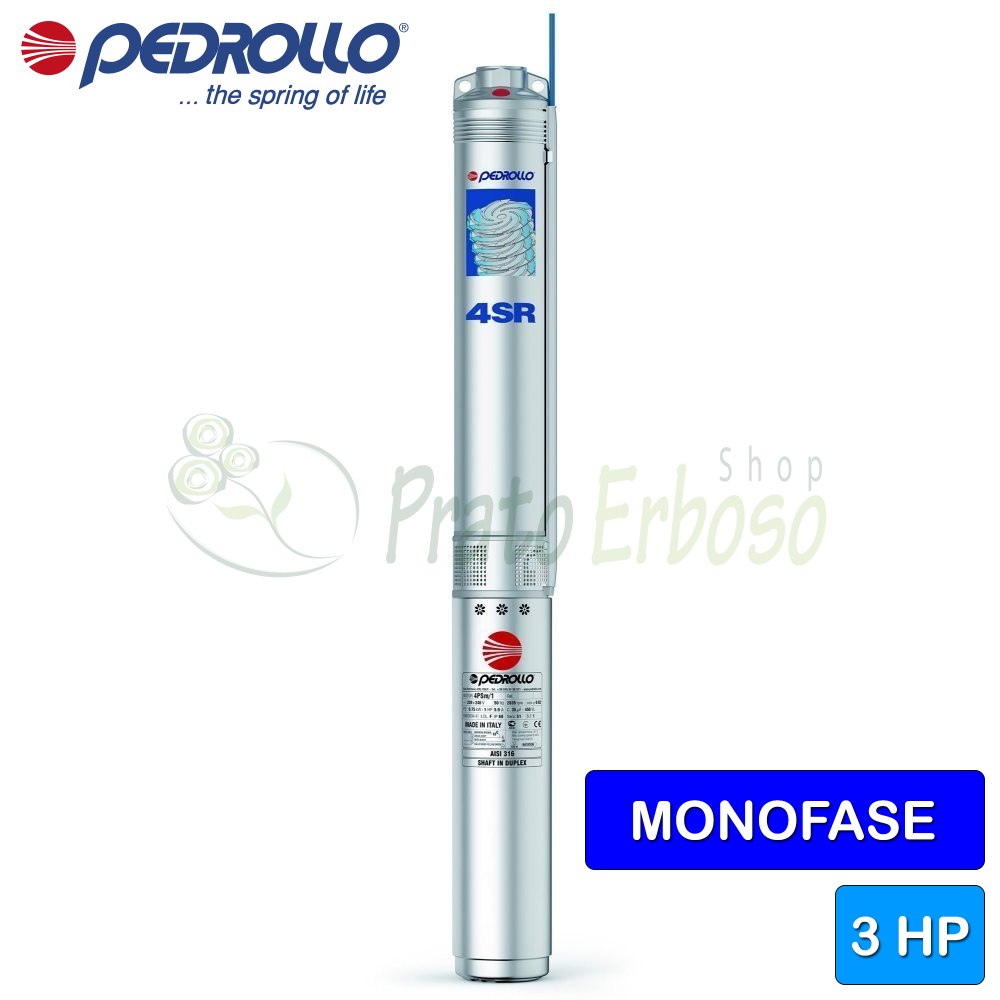

4SRm 12/13 N-PS - 3 HP single-phase submersible electric pump

Name: 4SRm 12/13 N-PS - 3 HP single-phase submersible electric pump
Brand: Pedrollo
SKU: 4SRm 12/13 N-PS
Price: 751.52 EUR
Availability: InStock

Flow rate up to 300 l/min (18 m³/h). Head up to 75 m. 2.2 Kw (3 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The 4SRm 12/13 N-PS submersible electric pump from the 4SR series by Pedrollo stands out for its high efficiency and reliability.

It is recommended for use in domestic, civil and agricultural installations, particularly for water distribution in conjunction with pressure tanks, for irrigation, for washing systems and for pressure boosting.

Thanks to a refined hydraulic design, it guarantees exceptional performance and efficiency and remarkable resistance to wear.

The 4SRm 12/13 N-PS is equipped with an innovative inductor that guarantees a high priming capacity for operation in wells with the presence of gas or air mixed in the water.

It can pump clean water with a maximum sand content of 150 grams per cubic meter.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 2.2
Power (HP): 3
Absorption at 230V (A): 17.0
Delivery mouth: 2"
Pump body: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 14
Crankshaft: Stainless steel EN 10088-3 1.4104
Pump shaft: AISI 304 stainless steel
Check valve: Yes
Degree of protection: IP 68
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 300
Min. head (m.): 15.5
Max. head (m.): 75
Cable length (m.): 2
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): +35°C
Height (cm): 139.1
External diameter (cm): 9.8
Weight (Kg): 23

Attachments

4SR N Technical Data Sheet

Performance, construction characteristics and operating curves of Pedrollo 4SR N series pumps with PD rewindable and PS encapsulated motors.

Download (2.91MB)

Models and performances 4SRm 12-N

TYPE

three phase

4SRm 12/5-N

4SRm 12/7-N

4SRm 12/9-N

4SRm 12/13-N

POWER
KW	HP
0.75	1
1.1	1.5
1.5	2
2.2	3

IMPELLERS

number

PERFORMANCES
Q liters/min	H meters
50 ÷ 300	29 ÷ 6
50 ÷ 300	40.5 ÷ 8.5
50 ÷ 300	52 ÷ 11
50 ÷ 300	75 ÷ 15.5

MOUTH
DN
2"

Q	m³/hour	0	3	6	9	12	15	18
Q	l/min	0	50	100	150	200	250	300
H	meters	29	26	23.2	19.8	15.9	11.3	6
		40.5	36.5	32.5	27.5	22.2	15.8	8.5
		52	47	42	35.5	28.5	20.3	11
		75	68	60.5	51.5	41	29.5	15.5
