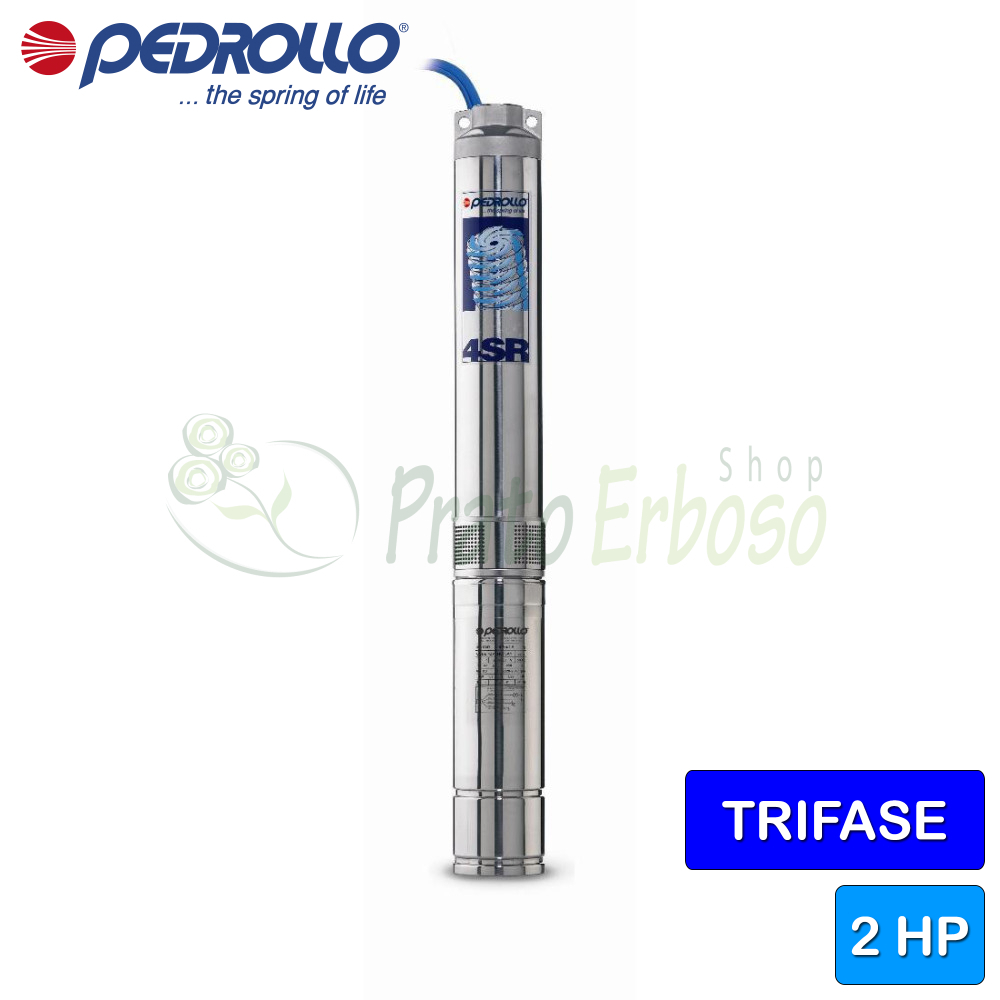

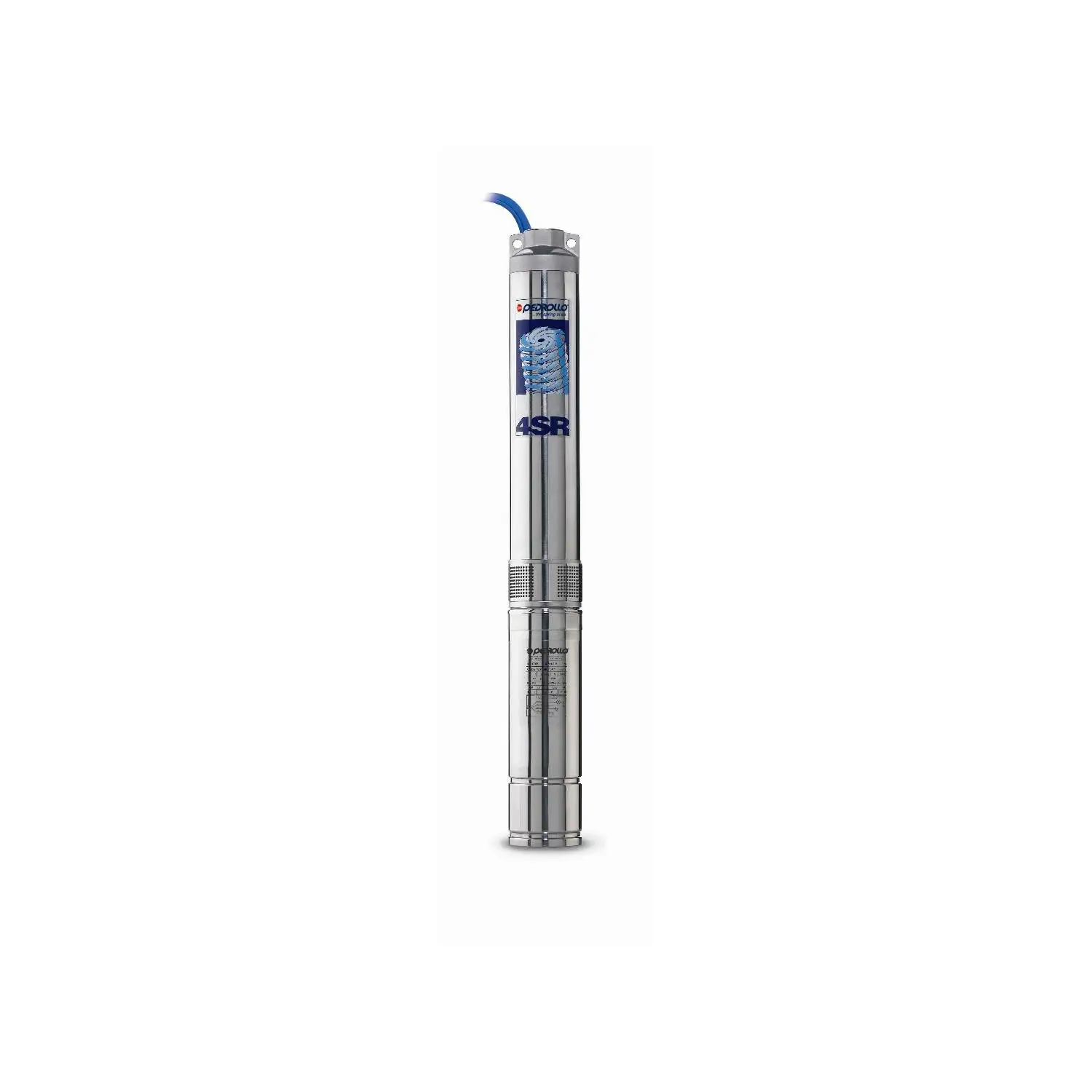

4SR 2/23 S-PD - 2 HP three-phase submersible electric pump
Flow rate up to 65 l/min (3.9 m³/h). Head up to 179 meters. 1.5 Kw (2 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo 4SR 2/23 S-PD electric pump is recommended for pumping clean water with a sand content not exceeding 200 grams per cubic metre.
It has a flow rate that varies from 10 to 65 litres per minute with a head from 49 to 179 metres.
Due to its high performance and reliability, it is suitable for domestic, civil and industrial use, for the distribution of water in combination with pressure tanks, for irrigation of vegetable gardens and gardens, for washing systems, for pressure raising or for fire-fighting systems.
Submersible electric pump with rewindable Pedrollo motor.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Delivery port
- 1 "1/4
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 10
- Max flow (l./min.)
- 65
- Min head (m.)
- 49
- Max head (m.)
- 172
- Cable length (m)
- 2
- Employments
- irrigation
- Weight kg)
- 19
- Guarantee
- 2
4SR 2-S Models and Performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 4SR-S series
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4404 (AISI 316L) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 4SR 2/23 S-PD - 2 HP three-phase submersible electric pumpThis product Flow rate up to 65 l/min (3.9 m³/h). Head up to 179 meters. 1.5 Kw (2 HP) motor. |  4SR 2/17 S-PD - 1.5 HP three-phase submersible electric pumpFlow rate up to 65 l/min (3.9 m³/h). Head up to 133 meters. 1.1 Kw (1.5 HP) motor. |  4SR 2/33 S-PD - 3 HP three-phase submersible electric pumpFlow rate up to 65 l/min (3.9 m³/h). Head up to 257 meters. 2.2 Kw (3 HP) motor. |  DCm 20 - Single-phase cast iron electric pump for clear water, 1 HPFlow rate up to 250 l/min (15 m³/h). Head up to 20 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection SINGLE PHASE |
| Power (Kw) | Power (Kw) 1.5 | Power (Kw) 1.1 | Power (Kw) 2.2 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 2 | Power (HP) 1.5 | Power (HP) 3 | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) -- | Absorption at 230V (A) -- | Absorption at 230V (A) 5.7 |
| Capacitor | Capacitor -- | Capacitor -- | Capacitor -- | Capacitor 20 µF450 VL |
| Delivery port | Delivery port 1 "1/4 | Delivery port 1 "1/4 | Delivery port 1 "1/4 | Delivery port 1 "1/2 |
| Body Pump | Body Pump -- | Body Pump -- | Body Pump -- | Body Pump Cast iron |
| Impeller | Impeller -- | Impeller -- | Impeller -- | Impeller Technopolymer |
| Number of impellers | Number of impellers -- | Number of impellers -- | Number of impellers -- | Number of impellers 1 |
| Motor shaft | Motor shaft -- | Motor shaft -- | Motor shaft -- | Motor shaft AISI 431 stainless steel |
| Check valve | Check valve -- | Check valve -- | Check valve -- | Check valve no |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) 10 | Flow rate min. (l./min.) 10 | Flow rate min. (l./min.) 10 | Flow rate min. (l./min.) 25 |
| Max flow (l./min.) | Max flow (l./min.) 65 | Max flow (l./min.) 65 | Max flow (l./min.) 65 | Max flow (l./min.) 250 |
| Min head (m.) | Min head (m.) 49 | Min head (m.) 36 | Min head (m.) 71 | Min head (m.) 8 |
| Max head (m.) | Max head (m.) 172 | Max head (m.) 127 | Max head (m.) 246 | Max head (m.) 20 |
| Cable length (m) | Cable length (m) 2 | Cable length (m) 2 | Cable length (m) 2 | Cable length (m) 10 |
| Employments | Employments irrigation | Employments irrigation | Employments irrigation | Employments drainage, drying up, slightly dirty waters |
| Liquid temperature max. (° C) | Liquid temperature max. (° C) -- | Liquid temperature max. (° C) -- | Liquid temperature max. (° C) -- | Liquid temperature max. (° C) 40 |
| Height (cm) | Height (cm) -- | Height (cm) -- | Height (cm) -- | Height (cm) 32.2 |
| Weight kg) | Weight kg) 19 | Weight kg) 16 | Weight kg) 25 | Weight kg) 17.2 |
| Guarantee | Guarantee 2 | Guarantee 2 | Guarantee 2 | Guarantee 2 |
