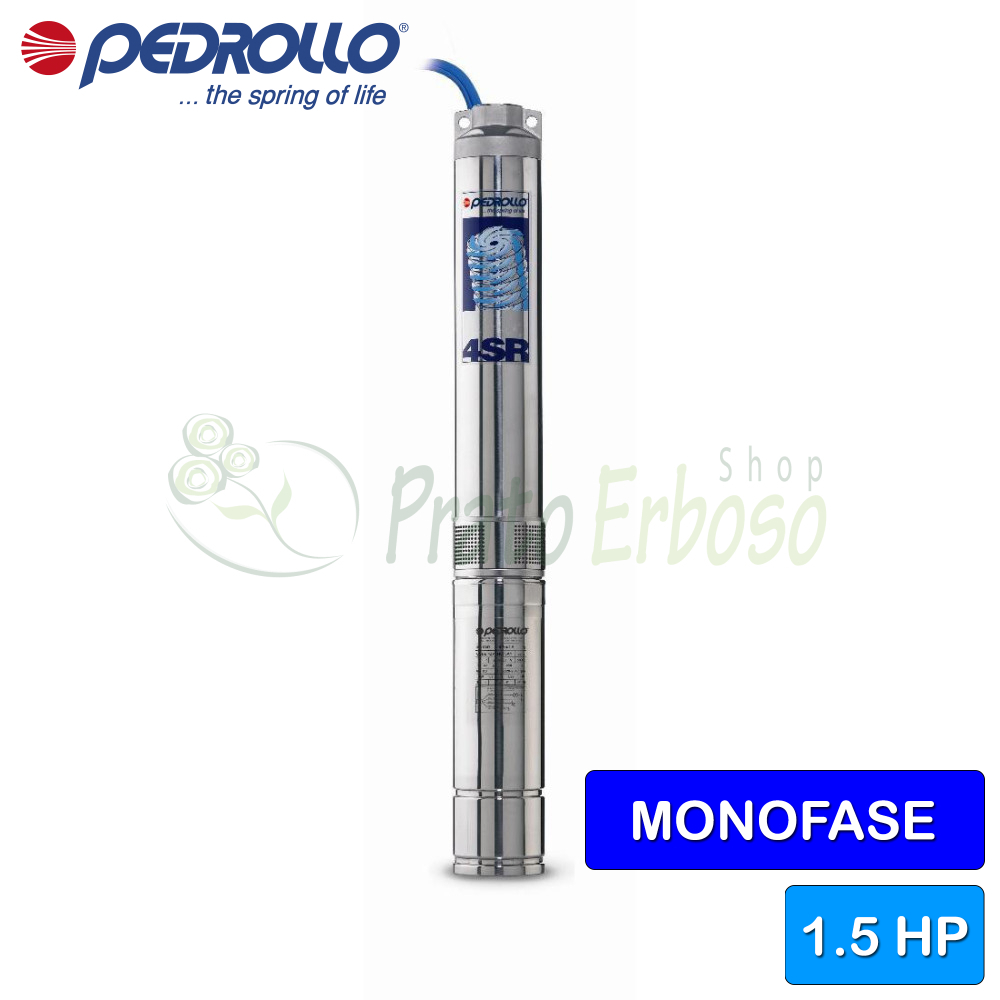

4SRm 4/12 S-PD - 1.5 HP single-phase submersible electric pump

Name: 4SRm 4/12 S-PD - 1.5 HP single-phase submersible electric pump
Brand: Pedrollo
SKU: 4SRm 4/12 S-PD
Price: 374.32 EUR
Availability: InStock

Flow rate up to 100 l/min (6 m³/h). Head up to 96 meters. 1.1 Kw (1.5 HP) motor.

Variants:

Make a purchase proposal

Reinforced packaging to reduce transport damage.

Telephone support for information before purchasing.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo 4SRm 4/12 S-PD electric pump is recommended for pumping clean water with a sand content not exceeding 200 grams per cubic metre.

It has a flow rate that varies from 20 to 100 litres per minute with a head from 33.5 to 96 metres.

Due to its high performance and reliability, it is suitable for domestic, civil and industrial use, for the distribution of water in combination with pressure tanks, for irrigation of vegetable gardens and gardens, for washing systems, for pressure raising or for fire-fighting systems.

Submersible electric pump with rewindable Pedrollo motor.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 1.1
Power (HP): 1.5
Delivery port: 1 "1/4
Degree of protection: IP 68
Flow rate min. (l./min.): 20
Max flow (l./min.): 100
Min head (m.): 33.5
Max head (m.): 91
Cable length (m): 2
Employments: irrigation
Weight kg): 15
Guarantee: 2

Attachments

Scheda tecnica 4SR S

Download (2.89MB)

4SRm 4-S models and performance

GUY

three-phase

4SRm 4/6-S

4SRm 4/8-S

4SRm 4/12-S

4SRm 4/15-S

4SRm 4/22-S

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2
2.2	3

IMPELLERS

number

PERFORMANCE
Q litres/min	H meters
20 ÷ 100	48 ÷ 17
20 ÷ 100	64 ÷ 22.5
20 ÷ 100	96 ÷ 33.5
20 ÷ 100	120 ÷ 42
20 ÷ 100	176 ÷ 61.5

MOUTH
DN
1 1/4"

Q	m³/hour	0	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0
Q	l/min	0	20	30	40	50	60	70	80	90	100
H	meters	48.5	45.5	44	42	39.5	36.5	33	28.5	23.2	17
		64	60.5	58.5	56	53	49	44	38	31	22.5
		96	91	88	84	79	73	66	57	46.5	33.5
		120	114	110	105	99	Ninety two	83	71	58	42
		176	167	161	154	145	134	121	105	85	61.5

Construction data of the 4SR-S series

Bearings

Pump bearing - fixed part	Anti-friction polymer
Pump bearing - rotating part	Sintered AISI 316 steel with ceramic coating

Tree holding

Materials

1.3 - Delivery body	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4301 (AISI 304)
4.2 - Towing joint	Stainless steel EN 1.4404 (AISI 316L)
5.0 - Stadium box	Stainless steel EN 1.4301 (AISI 304)
5.1 - Diffuser	Reinforced technopolymer
7.0 - Lantern	Stainless steel EN 1.4301 (AISI 304)
7.1 - Check Valve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)
