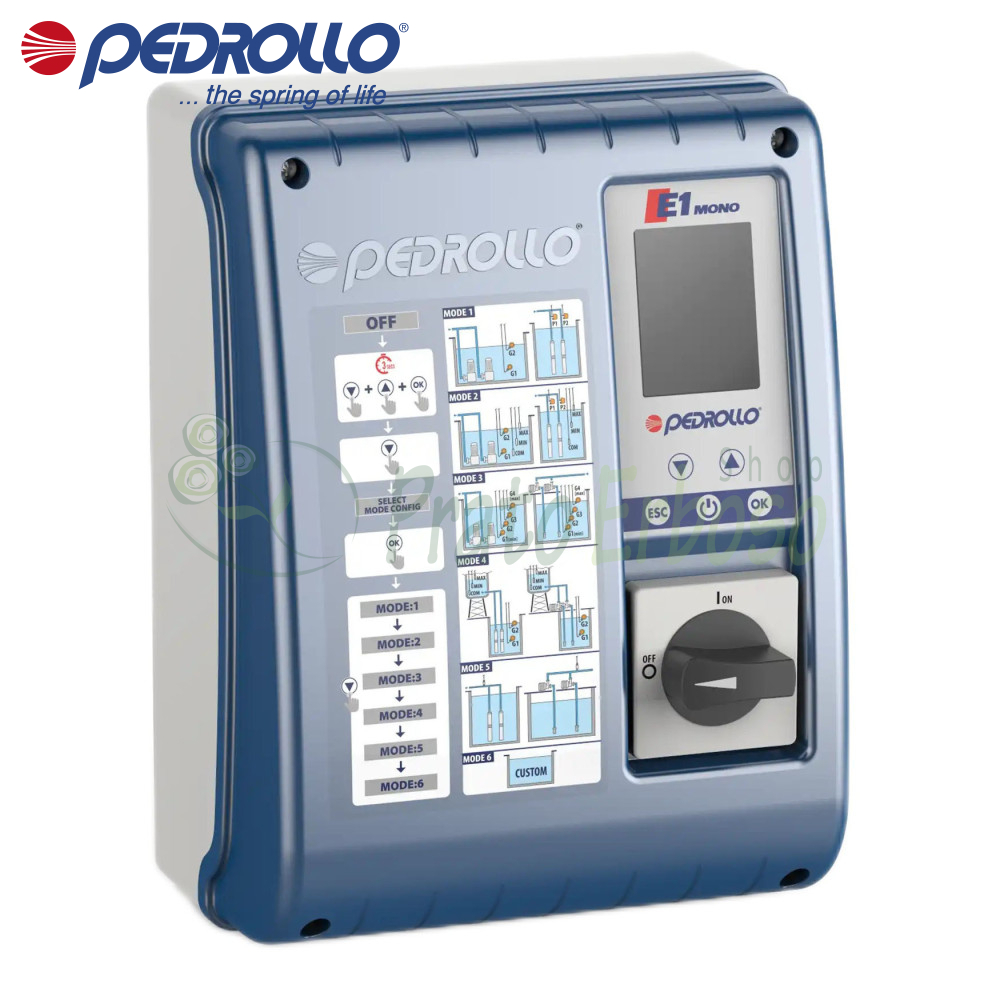

E1 MONO - Electrical panel for 3 HP single-phase electric pump
For starting one single-phase electric pump. Power: 2.2 kW (3 HP). Manual or automatic operation. Pressure switch/float input.
The Pedrollo E1 MONO multifunction electronic panel is designed to adapt to any application, both for clean water and waste water systems.
Thanks to the possibility of selecting six operating types, it allows you to easily manage every system requirement.
The optional Wi-Fi and Bluetooth modules make using the control panel even simpler and more intuitive, allowing you to configure and view the system's status directly on your smartphone.
It can be operated manually or automatically. A pressure switch and float switch can be connected.
The convenient large LCD display with multimeter allows you to easily view all parameters.
- Power (HP)
- 3
- Capacitor
- No
- Degree of protection
- IP 55
- LCD display
- Yes
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- single phase
- Motor Phase Current (Amperes)
- 18
- Overcurrent protection
- Yes, thermal relay
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
- Height (cm)
- 31.4
- Width (cm)
- 23.4
- Depth (cm)
- 16.9
- Warranty (years)
- 2
Compare with Similar Products
 E1 MONO - Electrical panel for 3 HP single-phase electric pumpThis product For starting one single-phase electric pump. Power: 2.2 kW (3 HP). Manual or automatic operation. Pressure switch/float input. |  QEM 300 - Electrical panel for 3 HP single-phase electric pump For starting one 4" submersible electric pump. Power: 2.2 kW (3 HP). Manual operation. Overload protection. Capacitor. |  QSM 300 - Electrical panel for 3 HP single-phase electric pump For starting one 4" submersible electric pump. Power: 2.2 kW (3 HP). Manual or automatic operation. Pressure switch/float input. Level sensor input. Overload protection. Capacitor. |  SIMPLEX-UP-M/3 - Electrical panel for single-phase 3 HP electric pump For starting 1 electric pump. Power: 2.2 Kw (3 HP). | |
|---|---|---|---|---|
| Price | Price €366.00 -42% €212.28 | Price €125.66 -42% €72.88 | Price €491.66 -42% €285.16 | Price €250.10 |
| Availability | Availability Out-of-Stock | Availability -- | Availability -- | Availability -- |
| Power (HP) | Power (HP) 3 | Power (HP) 3 | Power (HP) 3 | Power (HP) 3 |
| Capacitor | Capacitor No | Capacitor 75 µF 450 VL | Capacitor 75 µF 450 VL | Capacitor No |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 |
| LCD display | LCD display Yes | LCD display No | LCD display No | LCD display No |
| Line power supply | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase |
| Supply voltage (Volts) | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 |
| Engine power supply | Engine power supply single phase | Engine power supply single phase | Engine power supply single phase | Engine power supply single phase |
| Motor Phase Current (Amperes) | Motor Phase Current (Amperes) 18 | Motor Phase Current (Amperes) 18 | Motor Phase Current (Amperes) 18 | Motor Phase Current (Amperes) 16 |
| Overcurrent protection | Overcurrent protection Yes, thermal relay | Overcurrent protection Yes, thermal circuit breaker | Overcurrent protection Yes, thermal circuit breaker | Overcurrent protection Yes, thermal relay |
| Amperometric protection | Amperometric protection Yes | Amperometric protection No | Amperometric protection Yes | Amperometric protection Yes |
| Short circuit protection | Short circuit protection Yes | Short circuit protection No | Short circuit protection No | Short circuit protection Yes |
| Dry running protection | Dry running protection Yes | Dry running protection No | Dry running protection Yes | Dry running protection No |
| Height (cm) | Height (cm) 31.4 | Height (cm) 20.2 | Height (cm) 31.4 | Height (cm) 34 |
| Width (cm) | Width (cm) 23.4 | Width (cm) 15 | Width (cm) 23.4 | Width (cm) 24 |
| Depth (cm) | Depth (cm) 16.9 | Depth (cm) 10.6 | Depth (cm) 16.9 | Depth (cm) 17 |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) 0.91 | Weight (Kg) 4 | Weight (Kg) 1.9 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
