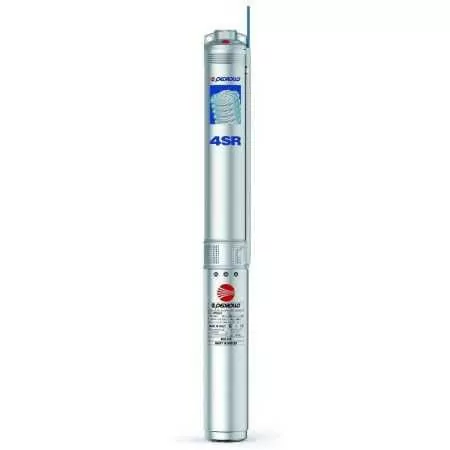

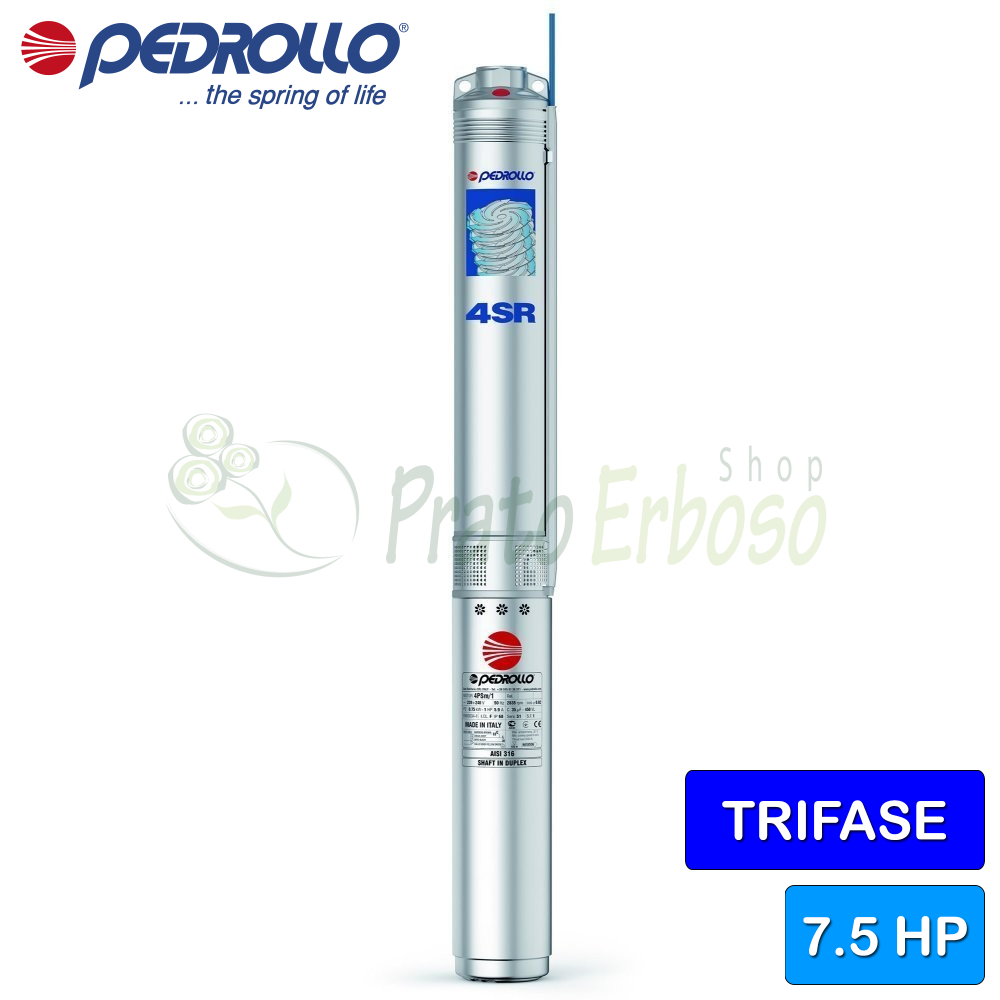

4SR 8/32 S-PS - 7.5 HP three-phase submersible electric pump
Flow rate up to 200 l/min (12 m³/h). Head up to 214 meters. 5.5 kW (7.5 HP) motor.
The 4SR 8/32 S-PS submersible electric pump from the 4SR series by Pedrollo is recommended for domestic, civil and agricultural installations.
Equipped with an innovative inductor that guarantees a high priming capacity for operation in wells with the presence of gas or air mixed in the water.
It can pump clean water with a maximum sand content of 200 grams per cubic meter.
The 4SR 8/32 S-PS delivers exceptional performance and efficiency combined with premium construction.
It also offers excellent resistance to wear, caused by the presence of sand, and to corrosion.
- Motor connection
- THREE-PHASE
- Power (HP)
- 7.5
- Delivery mouth
- 2"
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 40
- Max. flow rate (l./min.)
- 200
- Min. head (m.)
- 65.5
- Max. head (m.)
- 224
- Cable length (m.)
- 2
- Weight (Kg)
- 35
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
-
