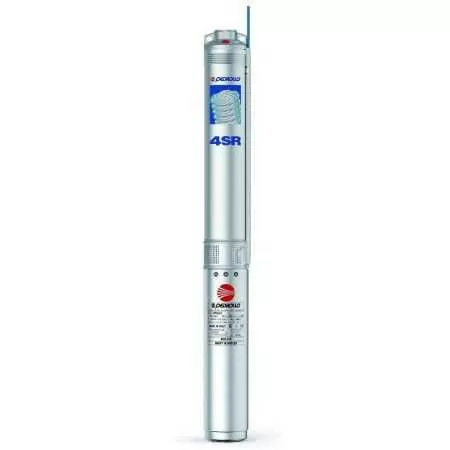

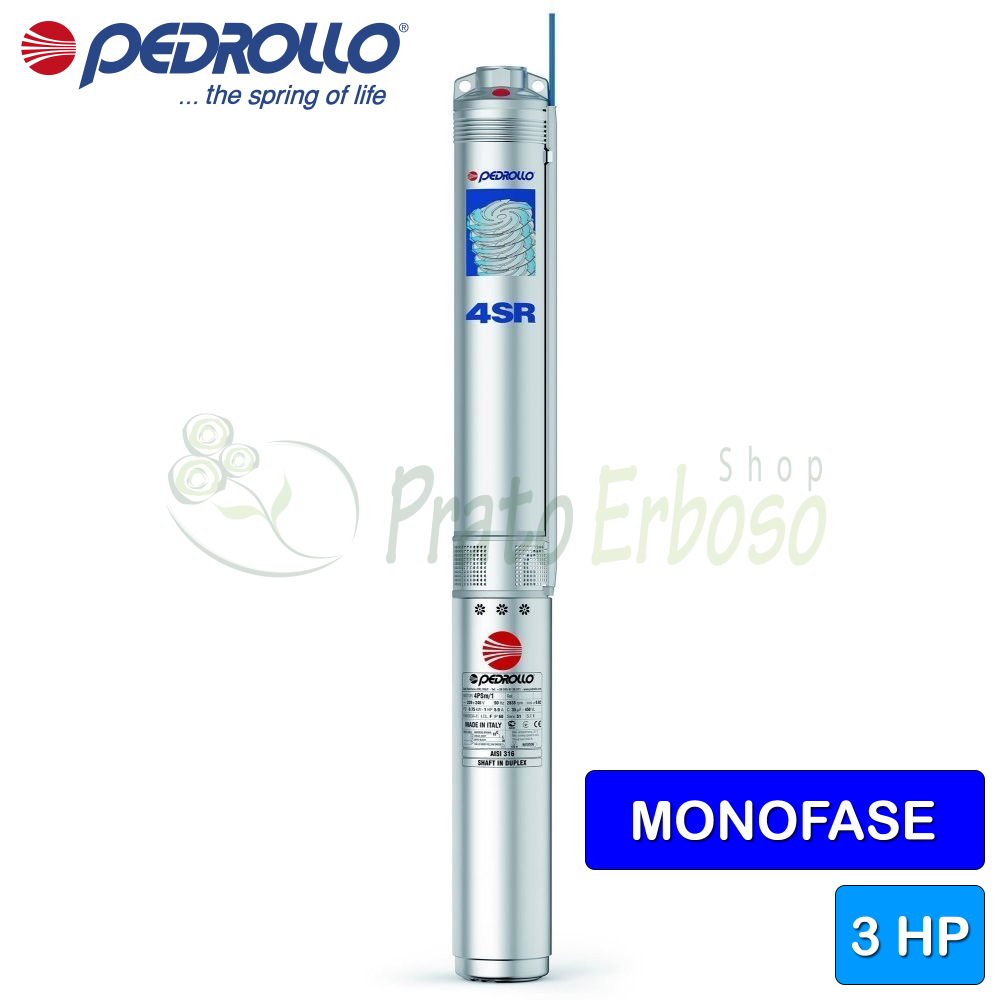

4SRm 4/22 S-PS - 3 HP single-phase submersible electric pump

Flow rate up to 100 l/min (6 m³/h). Head up to 176 metres. 2.2 kW (3 HP) motor.

€719.31 Tax included

€589.60 Tax excluded

€1,307.84-45%

Variants:
4SRm 4/6 S-PS - Elettropompa sommersa monofase da 0.75 HP
4SRm 4/8 S-PS - Elettropompa sommersa monofase da 1 HP
4SRm 4/12 S-PS - Elettropompa sommersa monofase da 1.5 HP
4SRm 4/15 S-PS - Elettropompa sommersa monofase da 2 HP
4SRm 4/22 S-PS - Elettropompa sommersa monofase da 3 HP
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

4SRm 4/22 S-PS - 3 HP single-phase submersible electric pump
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description

The 4SRm 4/22 S-PS submersible electric pump from the 4SR series by Pedrollo is recommended for domestic, civil and agricultural installations.

Equipped with an innovative inductor that guarantees a high priming capacity for operation in wells with the presence of gas or air mixed in the water.

It can pump clean water with a maximum sand content of 200 grams per cubic meter.

The 4SRm 4/22 S-PS delivers exceptional performance and efficiency combined with premium construction.

It also offers excellent resistance to wear, caused by the presence of sand, and to corrosion.

Data sheet
Pedrollo
4SRm 4/22 S-PS
9 Items
49480422WNA1
Motor connection
SINGLE-PHASE
Power (Kw)
2.2
Power (HP)
3
Delivery mouth
1" 1/4
Degree of protection
IP 68
Minimum flow rate (l./min.)
20
Max. flow rate (l./min.)
100
Min. head (m.)
61.5
Max. head (m.)
176
Cable length (m.)
2
Weight (Kg)
21
Warranty (years)
2
Attachments

4SR S Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo 4SR-S series pumps.

file_download Download (2.91MB)

Buy it with

  • 4SRm 4/22 S-PS - 3 HP single-phase submersible electric pump
  • +
  • QEM 300 - Electrical panel for single-phase 3 HP electric pump
  • +
  • FYG 22 - Adjustable single-phase pressure switch 7 bar
  • +
  • 8 VT - vertical Tank 8 litres
  • +
  • VR 1.25 - 1 1/4 "non-return valve
  • €877.88-10 %
    Total price: €790.09
4SRm 4-S models and performance
TYPE
three phase
4SRm 4/6-S
4SRm 4/8-S
4SRm 4/12-S
4SRm 4/15-S
4SRm 4/22-S
POWER
KWHP
0.550.75
0.751
1.11.5
1.52
2.23
Construction data of the 4SR-S series
4SR 1 pump cutaway
Bearings
Pump bearing - fixed partAnti-friction polymer
Pump bearing - rotating partSintered AISI 316 steel with ceramic coating
Tree holding
Materials
1.3 - Delivery bodyStainless steel EN 1.4301 (AISI 304)
3.0 - ImpellerReinforced technopolymer
4.0 - Pump shaftStainless steel EN 1.4301 (AISI 304)
4.2 - Towing jointStainless steel EN 1.4404 (AISI 316L)
5.0 - Stadium boxStainless steel EN 1.4301 (AISI 304)
5.1 - DiffuserReinforced technopolymer
7.0 - LanternStainless steel EN 1.4301 (AISI 304)
7.1 - Check ValveStainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirtStainless steel EN 1.4301 (AISI 304)
7.3 - Cable coverStainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/FilterStainless steel EN 1.4301 (AISI 304)
