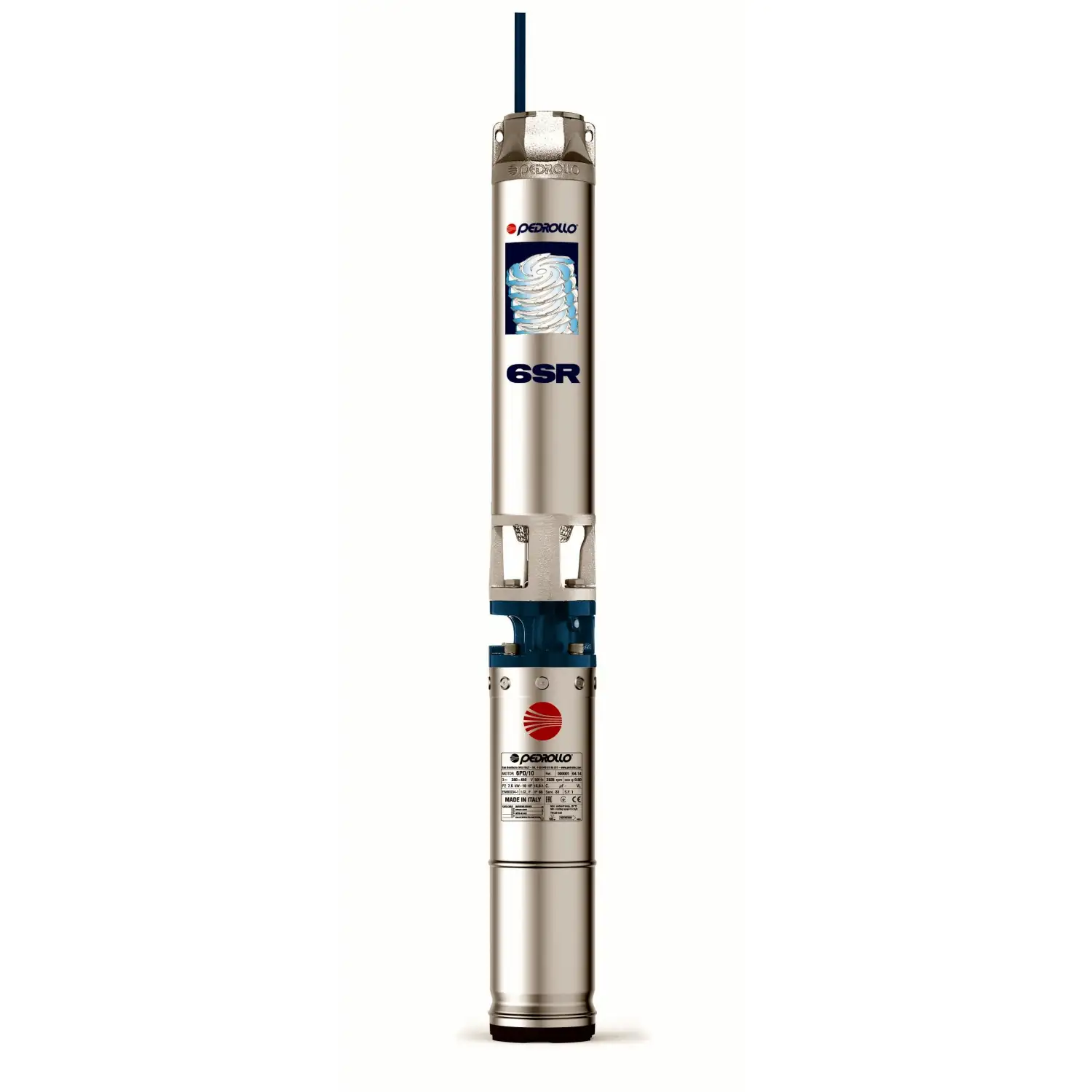

6SR18/15 - PD - 17.5 HP three-phase submersible electric pump
Flow rate up to 450 l/min (27 m³/h). Head up to 203 m. 13 kW (17.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 19 February - Friday 20 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 19 February - Friday 20 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Thursday 19 February - Friday 20 February |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 20 February - Monday 23 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 18 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 18 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 19 February - Friday 20 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 19 February - Friday 20 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 19 February - Friday 20 February
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 20 February - Monday 23 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 18 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 18 February
The 6SR18/15 - PD submersible electric pump from the 6SR series by Pedrollo can pump clean water and liquids that are chemically non-aggressive for the components.
Recommended for civil, municipal and agricultural installations.
Suitable for water distribution in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
The 6SR18/15 - PD is equipped with an oil bath motor.
Pedrollo has created a solid and robust product thanks to the use of a mix of cast iron and stainless steel.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 13
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 15
- Pump shaft
- AISI 304 stainless steel
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 450
- Min. head (m.)
- 80
- Max. head (m.)
- 203
- Jobs
- water supply, pressurization systems, irrigation, fire prevention systems
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 188.8
- External diameter (cm)
- 149.5
- Weight (Kg)
- 84.6
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 6SR18/15 - PD - 17.5 HP three-phase submersible electric pumpThis product Flow rate up to 450 l/min (27 m³/h). Head up to 203 m. 13 kW (17.5 HP) motor. |  6SR18/13 - PD - 15 HP three-phase submersible electric pumpFlow rate up to 450 l/min (27 m³/h). Head up to 176 m. 11 kW (15 HP) motor. |  6SR18/18 - PD - 20 HP three-phase submersible electric pumpFlow rate up to 450 l/min (27 m³/h). Head up to 244 m. 15 kW (20 HP) motor. |  6SR18/22 - PD - 25 HP three-phase submersible electric pumpFlow rate up to 450 l/min (27 m³/h). Head up to 298 m. 18.5 Kw (25 HP) motor. | |
|---|---|---|---|---|
| Price | Price €3,204.94 -45% €1,762.72 | Price €2,845.04 -45% €1,564.77 | Price €3,284.24 -45% €1,806.33 | Price €4,008.92 -45% €2,204.91 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 13 | Power (Kw) 11 | Power (Kw) 15 | Power (Kw) 18.5 |
| Power (HP) | Power (HP) -- | Power (HP) 15 | Power (HP) 20 | Power (HP) 25 |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 15 | Number of impellers 13 | Number of impellers 18 | Number of impellers 22 |
| Pump shaft | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel |
| Degree of protection | Degree of protection IP 68 | Degree of protection -- | Degree of protection -- | Degree of protection -- |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 50 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 450 | Max. flow rate (l./min.) 450 | Max. flow rate (l./min.) 450 | Max. flow rate (l./min.) 450 |
| Min. head (m.) | Min. head (m.) 80 | Min. head (m.) 70 | Min. head (m.) 96 | Min. head (m.) 118 |
| Max. head (m.) | Max. head (m.) 203 | Max. head (m.) 176 | Max. head (m.) 244 | Max. head (m.) 298 |
| Jobs | Jobs water supply, pressurization systems, irrigation, fire prevention systems | Jobs water supply, pressurization systems, irrigation, fire prevention systems | Jobs water supply, pressurization systems, irrigation, fire prevention systems | Jobs water supply, pressurization systems, irrigation, fire prevention systems |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C |
| Height (cm) | Height (cm) 188.8 | Height (cm) 174.6 | Height (cm) 201.8 | Height (cm) 225.4 |
| External diameter (cm) | External diameter (cm) 149.5 | External diameter (cm) 149.5 | External diameter (cm) 149.5 | External diameter (cm) 149.5 |
| Weight (Kg) | Weight (Kg) 84.6 | Weight (Kg) 76.9 | Weight (Kg) 87.6 | Weight (Kg) 99.7 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
