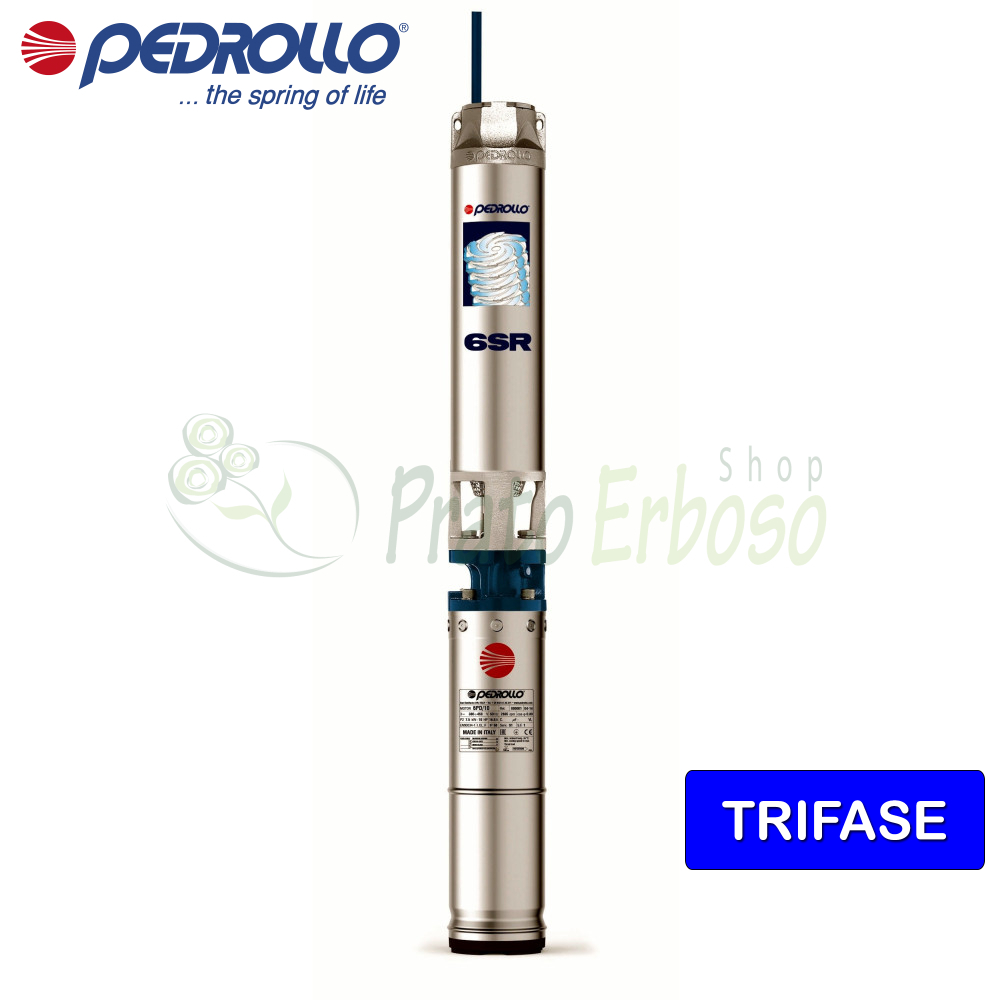

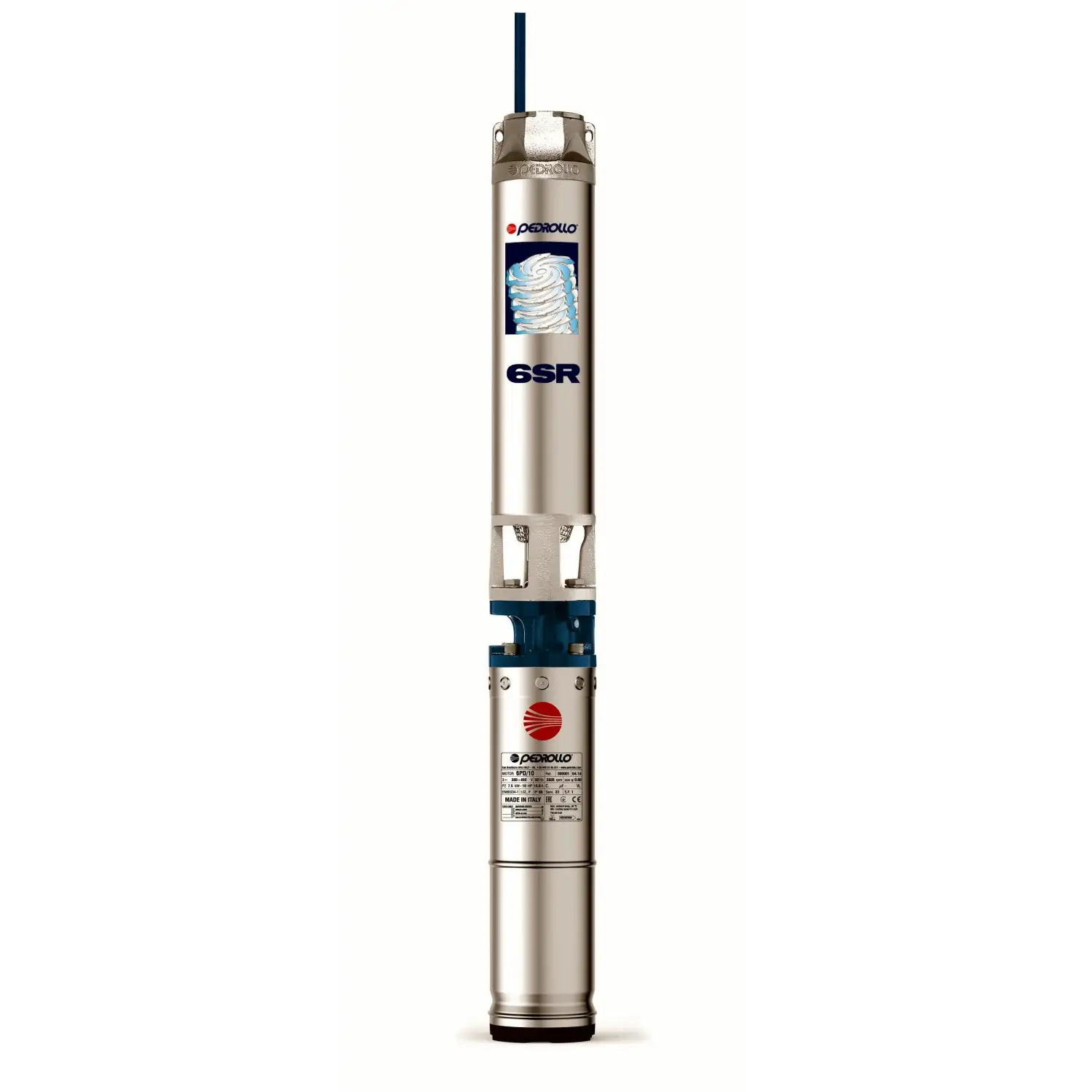

6SR18/15 - PSR - 17.5 HP three-phase submersible electric pump
Flow rate up to 450 l/min (27 m³/h). Head up to 203 m. 13 kW (17.5 HP) motor.
Reinforced packaging to reduce transport damage.
Telephone support for information before purchasing.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The 6SR18/15 - PSR submersible electric pump from the 6SR series by Pedrollo can be installed both horizontally and vertically up to 150 metres below water level.
Among the best in the 6-inch submersible pump category for reliability and performance.
Pedrollo 's use of cast iron and stainless steel gives the electric pump solidity and resistance.
It can pump clean water with a sand content not exceeding 100 grams per minute.
Equipped with a rewindable oil-bath motor.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 9.2
- Power (HP)
- 12.5
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 15
- Pump shaft
- AISI 304 stainless steel
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 450
- Min. head (m.)
- 80
- Max. head (m.)
- 203
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Warranty (years)
- 2
6SR 18 models and performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6SR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
