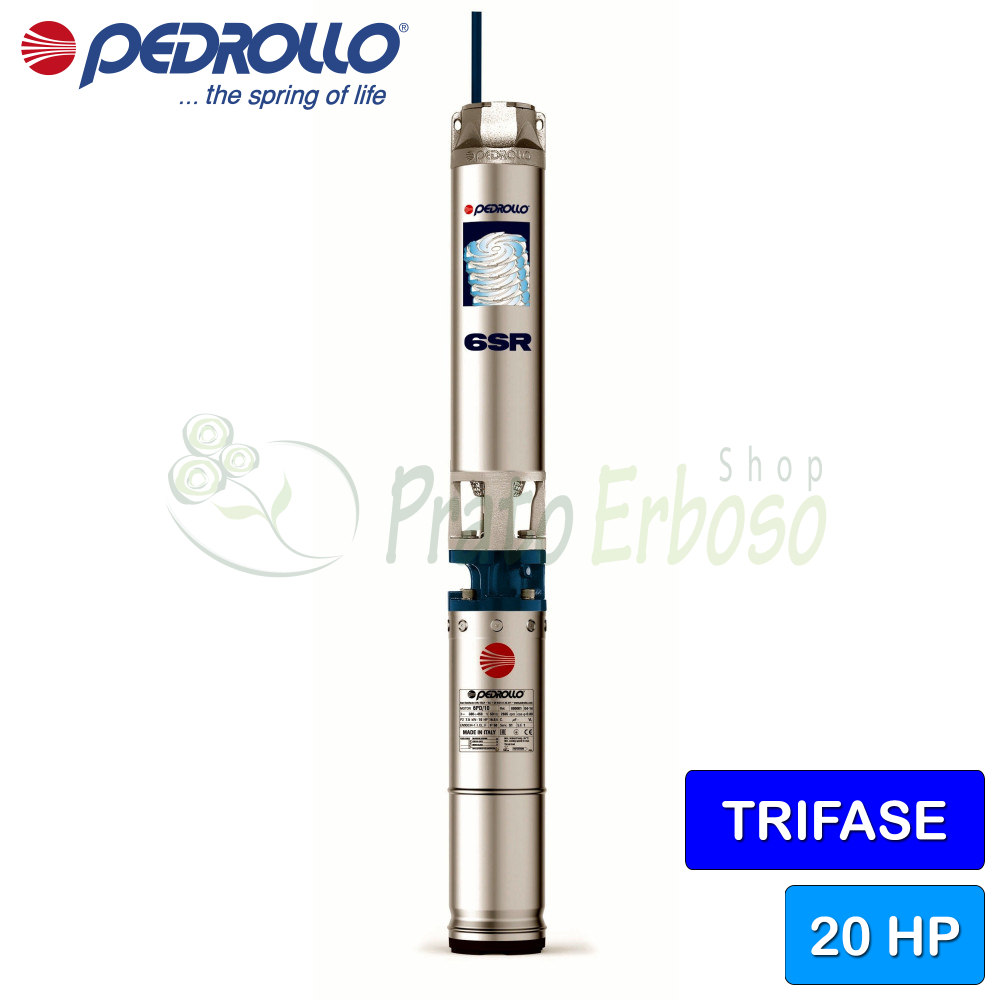

6SR18/18 - PSR - 20 HP three-phase submersible electric pump
Flow rate up to 450 l/min (27 m³/h). Head up to 244 m. 15 kW (20 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The 6SR18/18 - PSR submersible electric pump from the 6SR series by Pedrollo stands out for its reliability and high efficiency.
Its reliability makes it recommended for agricultural, municipal and civil installations.
It is particularly suitable for water distribution in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
The 6SR18/18 - PSR is equipped with impellers and diffusers that can resist abrasion caused by sand.
Pedrollo has created a solid and robust product thanks to the use of a mix of cast iron and stainless steel.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 15
- Power (HP)
- 20
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 18
- Pump shaft
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 450
- Min. head (m.)
- 96
- Max. head (m.)
- 244
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Warranty (years)
- 2
6SR 18 models and performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6SR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
