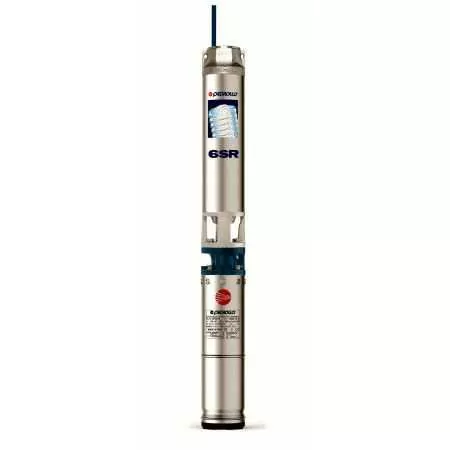

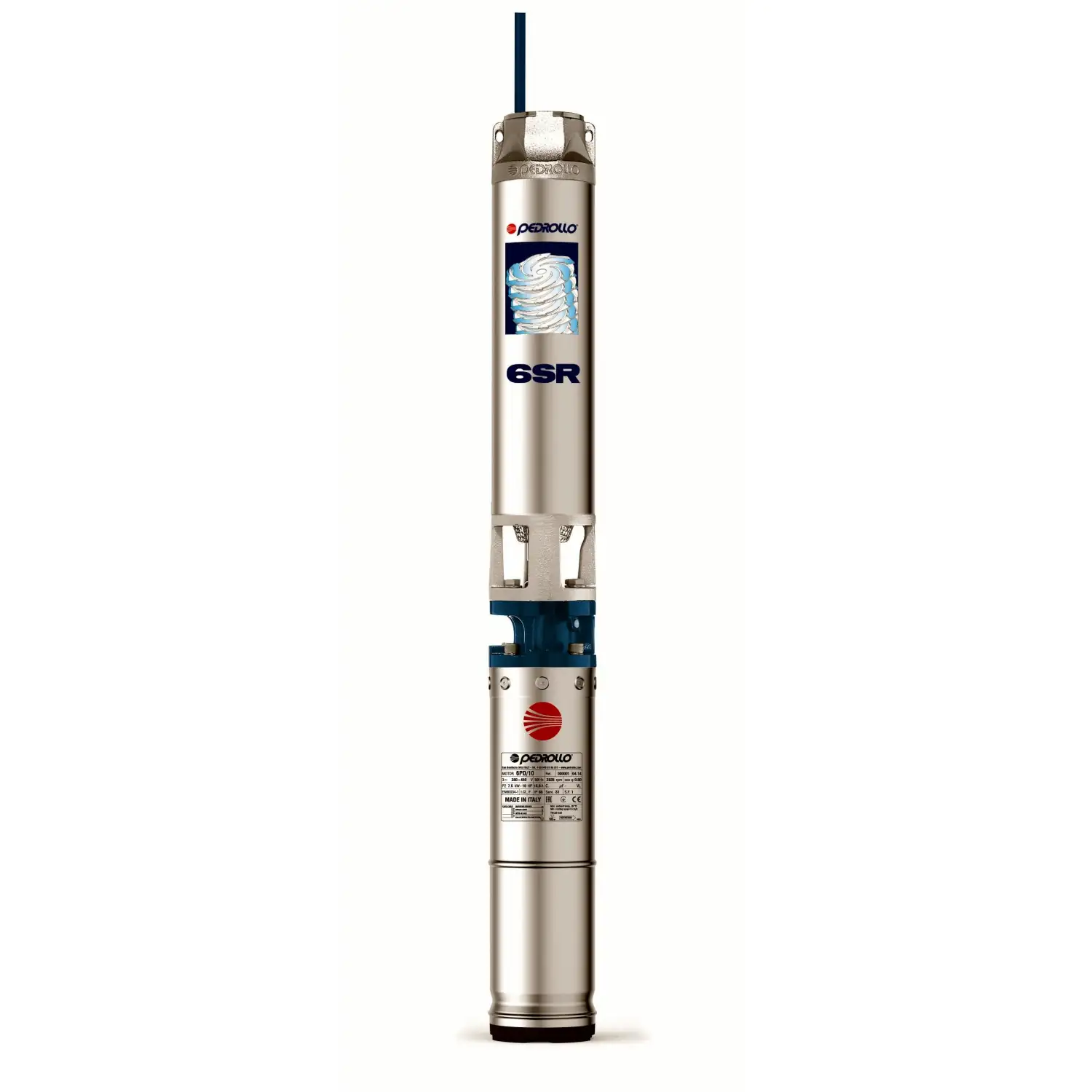

6SR44/6 - PSR - 10 HP three-phase submersible electric pump
Flow rate up to 1000 l/min (60 m³/h). Head up to 74 m. 9.2 kW (12.5 HP) motor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Reinforced packaging to reduce transport damage.
We supply all spare parts on this product.
Description
The 6SR44/6 - PSR submersible electric pump from the 6SR series by Pedrollo stands out for its reliability and high efficiency.
Its reliability makes it recommended for agricultural, municipal and civil installations.
It is particularly suitable for water distribution in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
The 6SR44/6 - PSR is equipped with impellers and diffusers that can resist abrasion caused by sand.
Pedrollo has created a solid and robust product thanks to the use of a mix of cast iron and stainless steel.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 7.5
- Power (HP)
- 10
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 6
- Pump shaft
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 1000
- Min. head (m.)
- 11.5
- Max. head (m.)
- 74
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- 35
- Warranty (years)
- 2
Models and performance 6SR 44
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6SR36 series
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
From the same brand and category
Compare with Similar Products
 6SR44/6 - PSR - 10 HP three-phase submersible electric pumpThis product Flow rate up to 1000 l/min (60 m³/h). Head up to 74 m. 9.2 kW (12.5 HP) motor. |  6SR44/5 - PSR - 7.5 HP three-phase submersible electric pump Flow rate up to 1000 l/min (60 m³/h). Head up to 62 m. 5.5 kW (7.5 HP) motor. |  6SR44/8 - PSR - 12.5 HP three-phase submersible electric pump Flow rate up to 1000 l/min (60 m³/h). Head up to 93 m. 9.2 kW (12.5 HP) motor. |  6SR44/10 - PSR - 15 HP three-phase submersible electric pump Flow rate up to 1000 l/min (60 m³/h). Head up to 124 m. 11 Kw (15 HP) motor. | |
|---|---|---|---|---|
| Price | Price €3,290.34 -45% €1,809.69 | Price €3,123.20 -45% €1,717.76 | Price €3,529.46 -45% €1,941.20 | Price €3,849.10 -45% €2,117.01 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 7.5 | Power (Kw) 5.5 | Power (Kw) 9.2 | Power (Kw) 11 |
| Power (HP) | Power (HP) 10 | Power (HP) 7.5 | Power (HP) 12.5 | Power (HP) 15 |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth -- | Delivery mouth 3" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 6 | Number of impellers 5 | Number of impellers 8 | Number of impellers 10 |
| Crankshaft | Crankshaft -- | Crankshaft -- | Crankshaft -- | Crankshaft AISI 304 stainless steel |
| Pump shaft | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel | Pump shaft -- |
| Check valve | Check valve -- | Check valve -- | Check valve -- | Check valve No |
| Degree of protection | Degree of protection -- | Degree of protection -- | Degree of protection -- | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 1000 | Max. flow rate (l./min.) 1000 | Max. flow rate (l./min.) 1000 | Max. flow rate (l./min.) 1000 |
| Min. head (m.) | Min. head (m.) 11.5 | Min. head (m.) 10 | Min. head (m.) 15.5 | Min. head (m.) 19.5 |
| Max. head (m.) | Max. head (m.) 74 | Max. head (m.) 62 | Max. head (m.) 99 | Max. head (m.) 124 |
| Cable length (m.) | Cable length (m.) -- | Cable length (m.) -- | Cable length (m.) -- | Cable length (m.) 4 |
| Jobs | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, irrigation, pressurization systems, water supply |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) 35 | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C |
| Height (cm) | Height (cm) -- | Height (cm) -- | Height (cm) -- | Height (cm) 210.1 |
| External diameter (cm) | External diameter (cm) -- | External diameter (cm) -- | External diameter (cm) -- | External diameter (cm) 14.8 |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) 98.8 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
