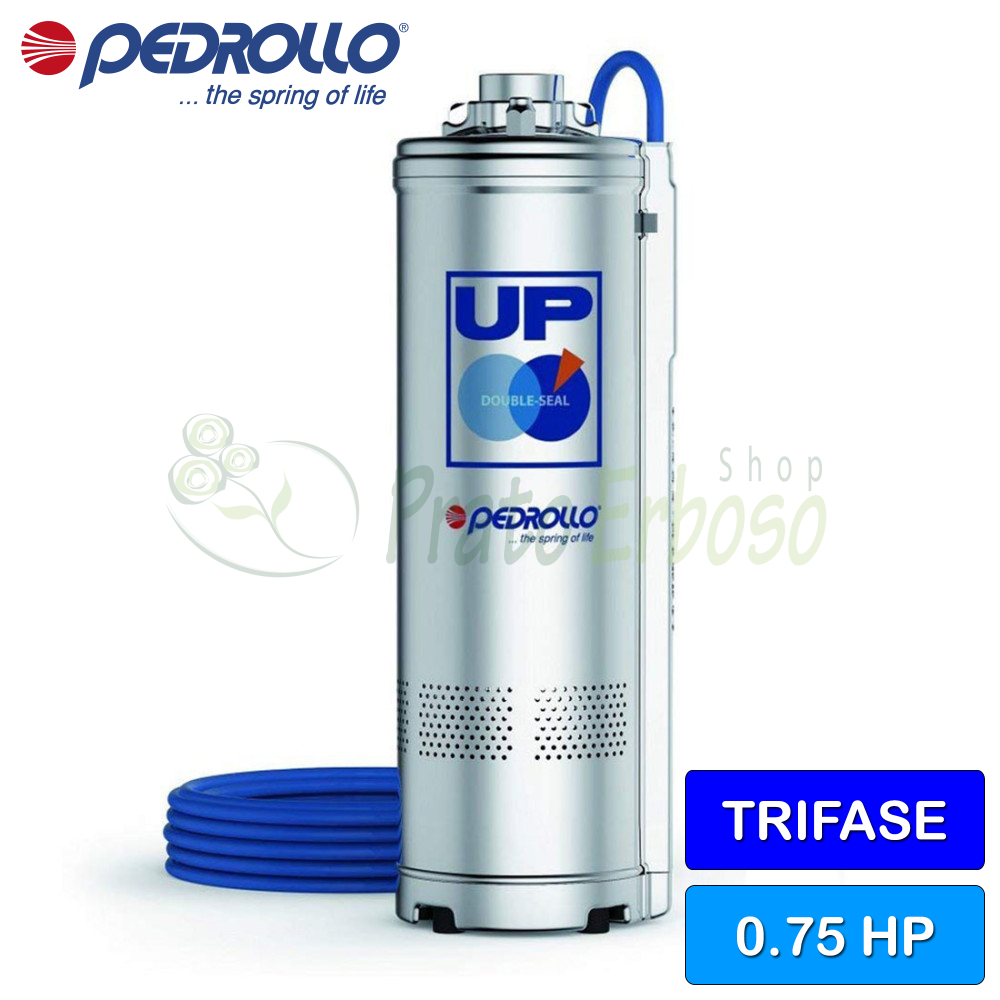

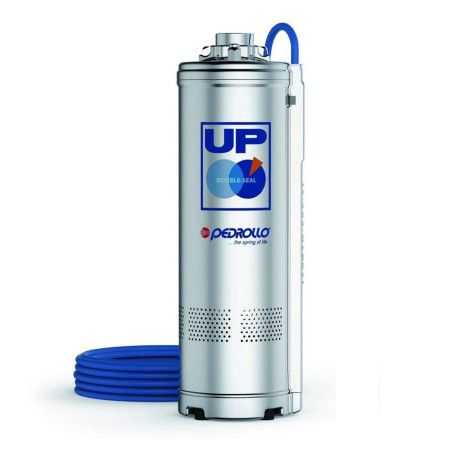

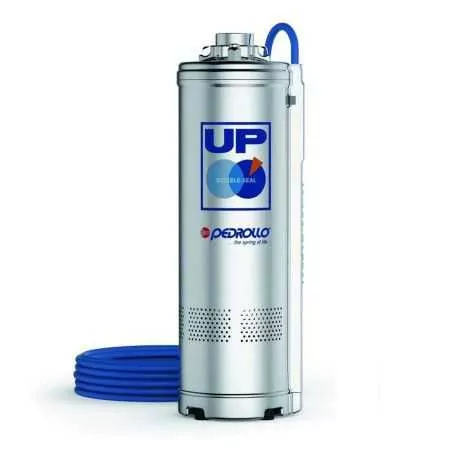

UP 2/3 (10m) - 0.75 HP 230 V three-phase submersible electric pump
Flow rate up to 80 l/min (4.8 m³/h). Head up to 48.5 m. 0.55 kW (0.75 HP) motor. 10-meter cable.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Friday 13 February - Monday 16 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Friday 13 February - Monday 16 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Friday 13 February - Monday 16 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 13 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Friday 13 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 13 February - Monday 16 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 13 February - Monday 16 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 13 February - Monday 16 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 13 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Friday 13 February
The UP 2/3 submersible electric pump from Pedrollo 's UP series is recommended for installations in the domestic, civil and agricultural sectors.
It stands out for its reliability, thanks to the technical solutions employed the electric pump does not lock out even after long sessions of inactivity.
It sustains high performance without any failure even after long working sessions.

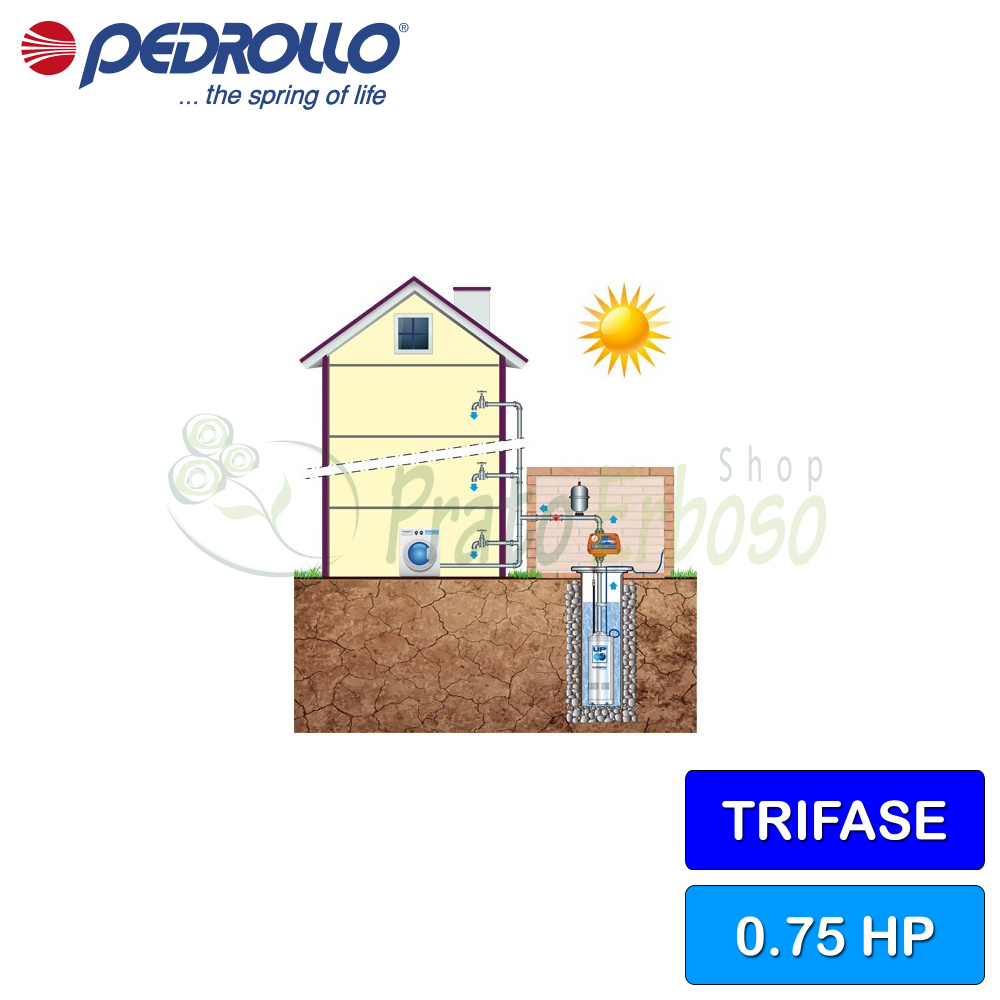

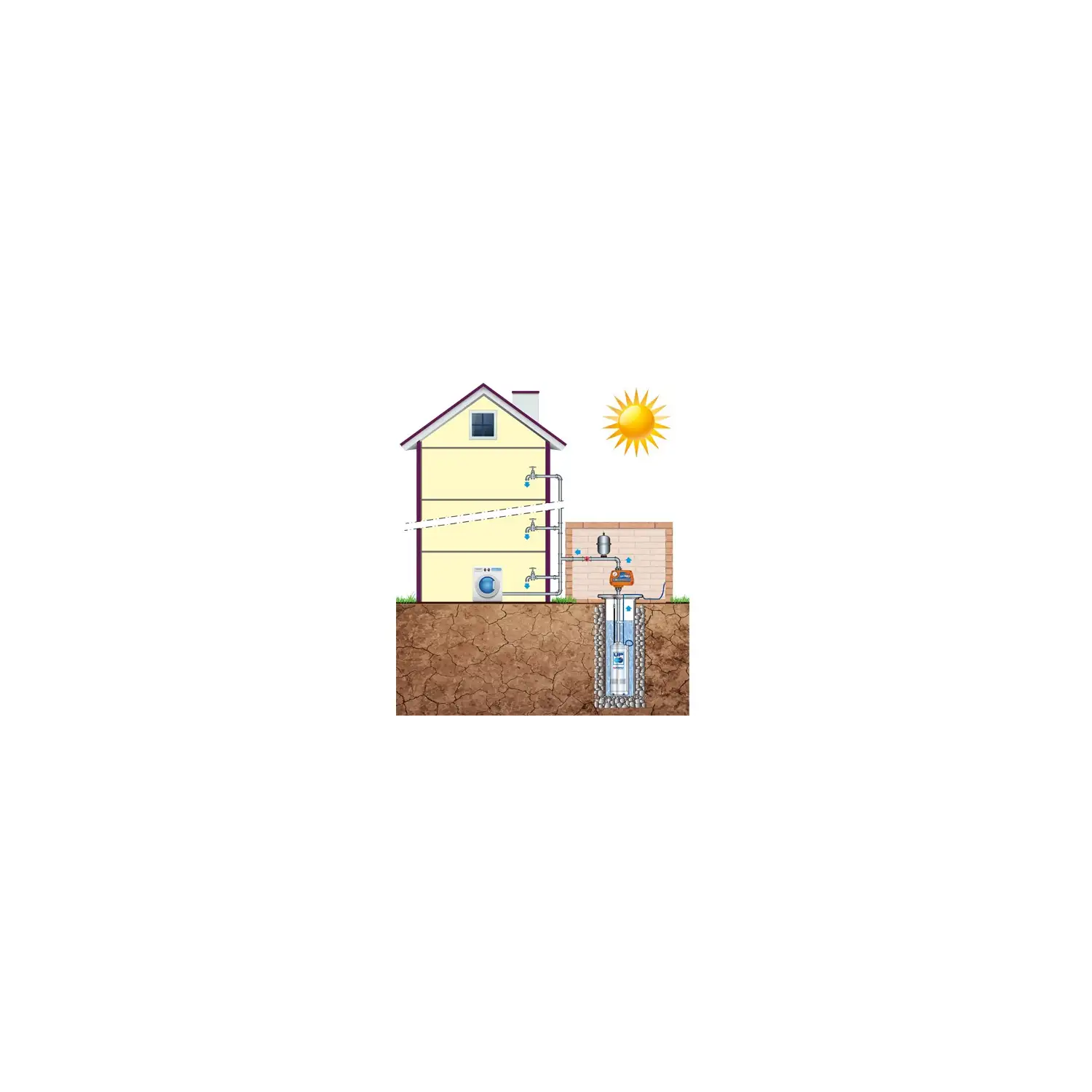

The UP 2/3 can be used in particular for water distribution in conjunction with pressure tanks, for irrigation of vegetable gardens and gardens and for pressure boosting.
It has a power of 0.75 HP. The flow rate varies from 10 to 80 liters per minute while the head varies from 24 to 48.5 meters.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.3
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 3
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 80
- Min. head (m.)
- 24
- Max. head (m.)
- 48.5
- Cable length (m.)
- 10
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 42.5
- External diameter (cm)
- 15
- Weight (Kg)
- 13.1
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6303 2RS - C3 |
| Opposite side engine bearing | 6203 ZZ - C3E |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| Engine side model | STA-17 |
| LM diameter | 17 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | ST1-16 |
| LP diameter | 16 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 2.1 - Seal holder cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Stainless steel EN 1.4301 (AISI 304) |
| 6.2 - Engine sleeve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 UP 2/3 (10m) - 0.75 HP 230 V three-phase submersible electric pumpThis product Flow rate up to 80 l/min (4.8 m³/h). Head up to 48.5 m. 0.55 kW (0.75 HP) motor. 10-meter cable. |  UP 2/2 (10m) - Three-phase submersible electric pump 230 V 0.50 HPFlow rate up to 80 l/min (4.8 m³/h). Head up to 33 m. 0.37 Kw (0.50 HP) motor. 10 meters of cable. |  UP 2/4 (10m) - 1 HP 230 V three-phase submersible electric pumpFlow rate up to 80 l/min (4.8 m³/h). Head up to 64.5 m. 0.75 kW (1 HP) motor. 10 m cable. |  UP 2/5 (10m) - 1.5 HP 230 V three-phase submersible electric pumpFlow rate up to 80 l/min (4.8 m³/h). Head up to 80 m. 1.1 kW (1.5 HP) motor. 10 m cable. | |
|---|---|---|---|---|
| Price | Price €688.45 -42% €399.30 | Price €641.48 -42% €372.06 | Price €722.00 -42% €418.76 | Price €763.60 -42% €442.89 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 0.55 | Power (Kw) 0.37 | Power (Kw) 0.75 | Power (Kw) 1.1 |
| Power (HP) | Power (HP) 0.75 | Power (HP) 0.50 | Power (HP) 1 | Power (HP) 1.5 |
| Absorption at 230V (A) | Absorption at 230V (A) 3.3 | Absorption at 230V (A) 2.8 | Absorption at 230V (A) 4.0 | Absorption at 230V (A) 5.0 |
| Delivery mouth | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 3 | Number of impellers 2 | Number of impellers 4 | Number of impellers 5 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 80 |
| Min. head (m.) | Min. head (m.) 24 | Min. head (m.) 16.4 | Min. head (m.) 32 | Min. head (m.) 40 |
| Max. head (m.) | Max. head (m.) 48.5 | Max. head (m.) 33 | Max. head (m.) 64.5 | Max. head (m.) 80 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs -- |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 42.5 | Height (cm) 39.8 | Height (cm) 48.2 | Height (cm) 50.9 |
| External diameter (cm) | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 |
| Weight (Kg) | Weight (Kg) 13.1 | Weight (Kg) 12.5 | Weight (Kg) 13.7 | Weight (Kg) 15.1 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
