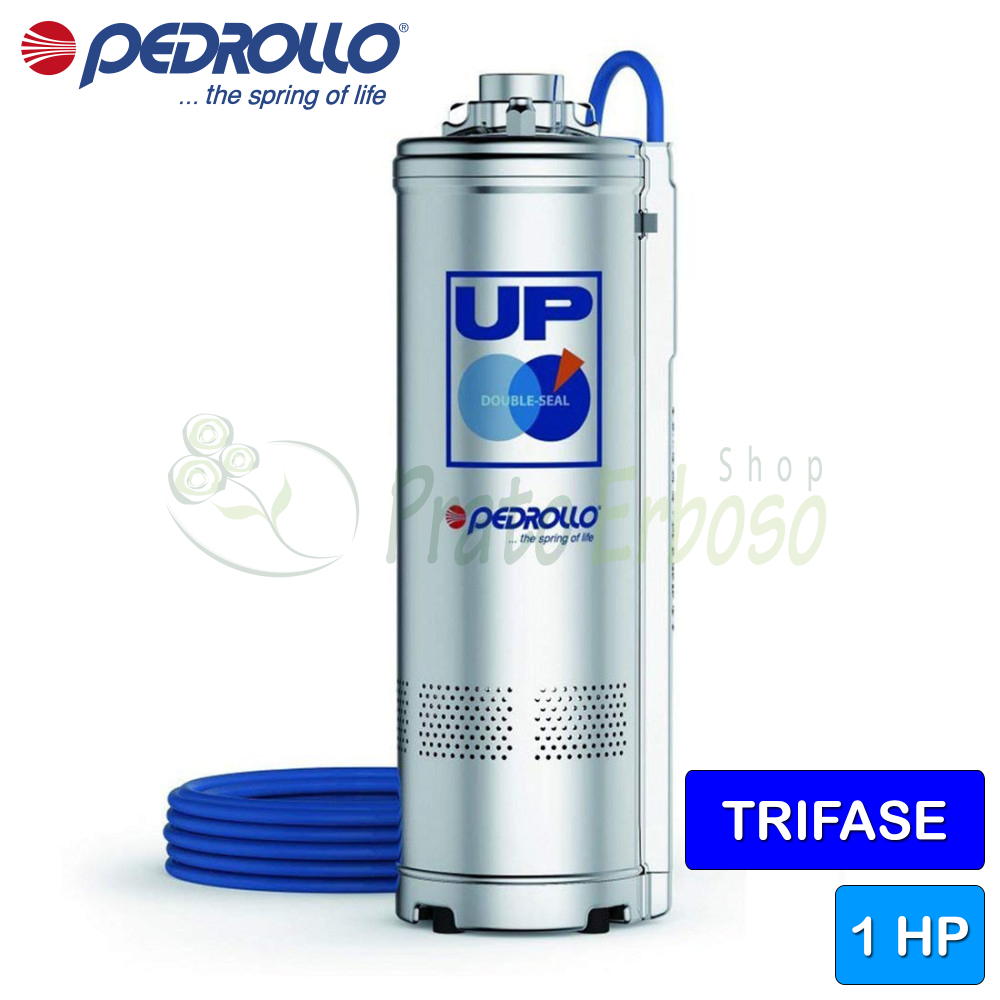

UP 2/4 (10m) - 1 HP 400 V three-phase submersible electric pump
Flow rate up to 80 l/min (4.8 m³/h). Head up to 64.5 m. 0.75 Kw (1 HP) motor. 10 meters of cable.
The main feature of the UP 2/4 submersible electric pump is the impossibility of blocking even after long periods of inactivity, thanks to innovative patented technical solutions.
The UP 2/4 subverts the classic design standards of 5” submersible pumps. In fact, compared to pumps of the same type, it is built in the opposite way, that is, with the motor in the lower part and the hydraulic section placed in the upper part (hence the name UP).
Among its revolutionary strengths are its greater compactness and a system of independent floating impellers that allows it to pump clean water with a maximum sand content of up to 150 g/m³, the only one in the world of 5”.
Furthermore, the UP features reduced consumption, a valve that eliminates the “bell effect” to facilitate the expulsion of air bubbles that can form inside the pump and the raised suction grid, not placed on the bottom, to prevent the passage of sand, leaves and other foreign bodies that could clog the hydraulics and therefore reduce performance.
The UP is equipped with a forced flushing system for the mechanical seal lubrication oil and is available in versions with or without float. It can operate in both vertical and horizontal positions.

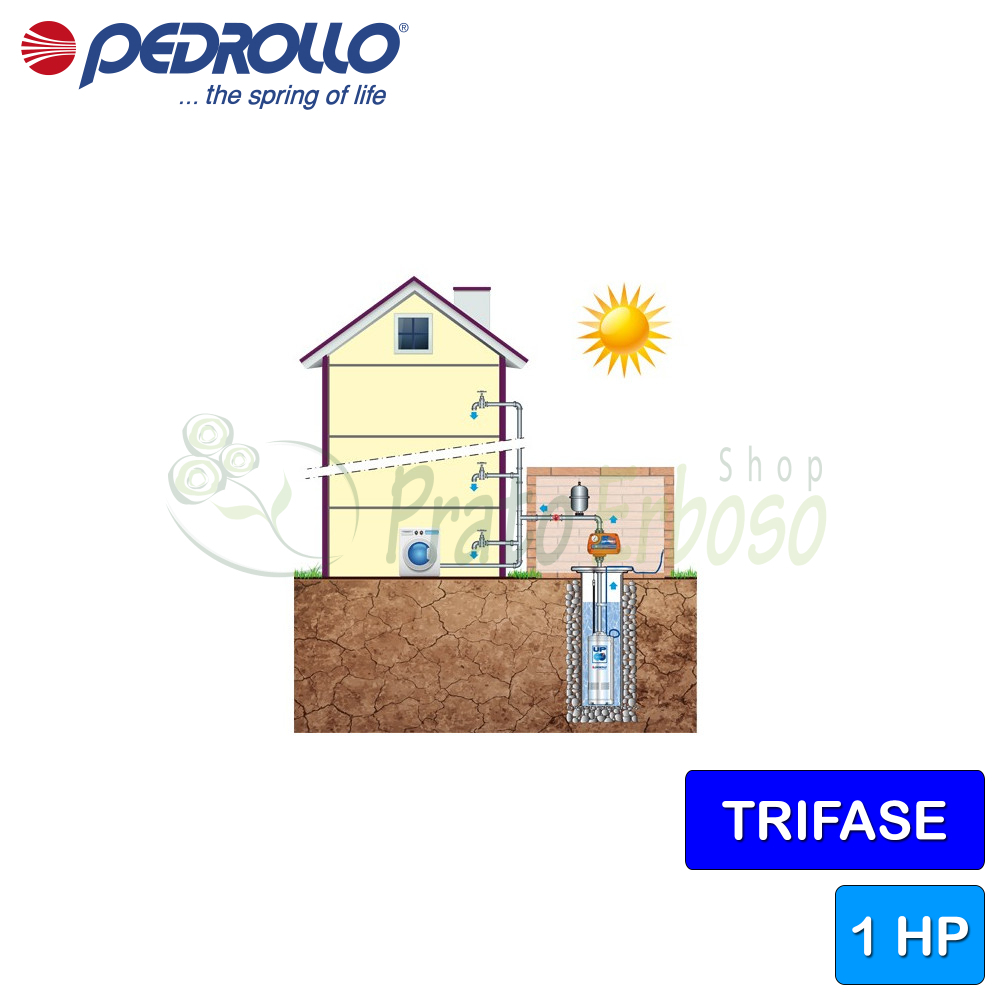

Due to its high performance and reliability, it is recommended for pumping clean water in the domestic, civil and agricultural sectors, for irrigating vegetable gardens and gardens, for boosting pressure, etc.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 400V (A)
- 2.3
- Delivery port
- 1 "1/4
- Body Pump
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 4
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 10
- Max flow (l./min.)
- 80
- Min head (m.)
- 31
- Max head (m.)
- 63
- Cable length (m)
- 10
- Employments
- water supply, pressurization systems, irrigation
- Liquid temperature max. (° C)
- 40
- Height (cm)
- 48.2
- Outside diameter (cm)
- 15
- Weight kg)
- 15
- Guarantee
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6303 2RS - C3 |
| Opposite side engine bearing | 6203 ZZ - C3E |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| Engine side model | STA-17 |
| LM diameter | 17 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | ST1-16 |
| LP diameter | 16 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 2.1 - Seal holder cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Stainless steel EN 1.4301 (AISI 304) |
| 6.2 - Engine sleeve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
