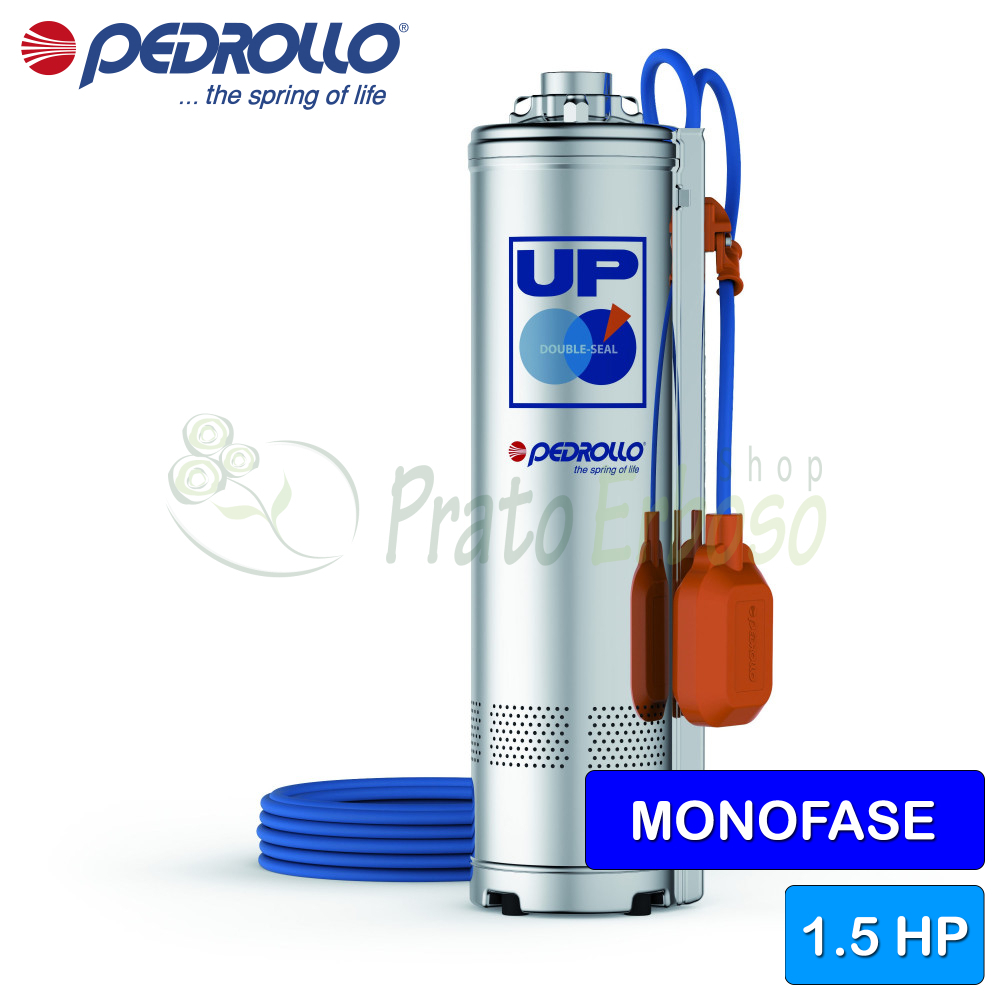

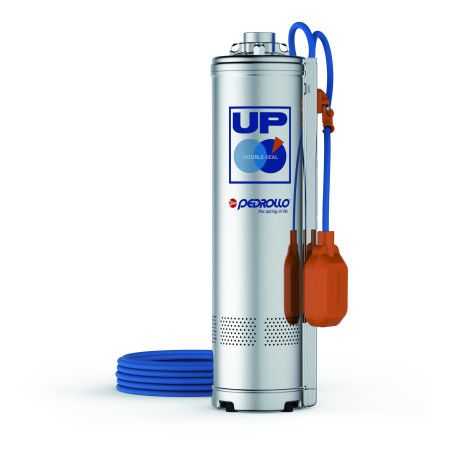

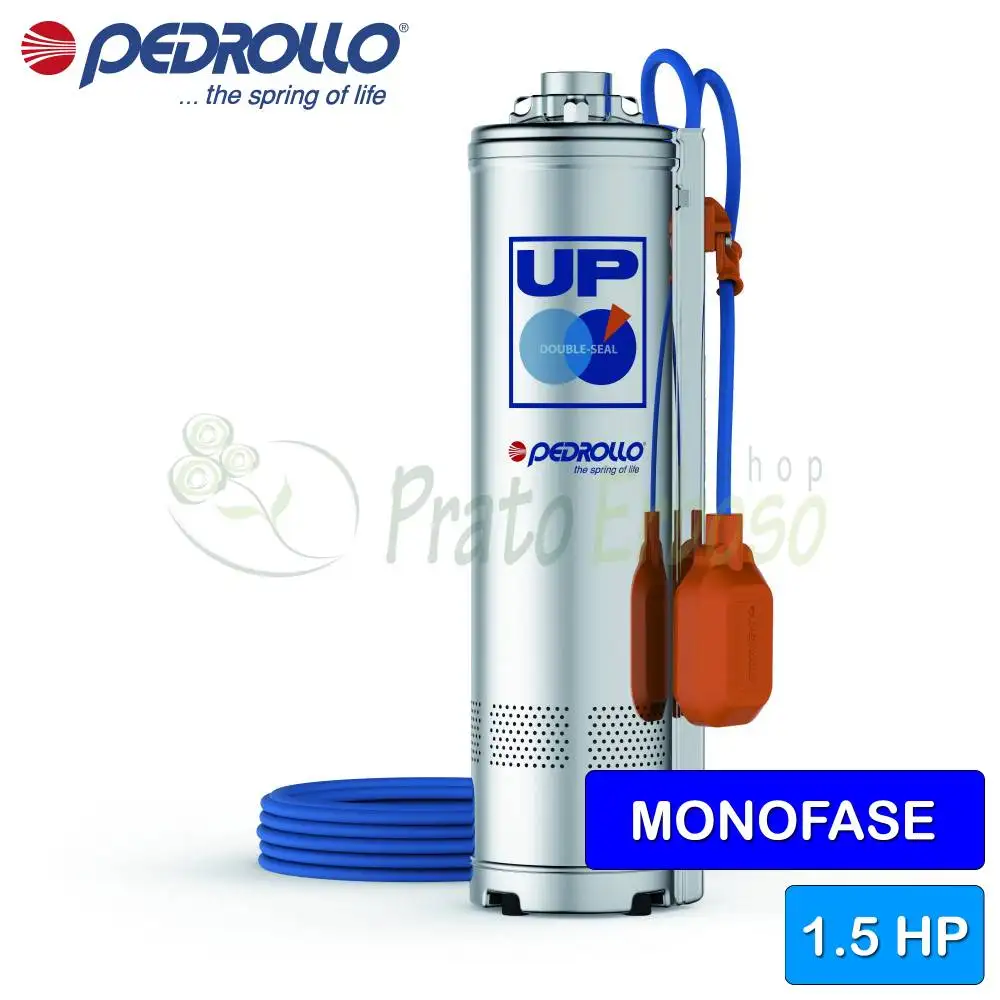

UPm 4/5-GE (10m) - 1.5 HP single-phase submersible electric pump with float switch
Flow rate up to 120 l/min (7.2 m³/h). Head up to 67 m. 1.1 kW (1.5 HP) motor. 10 m cable.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description

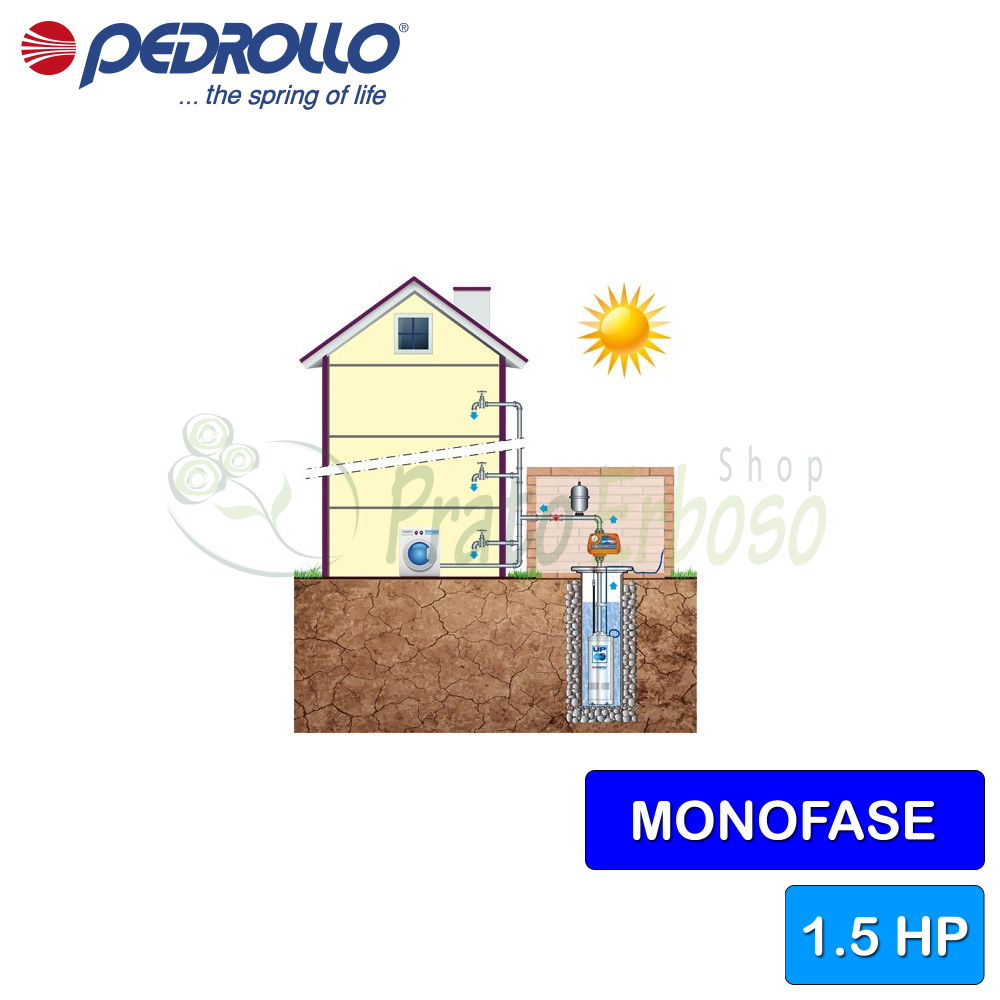

The UPm 4/5-GE submersible electric pump from the UP series by Pedrollo can be installed up to 20 metres below the water level.
It can be placed both vertically and horizontally.
It has a power of 1.5 HP. The flow rate varies from 20 to 120 liters and the head from 20 to 67 liters.
It can pump clean water and non-aggressive liquids for components with a maximum sand content of 150 grams per cubic meter.
The UPm 4/5-GE is solid and resistant thanks to Pedrollo 's use of AISI 304 and 431 stainless steel in its construction.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 7.2
- Capacitor
- 25 µF 450 VL
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 5
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 20
- Max. head (m.)
- 67
- Cable length (m.)
- 10
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 50.9
- External diameter (cm)
- 15
- Weight (Kg)
- 16.2
- Warranty (years)
- 2
GE UPm models and performance
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Customers who bought this product also bought...
From the same brand and category
Reviews (3) - Review moderation
100% (3)
0% (0)
0% (0)
0% (0)
0% (0)
The customer has not left any comments.
By António Pedro M. the 10/14/2019 This review was helpful 0 - 0
Report an abuse
Already reported
Prodotto ottimo
Ottima pompa messa in una cisterna per l'irrigazione del giardino.
By Marco R. the 08/15/2019 This review was helpful 0 - 0
Report an abuse
Already reported
Ottimo prodotto
Installata in un pozzo a 6m di profondità ed allacciata ad un impianto di irrigazione automatico, la consegna è stata puntuale. Consulenza telefonica chiara e compentente.
By Piero Mario P. the 01/17/2018 This review was helpful 0 - 0
Report an abuse
Already reported
Compare with Similar Products
 UPm 4/5-GE (10m) - 1.5 HP single-phase submersible electric pump with float switchThis product Flow rate up to 120 l/min (7.2 m³/h). Head up to 67 m. 1.1 kW (1.5 HP) motor. 10 m cable. |  UPm 4/3-GE (10m) - 0.75 HP single-phase submersible electric pump with float switchFlow rate up to 120 l/min (7.2 m³/h). Head up to 40 m. 0.55 kW (0.75 HP) motor. 10 m cable. |  UPm 4/4-GE (10m) - 1 HP single-phase submersible electric pump with float switchFlow rate up to 120 l/min (7.2 m³/h). Head up to 53 m. 0.75 kW (1 HP) motor. 10 m cable. |  UPm 4/6-GE (10m) - 2 HP single-phase submersible electric pump with float switchFlow rate up to 120 l/min (7.2 m³/h). Head up to 80 m. 1.5 kW (2 HP) motor. 10 m cable. | |
|---|---|---|---|---|
| Price | Price €678.32 -42% €393.43 | Price €611.22 -42% €354.51 | Price €640.50 -42% €371.49 | Price €716.14 -42% €415.36 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 0.55 | Power (Kw) 0.75 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 0.75 | Power (HP) 1 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) 7.2 | Absorption at 230V (A) 5.0 | Absorption at 230V (A) 6.2 | Absorption at 230V (A) 8.7 |
| Capacitor | Capacitor 25 µF 450 VL | Capacitor 16 µF 450 VL | Capacitor 20 µF 450 VL | Capacitor 35 µF 450 VL |
| Delivery mouth | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 5 | Number of impellers 3 | Number of impellers 4 | Number of impellers 6 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 |
| Min. head (m.) | Min. head (m.) 20 | Min. head (m.) 12 | Min. head (m.) 16 | Min. head (m.) 24 |
| Max. head (m.) | Max. head (m.) 67 | Max. head (m.) 40 | Max. head (m.) 53 | Max. head (m.) 80 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 50.9 | Height (cm) 42.5 | Height (cm) 48.2 | Height (cm) 55.6 |
| External diameter (cm) | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 |
| Weight (Kg) | Weight (Kg) 16.2 | Weight (Kg) 12.9 | Weight (Kg) 14.6 | Weight (Kg) 18.1 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
