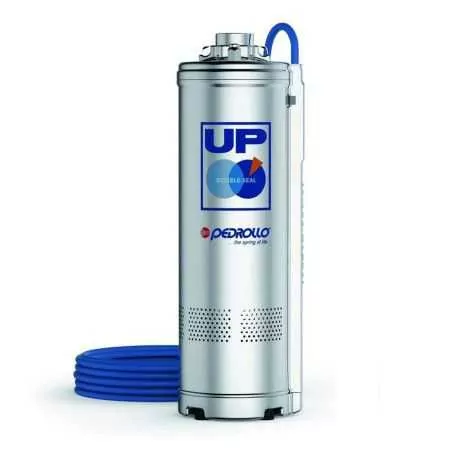

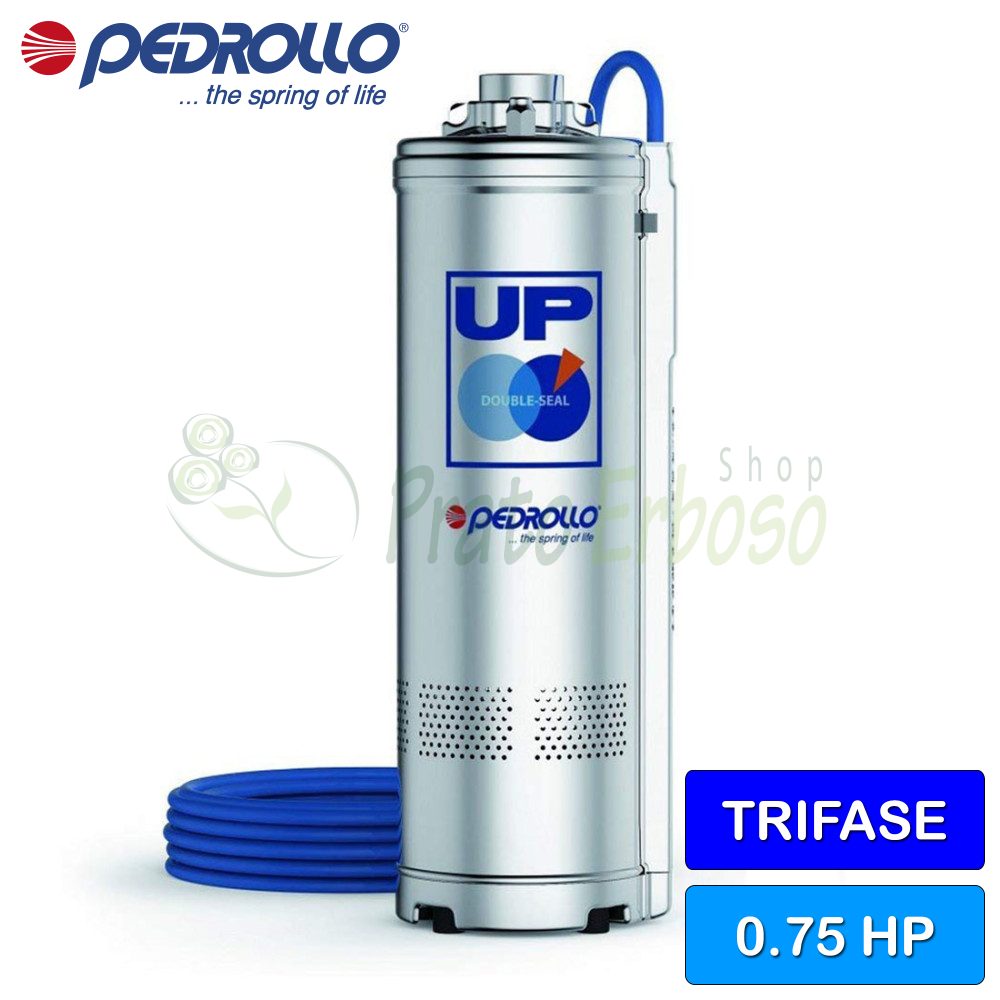

UP 4/3 (10m) - 0.75 HP 400 V three-phase submersible electric pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 40 m. 0.55 kW (0.75 HP) motor. 10 m cable.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 24 February - Wednesday 25 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 24 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Tuesday 24 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Tuesday 24 February
The UP 4/3 submersible electric pump from Pedrollo 's UP series boasts innovative technical solutions that prevent the electric pump from blocking even after long periods of inactivity.

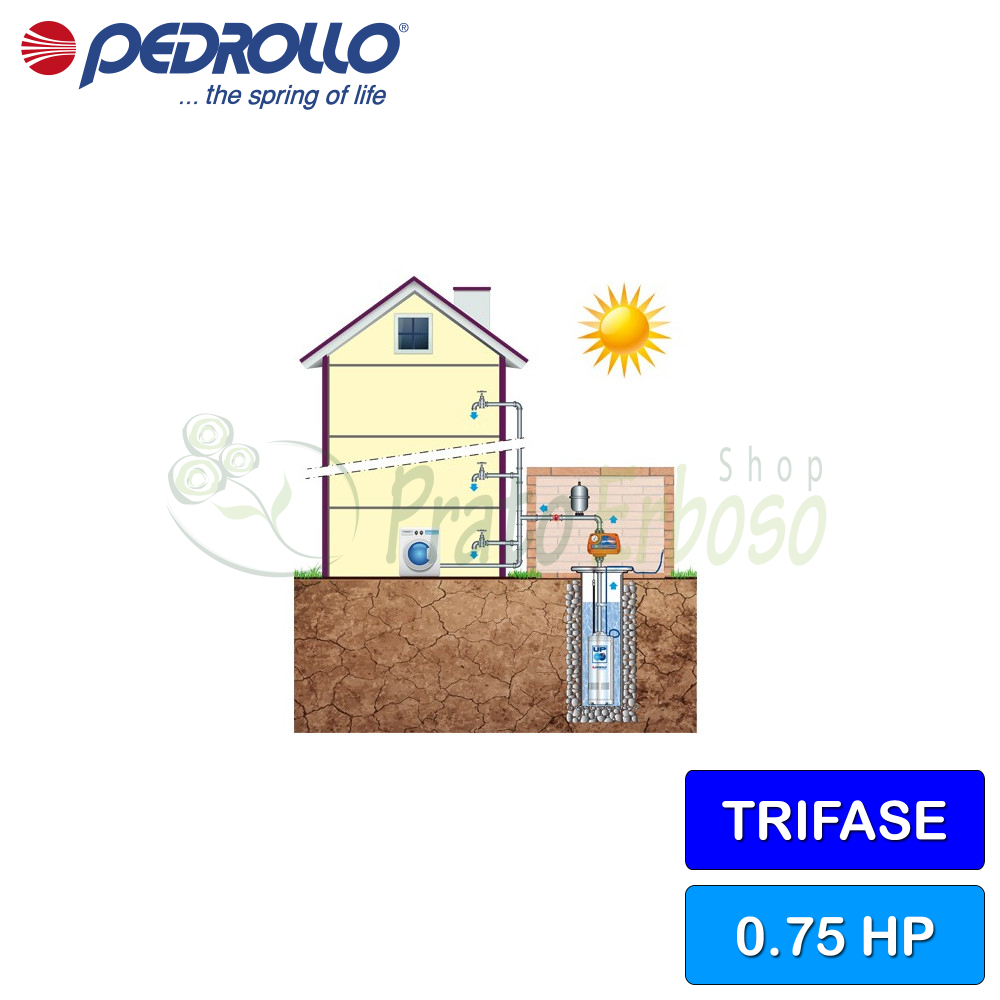

Recommended for activities such as water distribution in conjunction with pressure tanks, for irrigation of vegetable gardens and gardens and for increasing pressure.
The UP 4/3 has a power of 0.75 horsepower. The flow rate varies from 20 to 120 liters per minute and the head from 12 to 40 meters.
It can be installed both horizontally and vertically up to 20 metres below water level.
It can tolerate a quantity of sand up to 150 grams per cubic meter of sand.
The use of AISI 431 and 304 stainless steel gives the electric pump solidity and robustness.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Current consumption at 400V (A)
- 1.8
- Delivery mouth
- 1" 1/4
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 12
- Max. head (m.)
- 40
- Cable length (m.)
- 10
- Jobs
- irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 42.5
- External diameter (cm)
- 15
- Weight (Kg)
- 14
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6303 2RS - C3 |
| Opposite side engine bearing | 6203 ZZ - C3E |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| Engine side model | STA-17 |
| LM diameter | 17 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | ST1-16 |
| LP diameter | 16 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 2.1 - Seal holder cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Stainless steel EN 1.4301 (AISI 304) |
| 6.2 - Engine sleeve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 UP 4/3 (10m) - 0.75 HP 400 V three-phase submersible electric pumpThis product Flow rate up to 120 l/min (7.2 m³/h). Head up to 40 m. 0.55 kW (0.75 HP) motor. 10 m cable. |  UP 4/4 (10m) - 1 HP 400 V three-phase submersible electric pumpFlow rate up to 120 l/min (7.2 m³/h). Head up to 53 m. 0.75 kW (1 HP) motor. 10 m cable. |  UP 4/5 (10m) - 1.5 HP 400 V three-phase submersible electric pumpFlow rate up to 120 l/min (7.2 m³/h). Head up to 67 m. 1.1 kW (1.5 HP) motor. 10 m cable. |  UP 4/6 (10m) - 2 HP 400 V three-phase submersible electric pumpFlow rate up to 120 l/min (7.2 m³/h). Head up to 80 m. 1.5 kW (2 HP) motor. 10 m cable. | |
|---|---|---|---|---|
| Price | Price €625.86 -42% €363.00 | Price €656.36 -42% €380.69 | Price €694.18 -42% €402.62 | Price €718.58 -42% €416.78 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 0.55 | Power (Kw) 0.75 | Power (Kw) 1.1 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 0.75 | Power (HP) 1 | Power (HP) 1.5 | Power (HP) 2 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 1.8 | Current consumption at 400V (A) 2.2 | Current consumption at 400V (A) 2.8 | Current consumption at 400V (A) 3.2 |
| Delivery mouth | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 |
| Pump body | Pump body -- | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller -- | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers -- | Number of impellers 4 | Number of impellers 5 | Number of impellers 6 |
| Crankshaft | Crankshaft -- | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve -- | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection -- | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 |
| Min. head (m.) | Min. head (m.) 12 | Min. head (m.) 16 | Min. head (m.) 20 | Min. head (m.) 24 |
| Max. head (m.) | Max. head (m.) 40 | Max. head (m.) 53 | Max. head (m.) 67 | Max. head (m.) 80 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs irrigation, pressurization systems, water supply | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 42.5 | Height (cm) 48.2 | Height (cm) 50.9 | Height (cm) 55.6 |
| External diameter (cm) | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 |
| Weight (Kg) | Weight (Kg) 14 | Weight (Kg) 13.5 | Weight (Kg) 15.3 | Weight (Kg) 16.9 |
| Warranty (years) | Warranty (years) -- | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
