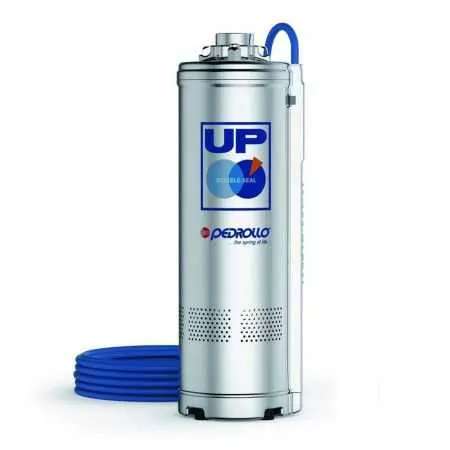

UP 8/4 (10m) - 230 V 2 HP three-phase submersible electric pump Pedrollo - 1

-42%

UP 8/4 (10m) - 2 HP 230 V three-phase submersible electric pump

Name: UP 8/4 (10m) - 2 HP 230 V three-phase submersible electric pump
Brand: Pedrollo
SKU: UP 8/4 230/240 V 10m
Price: 458.45 EUR
Availability: InStock

Flow rate up to 180 l/min (10.8 m³/h). Head up to 54 m. 1.5 kW (2 HP) motor. 10 m cable.

Variants:

Order it before 23:59 and receive it on Wednesday 25 February with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 26 February - Friday 27 February
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 26 February - Friday 27 February
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Thursday 26 February - Friday 27 February
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Wednesday 25 February
Ritiro in negozio	Choose where to collect your order within 24/48 hours.	Wednesday 25 February

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 26 February - Friday 27 February

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 26 February - Friday 27 February

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 26 February - Friday 27 February

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 25 February

Carrier: Ritiro in negozio

Description: Choose where to collect your order within 24/48 hours.

Estimated delivery:
Wednesday 25 February

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

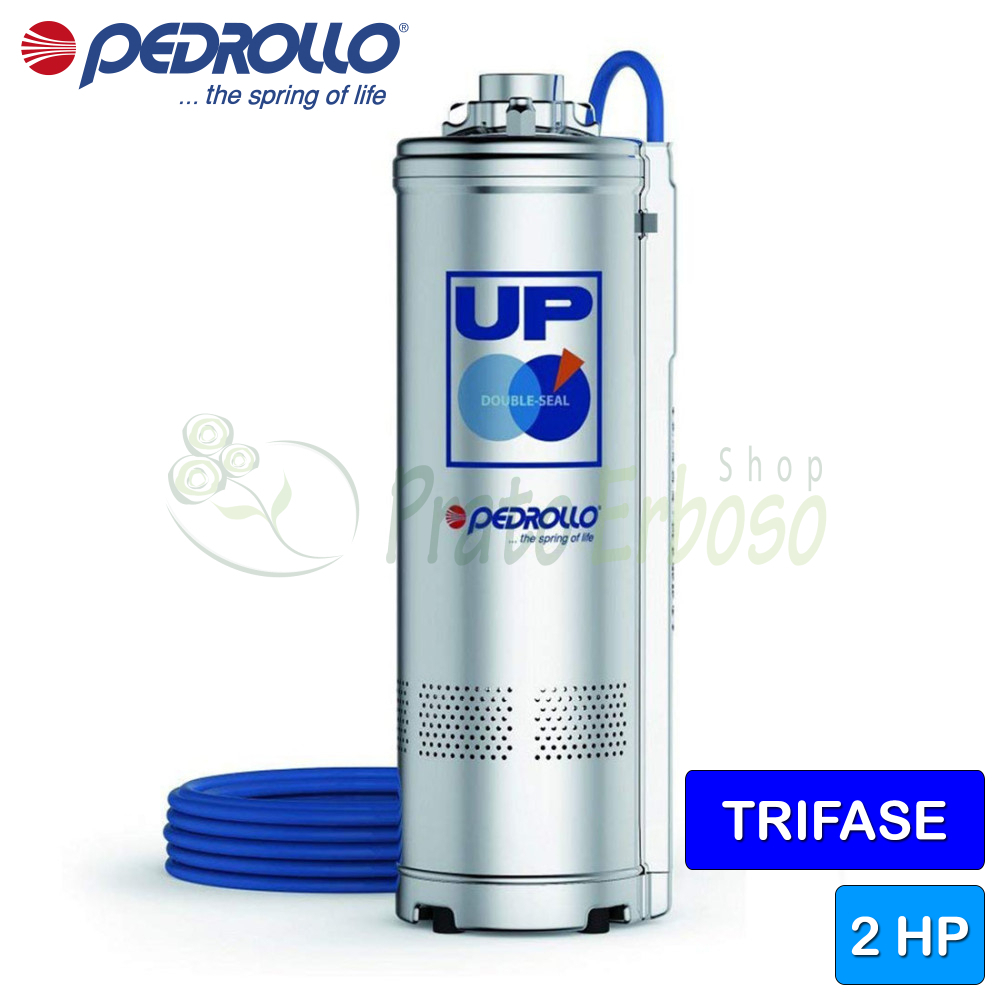

The UP 8/4 submersible electric pump from Pedrollo 's UP series boasts a solid and robust construction thanks to the use of stainless steel.

It stands out for its great reliability which makes it perfect for installations in the domestic sector.

The implemented technical solutions prevent the electric pump from blocking even after long periods of inactivity.

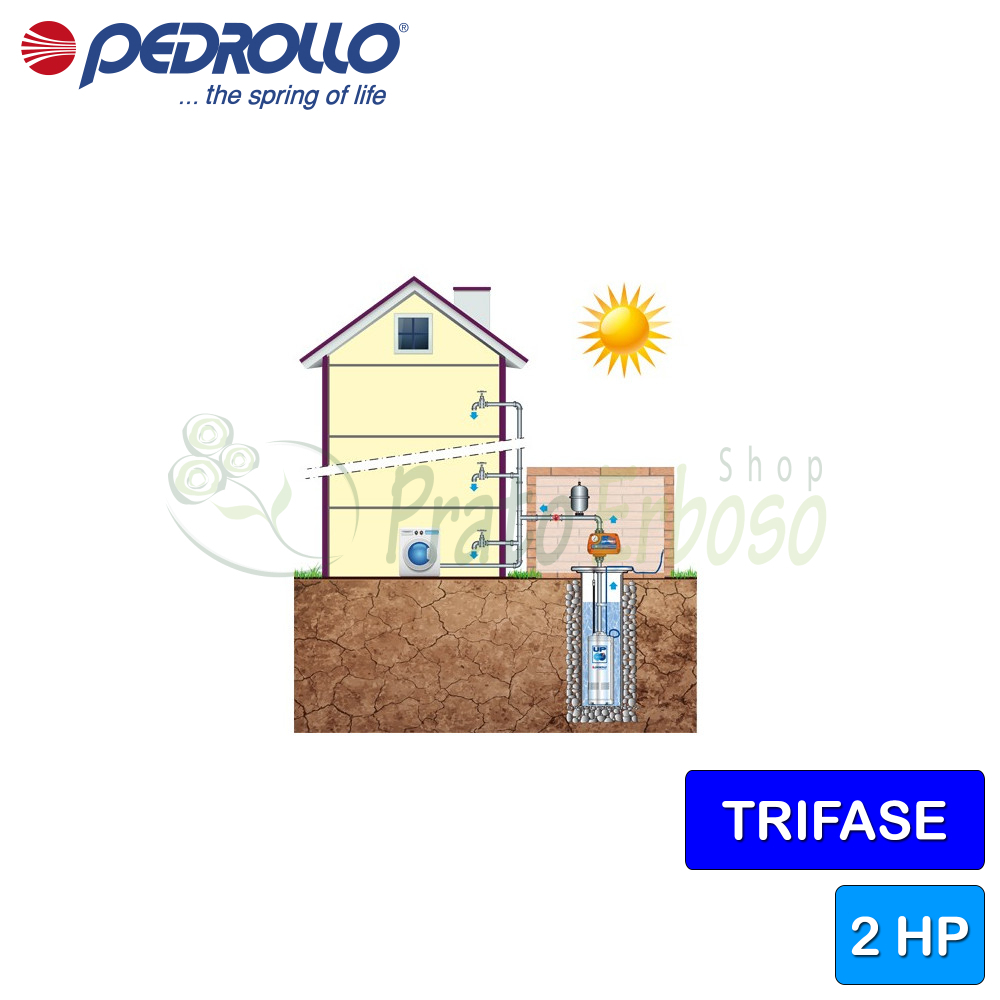

The UP 8/4 is particularly suitable for activities such as water distribution in conjunction with pressure tanks, for the irrigation of vegetable gardens and gardens and for pressure boosting.

It can be installed both vertically and horizontally up to 20 metres below water level.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 1.5
Power (HP): 2
Absorption at 230V (A): 5.7
Delivery mouth: 1" 1/4
Pump body: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 4
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 40
Max. flow rate (l./min.): 180
Min. head (m.): 12
Max. head (m.): 54
Cable length (m.): 10
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): +40°C
Height (cm): 50.2
External diameter (cm): 15
Weight (Kg): 15.5
Warranty (years): 2

Attachments

UP technical sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo UP series pumps.

Download (2.03MB)

UP models and performance

GUY

three-phase

UP 2/2

UP 2/3

UP 2/4

UP 2/5

UP 2/6

UP 4/3

UP 4/4

UP 4/5

UP 4/6

UP 8/3

UP 8/4

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
1.1	1.5
1.5	2
0.55	0.75
0.75	1
1.1	1.5
1.5	2
1.1	1.5
1.5	2

IMPELLERS
number
2
3
4
5
6
3
4
5
6
3
4

PERFORMANCE
Q litres/min	H meters
10 ÷ 80	33 ÷ 17
10 ÷ 80	48 ÷ 23
10 ÷ 80	63÷31
10 ÷ 80	81 ÷ 40
10 ÷ 80	95 ÷ 48
20 ÷ 120	40 ÷ 12
20 ÷ 120	53 ÷ 16
20 ÷ 120	67 ÷ 20
20 ÷ 120	80 ÷ 24
40 ÷ 180	40 ÷ 9
40 ÷ 180	52 ÷ 12

MOUTH
DN
1 1/4"

Q	m³/hour	0	0.6	1.2	2.4	3.6	4.8	6.0	7.2	8.4	9.6	10.8
Q	l/min	0	10	20	40	60	80	100	120	140	160	180
H	meters	33	32	31	28	23.5	17
		48	46	44.5	40.5	33.5	23
		63	61	59	54	45	31
		81	79	75.5	68.5	57.5	40
		95	93	90	82	68.5	48
		40	-	39	37	33	28	20.5	12
		53	-	52	49	44	37	27.5	16
		67	-	65	61.5	55	46.5	34	20
		80	-	78	74	66	56	41	24
		40	-	-	39	37.5	35.2	32	27.8	22.2	16	9
		52	-	-	51	49.2	46.5	42	36.5	29.5	21.2	12

Construction data UP2

Bearings

Pump side motor bearing	6303 2RS - C3
Opposite side engine bearing	6203 ZZ - C3E

Tree holding

Type of seal	Double mechanical seal in oil chamber
Engine side model	STA-17
LM diameter	17
LM fixed ring	Ceramic
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	ST1-16
LP diameter	16
LP fixed ring	Silicon carbide
LP rotating ring	Graphite
LP elastomer	NBR

Materials

2.1 - Seal holder cover	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
5.1 - Diffuser	Reinforced technopolymer
5.3 - Diaphragm/Diffuser Cover	Stainless steel EN 1.4301 (AISI 304)
6.2 - Engine sleeve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
