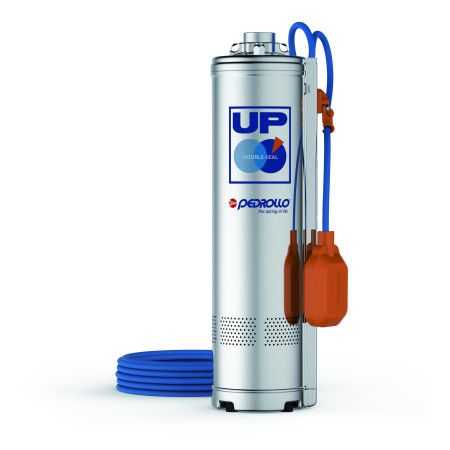

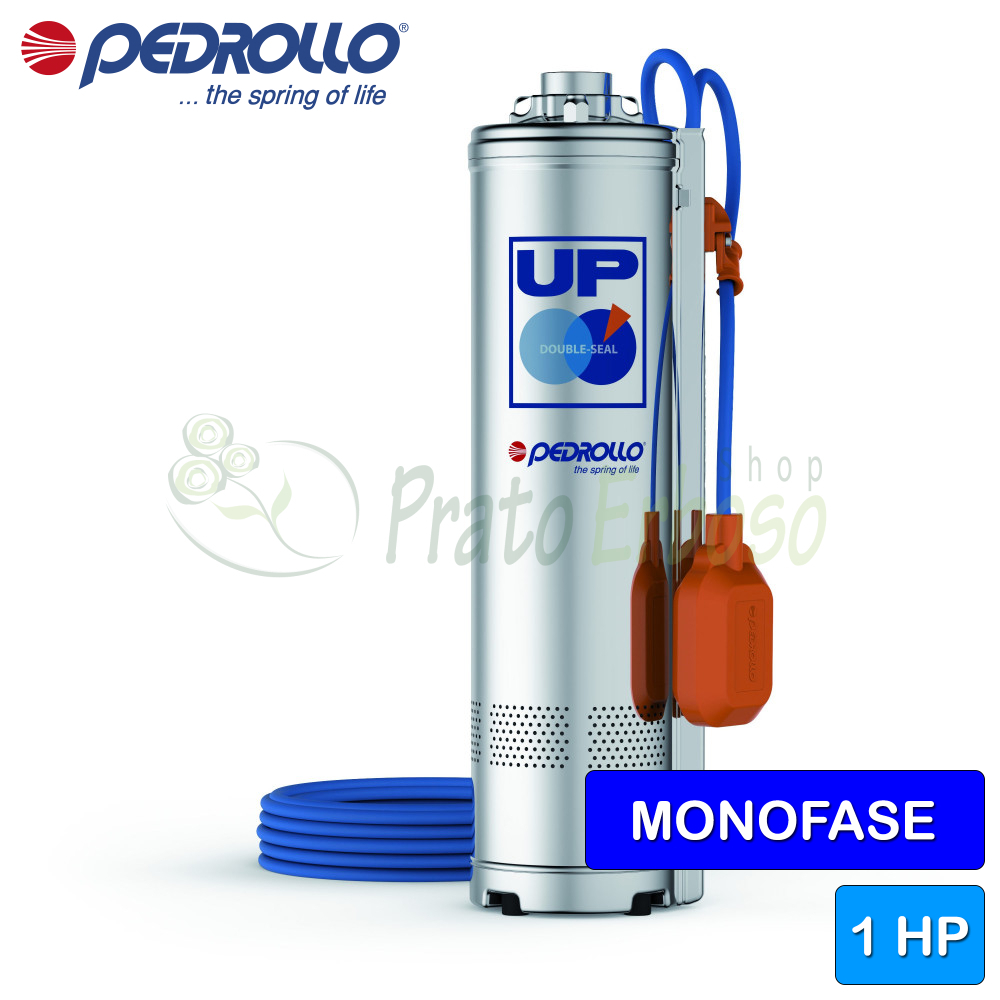

UPm 4/4-GE (10m) - 1 HP single-phase submersible electric pump with float switch
Flow rate up to 120 l/min (7.2 m³/h). Head up to 53 m. 0.75 kW (1 HP) motor. 10 m cable.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The UPm 4/4-GE submersible electric pump from the UP series by Pedrollo can pump water with a maximum content of 150 grams of sand per cubic meter.
It supports clean water and chemically non-aggressive liquids for the components.
Made using AISI 304 and 431 stainless steel which makes it solid and robust.
The UPm 4/4-GE stands out for its reliability which makes it perfect for use in the domestic sector.

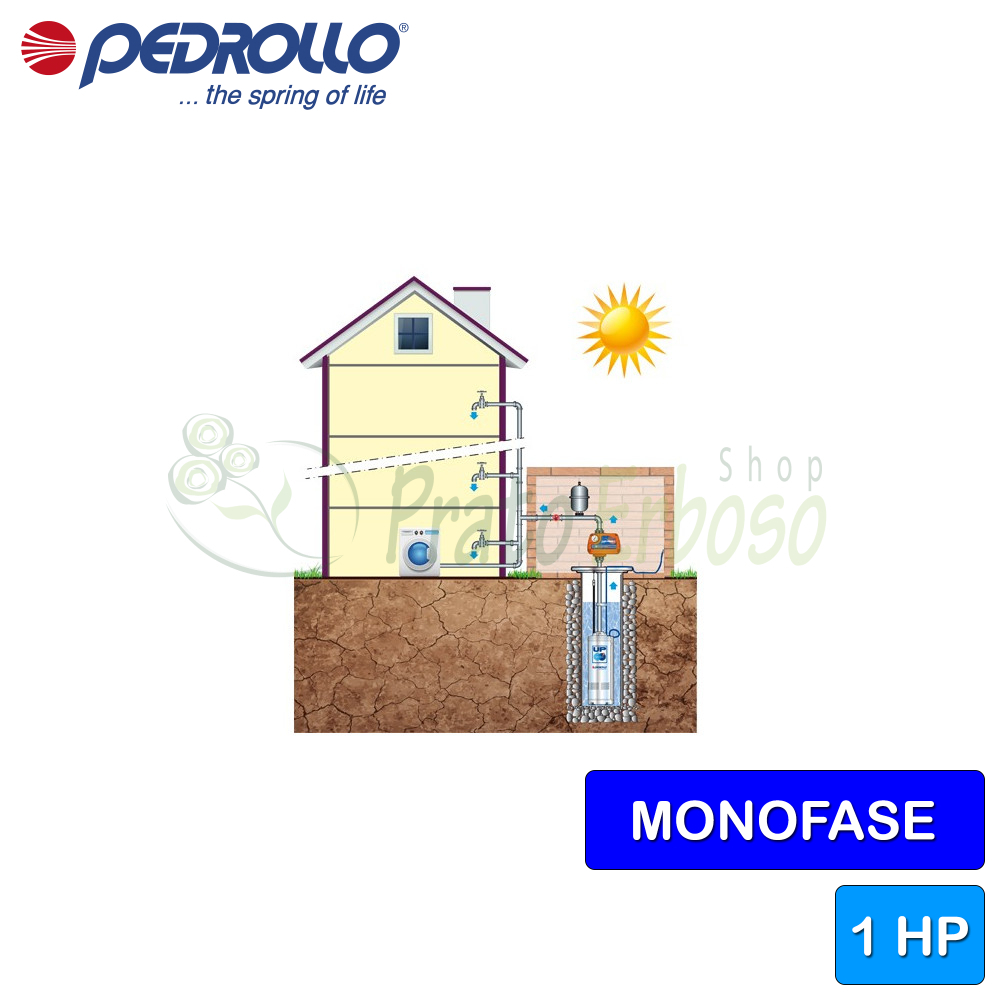

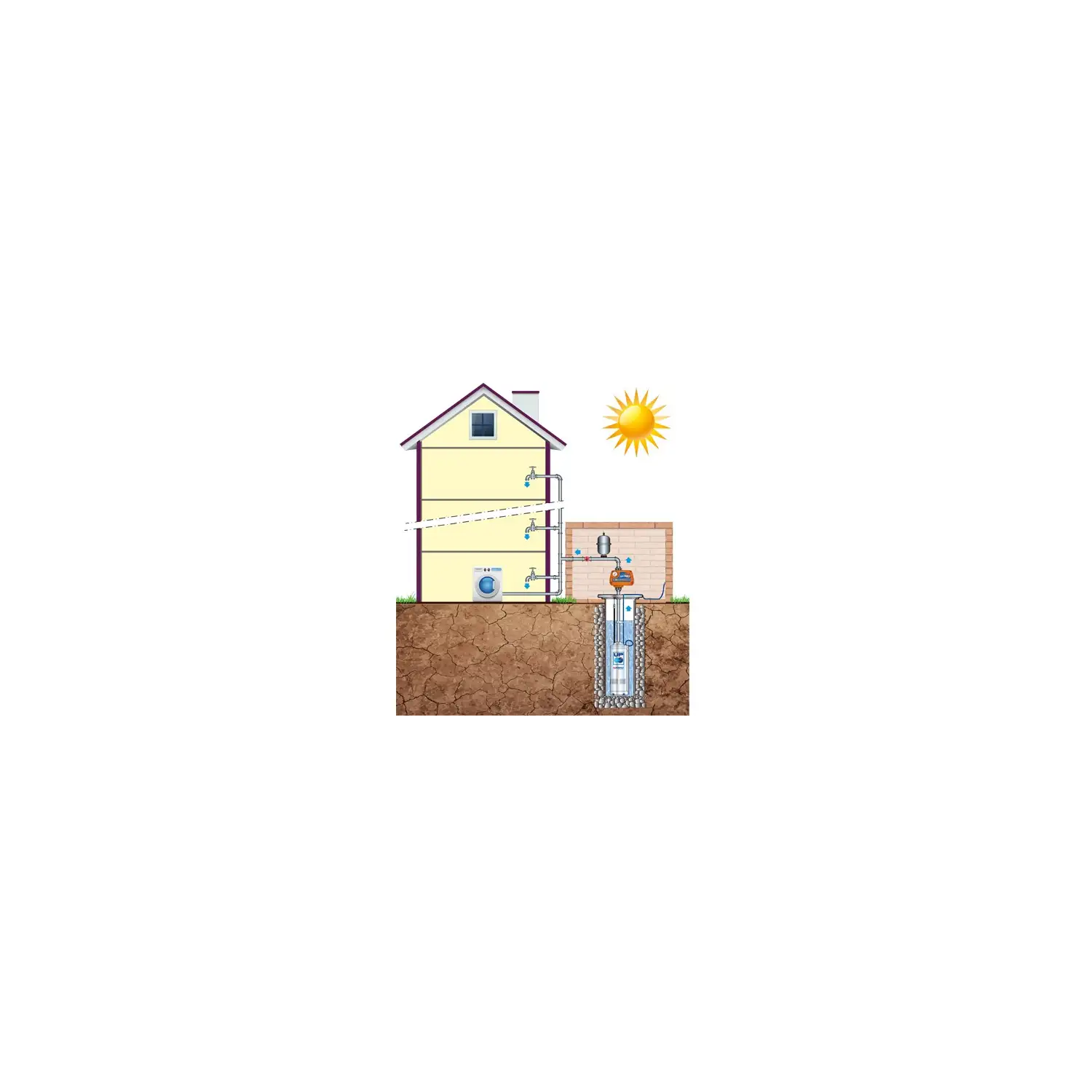

It can be used in particular for activities such as water distribution in conjunction with pressure tanks, for the irrigation of vegetable gardens and gardens and for increasing pressure.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 6.2
- Capacitor
- 20 µF 450 VL
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 4
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 16
- Max. head (m.)
- 53
- Cable length (m.)
- 10
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 48.2
- External diameter (cm)
- 15
- Weight (Kg)
- 14.6
- Warranty (years)
- 2
GE UPm models and performance
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data UP2
Bearings
| Pump side motor bearing | 6303 2RS - C3 |
| Opposite side engine bearing | 6203 ZZ - C3E |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| Engine side model | STA-17 |
| LM diameter | 17 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | ST1-16 |
| LP diameter | 16 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 2.1 - Seal holder cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Stainless steel EN 1.4301 (AISI 304) |
| 6.2 - Engine sleeve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
Customers who bought this product also bought...
-
€40.97 tax incl. -
- -42%
€43.87 tax incl. €75.64
From the same brand and category
Reviews (1) - Review moderation
UPm 4/4_Ge
ottima anche la spedizione
By Flavio m. the 08/08/2017 This review was helpful 0 - 0
Report an abuse
Already reported
Compare with Similar Products
 UPm 4/4-GE (10m) - 1 HP single-phase submersible electric pump with float switchThis product Flow rate up to 120 l/min (7.2 m³/h). Head up to 53 m. 0.75 kW (1 HP) motor. 10 m cable. |  UPm 4/3-GE (10m) - 0.75 HP single-phase submersible electric pump with float switchFlow rate up to 120 l/min (7.2 m³/h). Head up to 40 m. 0.55 kW (0.75 HP) motor. 10 m cable. |  UPm 4/5-GE (10m) - 1.5 HP single-phase submersible electric pump with float switchFlow rate up to 120 l/min (7.2 m³/h). Head up to 67 m. 1.1 kW (1.5 HP) motor. 10 m cable. |  UPm 4/6-GE (10m) - 2 HP single-phase submersible electric pump with float switchFlow rate up to 120 l/min (7.2 m³/h). Head up to 80 m. 1.5 kW (2 HP) motor. 10 m cable. | |
|---|---|---|---|---|
| Price | Price €640.50 -42% €371.49 | Price €611.22 -42% €354.51 | Price €678.32 -42% €393.43 | Price €716.14 -42% €415.36 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.55 | Power (Kw) 1.1 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 1 | Power (HP) 0.75 | Power (HP) 1.5 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) 6.2 | Absorption at 230V (A) 5.0 | Absorption at 230V (A) 7.2 | Absorption at 230V (A) 8.7 |
| Capacitor | Capacitor 20 µF 450 VL | Capacitor 16 µF 450 VL | Capacitor 25 µF 450 VL | Capacitor 35 µF 450 VL |
| Delivery mouth | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 4 | Number of impellers 3 | Number of impellers 5 | Number of impellers 6 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 |
| Min. head (m.) | Min. head (m.) 16 | Min. head (m.) 12 | Min. head (m.) 20 | Min. head (m.) 24 |
| Max. head (m.) | Max. head (m.) 53 | Max. head (m.) 40 | Max. head (m.) 67 | Max. head (m.) 80 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 48.2 | Height (cm) 42.5 | Height (cm) 50.9 | Height (cm) 55.6 |
| External diameter (cm) | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 |
| Weight (Kg) | Weight (Kg) 14.6 | Weight (Kg) 12.9 | Weight (Kg) 16.2 | Weight (Kg) 18.1 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
