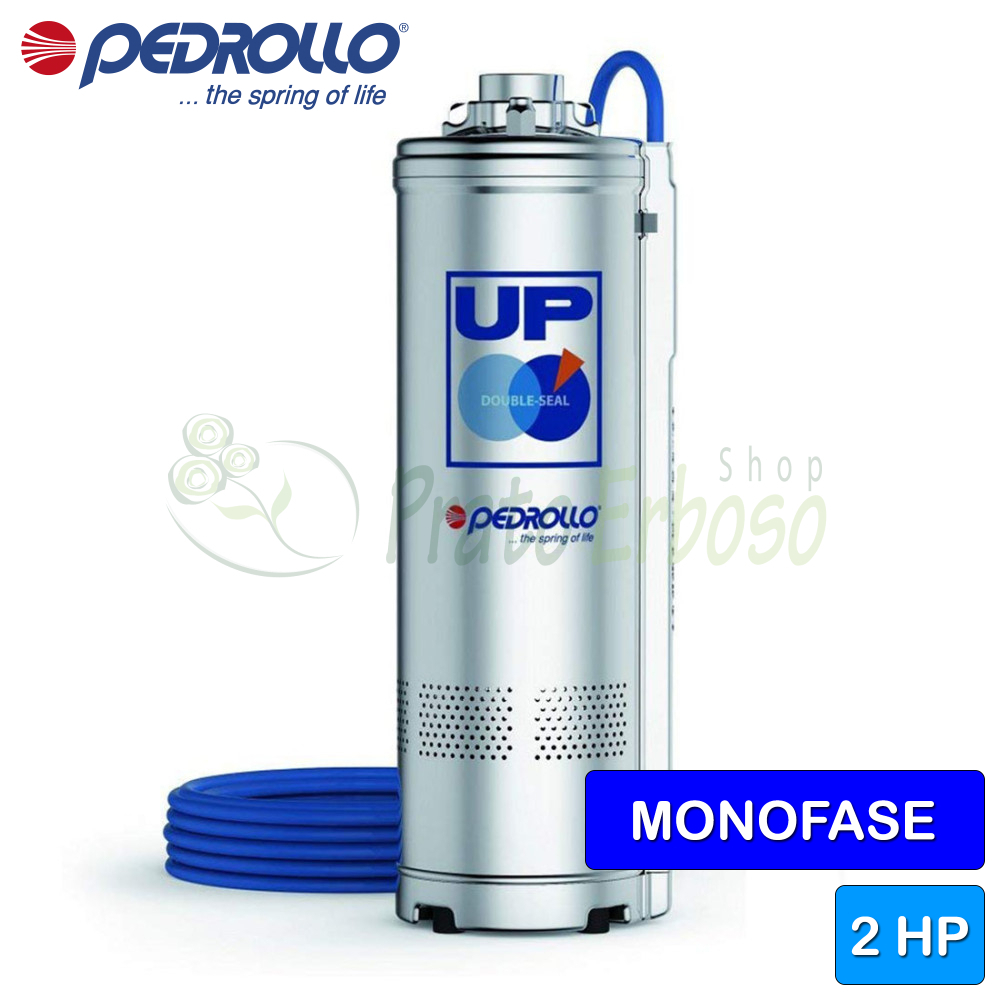

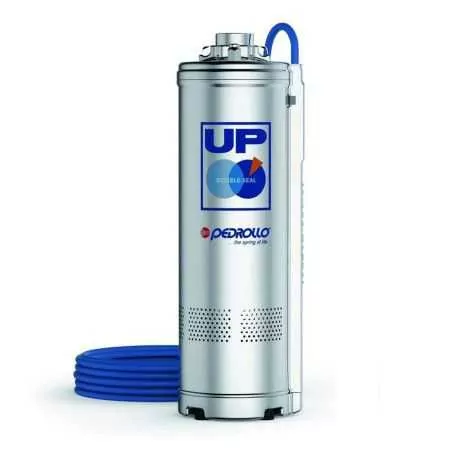

UPm 8/4 (10m) - 2 HP single-phase submersible electric pump

Flow rate up to 180 l/min (10.8 m³/h). Head up to 54 m. 1.5 Kw (2 HP) motor. 10 meters of cable.

€396.26 Tax included

€324.80 Tax excluded

€683.20-42%

Variants:
UPm 8/3 (10m) - Elettropompa sommersa monofase da 1.5 HP
UPm 8/4 (10m) - Elettropompa sommersa monofase da 2 HP
There are no reviews yet
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

UPm 8/4 (10m) - 2 HP single-phase submersible electric pump
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description

The main feature of the UP submersible electric pump is the impossibility of blocking even after long periods of inactivity, thanks to innovative patented technical solutions.

The UP subverts the classic design standards of 5” submersible pumps. In fact, compared to pumps of the same type, it is built in the opposite way, that is, with the motor in the lower part, with the hydraulic section placed in the upper part (hence the name UP).
Among its revolutionary strengths are its greater compactness and a system of independent floating impellers that allows it to pump clean water with a maximum sand content of up to 150 g/m³, the only one in the world of 5”.

Furthermore, the UP features reduced consumption, a valve that eliminates the “bell effect” to facilitate the expulsion of air bubbles that can form inside the pump and the raised suction grid, not placed on the bottom, to prevent the passage of sand, leaves and other foreign bodies that could clog the hydraulics and therefore reduce performance.
The UP is equipped with a forced flushing system for the mechanical seal lubrication oil and is available in versions with or without float. It can operate in both vertical and horizontal positions.

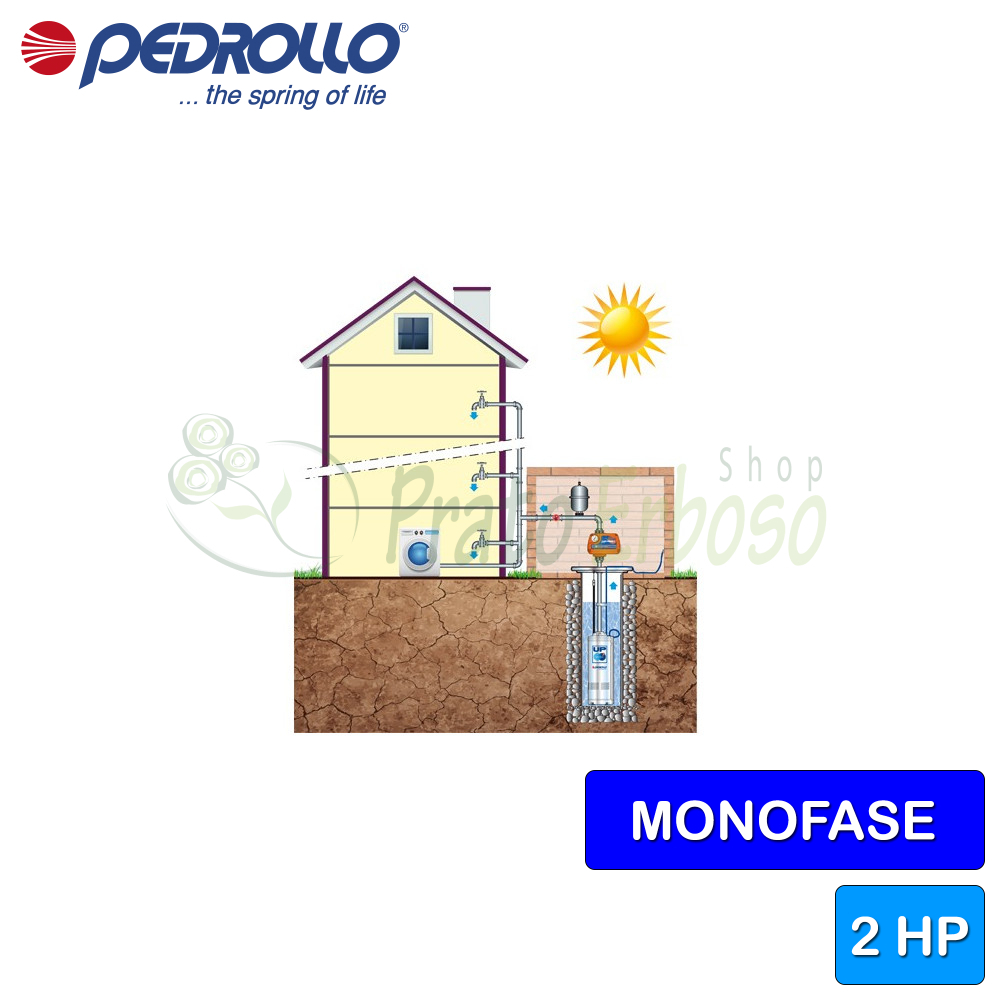

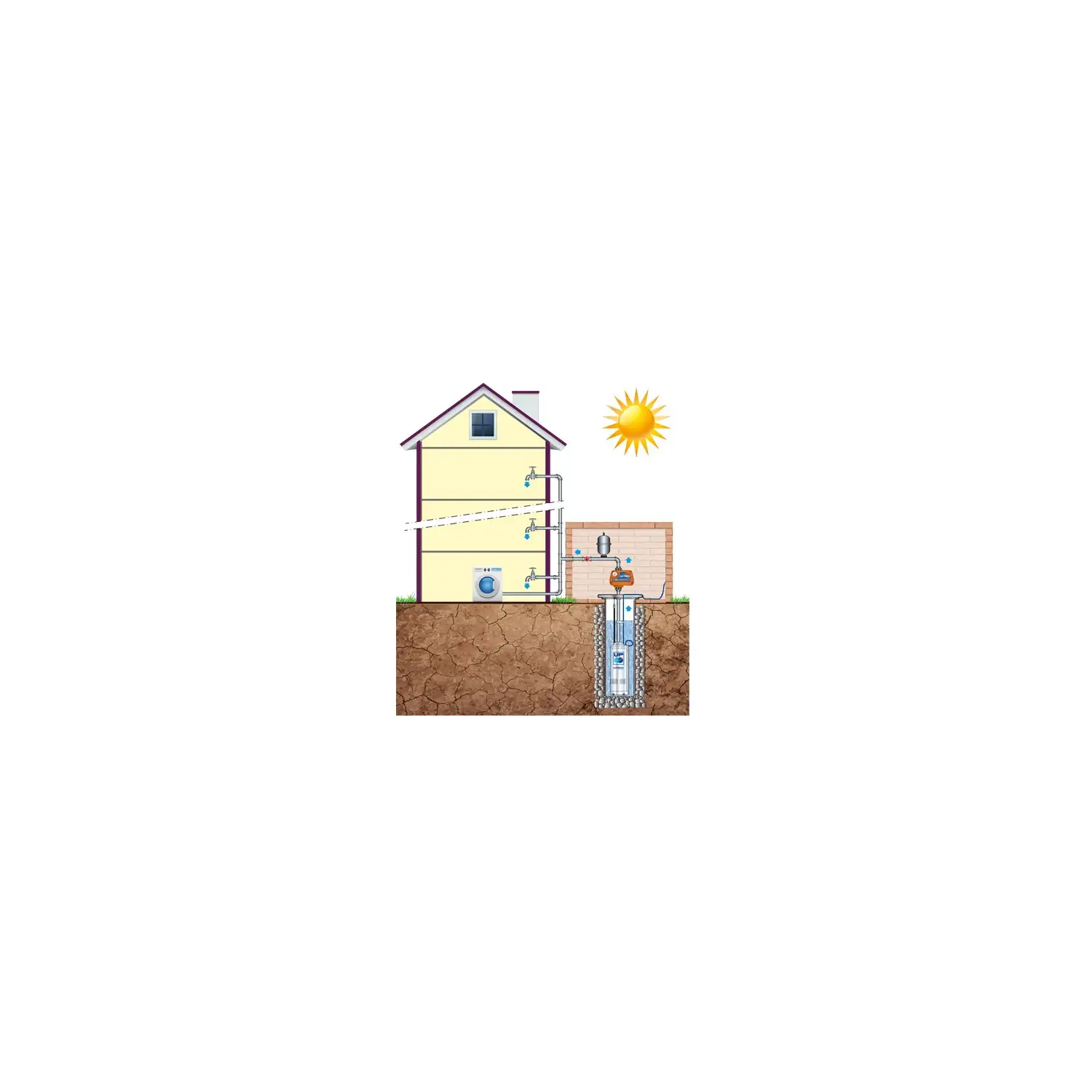

Due to its high performance and reliability, it is recommended for pumping clean water in the domestic, civil and agricultural sectors, for irrigating vegetable gardens and gardens, for boosting pressure, etc.

Data sheet
Pedrollo
UPm 8/4 10m
9 Items
48SP0175A1U
Motor connection
SINGLE PHASE
Power (HP)
2
Absorption at 230V (A)
8.5
Capacitor
35 µF450 VL
Delivery mouth
1 "1/4
Pump body
AISI 304 stainless steel
Impeller
Noryl
Number of impellers
4
Crankshaft
AISI 431 stainless steel
Check valve
No
Degree of protection
IP 68
Min. flow rate (l./min.)
40
Max. flow rate (l./min.)
180
Min. head (m.)
12
Max. head (m.)
54
Cable length (m)
10
Jobs
water supply, pressurization systems, irrigation
Max. liquid temperature (°C)
40
Height (cm)
50.2
External diameter (cm)
15
Weight (Kg)
17
Warranty (years)
2

Frequently bought together

  • UPm 8/4 (10m) - 2 HP single-phase submersible electric pump
  • +
  • 4SRm 10/9 N-PD - 2 HP single-phase submersible electric pump
  • +
  • RXm 1 - GM (5m) - Single-phase electric pump for clear water 0.33 HP
  • €1,000.55-10 %
    Total price: €900.50
UPm models and performance
GUY
three-phase
UPm 2/2
UPm 2/3
UPm 2/4
UPm 2/5
UPm 2/6
UPm 4/3
UPm 4/4
UPm 4/5
UPm 4/6
UPm 8/3
UPm 8/4
POWER
KWHP
0.370.50
0.550.75
0.751
1.11.5
1.52
0.550.75
0.751
1.11.5
1.52
1.11.5
1.52
Construction data UP2
Cutaway of UP pumps
Bearings
Pump side motor bearing6303 2RS - C3
Opposite side engine bearing6203 ZZ - C3E
Tree holding
Type of sealDouble mechanical seal in oil chamber
Engine side modelSTA-17
LM diameter17
LM fixed ringCeramic
LM rotating ringGraphite
LM elastomerNBR
Shrinkage DN1=450 DN2=350ST1-16
LP diameter16
LP fixed ringSilicon carbide
LP rotating ringGraphite
LP elastomerNBR
Materials
2.1 - Seal holder coverStainless steel EN 1.4301 (AISI 304)
3.0 - ImpellerReinforced technopolymer
4.0 - Pump shaftStainless steel EN 1.4057 (AISI 431)
5.1 - DiffuserReinforced technopolymer
5.3 - Diaphragm/Diffuser CoverStainless steel EN 1.4301 (AISI 304)
6.2 - Engine sleeveStainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirtStainless steel EN 1.4301 (AISI 304)
7.3 - Cable coverStainless steel EN 1.4301 (AISI 304)
