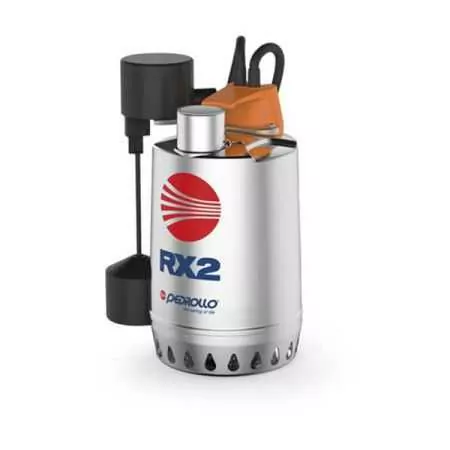

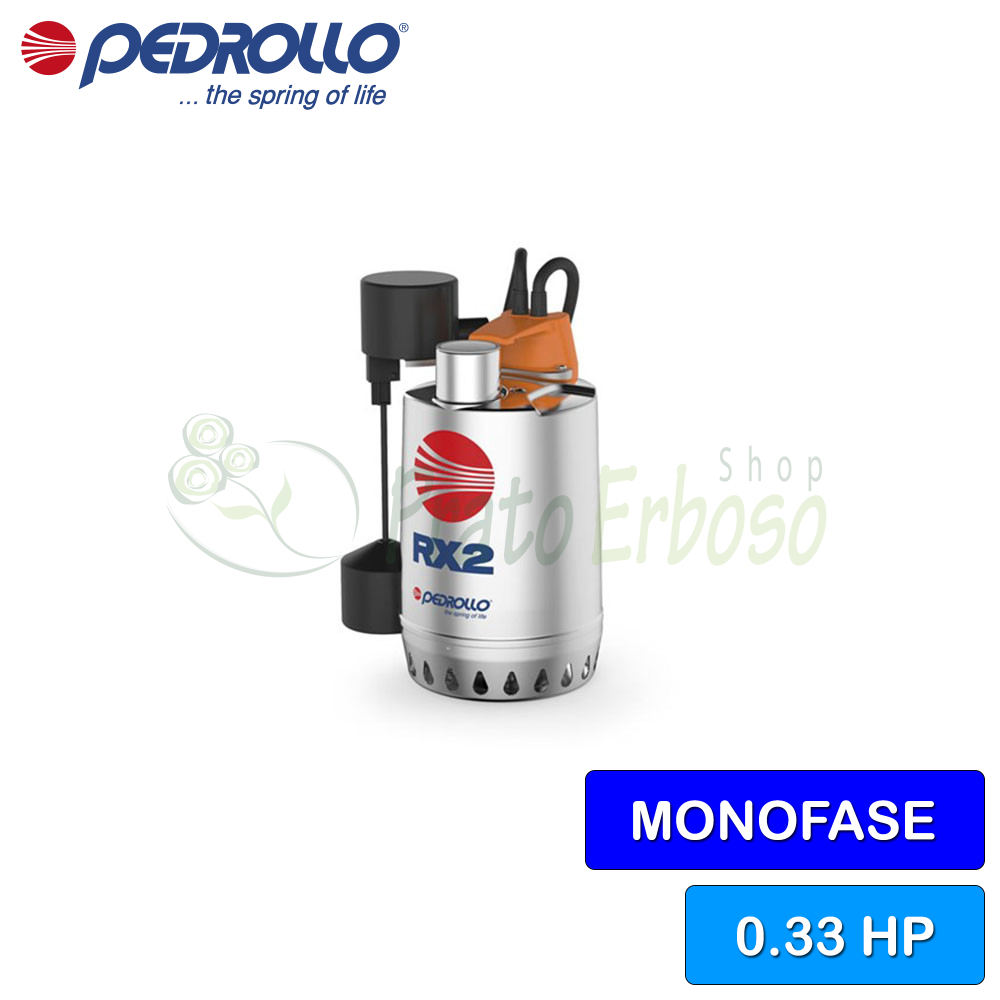

RXm 1 - GM (5m) - Single-phase electric pump for clear water, 0.33 HP
Flow rate up to 160 l/min (9.6 m³/h). Head up to 7.7 m. 0.25 kW (0.33 HP) motor. 5-meter cable with Schuko plug.
WITH MAGNETIC FLOAT
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The RXm 1 -GM submersible electric pump from the RX series by Pedrollo is made entirely of stainless steel.
Recommended for civil and domestic installations.
Suitable for fixed installations, emergency drainage of small flooded areas, disposal of domestic waste water from dishwashers and washing machines and for emptying collection pits.
The RXm 1 - GM is simple and reliable in its use.
It can be installed up to 10 meters below water level with a cable of adequate length, the one supplied is 5 meters.
With vertical sliding magnetic float for awkward installations in small wells.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.25
- Power (HP)
- 0.33
- Absorption at 230V (A)
- 1.5
- Capacitor
- 10 µF 450 VL
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 160
- Min. head (m.)
- 2
- Max. head (m.)
- 7.7
- Cable length (m.)
- 5
- Jobs
- drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 27
- Width (cm)
- 14.7
- Weight (Kg)
- 5.9
- Warranty (years)
- 2
RXm models and performances - GM
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the RX1
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Seal: Mechanical and Lip with oil chamber |
| Engine side model | Lip seal |
| LM diameter | 12 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
