Submersible motors

Submersible motors

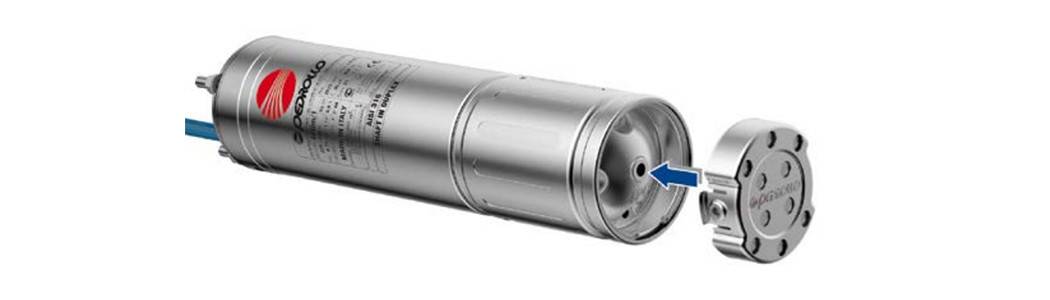

Replacement motors for well pumps

Motors designed to operate submerged and drive the hydraulic sections of compatible submersible pumps. Check diameter, power, and electrical specifications.

 Show Moreexpand_more
 Show Lessexpand_less
4PDm/0.50 - 4" 0.5 HP single-phase rewindable motor
-45%
4PDm/0.50 - 4" 0.5 HP single-phase rewindable motor
Power: 0.37 Kw (0.50 HP). Voltage: 230 V / 50 Hz. Current: 3.6 A. Revolutions: 2820/min.
€165.07
€300.12
Features
Jobsfire prevention systems, irrigation, pressurization systems, water supply
Motor connectionSINGLE-PHASE
Power (HP)0.50
Absorption at 230V (A)3.6
Capacitor20 µF 450 VL
CrankshaftDuplex Stainless Steel
Details View details
4PD/0.50 - 4" rewindable motor 0.5 HP three-phase 400 V
-45%
4PD/0.50 - 4" rewindable motor 0.5 HP three-phase 400 V
Power: 0.37 kW (0.50 HP). Voltage: 400V / 50Hz. Current: 1.7 A. Revolutions: 2855/min
€165.07
€300.12
Features
Jobsfire prevention systems, irrigation, pressurization systems, water supply
Motor connectionTHREE-PHASE
Power (HP)0.50
Current consumption at 400V (A)1.8
CrankshaftDuplex Stainless Steel
Max. liquid temperature (°C)+35°C
Details View details
4PDm/0.75 - 4" 0.75 HP single-phase rewindable motor
-45%
4PDm/0.75 - 4" 0.75 HP single-phase rewindable motor
Power: 0.55 Kw (0.75 HP). Voltage: 230 V / 50 Hz. Current: 4.7 A. Revolutions: 2830/min.
€169.09
€307.44
Features
Jobsfire prevention systems, irrigation, pressurization systems, water supply
Motor connectionSINGLE-PHASE
Power (HP)0.75
Absorption at 230V (A)4.7
Capacitor25 µF 450 VL
CrankshaftDuplex Stainless Steel
Details View details
4PD/0.75 - 4" rewindable motor 0.75 HP three-phase 400 V
-45%
4PD/0.75 - 4" rewindable motor 0.75 HP three-phase 400 V
Power: 0.55 kW (0.75 HP). Voltage: 400V / 50Hz. Current: 1.9A. Revolutions: 2835/min.
€171.11
€311.10
Features
Jobsfire prevention systems, irrigation, pressurization systems, water supply
Motor connectionTHREE-PHASE
Power (HP)0.75
Current consumption at 400V (A)2.0
CrankshaftDuplex Stainless Steel
Max. liquid temperature (°C)35°C
Details View details
4PD/0.75 - Rewindable motor 4" 0.75 HP three-phase 230 V
-45%
4PD/0.75 - Rewindable motor 4" 0.75 HP three-phase 230 V
Power: 0.55 kW (0.75 HP). Voltage: 230V / 50Hz. Current: 3.5A. Revolutions: 2835/min.
€188.22
€342.21
Features
Jobsfire prevention systems, irrigation, pressurization systems, water supply
Motor connectionTHREE-PHASE
Power (HP)0.75
Absorption at 230V (A)3.5
CrankshaftDuplex Stainless Steel
Max. liquid temperature (°C)+35°C
Details View details
4PDm/1 - 4" 1 HP single-phase rewindable motor - Pedrollo
-45%
4PDm/1 - 4" 1 HP single-phase rewindable motor
Power: 0.75 Kw (1 HP). Voltage: 230 V / 50 Hz. Current: 5.9 A. Revolutions: 2825/min.
Original spare part for 4SR10/5-N, 4SR12/5-N, 4HR10/5.
€180.50
€328.18
Features
Jobsfire prevention systems, irrigation, pressurization systems, water supply
Motor connectionSINGLE-PHASE
Power (HP)1
Absorption at 230V (A)5.9
Capacitor35 µF 450 VL
CrankshaftDuplex Stainless Steel
Details View details
4PD/1 - 4" 1 HP three-phase 400 V rewindable motor Pedrollo - 1
-45%
4PD/1 - 4" 1 HP three-phase 400 V rewindable motor
Power: 0.75 kW (1 HP). Voltage: 230V/50Hz to 400V/50Hz. Current: 2.4 to 4.3 A. Revolutions: 2825/min.
Original spare part for 4SR10/5-N, 4SR12/5-N, 4HR10/5.
€180.50
€328.18
Features
Jobsfire prevention systems, irrigation, pressurization systems, water supply
Motor connectionTHREE-PHASE
Power (HP)1
Current consumption at 400V (A)2.5
CrankshaftDuplex Stainless Steel
Max. liquid temperature (°C)+35°C
Details View details
4PD/1 - 4" rewindable motor 1 HP three-phase 230 V Pedrollo - 1
-45%
4PD/1 - 4" rewindable motor 1 HP three-phase 230 V
Power: 0.75 kW (1 HP). Voltage: 230V / 50Hz. Current: 4.3A. Revolutions: 2825/min.
Original spare part for 4SR10/5-N, 4SR12/5-N, 4HR10/5.
€198.55
€361.00
Features
Jobsfire prevention systems, irrigation, pressurization systems, water supply
Motor connectionSINGLE-PHASE
Power (HP)1
Absorption at 230V (A)4.3
CrankshaftDuplex Stainless Steel
Max. liquid temperature (°C)+35°C
Details View details
4PDm/1.5 - 4" 1.5 HP single-phase rewindable motor Pedrollo - 1
-45%
4PDm/1.5 - 4" 1.5 HP single-phase rewindable motor
Power: 1.1 Kw (1.5 HP). Voltage: 230V / 50Hz. Current: 8.3A. Revolutions: 2840/min.
Original spare part for 4SR10/7-N, 4SR12/7-N, 4SR15/6-N, 4HR10/7, 4HR14/6, 4HR18/4.
€194.59
€353.80
Features
Jobsair conditioning systems, irrigation, pressurization systems, water supply
Motor connectionSINGLE-PHASE
Power (HP)1.5
Absorption at 230V (A)8.3
Capacitor40
CrankshaftDuplex Stainless Steel
Details View details
4PD/1.5 - 4" rewindable motor 1.5 HP three-phase 400 V Pedrollo - 1
-45%
4PD/1.5 - 4" rewindable motor 1.5 HP three-phase 400 V
Power: 1.1 Kw (1.5 HP). Voltage: 230V/50Hz to 400V/50Hz. Current: 3 to 5 A. Revolutions: 2780/min.
Original spare part for 4SR10/7-N, 4SR12/7-N, 4SR15/6-N, 4HR10/7, 4HR14/6, 4HR18/4.
€191.91
€348.92
Features
Jobsfire prevention systems, irrigation, pressurization systems, water supply
Motor connectionTHREE-PHASE
Power (HP)1.5
Current consumption at 400V (A)3.4
CrankshaftDuplex Stainless Steel
Max. liquid temperature (°C)+35°C
Details View details
4PD/1.5 - 4" rewindable motor 1.5 HP three-phase 230 V Pedrollo - 1
-45%
4PD/1.5 - 4" rewindable motor 1.5 HP three-phase 230 V
Power: 1.1 Kw (1.5 HP). Voltage: 230V / 50Hz. Current: 5A. Revolutions: 2780/min.
Original spare part for 4SR10/7-N, 4SR12/7-N, 4SR15/6-N, 4HR10/7, 4HR14/6, 4HR18/4.
€210.69
€383.08
Features
Jobsfire prevention systems, irrigation, pressurization systems, water supply
Motor connectionTHREE-PHASE
Power (HP)1.5
Absorption at 230V (A)5.9
CrankshaftDuplex Stainless Steel
Max. liquid temperature (°C)+35°C
Details View details
