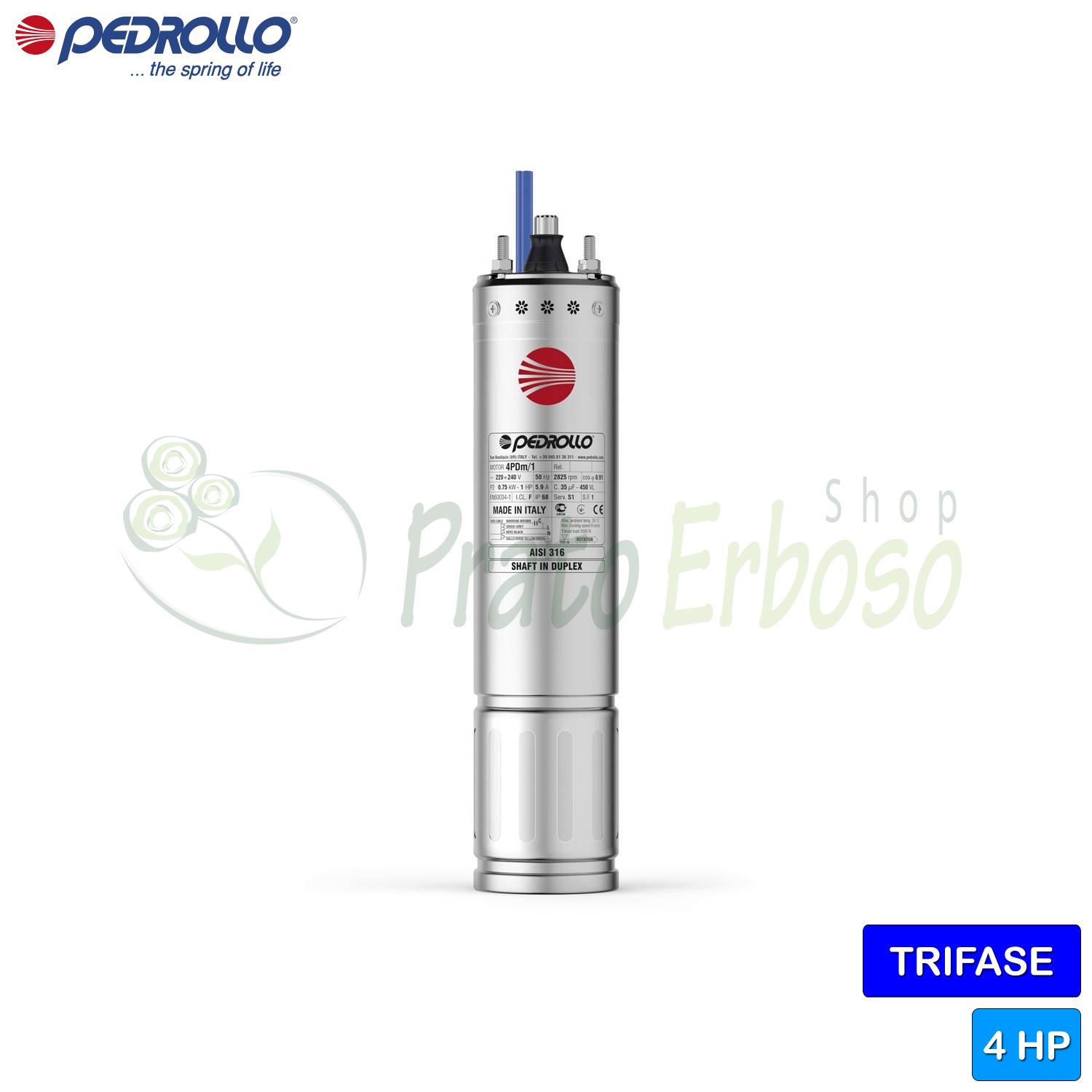

4PD/4 - 4" 4 HP three-phase rewindable motor

Pedrollo
4PD/4

Power: 3 Kw (4 HP). Voltage: 230V/50Hz to 400V/50Hz. Current: from 7.9 to 13 A. Revolutions: 2810/min.

Original spare part for 4SR10/18-N, 4SR12/18-N, 4SR15/16-N, 4HR10/20, 4HR14/16, 4HR18/12.

Make an Offer

Your proposed offer

Proposed unit price
—
Quantity
—
Proposed product total
—

Product amounts only, excluding shipping. Final conditions are checked when you send the offer.

Close
  • Telephone support for information before purchasing.
  • Reinforced packaging to reduce transport damage.
  • After-sales assistance for product installation.
  • Original replacement
Description

The PEDROLLO PD electric motor for the 4SR Submersible Pump models is the driving force behind the entire pump body.

Specially sized for the pump it will tow, it guarantees the best performance.

It is a food-grade rewindable submersible motor in oil bath, complete with 2.5m power cord.

Insulation class F and IP68 protection appropriate for use.

Original spare part for 4SR10/18-N, 4SR12/18-N, 4SR15/16-N, 4HR10/20, 4HR14/16, 4HR18/12.

Data sheet
Pedrollo
4PD/4
Jobs
fire prevention systems, irrigation, pressurization systems, water supply
Motor connection
THREE-PHASE
Power (HP)
4
Absorption at 230V (A)
12.3
Current consumption at 400V (A)
7.1
Crankshaft
Duplex Stainless Steel
Max. liquid temperature (°C)
+35°C
Cable length (m.)
3.6
Degree of protection
IP 68
Height (cm)
45
External diameter (cm)
9.2
Weight (Kg)
13.7
Warranty (years)
2
Attachments

4PD data sheet

Templates, yield curves and constructional characteristics of 4PD PEDROLLO pumps.

file_download Download (218.88KB)

Data sheet

Use and formulation of products

Jobs
fire prevention systems, irrigation, pressurization systems, water supply

Engine and mechanical performance

Motor connection
THREE-PHASE
Power (HP)
4
Absorption at 230V (A)
12.3
Current consumption at 400V (A)
7.1

Pump components and construction

Crankshaft
Duplex Stainless Steel

Liquids and pumping conditions

Max. liquid temperature (°C)
+35°C

Power supply and electrical parameters

Cable length (m.)
3.6

Safety and protection

Degree of protection
IP 68

Dimensions and weight

Height (cm)
45
External diameter (cm)
9.2
Weight (Kg)
13.7

Packaging, maintenance, and warranty

Warranty (years)
2
