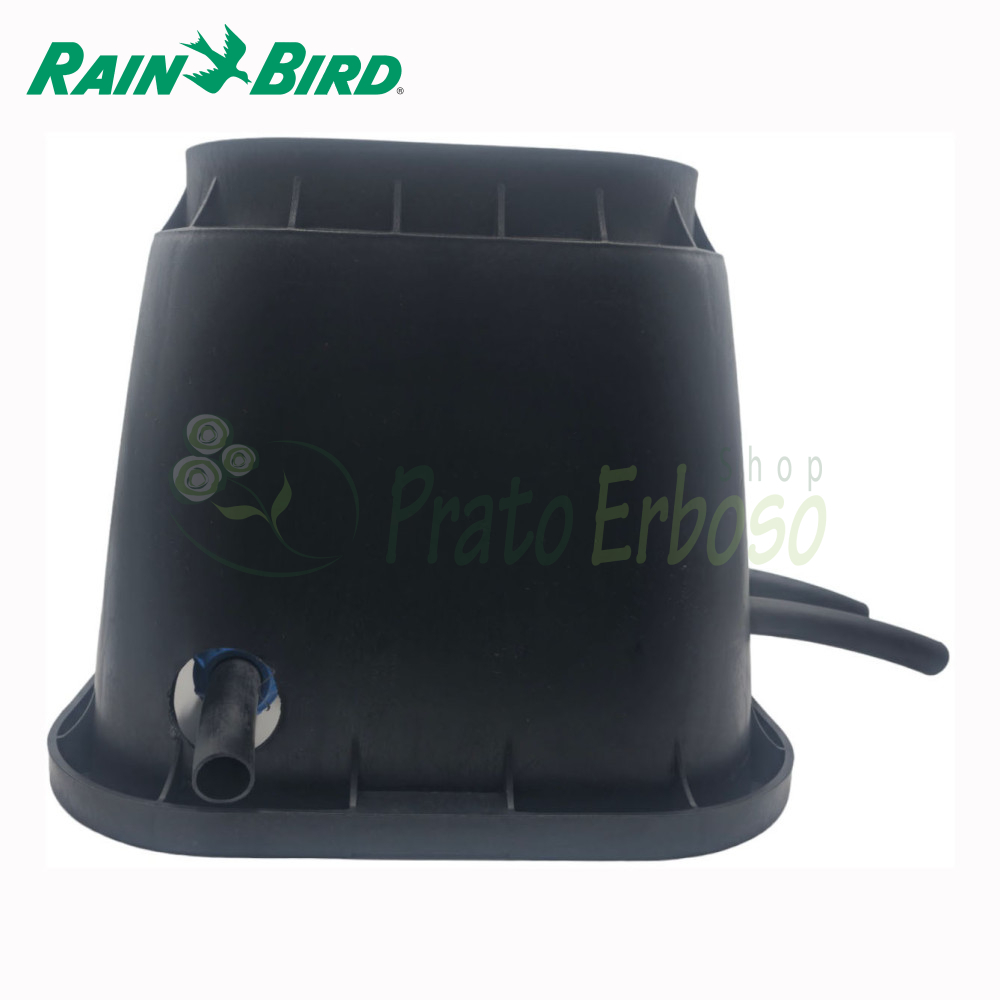

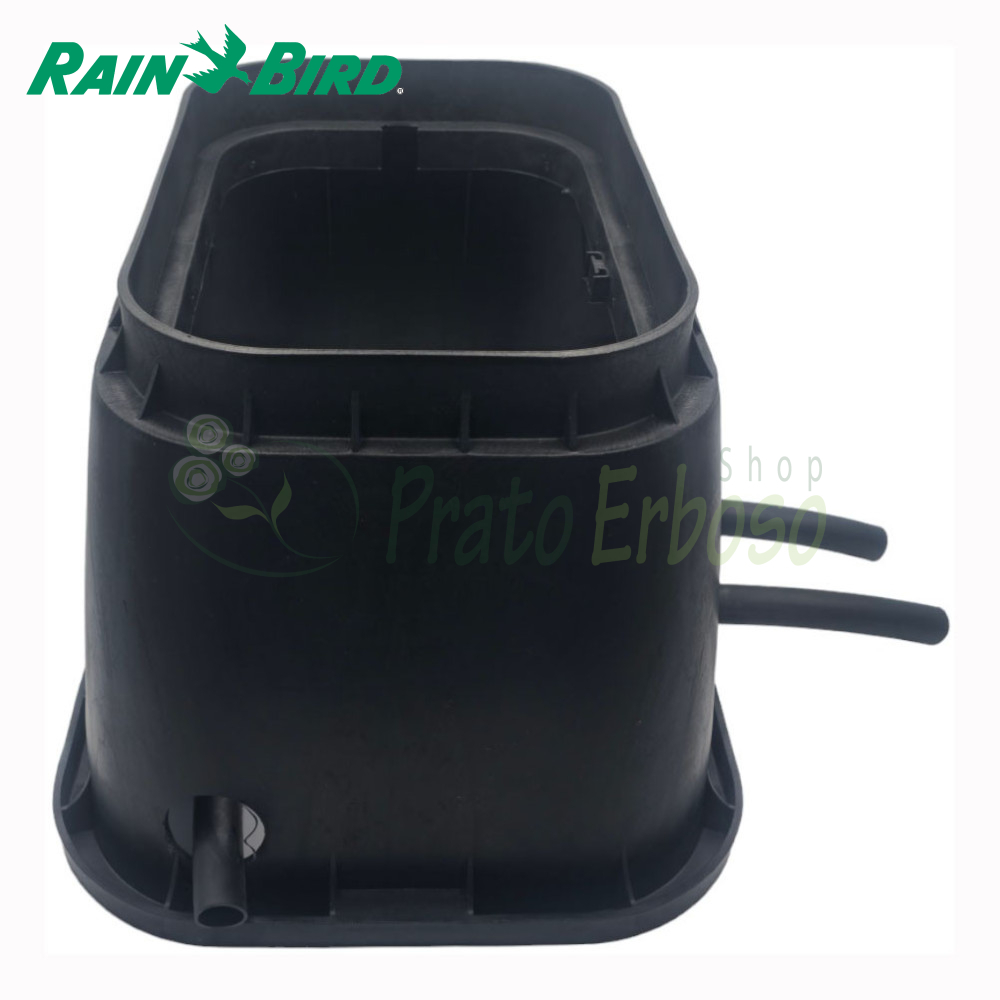

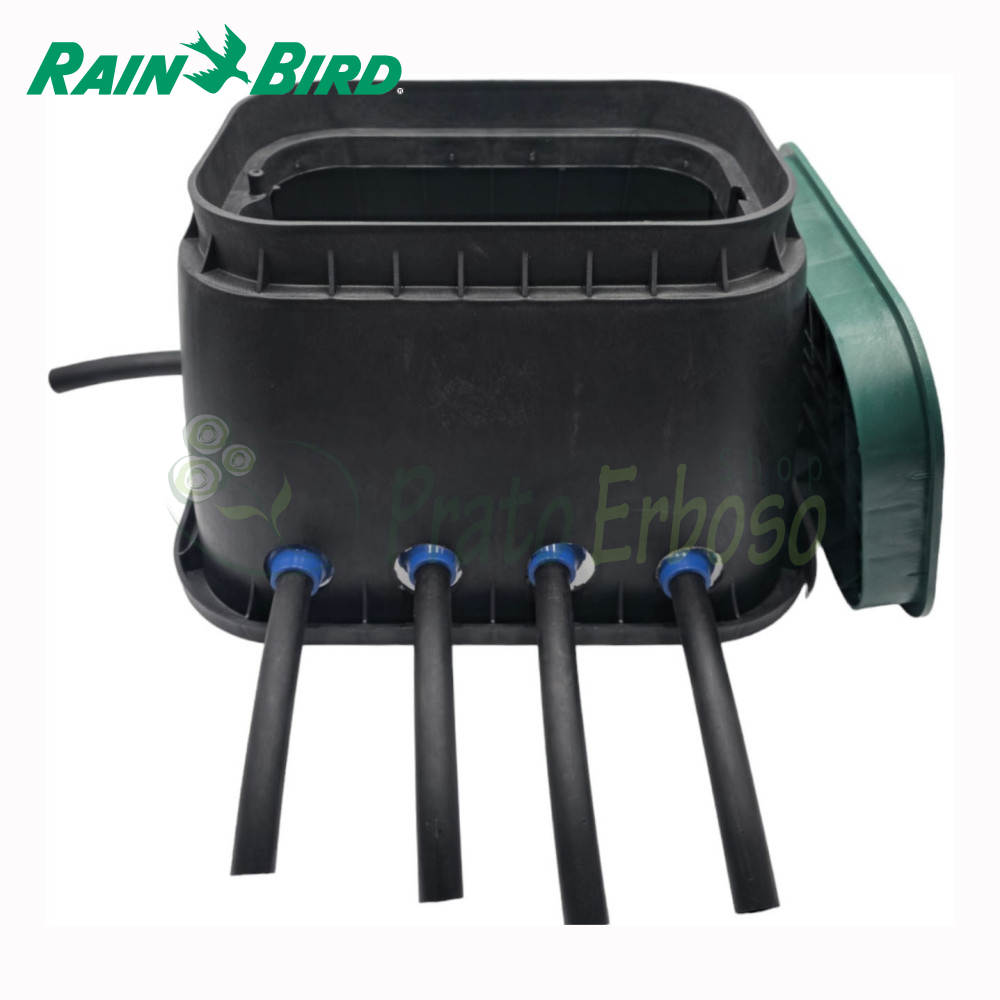

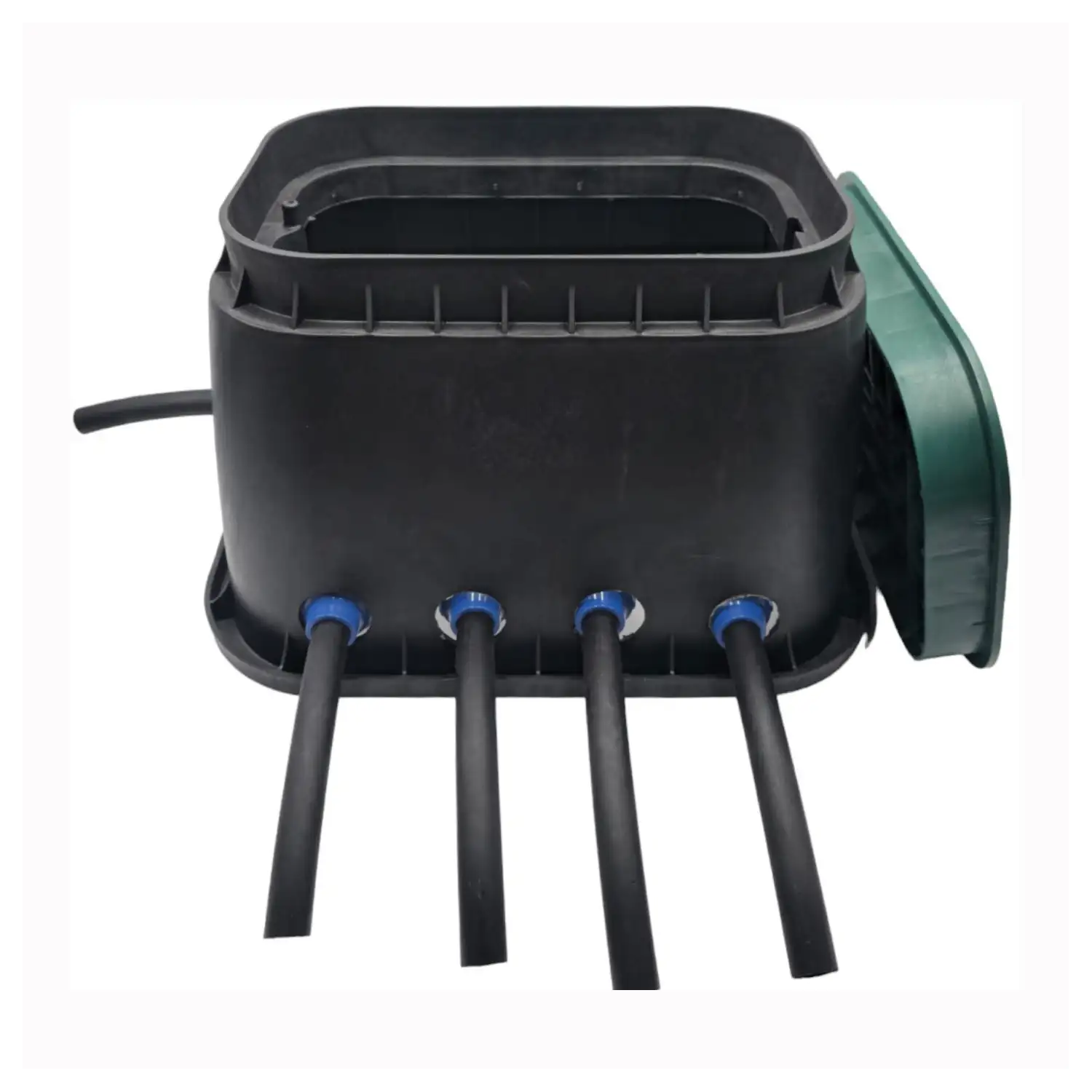

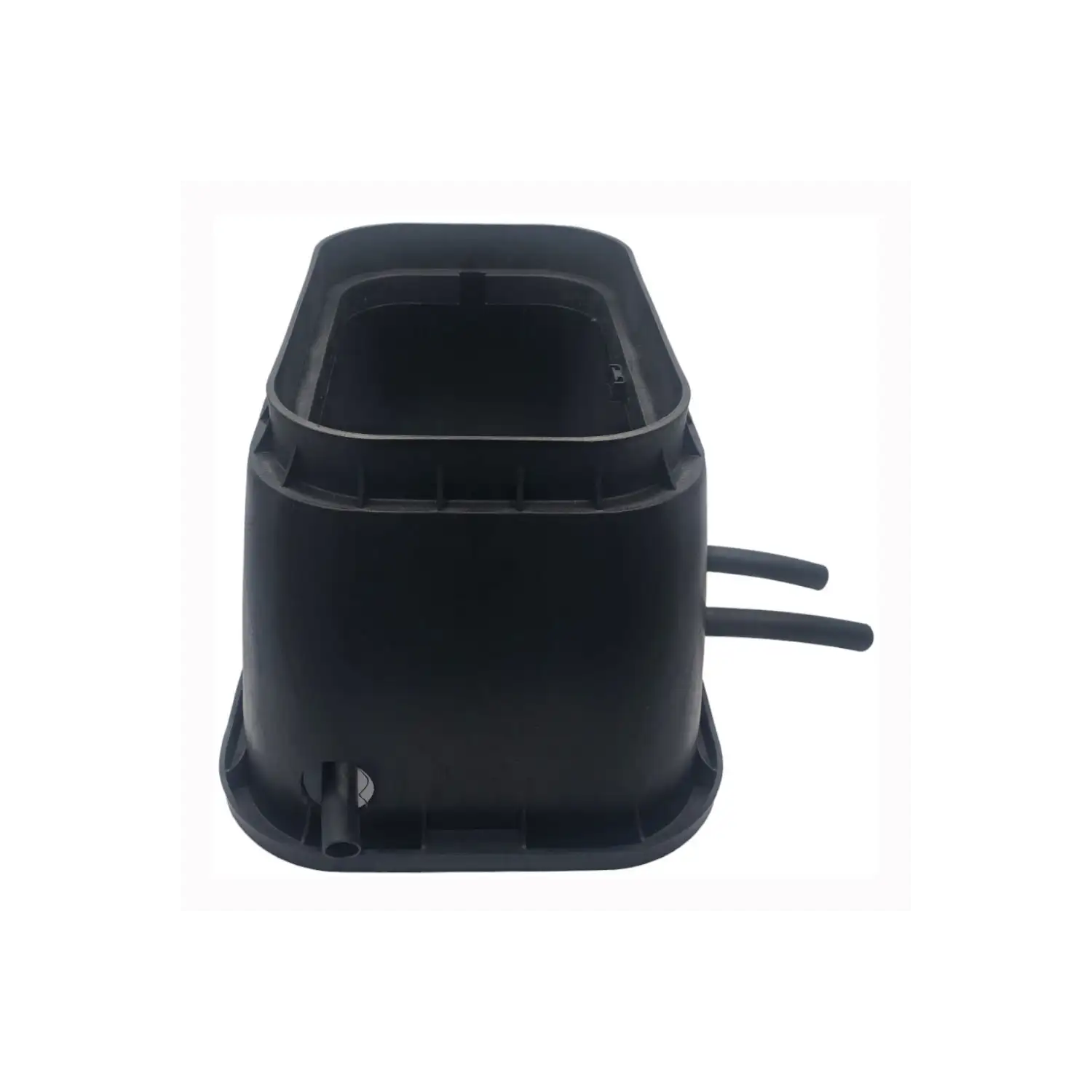

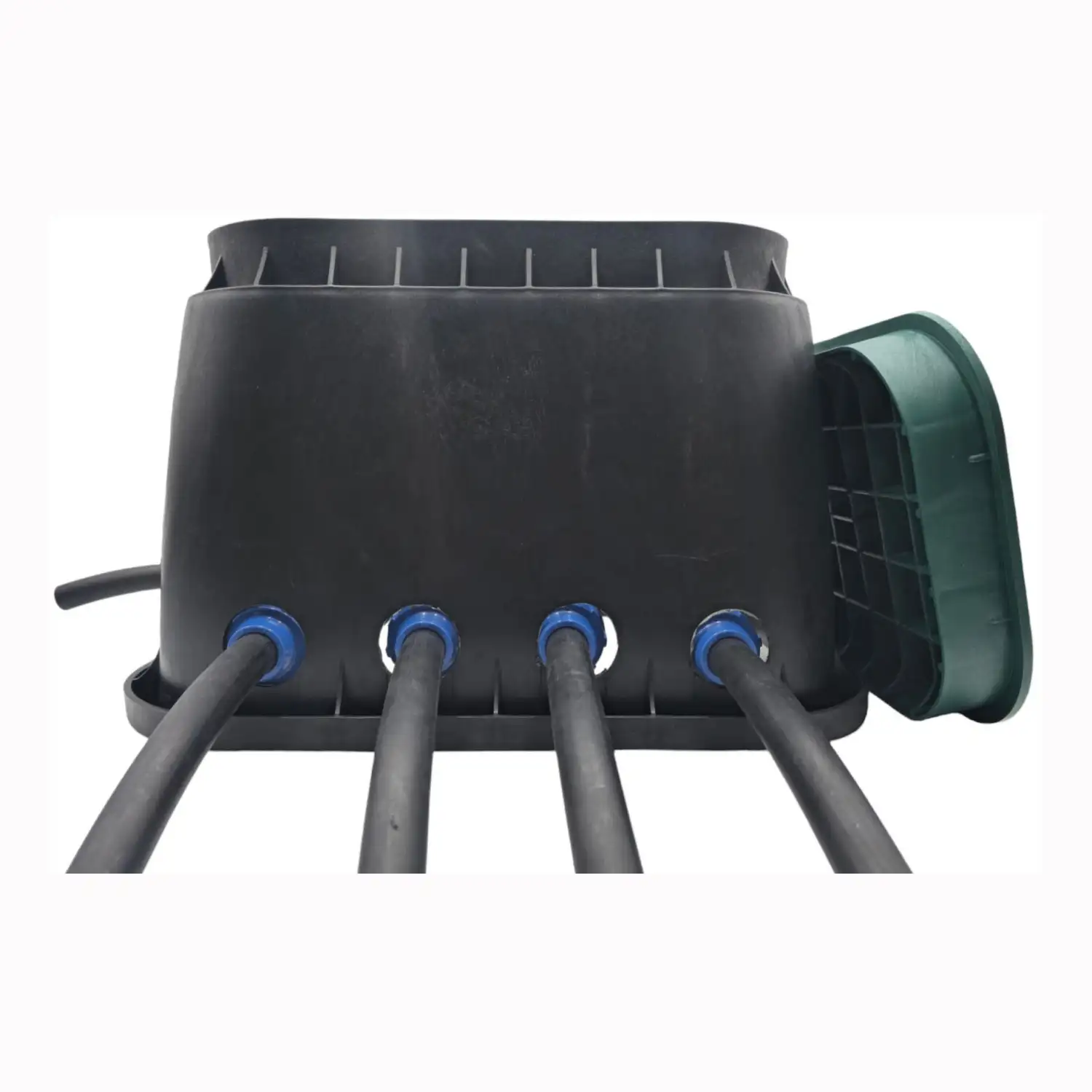

PA-DV-4-9V - 1" 4-zone assembled well
Rain Bird Components. 9V Valves.
The PA-DV-4-9V Prato Erboso assembled well is an innovative system that allows you to save time in creating the irrigation system in a professional manner, as well as guaranteeing quality, order and precision in the work carried out.
The robust PVC manifold with glued connection, resistant to up to 10 bar of pressure, the solenoid valves screwed to the manifold via the nozzle fitting that allows for quick disassembly and the choice of various combinations, make the well unique in its category.

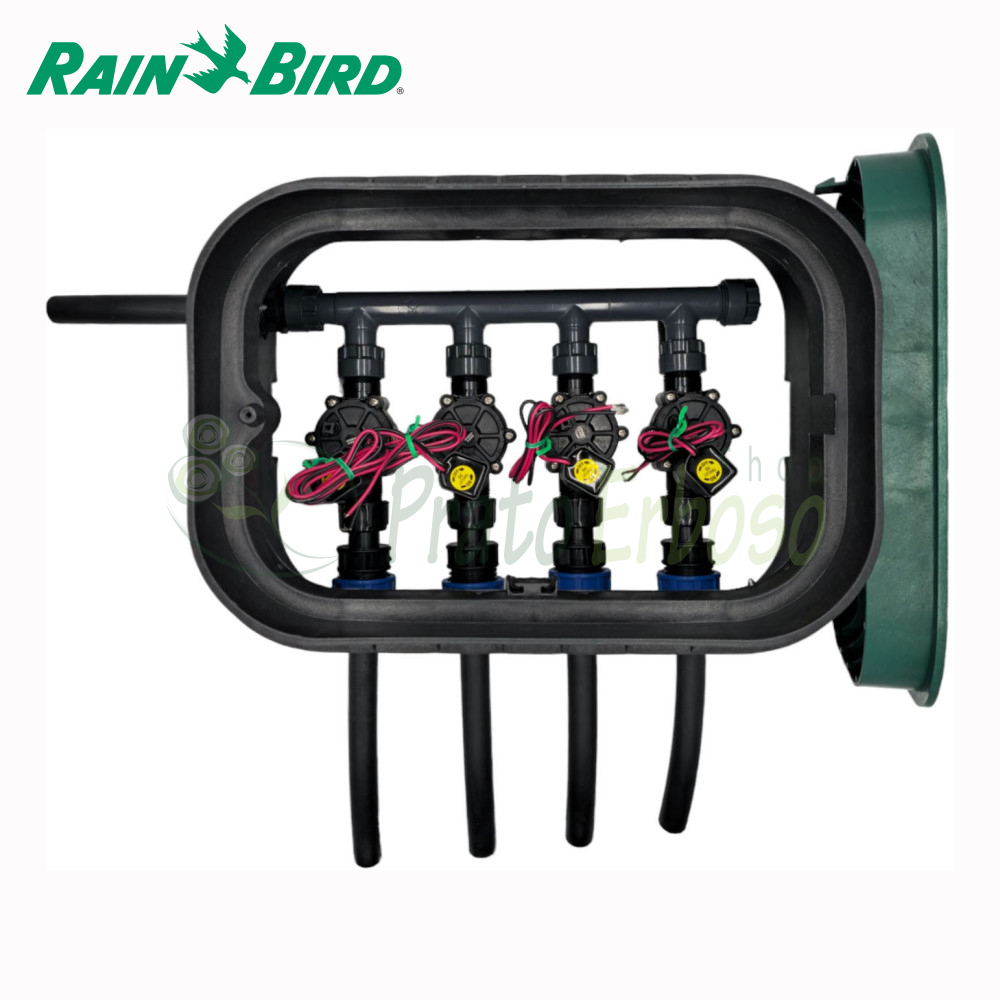

The solenoid valves can be reached from above for any maintenance required. Furthermore, the manifold-valve unit can be completely dismantled by unscrewing the ring-nut fittings located on the valve outlet and on the water inlet.
A water drain plug is provided for winter maintenance.
The solenoid valves are threaded 1” in diameter.
The connections to the inlet and outlet pipes are made with DN25 compression fittings.
The PA-DV-4-9V valve box is made with Rain Bird 9 volt solenoid valves.
- Number of zones
- 4
- Solenoid operation
- direct drive
