PA-EZP-F3 - 1" 3-zone assembled well
TORO Irrigazione Components. 24V valves. With inlet filter.

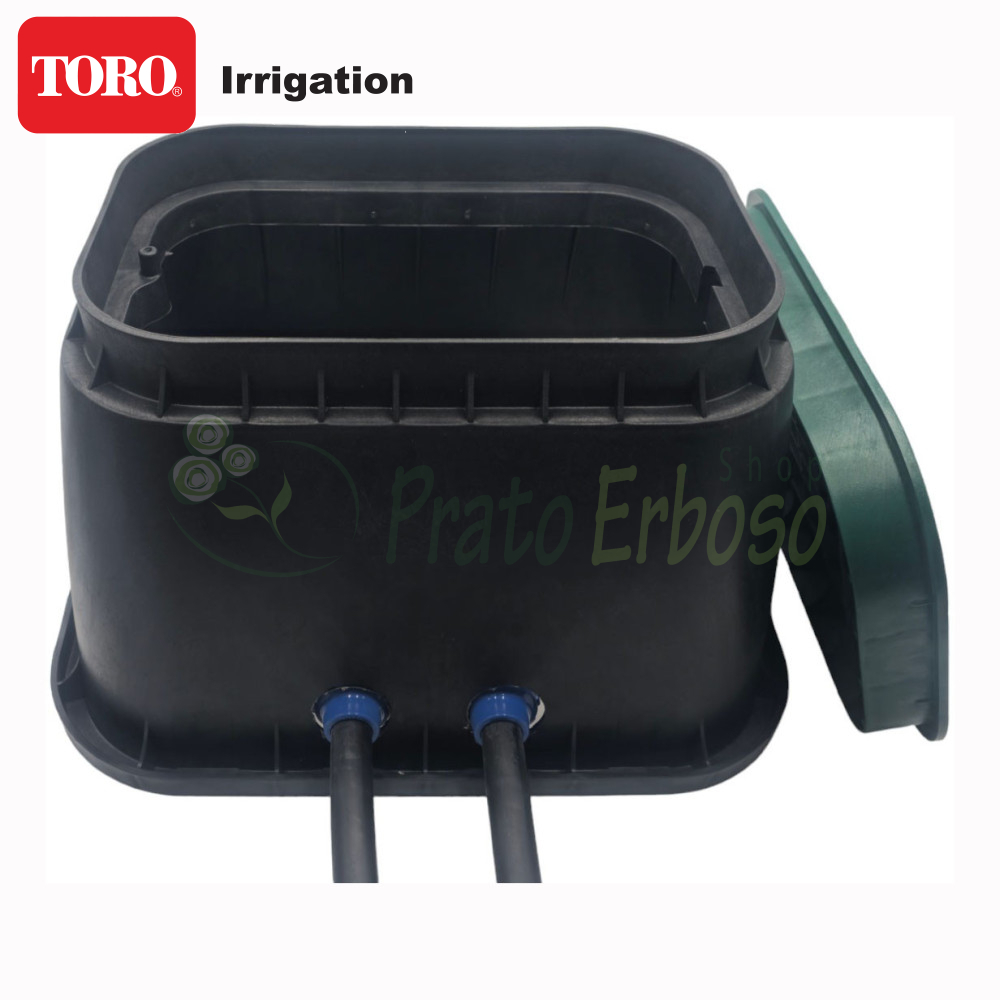

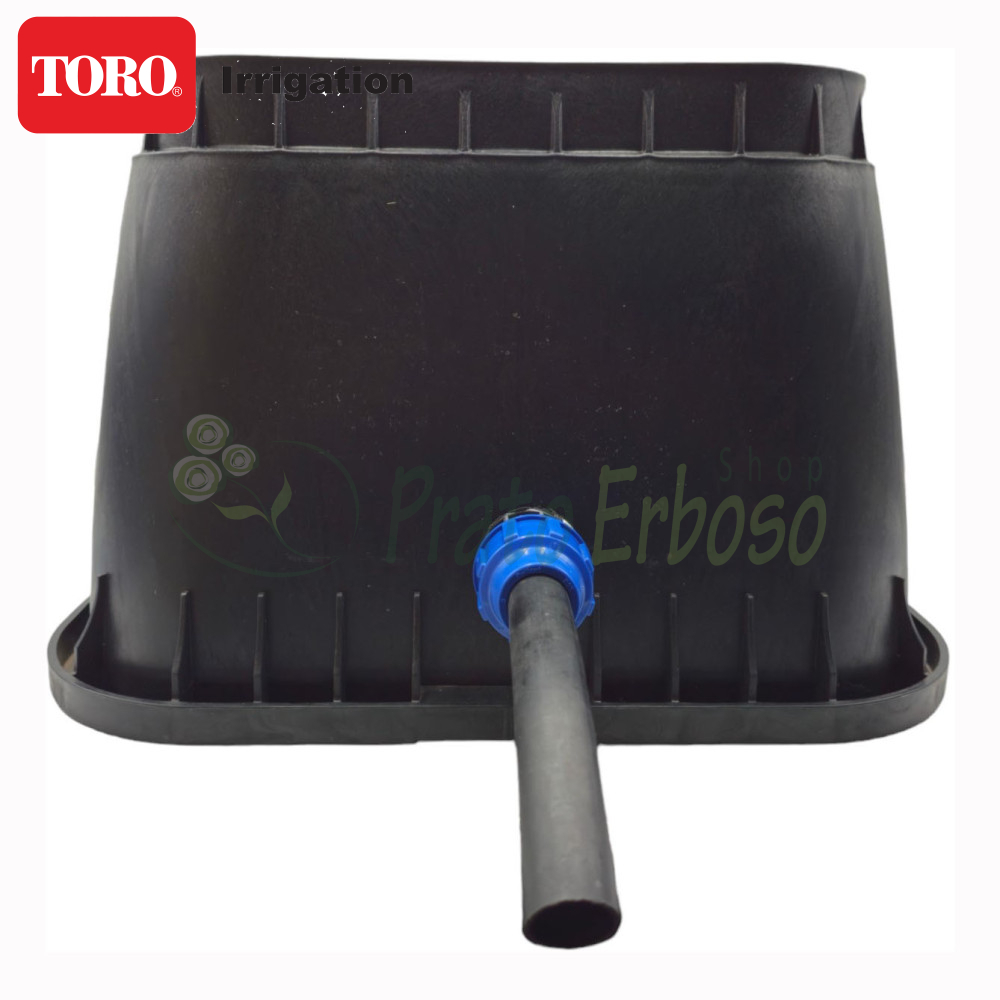

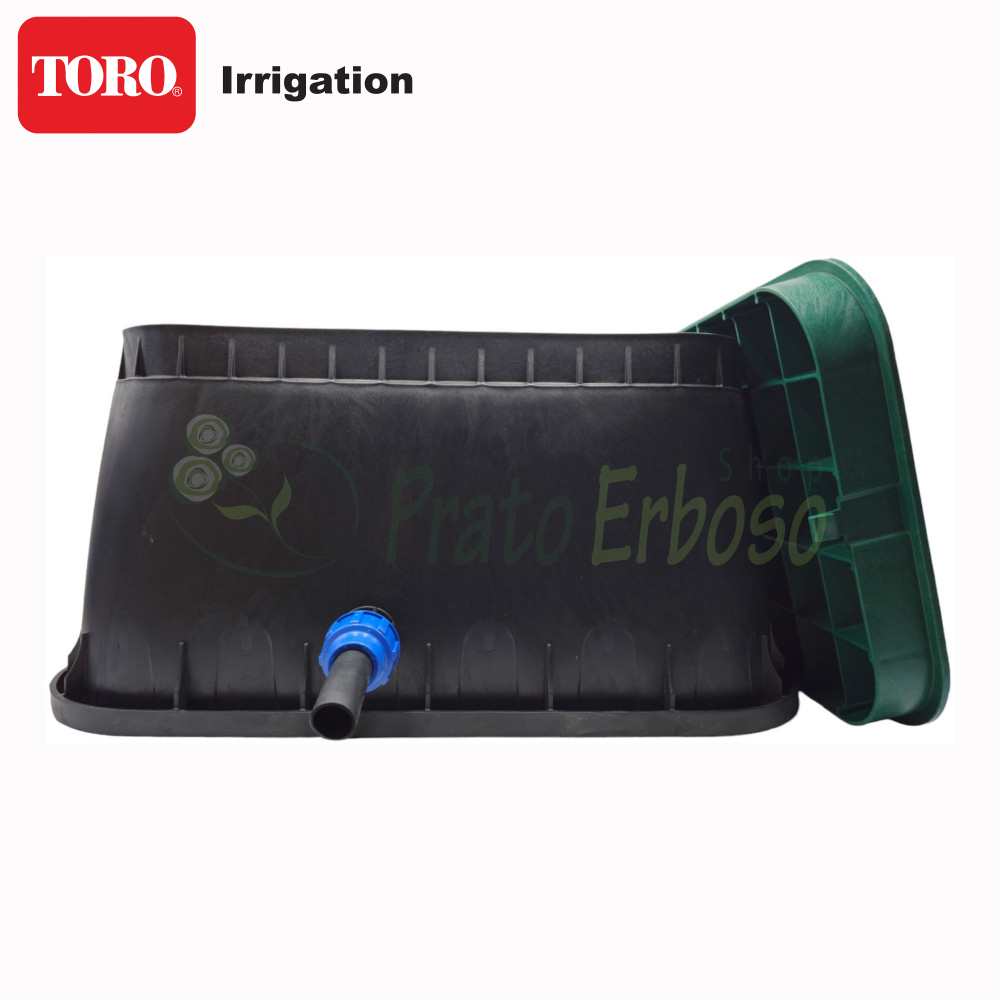

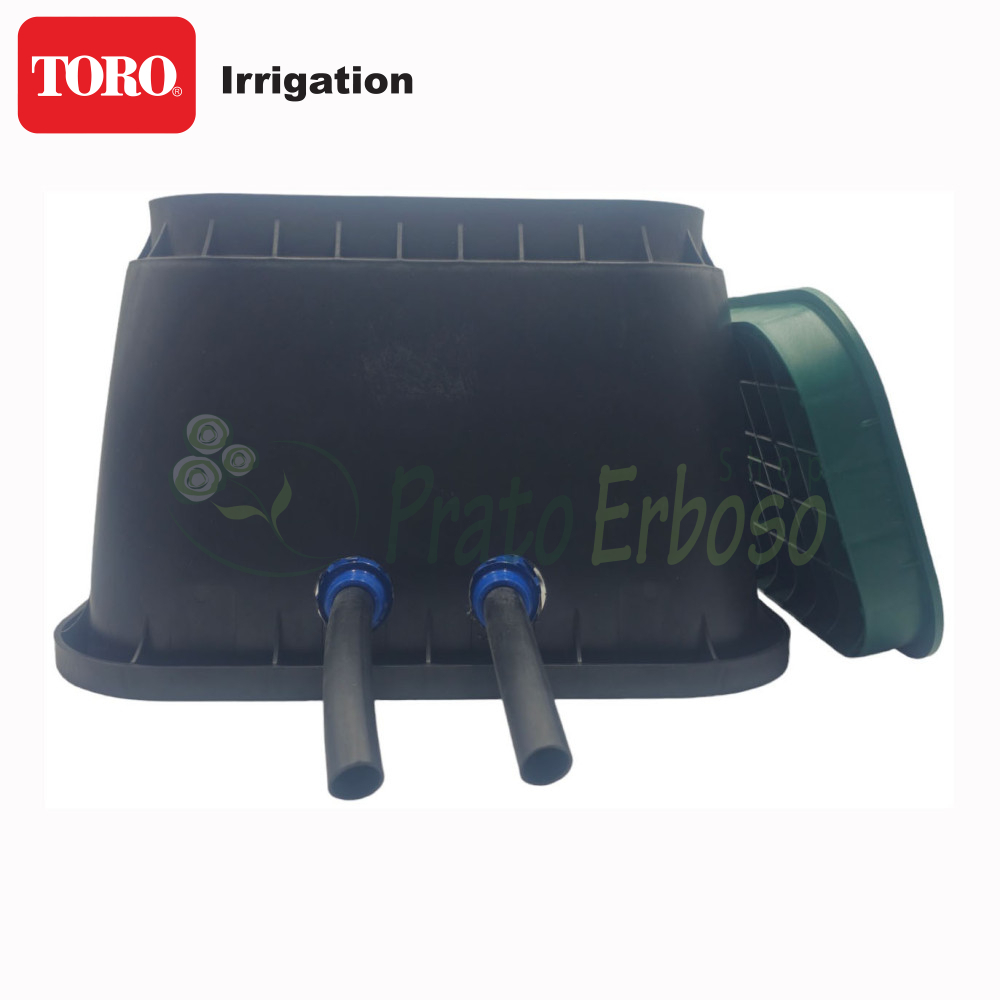

The PA-EZP-F3 assembled well from Prato Erboso is an innovative system that saves time when professionally installing irrigation systems, while also ensuring quality, order, and precision.

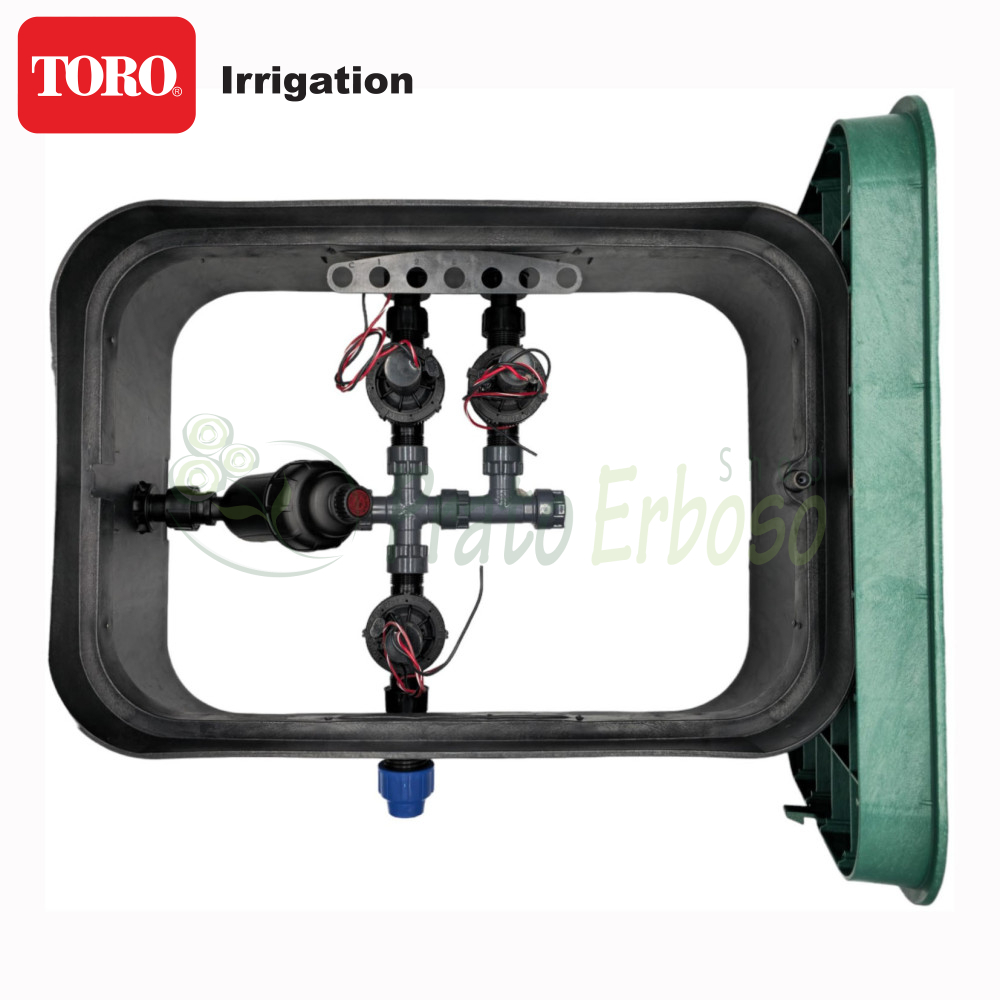

The robust PVC manifold with glued connection, resistant to up to 10 bar of pressure, the solenoid valves screwed to the manifold via the nozzle fitting that allows for quick disassembly and the choice of various combinations, make the well unique in its category.
The solenoid valves can be reached from above for any maintenance required. Furthermore, the manifold-valve unit can be completely dismantled by unscrewing the ring-nut fittings located on the valve outlet and on the water inlet.
A water drain plug is provided for winter maintenance.
The solenoid valves are threaded 1” in diameter.
Connections to the inlet and outlet pipes with DN25 compression fittings.
The PA-EZP-F3 well is made with a Rain Bird filter and TORO Irrigazione solenoid valves.
- Number of zones
- 3
- Solenoid operation
- direct drive
