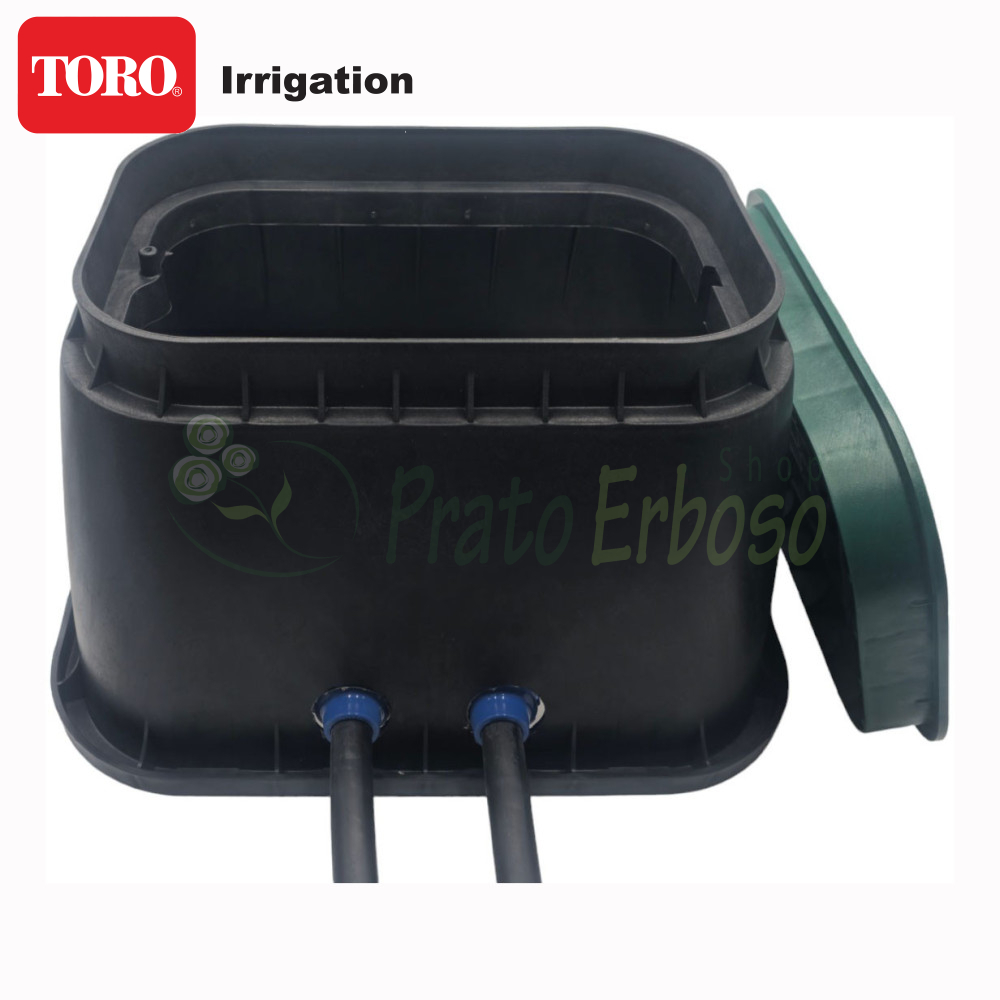

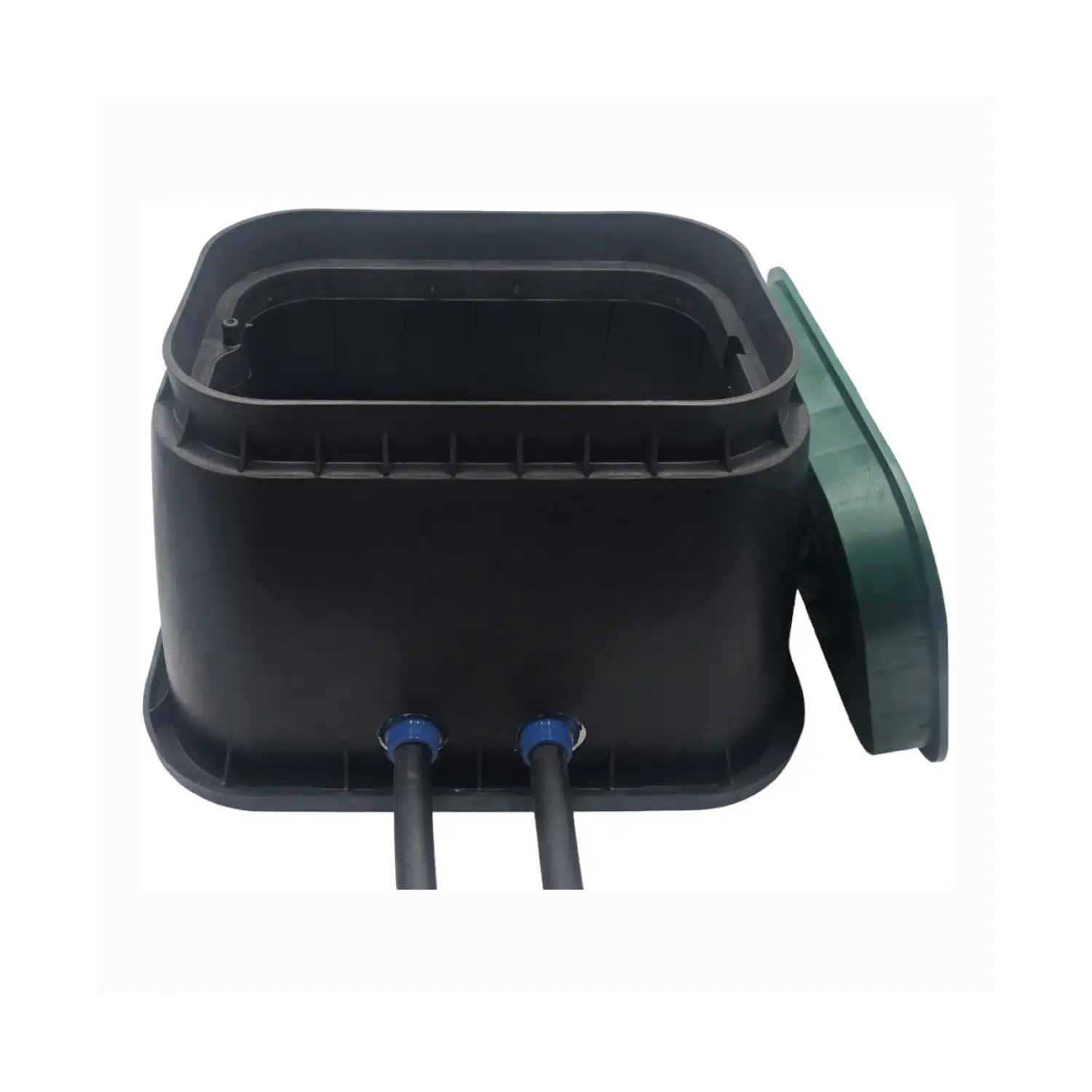

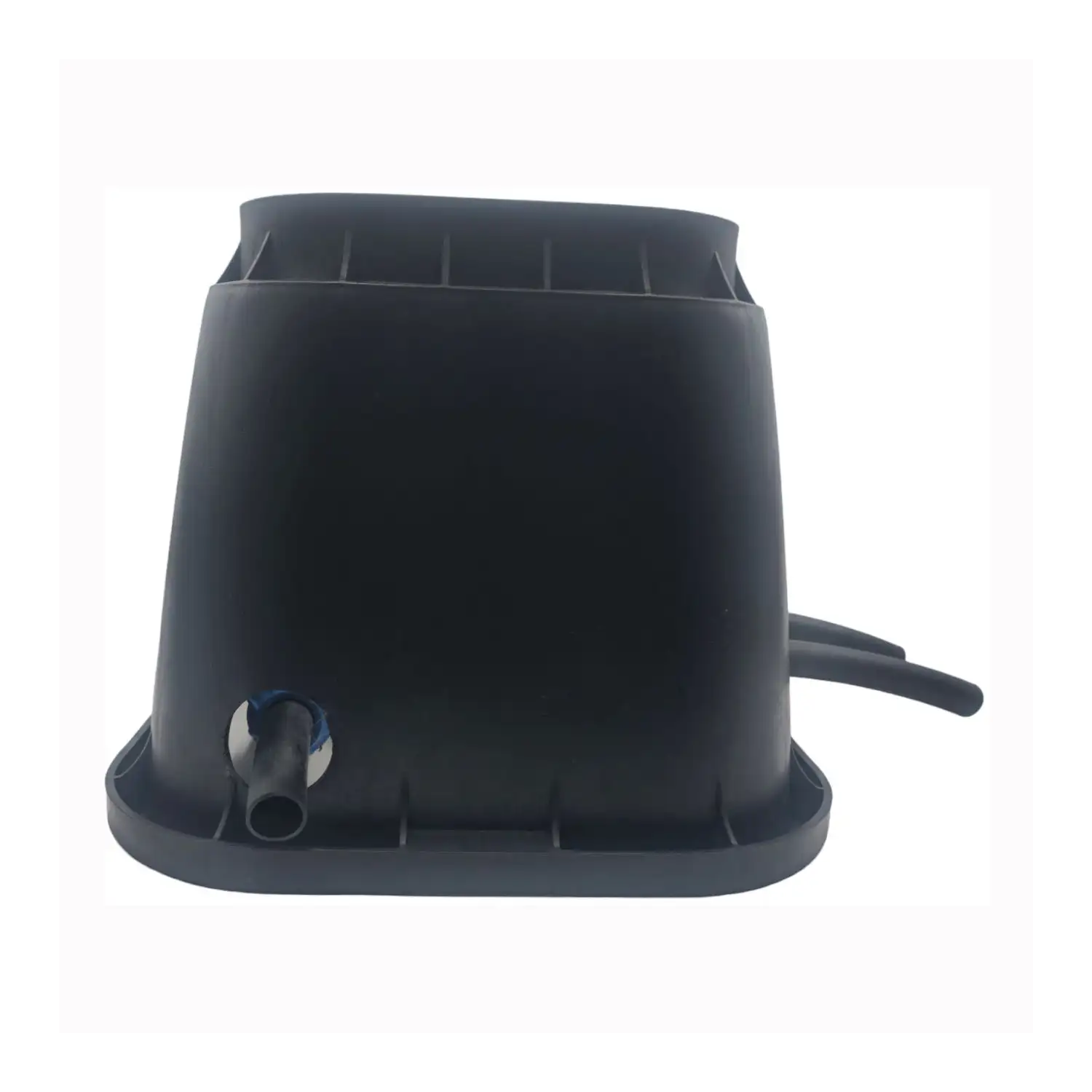

PA-EZP-P2 - 1" 2-zone assembled well
TORO Irrigazione Components. 9V valves. With programmer.

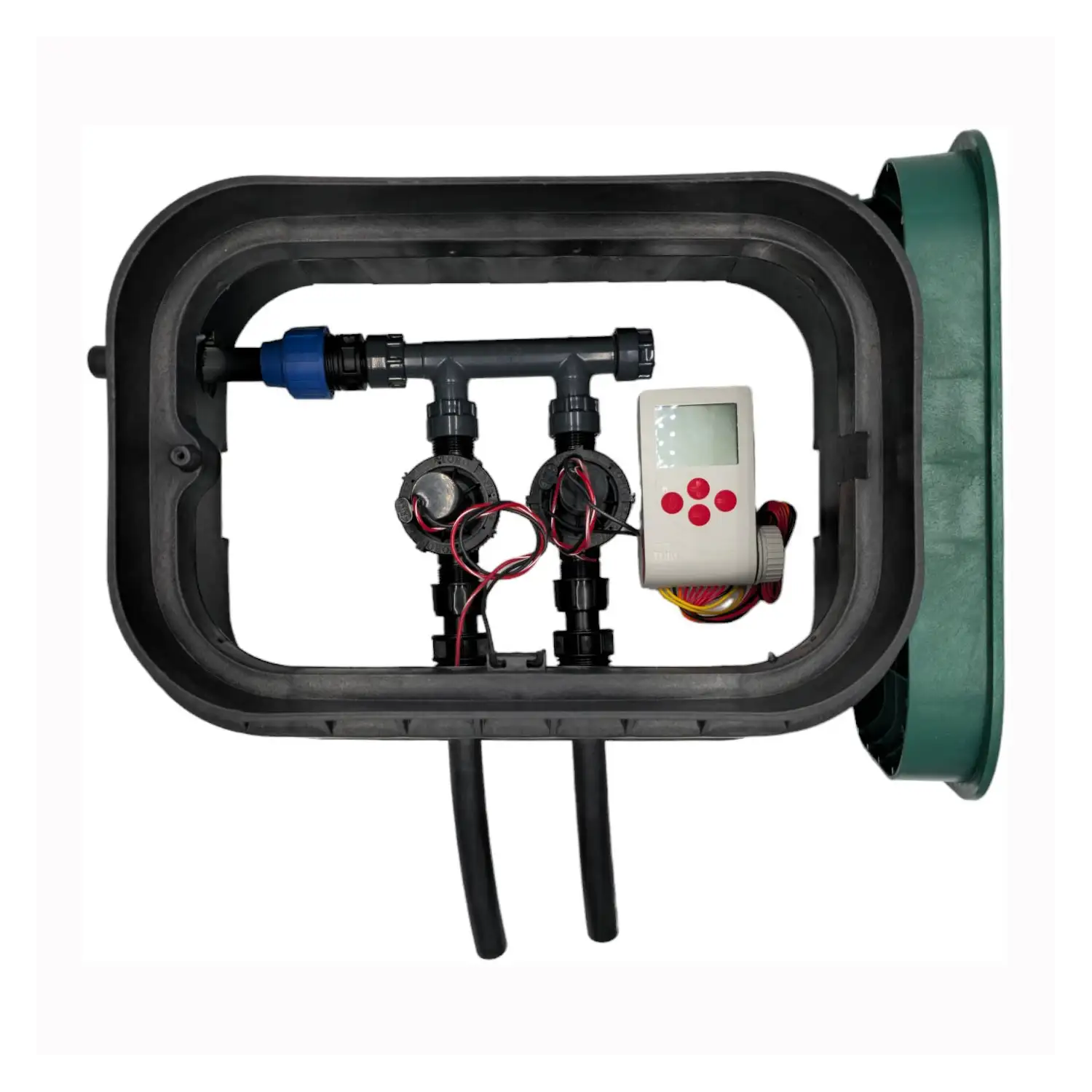

The PA-EZP-P2 assembled well from Prato Erboso is an innovative system that saves time when professionally installing irrigation systems, while also ensuring quality, order, and precision.

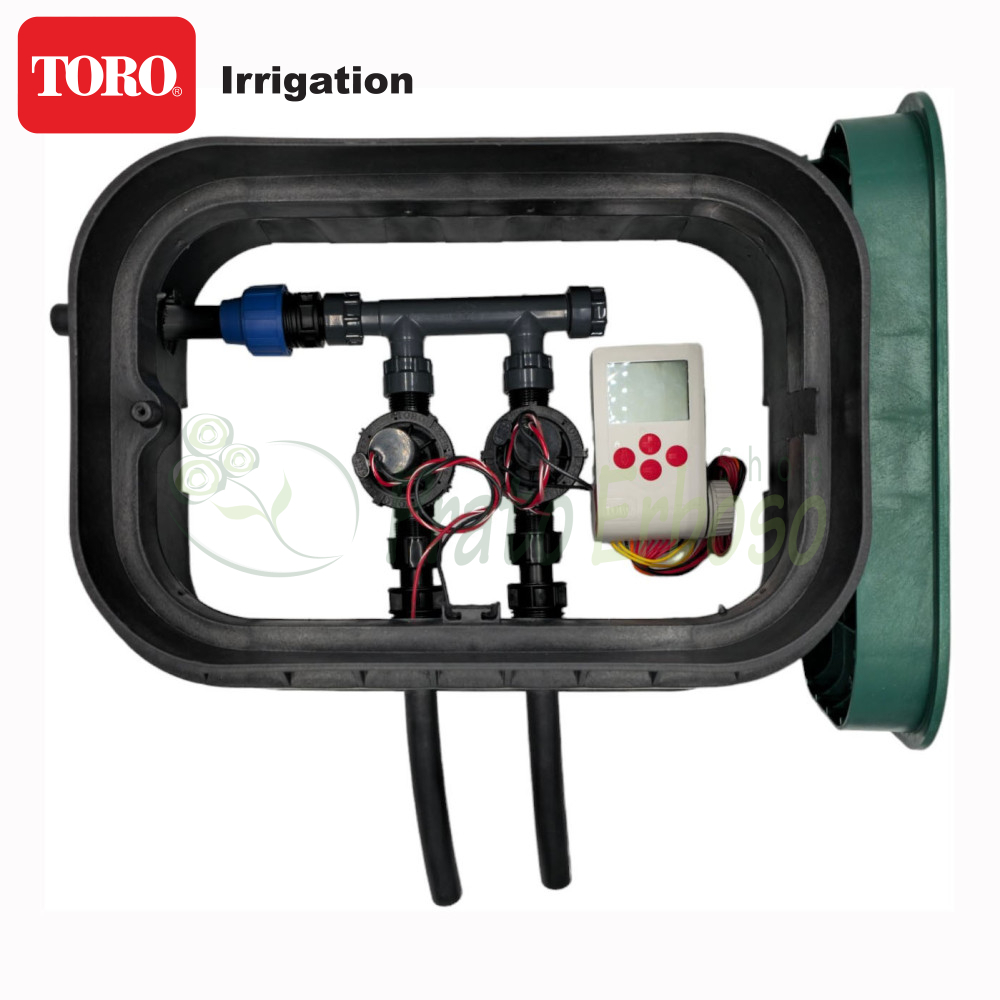

The robust PVC manifold with glued connection, resistant to up to 10 bar of pressure, the solenoid valves screwed to the manifold via the nozzle fitting that allows for quick disassembly and the choice of various combinations, make the well unique in its category.
The solenoid valves can be reached from above for any maintenance required. Furthermore, the manifold-valve unit can be completely dismantled by unscrewing the ring-nut fittings located on the valve outlet and on the water inlet.

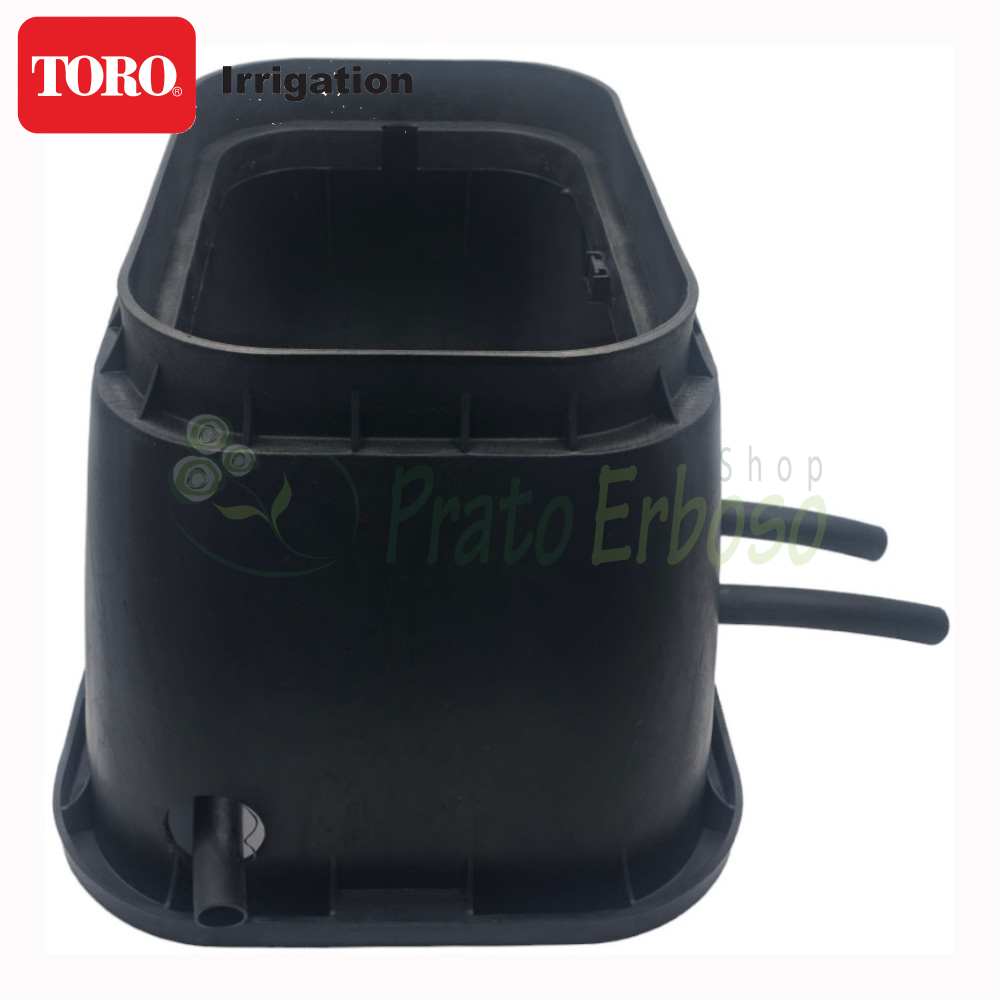

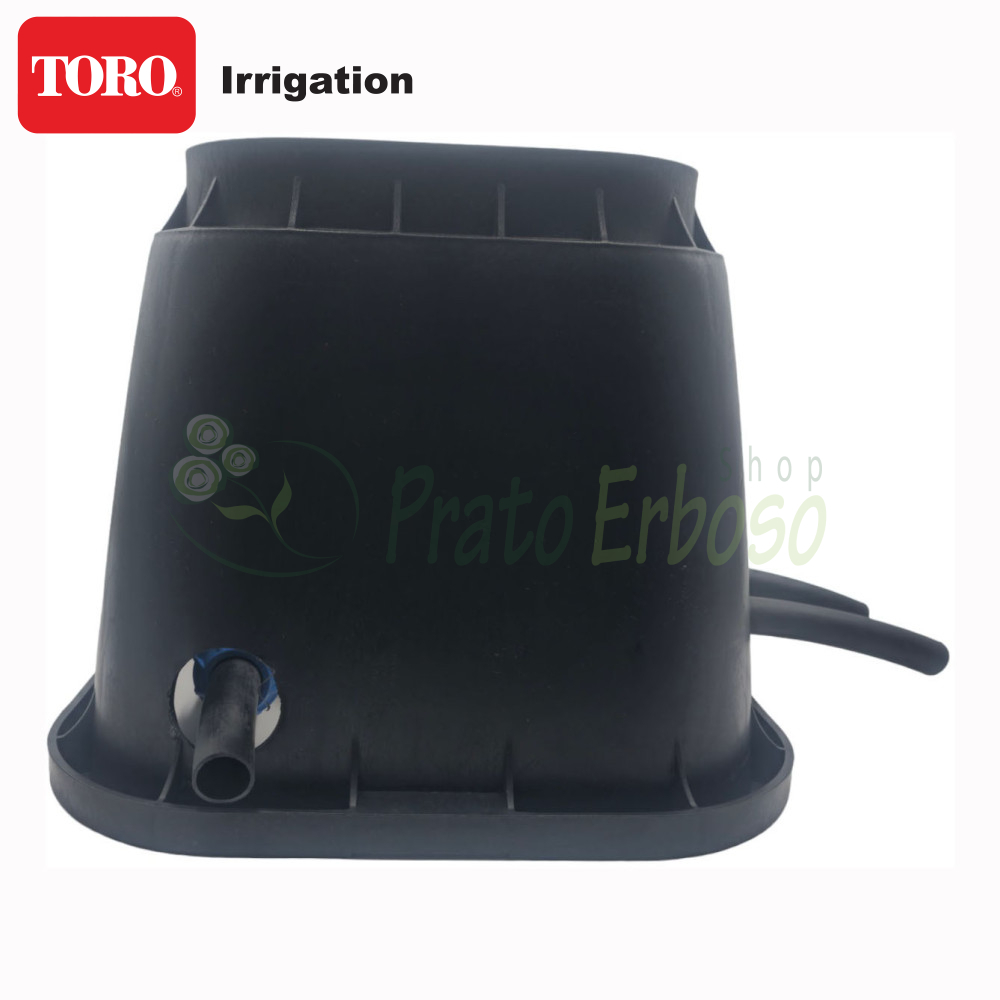

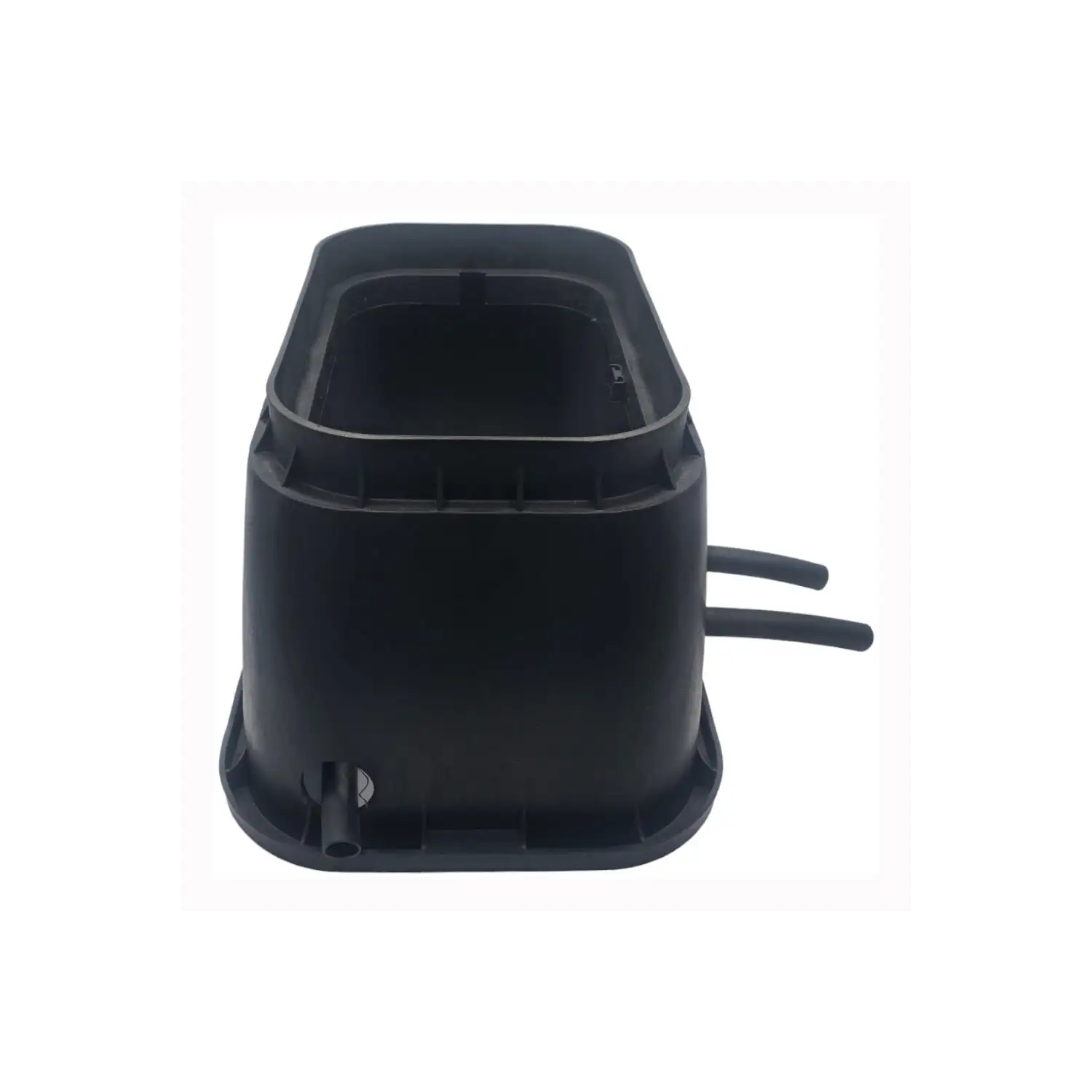

A water drain plug is provided for winter maintenance.
The solenoid valves are threaded 1 inch in diameter.

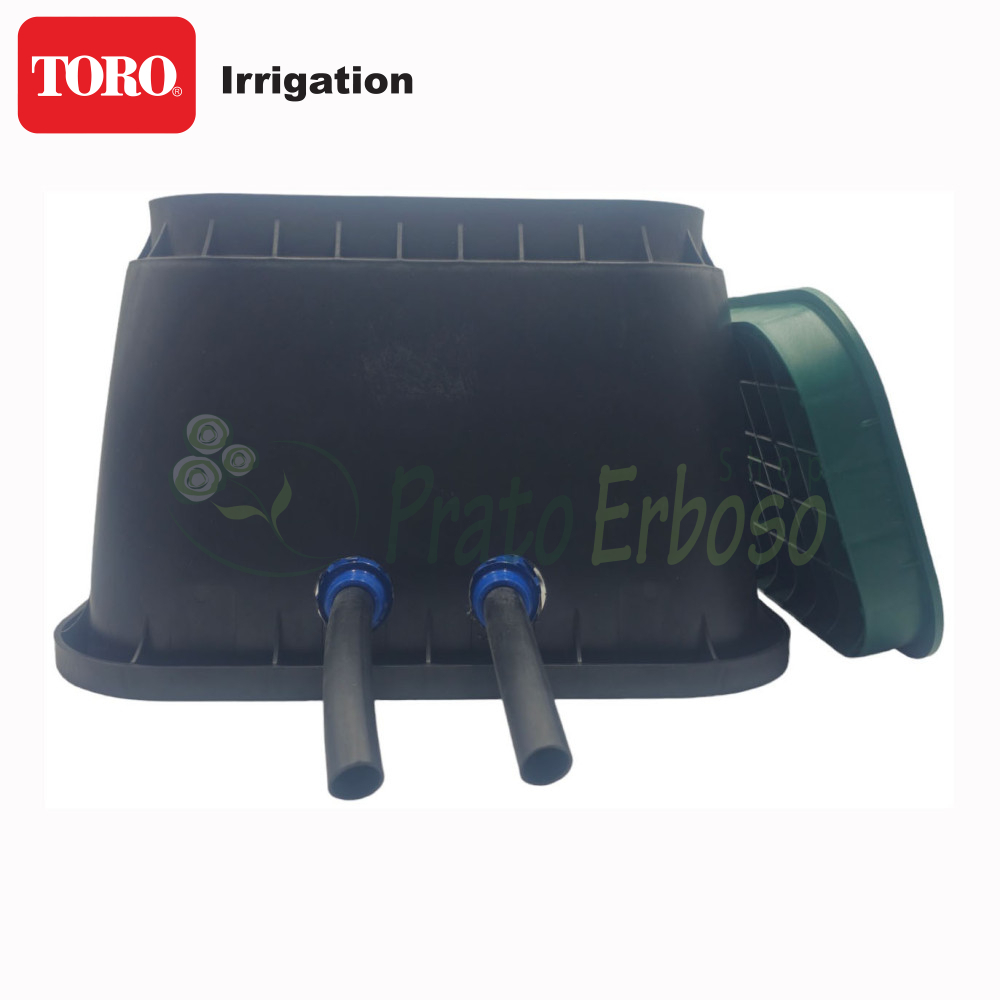

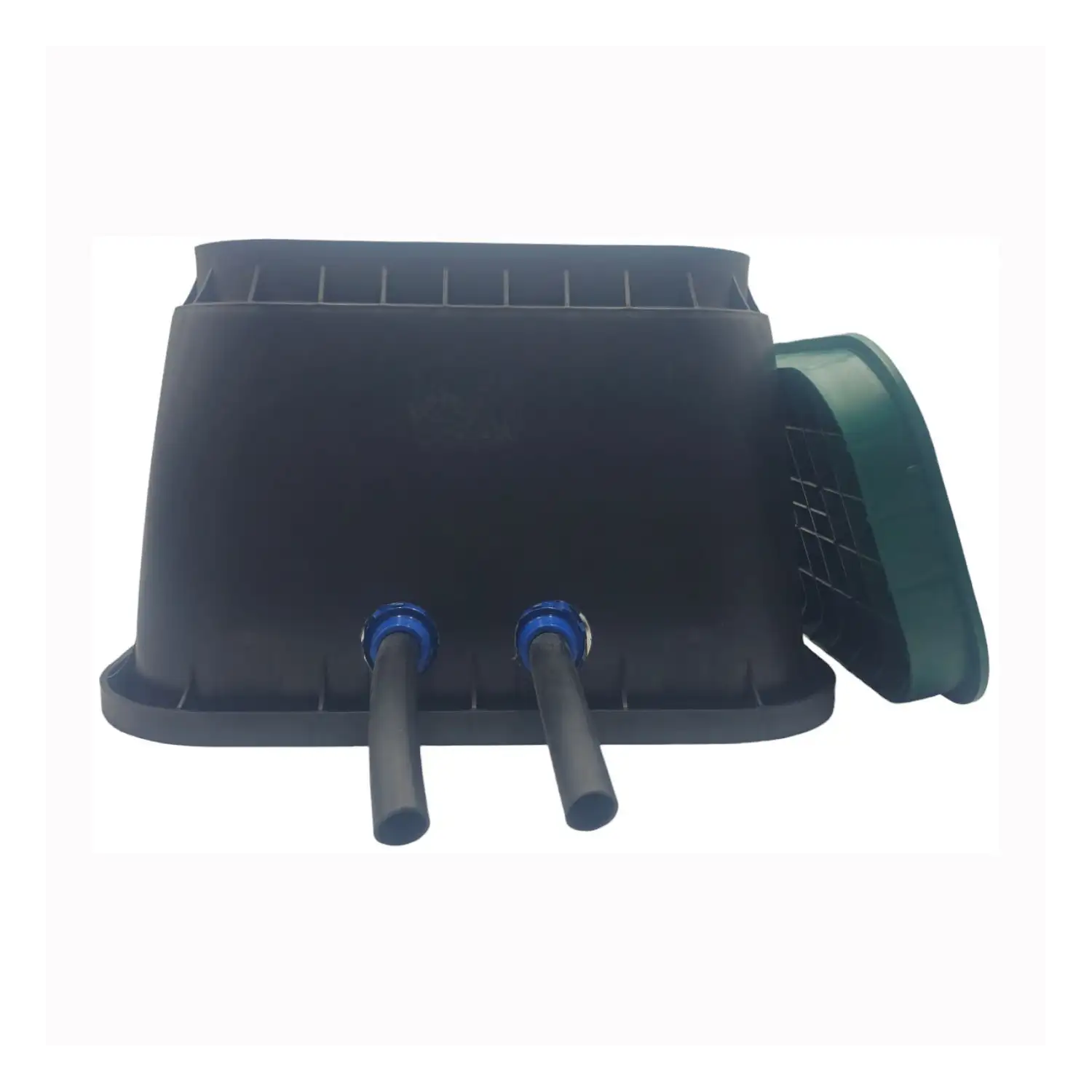

The connections to the inlet and outlet pipes are made with DN25 compression fittings.
The PA-EZP-P2 well is made with a programmer and solenoid valves from TORO Irrigazione .
- Number of zones
- 2
- Solenoid operation
- bistable
| Image | First name | You see |
 | Lite Series rectangular cockpit | You see |
 | TORO DDCWP battery-powered controller, IP 68 submersible - N. OF STATIONS: 2 Stations | You see |
 | Resin-coated connector up to 48V | You see |
 | EZ-FLO Plus solenoid valve with bistable solenoid 1" M/M connection | You see |
 | Cross joint with unions FxFxFxM 1" | You see |
 | PVC end cap | You see |
 | FxM union 1" | You see |
 | Female fitting - DIMENSIONS: Ø 32 x 1" | You see |
 | Male fitting - DIMENSIONS: Ø 32 x 1" | You see |
