PA-HV-3 - 1" 3-zone assembled well
Rain Bird Components. 24V Valves.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 28 May - Friday 29 May |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 28 May - Friday 29 May |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | tomorrow |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 28 May - Friday 29 May
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 28 May - Friday 29 May
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow

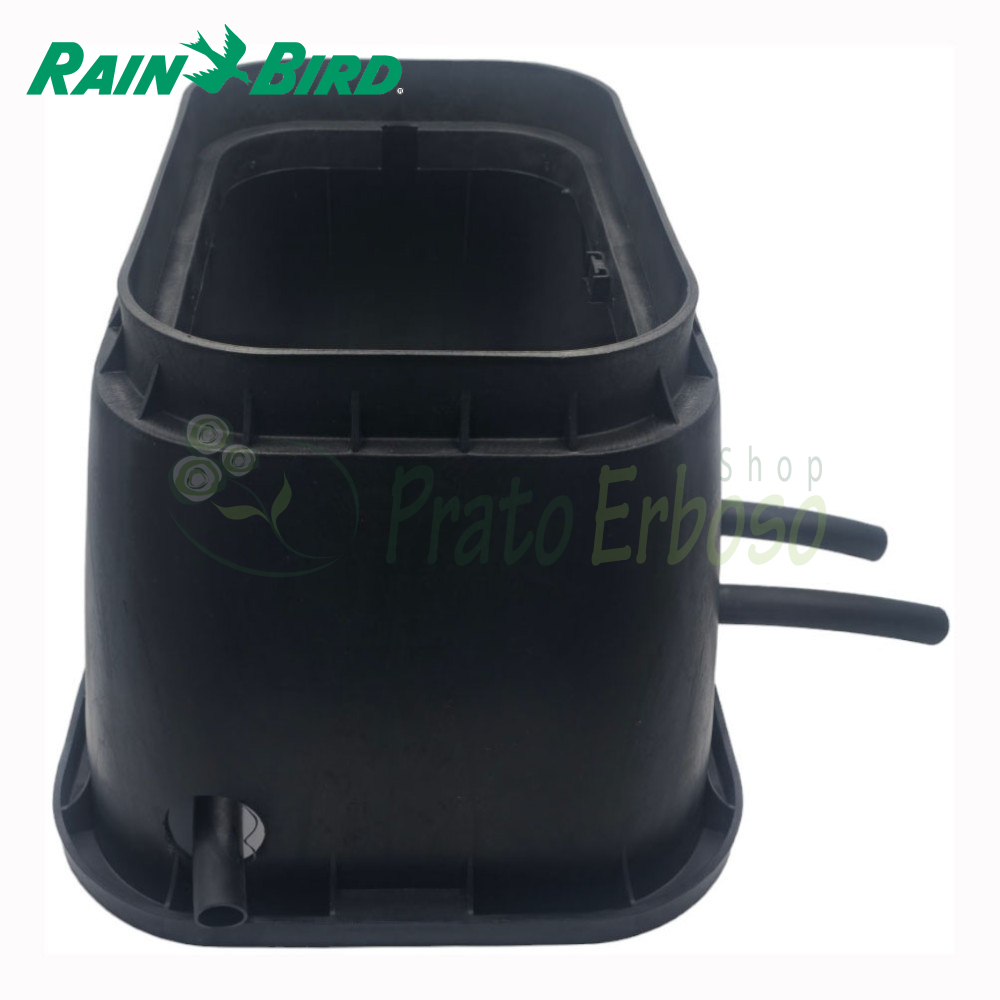

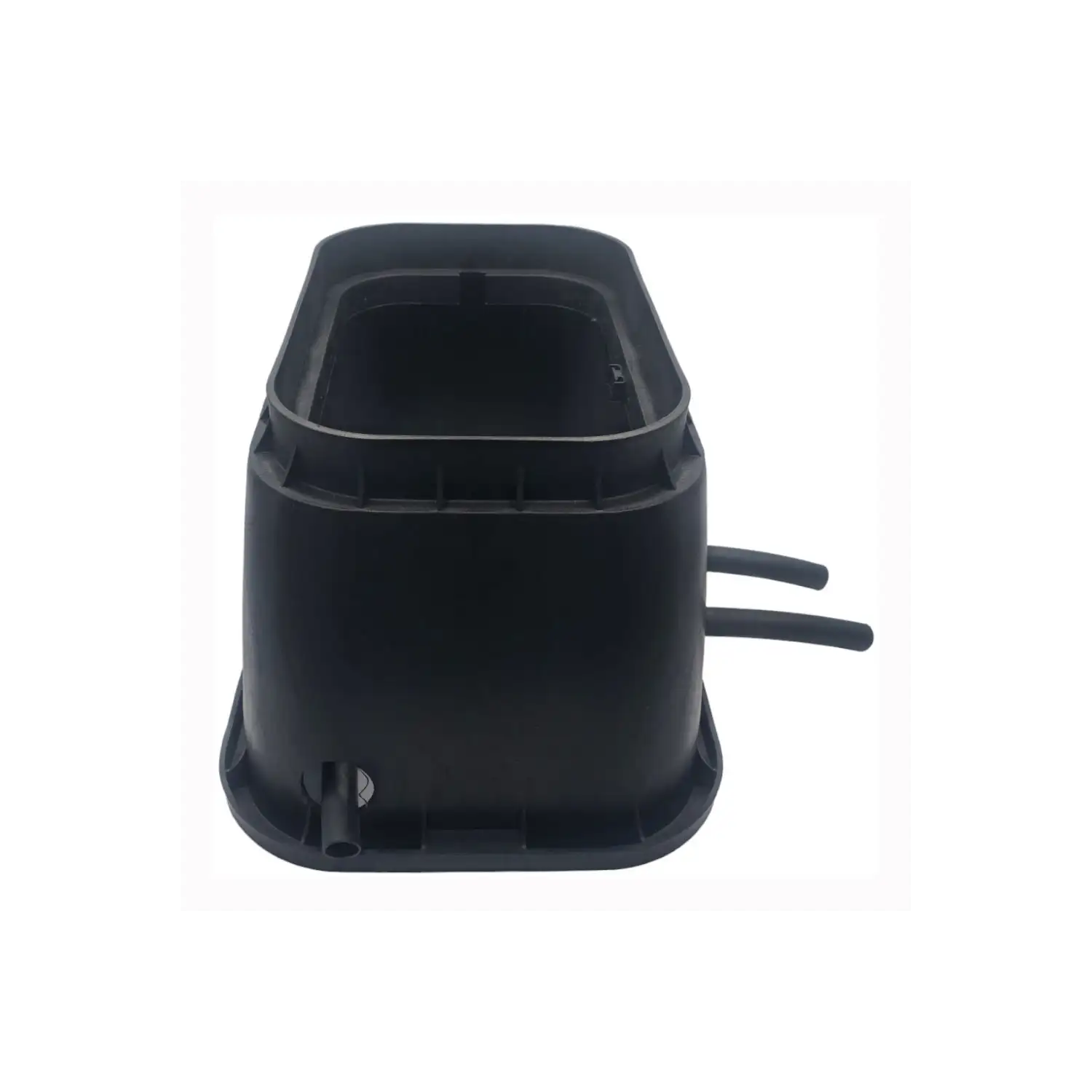

The PA-HV-3 assembled well from Prato Erboso is an innovative system that saves time in professionally installing an irrigation system, as well as ensuring quality, order, and precision in the work performed.

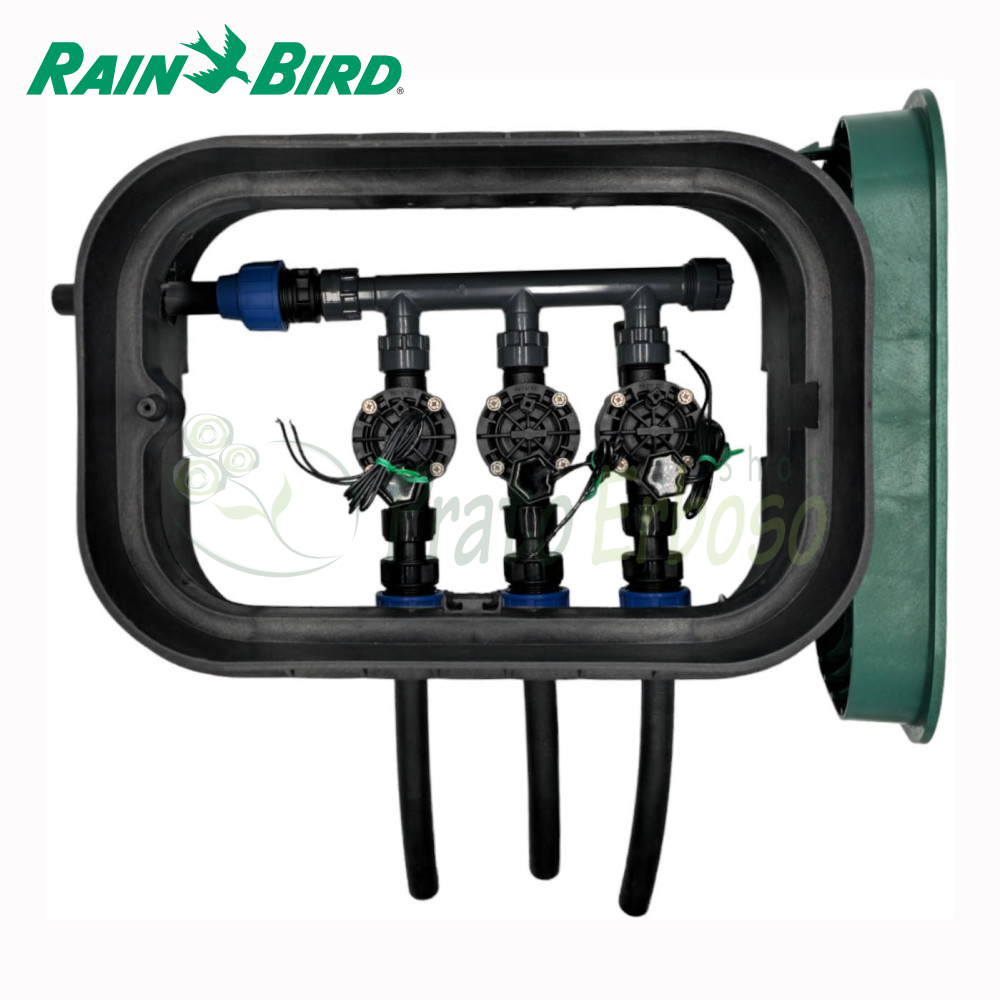

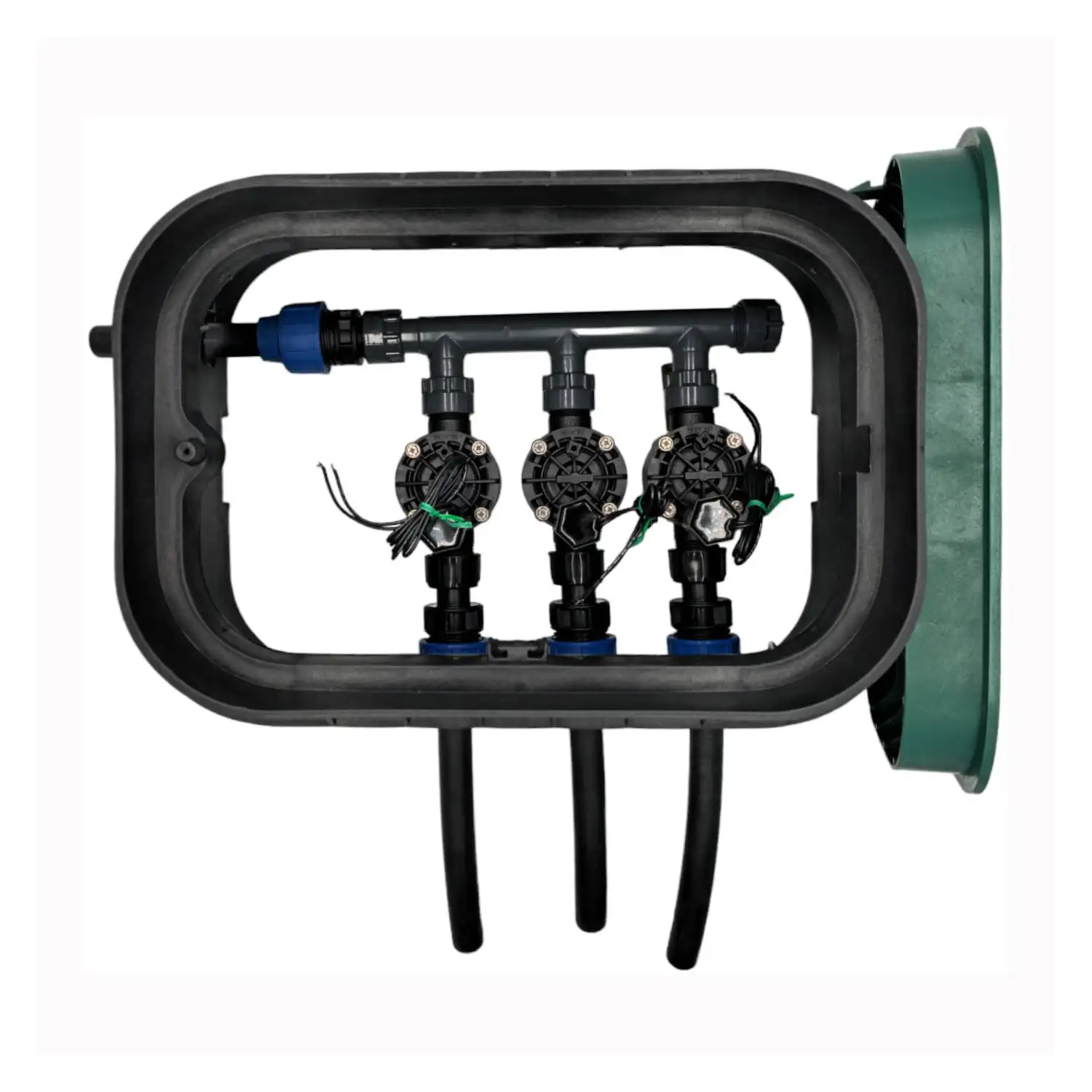

The robust PVC manifold with glued connection, resistant to up to 10 bar of pressure, the solenoid valves screwed to the manifold via the nozzle fitting that allows for quick disassembly and the choice of various combinations, make the well unique in its category.
The solenoid valves can be reached from above for any maintenance required. Furthermore, the manifold-valve unit can be completely dismantled by unscrewing the ring-nut fittings located on the valve outlet and on the water inlet.

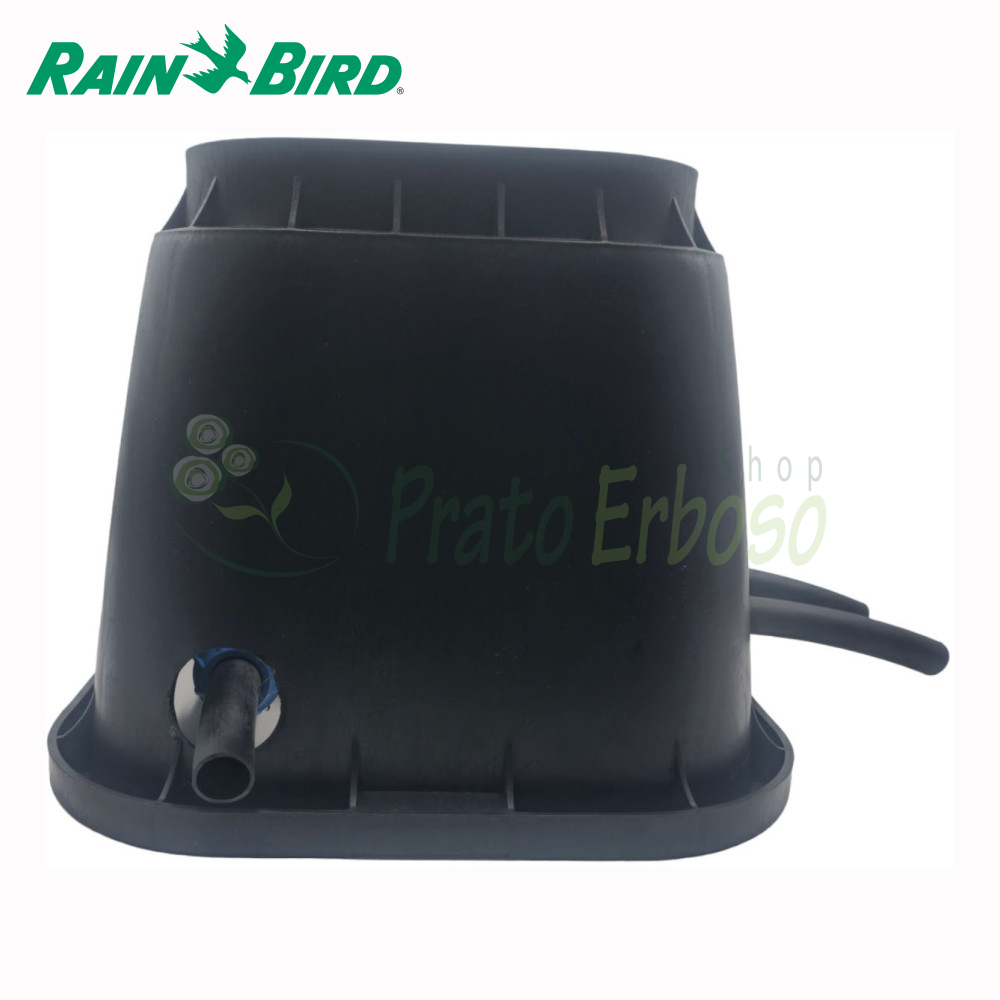

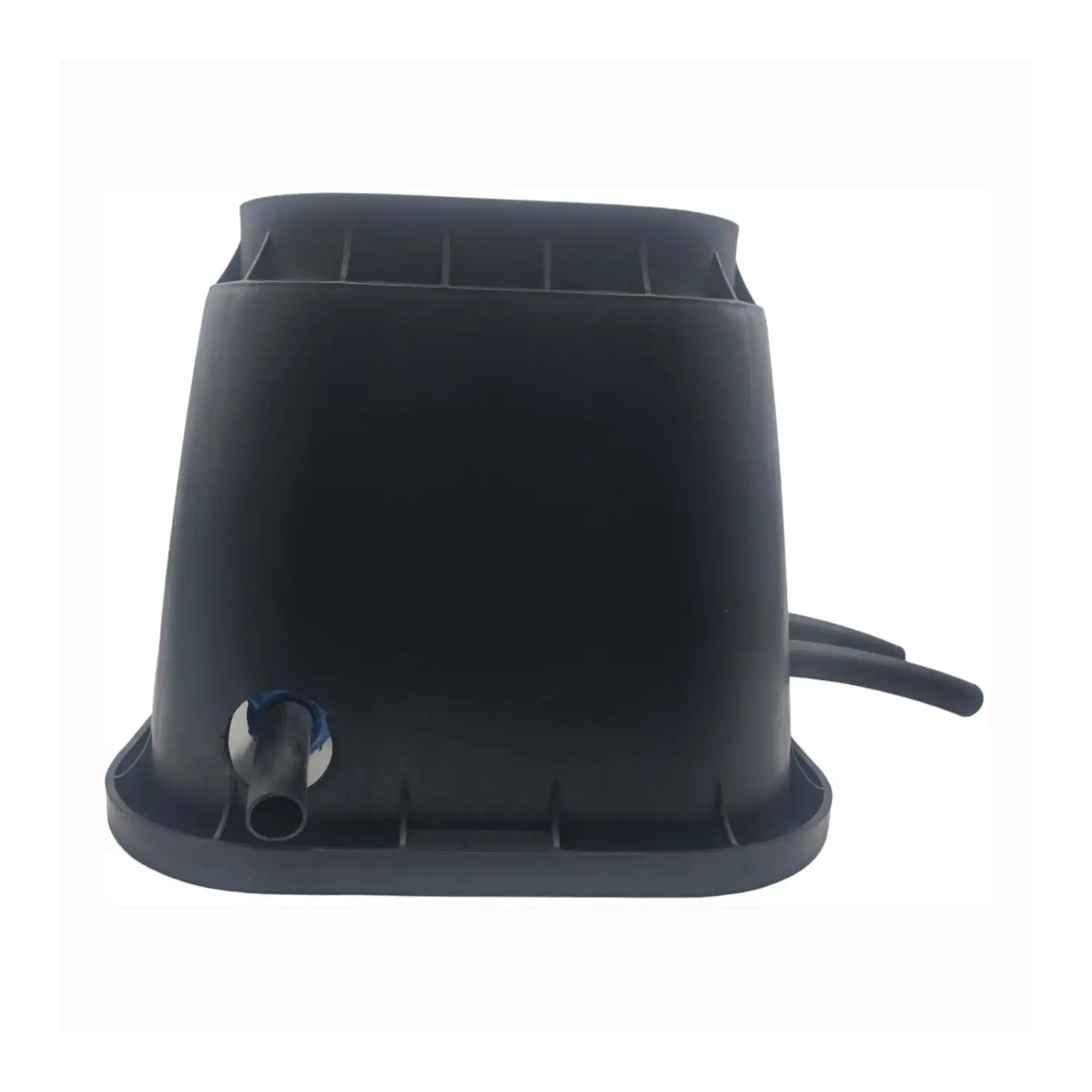

A water drain plug is provided for winter maintenance.
The solenoid valves are threaded 1” in diameter.

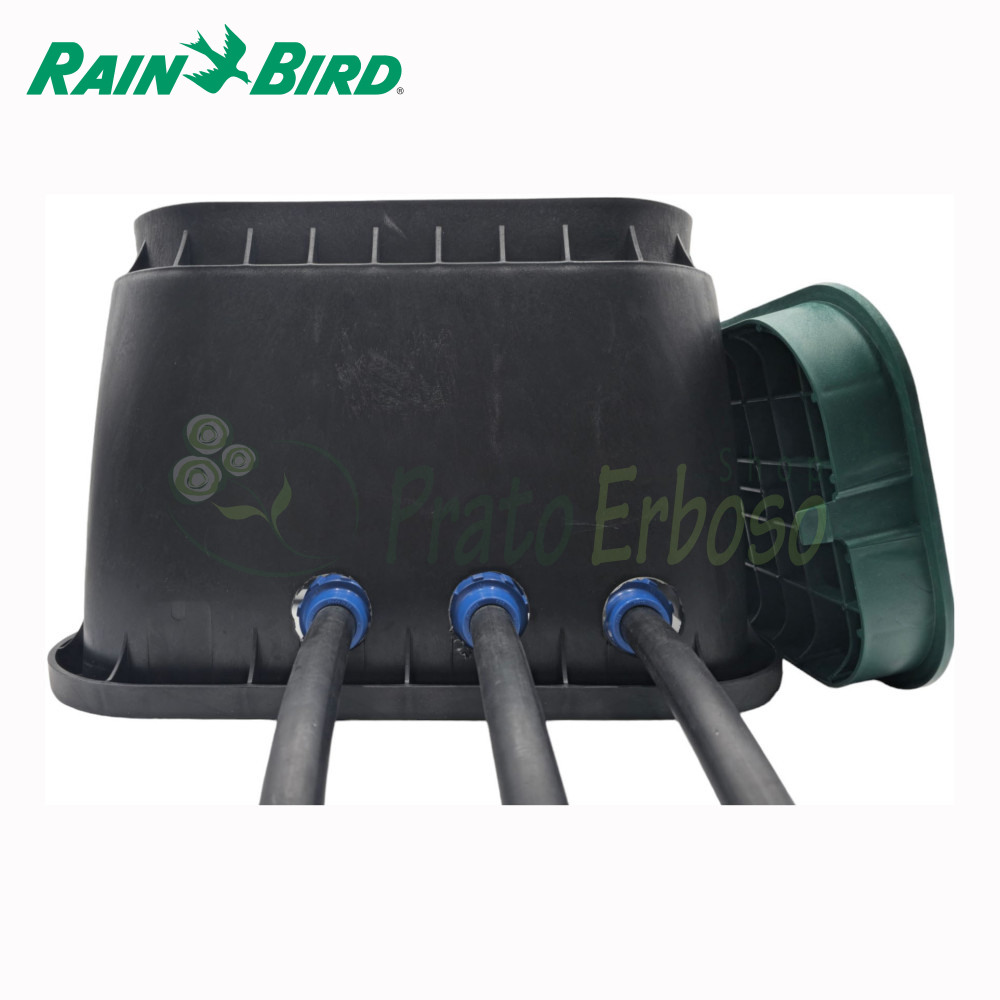

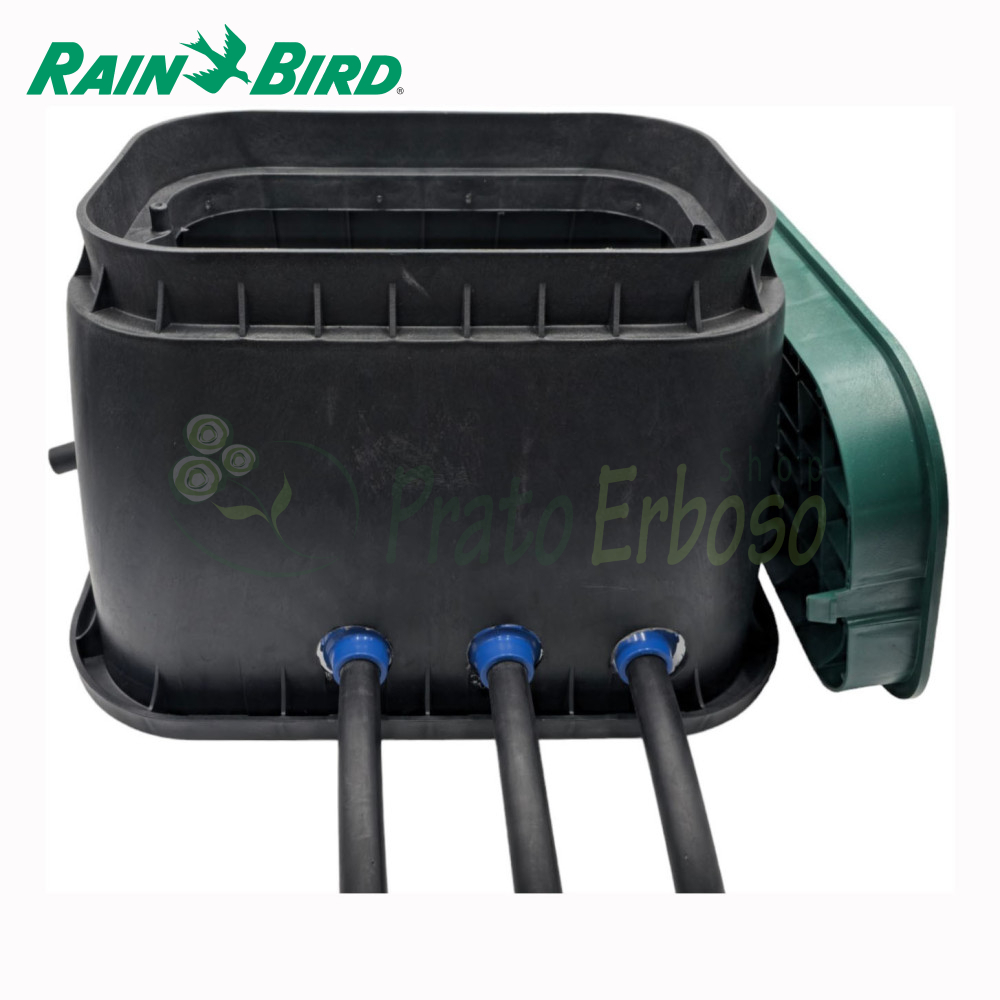

Connections to the inlet and outlet pipes with DN25 compression fittings.
The PA-HV-3 box is made with Rain Bird solenoid valves.
- Number of zones
- 3
- Solenoid operation
- direct drive
| Image | First name | You see |
 | Lite Series rectangular cockpit | You see |
 | 100–HV-MM - 1" solenoid valve | You see |
 | Cross joint with unions FxFxFxM 1" | You see |
 | T-joint with union FxFxM 1" in PVC" | You see |
 | PVC end cap" | You see |
 | FxM union 1" | You see |
 | Female fitting - DIMENSIONS: Ø 32 x 1" | You see |
 | Male fitting - DIMENSIONS: Ø 32 x 1" | You see |
