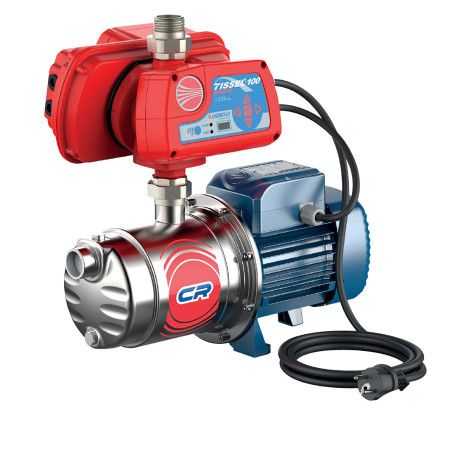

TS1-5CR 100 - 1.25 HP single-phase pressure booster set
Flow rate up to 130 l/min (7.8 m³/h). Head up to 50 m. 0.90 Kw (1.25 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
Description
Single-phase multi-impeller electric pump 5CR 100 three-phase 230 Volt complete with TISSEL-100 variable speed electronic inverter regulator programmed to start and stop the pump when the tap is opened and closed.
Equipped with GSR quick-connect coupling and 1.5 metre cable with Schuko plug.
In case of water shortage, the electronic pressure regulator ensures that the pump stops.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.90
- Power (HP)
- 1.25
- Absorption at 230V (A)
- 10.0
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 8
- Max. head (m.)
- 56
- Jobs
- irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- 40
- Height (cm)
- 41.2
- Width (cm)
- 25.6
- Depth (cm)
- 41.1
- Weight (Kg)
- 18.5
- Warranty (years)
- 2
