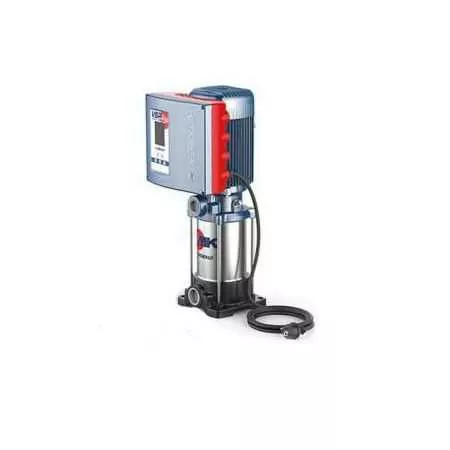

VSP-MK 3/6 - 2 HP three-phase booster set
1.5 kW (2 HP) motor. Flow rate up to 80 l/min (5.4 m³/h). Head up to 101 m.
VSP-MK 3/6 is a compact pumping unit, complete with electric pump, inverter and pressure sensor.
Ideal for domestic and civil pressurization systems, the VSP pumping unit, thanks to the inverter speed regulator, allows the motor revolutions to be modulated in relation to the quantity of water used by the system, reducing energy consumption and always maintaining the system pressure is constant, even when the number of users varies.
It has a flow rate that varies from 10 to 80 liters per minute with a head from 101 to 56 metres.
Robust and simple to use, it is ideal for simultaneously generating constant pressure in all taps.
The inverter drive on the pump reduces wear on the electric pump as it runs at a low speed for most of its life and is started and stopped gradually.
- Motor connection
- THREE-PHASE
- Power (HP)
- 2
- Absorption at 230V (A)
- 13
- Suction mouth
- 1 "1/4
- Delivery port
- 1 "
- Check valve
- no
- Flow rate min. (l./min.)
- 10
- Max flow (l./min.)
- 80
- Min head (m.)
- 56
- Max head (m.)
- 101
- Employments
- irrigation, pressurization systems, water supply
- Height (cm)
- 52.8
- Width (cm)
- 24.2
- Length (cm)
- 25.5
- Weight kg)
- 27.3
- Guarantee
- 2
Compare with Similar Products
 VSP-MK 3/6 - 2 HP three-phase booster setThis product 1.5 kW (2 HP) motor. Flow rate up to 80 l/min (5.4 m³/h). Head up to 101 m. |  VSP-MK 3/5 - 1.5 HP three-phase booster set1.1 kW (1.5 HP) motor. Flow rate up to 80 l/min (5.4 m³/h). Head up to 85 m. |  VSP-MK 5/4 - 1 HP three-phase booster set0.75 kW (1 HP) motor. Flow rate up to 120 l/min (5.4 m³/h). Head up to 55 m. |  VSP-MK 5/5 - 1.5 HP three-phase booster set1.1 kW (1.5 HP) motor. Flow rate up to 120 l/min (5.4 m³/h). Head up to 69 m. | |
|---|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (HP) | Power (HP) 2 | Power (HP) 1.5 | Power (HP) 1 | Power (HP) 1.5 |
| Absorption at 230V (A) | Absorption at 230V (A) 13 | Absorption at 230V (A) 13 | Absorption at 230V (A) 13 | Absorption at 230V (A) 13 |
| Suction mouth | Suction mouth 1 "1/4 | Suction mouth 1 "1/4 | Suction mouth 1 "1/4 | Suction mouth 1 "1/4 |
| Delivery port | Delivery port 1 " | Delivery port 1 " | Delivery port 1 " | Delivery port 1 " |
| Check valve | Check valve no | Check valve no | Check valve no | Check valve no |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) 10 | Flow rate min. (l./min.) 10 | Flow rate min. (l./min.) 20 | Flow rate min. (l./min.) 20 |
| Max flow (l./min.) | Max flow (l./min.) 80 | Max flow (l./min.) 80 | Max flow (l./min.) 120 | Max flow (l./min.) 120 |
| Min head (m.) | Min head (m.) 56 | Min head (m.) 48 | Min head (m.) 20 | Min head (m.) 21.5 |
| Max head (m.) | Max head (m.) 101 | Max head (m.) 85 | Max head (m.) 55 | Max head (m.) 69 |
| Employments | Employments irrigation, pressurization systems, water supply | Employments irrigation, pressurization systems, water supply | Employments irrigation, pressurization systems, water supply | Employments irrigation, pressurization systems, water supply |
| Height (cm) | Height (cm) 52.8 | Height (cm) 50.1 | Height (cm) 47.4 | Height (cm) 50.1 |
| Width (cm) | Width (cm) 24.2 | Width (cm) 24.2 | Width (cm) 24.2 | Width (cm) 24.2 |
| Length (cm) | Length (cm) 25.5 | Length (cm) 25.5 | Length (cm) 25.5 | Length (cm) 25.5 |
| Weight kg) | Weight kg) 27.3 | Weight kg) 25.5 | Weight kg) 23.8 | Weight kg) 25.2 |
| Guarantee | Guarantee 2 | Guarantee 2 | Guarantee 2 | Guarantee 2 |
