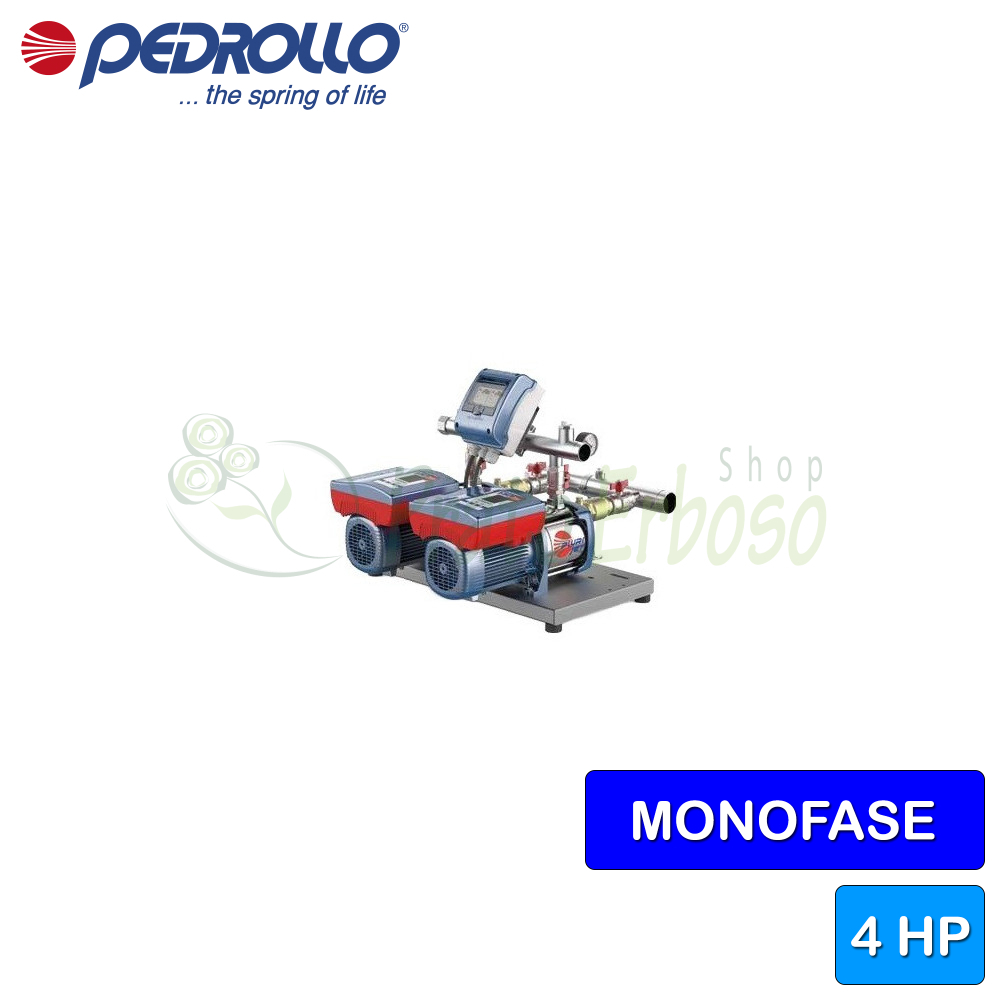

VSP2m-PLURIJET 70/200 - Single-phase pressure booster set 2x2 HP
2 single-phase electric pumps.
2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 65.5 m.
The VSP2m-PLURIJET 70/200 system from Pedrollo 's VSP2 series is made up of two PLURIJET 70/200 centrifugal electric pumps with an inverter integrated into the motor.
It allows you to maintain constant pressure in the system.
Recommended for water supply activities in residential buildings, including from underground tanks, in residential, commercial and public buildings, for garden irrigation and for the movement of clean water.
When the pressure in the system drops due to water withdrawal, the first VSP unit starts operating to meet the required water flow rate, maintaining a constant pressure; when maximum rotation speed is reached, the second VSP unit also starts to ensure the system's water needs.
The VSP2m-PLURIJET 70/200 system is designed to protect the system against dry running, overvoltage, undervoltage and overtemperature.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Suction mouth
- 2" 1/2
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- Max. flow rate (l./min.)
- Min. head (m.)
- Max. head (m.)
- Jobs
- water supply, pressurization systems, irrigation
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
- Warranty (years)
- 2
