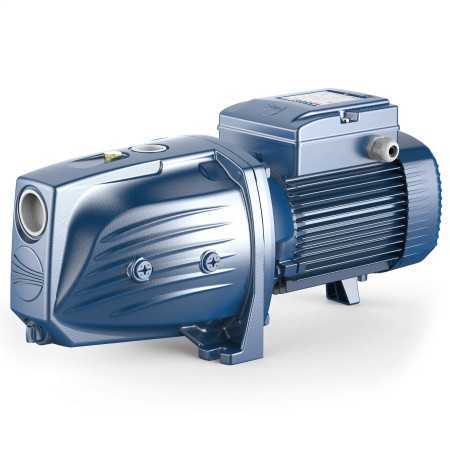

JSWm 3AL - 3 HP single-phase self-priming electric pump OFFER
Flow rate up to 160 l/min (4.8 m³/h). Head up to 64 m. 2.2 Kw (3 HP) motor.
The Pedrollo JSWm 3AL self-priming electric pump is recommended for pumping clean water in domestic applications.
Designed to suck water even in the presence of air mixed with the pumped liquid.
Due to its reliability, the JSWm 3AL is especially recommended for water distribution in conjunction with small or medium-sized pressure tanks, for irrigation of vegetable gardens and gardens, etc.
The flow rate ranges from 30 to 160 liters per minute. The head ranges from 36 to 64 meters.
The suction capacity of the JSWm 3AL is up to 9 metres.
It must be powered by a single-phase voltage, has a horsepower of 3 HP and the temperature of the liquid to be pumped ranges from -15 degrees centigrade up to +40.
The JSWm 3AL has a cast iron pump body, and a stainless steel impeller and motor body. These materials give the pump excellent strength and durability, allowing it to last a long time.
Installation must be carried out in well-ventilated, closed areas or in any case protected from the elements.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 13.6
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 36
- Max. flow rate (l./min.)
- 64
- Min. head (m.)
- 30
- Max. head (m.)
- 160
- Jobs
- water supply, fire prevention systems, washing systems, pressurization systems, irrigation, tank transfer
- Max. liquid temperature (°C)
- +40°C
- Motor voltage
- 230 V
- Height (cm)
- 24.0
- Width (cm)
- 20.6
- Depth (cm)
- 54.2
- Weight (Kg)
- 28.4
- Warranty (years)
- 2
