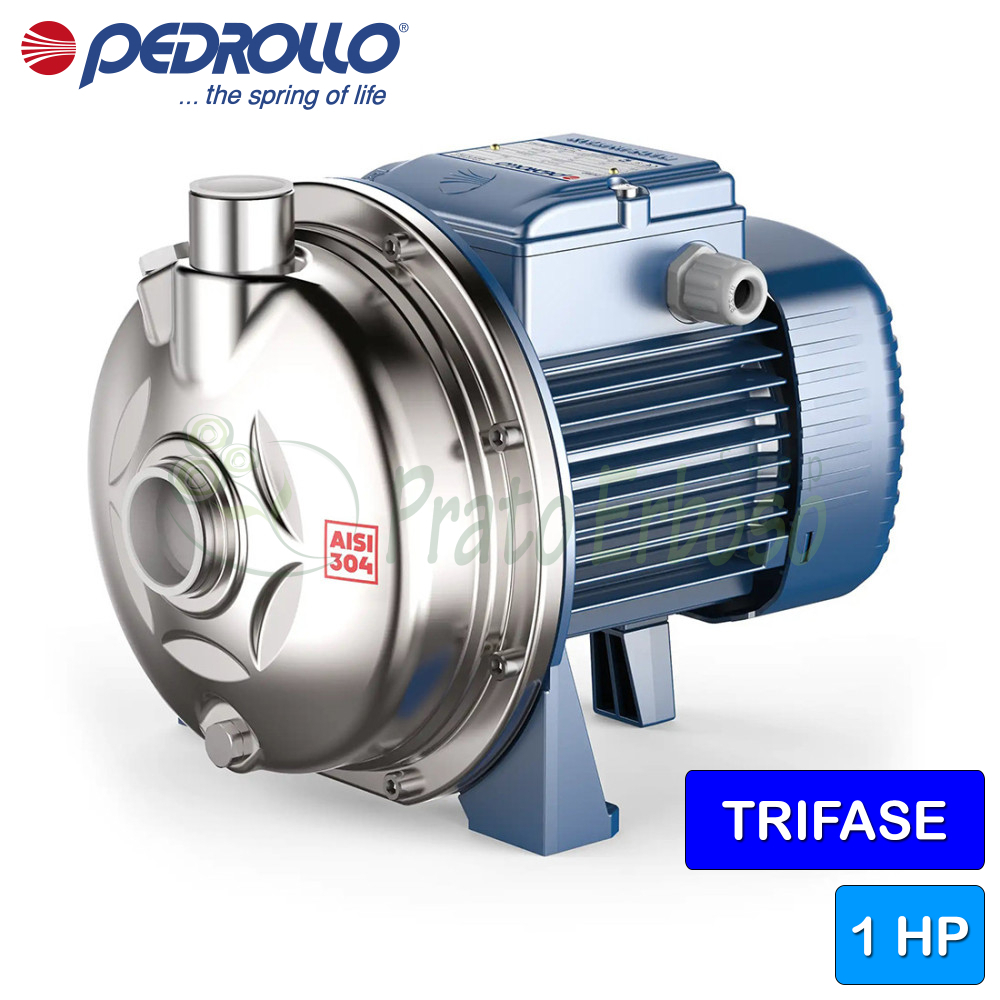

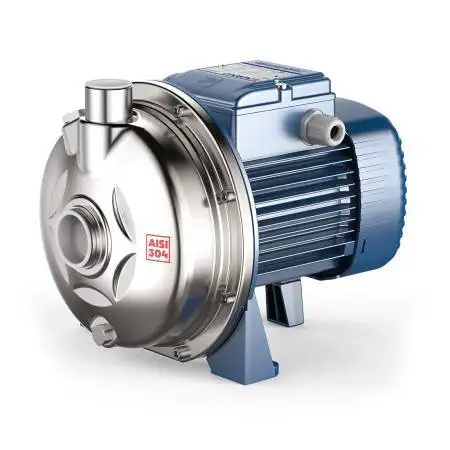

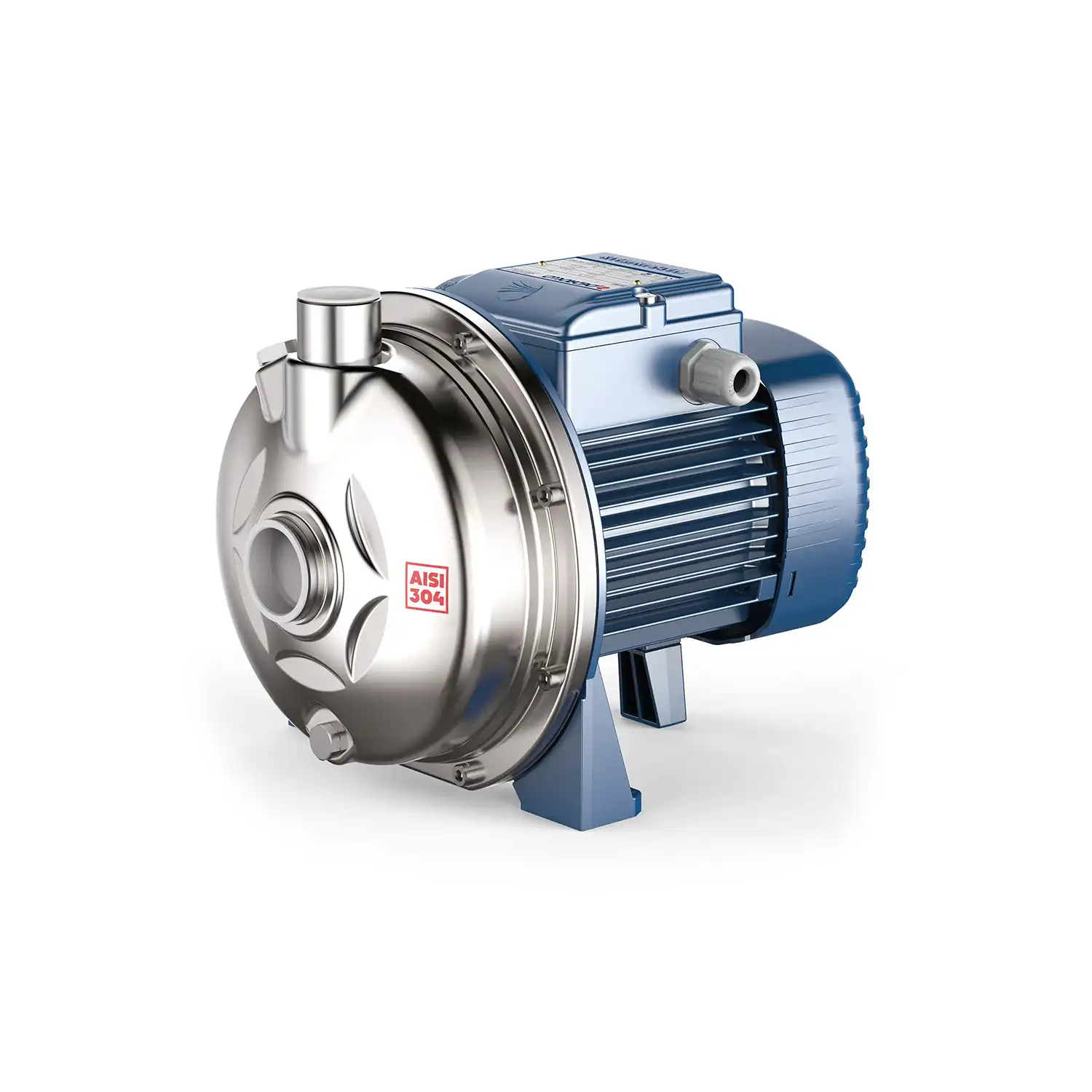

CP 158-ST6 - 1 HP three-phase stainless steel centrifugal electric pump
In AISI 316L stainless steel. Flow rate up to 120 l/min (7.2 m³/h). Head up to 36.5 m. 0.75 Kw (1 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
It is recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
Due to its construction features, this centrifugal pump is recommended for use in the domestic, agricultural and industrial sectors.
All components in contact with the pumped liquid are made of AISI 316L stainless steel to guarantee total hygiene and maximum resistance to corrosion.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.2
- Absorption at 400V (A)
- 2.4
- Suction mouth
- 1 "1/4
- Delivery port
- 1 "
- Body Pump
- AISI 316L stainless steel
- Impeller
- AISI 316L stainless steel
- Number of impellers
- 1
- Motor shaft
- AISI 316L stainless steel
- Check valve
- no
- Degree of protection
- IP 55
- Flow rate min. (l./min.)
- 10
- Max flow (l./min.)
- 120
- Min head (m.)
- 19
- Max head (m.)
- 36.5
- Employments
- water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants
- Motor voltage
- 230 V, 400 V
- Height (cm)
- 21.9
- Width (cm)
- 29.6
- Depth (cm)
- 22.1
- Weight kg)
- 10.8
- Guarantee
- 2
CP-ST6 models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the CP 150-158-ST6
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-14 |
| LP diameter | 14 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | EN 1.4404 stainless steel (AISI 316L) |
| 2.1 - Seal holder cover | EN 1.4404 stainless steel (AISI 316L) |
| 3.0 - Impeller | EN 1.4404 stainless steel (AISI 316L) |
| 4.0 - Pump shaft | EN 1.4404 stainless steel (AISI 316L) |
| 5.2 - Shim Ring | PTFE |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
