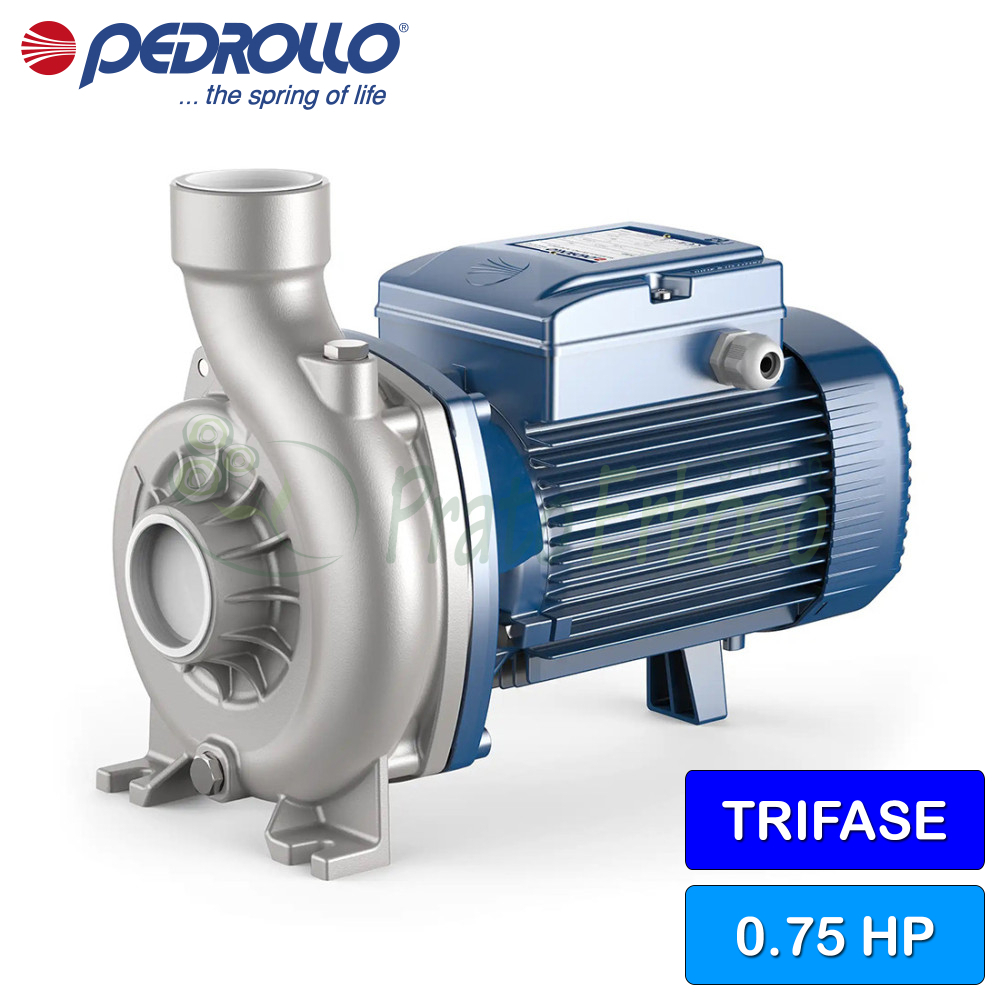

NGA 1B-PRO - 0.75 HP three-phase open impeller electric pump

Name: NGA 1B-PRO - 0.75 HP three-phase open impeller electric pump
Brand: Pedrollo
SKU: NGA 1B-PRO
Price: 442.25 EUR
Availability: InStock

Flow rate up to 350 l/min (21 m³/h). Head up to 18 m. 0.55 Kw (0.75 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO submersible pumps of the NGA-PRO line are recommended for pumping water and liquids that are chemically non-aggressive for the materials from which the pump is made.

The PEDROLLO NGA 1B - PRO has a flow rate that varies from 50 to 350 litres per minute with a head from 18 to 5 metres.

The open impeller construction solution allows for the pumping of fluids relatively loaded with impurities without the risk of clogging the impeller. All components in contact with the pumped liquid are made of AISI 316 stainless steel. For this feature, the NGA-PRO series pumps are specifically used in fruit, vegetable, fish and shellfish washing systems, in industrial systems for washing metal parts, glass containers and for the circulation of cooling liquids.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 3.3
Absorption at 400V (A): 1.9
Suction mouth: 1 "1/2
Delivery mouth: 1 "1/2
Pump body: AISI 316 stainless steel
Impeller: AISI 316 stainless steel
Number of impellers: 1
Crankshaft: AISI 316L stainless steel
Check valve: No
Degree of protection: IP 44
Min. flow rate (l./min.): 50
Max. flow rate (l./min.): 350
Min. head (m.): 5
Max. head (m.): 18
Jobs: water supply, cooling systems, washing systems, water treatment plants
Max. liquid temperature (°C): +90°C
Motor voltage: 400V
Height (cm): 22.65
Width (cm): 29.9
Depth (cm): 19
Weight (Kg): 12.7
Warranty (years): 2

Attachments

NGA-PRO data sheet

Construction and operating characteristics. Work curves, limits of use and dimensions of the Pedrollo NGA-PRO series pumps.

Download (499.41KB)

NGA 1-PRO models and performance

GUY

single phase

NGA 1B - PRO

NGA 1A - PRO

POWER
KW	HP
0.55	0.75
0.75	1

PERFORMANCE
Q litres/min	H meters
50 ÷ 350	18 ÷ 5
50 ÷ 400	20.5 ÷ 5

MOUTH
wait.	send.
1 1/2"	1 1/2"

Q	m³/hour	0	3	6	9	12	15	18	21	24
Q	l/min	0	50	100	150	200	250	300	350	400
H	meters	18	17.4	16.4	15.2	13.5	11.3	8.7	5
H	meters	20.5	20	19.3	18.1	16.6	14.7	12.1	9	5

Construction data of the NGA 1B-PRO-1A-PRO

Bearings

Pump side motor bearing	6203 ZZ
Opposite side motor bearing	6203 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-14
LP diameter	14
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	EN 14401 stainless steel (AISI 316)
2.1 - Seal holder cover	EN 14401 stainless steel (AISI 316)
3.0 - Impeller	EN 14401 stainless steel (AISI 316)
4.0 - Pump shaft	EN 1.4404 stainless steel (AISI 316L)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
