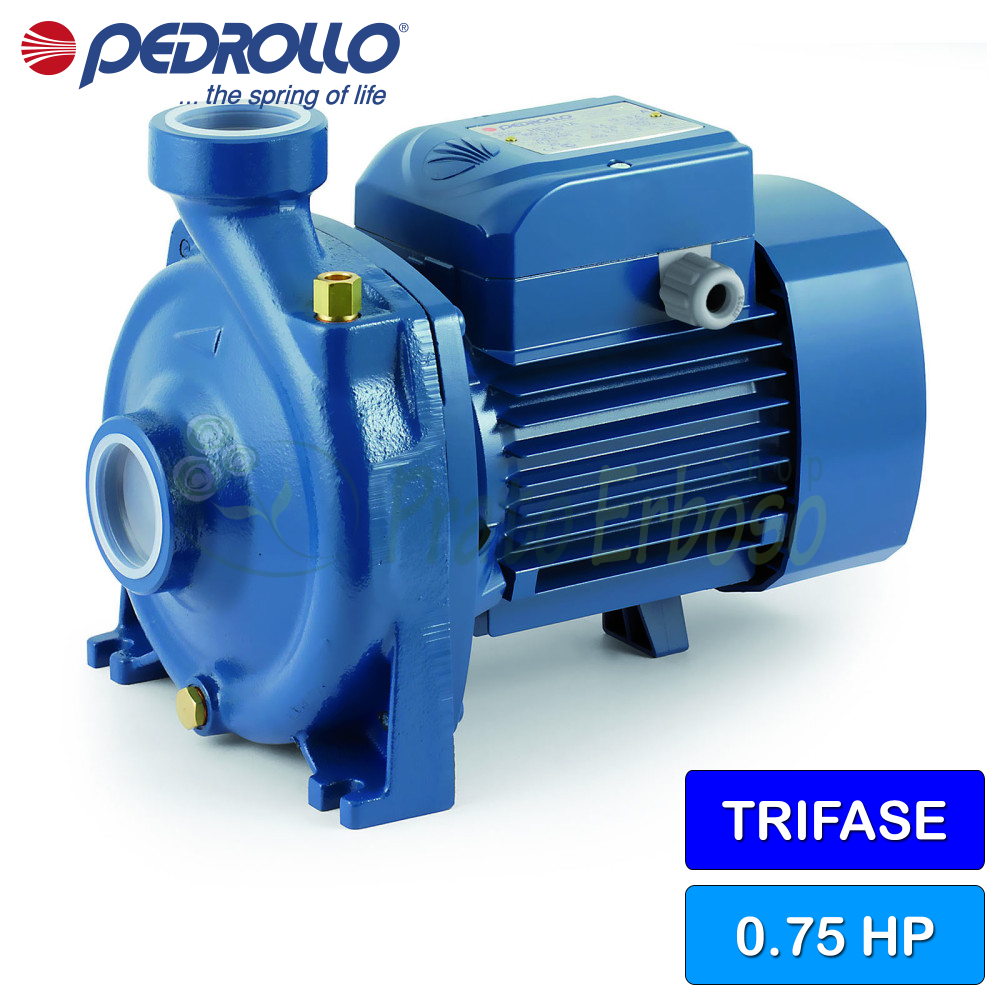

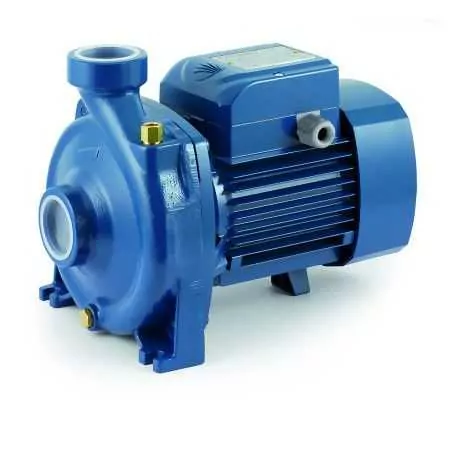

HF 50A - 0.75 HP three-phase centrifugal electric pump

Name: HF 50A - 0.75 HP three-phase centrifugal electric pump
Brand: Pedrollo
SKU: HF 50A
Price: 178.32 EUR
Availability: InStock

Flow rate up to 300 l/min (18 m³/h). Head up to 12 m. 0.55 Kw (0.75 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo HF 50A centrifugal electric pump is suitable for those who require high flow rates at the expense of head.

Recommended for use in the agricultural and industrial sectors, particularly for surface and sprinkler irrigation, and for drawing water from lakes, rivers and wells.

Advantageous as it is reliable and constant even during long watering sessions.

Pedrollo has created a solid and robust product: the HF 50A is made from materials such as cast iron and AISI 304 and 431 stainless steel.

The flow rate ranges from 50 to 300 litres per minute while the head ranges from 6 to 12 metres.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 3
Current consumption at 400V (A): 1.7
Suction mouth: 1" 1/2
Delivery mouth: 1" 1/2
Pump body: Cast iron
Impeller: Brass
Number of impellers: 1
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 300
Min. head (m.): 6
Max. head (m.): 12
Jobs: water supply, irrigation, cooling systems, tank transfer
Max. liquid temperature (°C): +90°C
Motor voltage: 400V
Height (cm): 20
Width (cm): 27
Depth (cm): 16.6
Weight (Kg): 8.2
Warranty (years): 2

Attachments

Medium flow HF data sheet

Models, performance curves and construction characteristics of the Pedrollo pumps of the HF series medium flow rates.

Download (350.74KB)

HF models and performances - Medium ranges

GUY

three-phase

HF 50B

HF 50A

HF 51B

HF 51A

HF 70C

HF 70B

HF 70A

HF 5B

HF 5A

HF 5BM

HF 5AM

POWER
KW	HP
0.37	0.50
0.55	0.75
0.55	0.75
0.75	1
1.1	1.5
1.5	2
2.2	3
0.75	1
1.1	1.5
1.1	1.5
1.5	2

PERFORMANCE
Q litres/min	H meters
50 ÷ 300	10 ÷ 4
50 ÷ 300	12 ÷ 6
50 ÷ 300	18.2 ÷ 5.4
50 ÷ 300	21.2 ÷ 8.4
50 ÷ 300	29 ÷ 15
50 ÷ 300	33 ÷ 19
50 ÷ 300	39 ÷ 25
100 ÷ 500	13.7 ÷ 5
100 ÷ 600	14.5 ÷ 3
100 ÷ 600	19 ÷ 6
100 ÷ 600	22 ÷ 10

MOUTH
wait.	send.
1 1/2"	1 1/2"
2"	2"

Q	m³/hour	0	3	6	9	12	15	18	21	24	30	36
Q	l/min	0	50	100	150	200	250	300	350	400	500	600
H	meters	10	10	9.5	8.5	7.5	6	4
		12	12	11.5	11	9.6	8	6
		18.2	17.2	16	14	11.5	9	5.4
		21.2	20.2	19	17	14.5	11.6	8.4
		29	28	26.5	24.5	22	18.5	15
		33	32	30.5	28.5	26	22.5	19
		39	38	36.5	34.5	32	28.5	25
		13.7	-	13.2	13	12.5	11.6	10.5	9.2	8	5
		14.5	-	13.8	13.5	13.2	12.6	11.8	10.5	9.2	6.5	3
		19	-	18.5	18	17	16	15.2	14	12.8	9.7	6
		22	-	21.5	21	20.5	19.8	19	18	16.8	13.8	10

Construction data of the HF 50B-50A

Section of the Pedrollo HF medium flow pump

Bearings

Pump side motor bearing	6201 ZZ
Opposite side motor bearing	6201 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-12
LP diameter	12
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	EN 1.4301 stainless steel (AISI 304)
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
