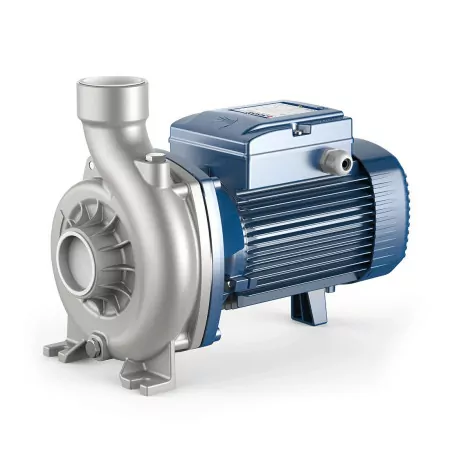

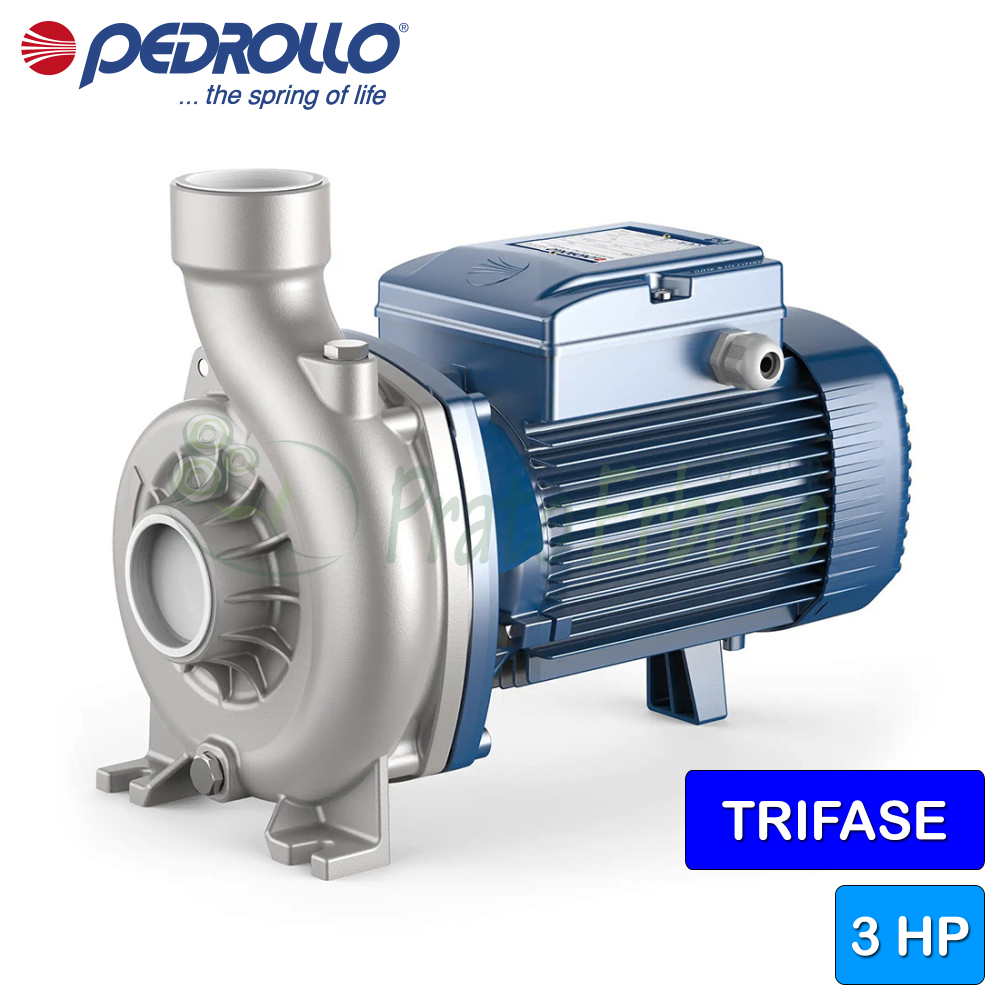

NGA 3A-PRO - 3 HP three-phase open impeller electric pump

Name: NGA 3A-PRO - 3 HP three-phase open impeller electric pump
Brand: Pedrollo
SKU: NGA 3A-PRO
Price: 775.53 EUR
Availability: InStock

Flow rate up to 900 l/min (54 m³/h). Head up to 19.5 m. 2.2 Kw (3 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO submersible pumps of the NGA-PRO line are recommended for pumping water and liquids that are chemically non-aggressive for the materials from which the pump is made.

The PEDROLLO NGA 3B-PRO has a flow rate ranging from 100 to 900 litres per minute with a head from 19.5 to 8.5 metres.

The open impeller design solution allows pumping fluids relatively full of impurities without the risk of clogging the impeller. All components in contact with the pumped liquid are made of AISI 316 stainless steel. For this feature, the NGA-PRO series pumps are specifically used in fruit, vegetable, fish and shellfish washing systems, in industrial systems for washing metal parts, glass containers and circulation of cooling liquids.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 2.2
Power (HP): 3
Suction mouth: 2"
Delivery mouth: 2"
Pump body: AISI 316 stainless steel
Impeller: AISI 316 stainless steel
Number of impellers: 1
Crankshaft: AISI 316L stainless steel
Check valve: No
Degree of protection: IP 44
Min. flow rate (l./min.): 100
Max. flow rate (l./min.): 900
Min. head (m.): 8.5
Max. head (m.): 19.5
Jobs: water supply, cooling systems, washing systems, water treatment plants
Max. liquid temperature (°C): +90°C
Motor voltage: 400V
Weight (Kg): 24.5
Warranty (years): 2

Attachments

NGA-PRO data sheet

Construction and operating characteristics. Work curves, limits of use and dimensions of the Pedrollo NGA-PRO series pumps.

Download (499.41KB)

NGA 2-3 Models and Performance - PRO

GUY

three-phase

NGA 2B - PRO

NGA 2A - PRO

NGA 3D - PRO

NGA 3C - PRO

NGA 3B - PRO

NGA 3A - PRO

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2
1.8	2.5
2.2	3

PERFORMANCE
Q litres/min	H meters
50 ÷ 450	9.5 ÷ 4
50 ÷ 550	11 ÷ 4
50 ÷ 700	12.5 ÷ 5
100 ÷ 770	14.8 ÷ 5.7
100 ÷ 840	17 ÷ 7
100 ÷ 900	19.5 ÷ 8.5

MOUTH
wait.	send.
1/2"	1/2"
2"	2"

Q	m³/hour	0	3	6	12	18	24	27	33	42	46.2	50.4	54
Q	l/min	0	50	100	200	300	400	450	550	700	770	840	900
H	meters	9.5	9.4	9.3	8.4	7	5.2	4
		11	10.8	10.5	9.8	8.8	7.4	6.4	4
		12.5	-	12	11.5	10.8	9.8	9.3	7.8	5
		14.8	-	14.4	13.8	13.1	12.2	11.7	10.3	7.4	5.7
		17	-	16.5	16	15.3	14.5	14	12.8	10.3	8.8	7
		19.5	-	19	18.4	17.8	17	16.5	15.4	13	11.5	10	8.5

Construction data of the NGA 3D-PRO-3C-PRO-3B-PRO-3A

Bearings

Pump side motor bearing	6204 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-18 V6
LP diameter	18
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	Viton

Mat

1.0 - Pump Body	EN 14401 stainless steel (AISI 316)
2.1 - Seal holder cover	EN 14401 stainless steel (AISI 316)
3.0 - Impeller	EN 14401 stainless steel (AISI 316)
4.0 - Pump shaft	EN 1.4404 stainless steel (AISI 316L)
6.0 - Motor holder	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
