-42%

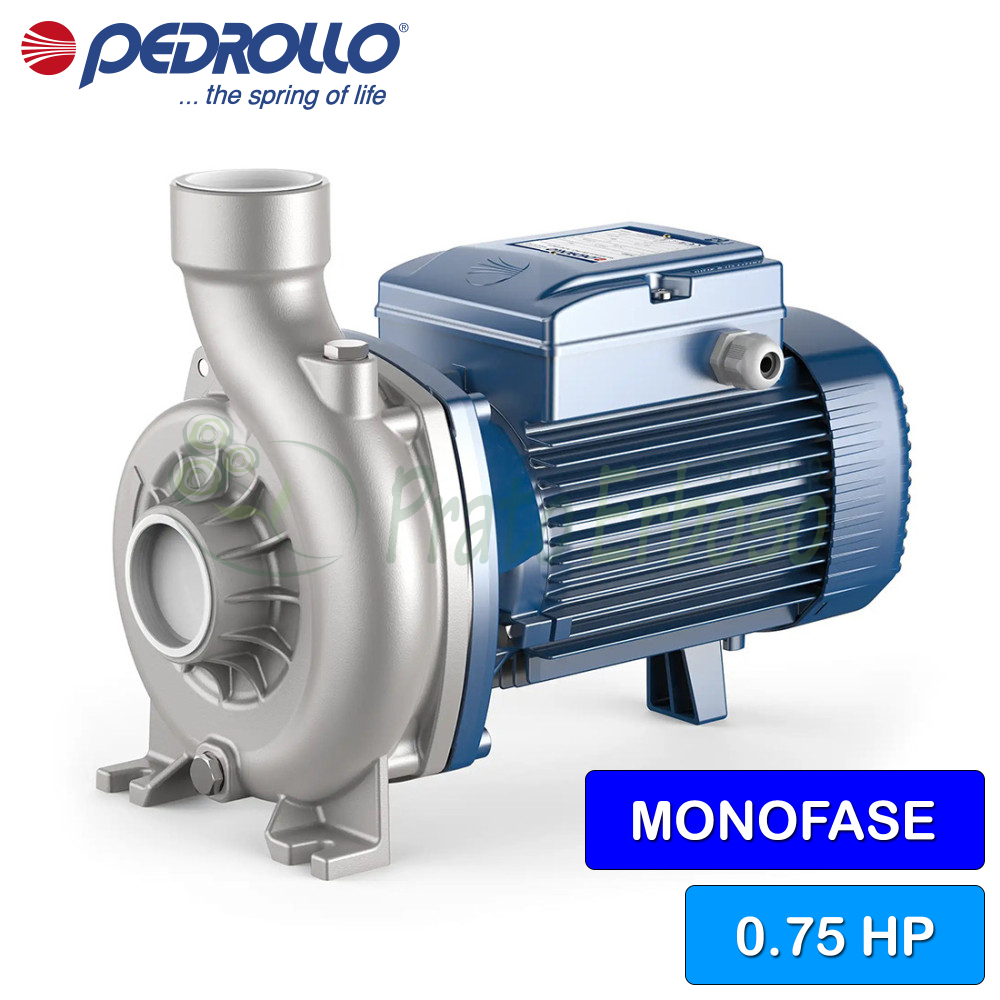

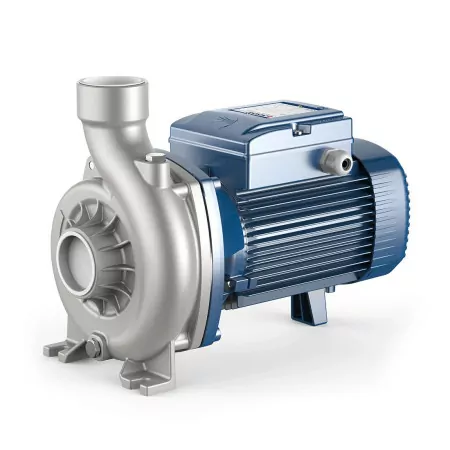

NGAm 2B-PRO - 0.75 HP single-phase open impeller electric pump

Name: NGAm 2B-PRO - 0.75 HP single-phase open impeller electric pump
Brand: Pedrollo
SKU: NGAm 2B-PRO
Price: 465.6 EUR
Availability: InStock

Flow rate up to 450 l/min (27 m³/h). Head up to 9.5 m. 0.55 Kw (0.75 HP) motor.

Variants:

Order it before 12:00 and receive it between Friday 26 June and Monday 29 June with Mail Boxes - 2 giorni

Delivery Options

Carrier		Description	Estimated Delivery
	Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Friday 26 June - Monday 29 June
	Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Friday 26 June - Monday 29 June

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Friday 26 June - Monday 29 June

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 26 June - Monday 29 June

There are no reviews yet

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo NGAm 2B-PRO centrifugal electric pump with open impeller is recommended for activities such as transferring water from canals, rivers, tanks and basins.

Pedrollo designed this pump with an open impeller, making it suitable for pumping relatively contaminated fluids without the risk of clogging the impeller. It allows the passage of solids up to 12 millimeters.

The NGAm 2B-PRO is made entirely of stainless steel for greater strength and durability. The use of stainless steel also ensures easier cleaning, as all components in contact with water are made of stainless steel.

It has a flow rate ranging from 50 to 450 liters and a reach of 4 to 9.5 meters. The pump body supports a maximum working pressure of 6 bar .

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.55
Power (HP): 2.5
Suction mouth: 2"
Delivery mouth: 2"
Pump body: AISI 316L stainless steel
Impeller: AISI 316L stainless steel
Number of impellers: 1
Crankshaft: AISI 316 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 450
Min. head (m.): 4
Max. head (m.): 9.5
Jobs: water supply, cooling systems, washing systems, water treatment plants
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Warranty (years): 2

Attachments

NGA-PRO data sheet

Construction and operating characteristics. Work curves, limits of use and dimensions of the Pedrollo NGA-PRO series pumps.

Download (499.41KB)

Models and performances NGAm 2-3 - PRO

TYPE

three phase

NGAm 2B - PRO

NGAm 2A - PRO

NGAm 3D - PRO

NGAm 3C - PRO

NGAm 3B - PRO

NGAm 3A - PRO

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2
1.8	2.5
2.2	3

PERFORMANCES
Q liters/min	H meters
50 ÷ 450	9.5 ÷ 4
50 ÷ 550	11 ÷ 4
50 ÷ 700	12.5 ÷ 5
100 ÷ 770	14.8 ÷ 5.7
100 ÷ 840	17 ÷ 7
100 ÷ 900	19.5 ÷ 8.5

MOUTH
asp.	send.
1/2"	1/2"
2"	2"

Q	m³/hour	0	3	6	12	18	24	27	33	42	46.2	50.4	54
Q	l/min	0	50	100	200	300	400	450	550	700	770	840	900
H	meters	9.5	9.4	9.3	8.4	7	5.2	4
		11	10.8	10.5	9.8	8.8	7.4	6.4	4
		12.5	-	12	11.5	10.8	9.8	9.3	7.8	5
		14.8	-	14.4	13.8	13.1	12.2	11.7	10.3	7.4	5.7
		17	-	16.5	16	15.3	14.5	14	12.8	10.3	8.8	7
		19.5	-	19	18.4	17.8	17	16.5	15.4	13	11.5	10	8.5

Reviews (0) - Review moderation

Review the product
Product review processing policy

There are no reviews for this product yet.

Compare with Similar Products

	NGAm 2B-PRO - 0.75 HP single-phase open impeller electric pump This product Flow rate up to 450 l/min (27 m³/h). Head up to 9.5 m. 0.55 Kw (0.75 HP) motor.	HFm 50A - 0.75 HP single-phase centrifugal electric pump Quick View Flow rate up to 300 l/min (18 m³/h). Head up to 12 m. 0.55 Kw (0.75 HP) motor.	NGAm 1B - 0.75 HP single-phase open impeller centrifugal electric pump Quick View Flow rate up to 350 l/min (21 m³/h). Head up to 18 m. 0.55 Kw (0.75 HP) motor.
Price	Price €802.76 -42% €465.60	Price €290.36 -42% €168.41	Price €379.42 -42% €220.06
Motor connection	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE
Power (Kw)	Power (Kw) 0.55	Power (Kw) 0.55	Power (Kw) 0.55
Power (HP)	Power (HP) 2.5	Power (HP) 0.75	Power (HP) 0.75
Absorption at 230V (A)	Absorption at 230V (A) --	Absorption at 230V (A) 3.8	Absorption at 230V (A) 3.3
Capacitor	Capacitor --	Capacitor 14 µF 450 VL	Capacitor 16 µF 450 VL
Suction mouth	Suction mouth 2"	Suction mouth 1" 1/2	Suction mouth 1" 1/2
Delivery mouth	Delivery mouth 2"	Delivery mouth 1" 1/2	Delivery mouth 1" 1/2
Pump body	Pump body AISI 316L stainless steel	Pump body Cast iron	Pump body Cast iron
Impeller	Impeller AISI 316L stainless steel	Impeller Brass	Impeller AISI 316 Stainless Steel
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1
Crankshaft	Crankshaft AISI 316 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel
Check valve	Check valve No	Check valve No	Check valve No
Degree of protection	Degree of protection IP 44	Degree of protection IP 44	Degree of protection IP 44
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 50	Minimum flow rate (l./min.) 50	Minimum flow rate (l./min.) 50
Max. flow rate (l./min.)	Max. flow rate (l./min.) 450	Max. flow rate (l./min.) 300	Max. flow rate (l./min.) 350
Min. head (m.)	Min. head (m.) 4	Min. head (m.) 6	Min. head (m.) 5
Max. head (m.)	Max. head (m.) 9.5	Max. head (m.) 12	Max. head (m.) 18
Jobs	Jobs water supply, cooling systems, washing systems, water treatment plants	Jobs water supply, irrigation, cooling systems, tank transfer	Jobs water supply, washing systems
Max. liquid temperature (°C)	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C
Motor voltage	Motor voltage 230 V	Motor voltage 230 V	Motor voltage 230 V
Height (cm)	Height (cm) --	Height (cm) 20	Height (cm) 22.7
Width (cm)	Width (cm) --	Width (cm) 27	Width (cm) 29.7
Depth (cm)	Depth (cm) --	Depth (cm) 16.6	Depth (cm) 19
Weight (Kg)	Weight (Kg) --	Weight (Kg) 8.9	Weight (Kg) 12.4
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
