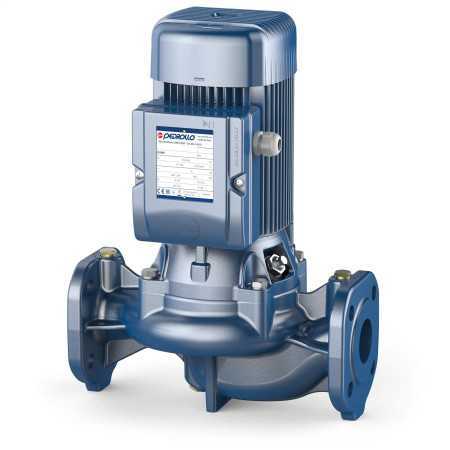

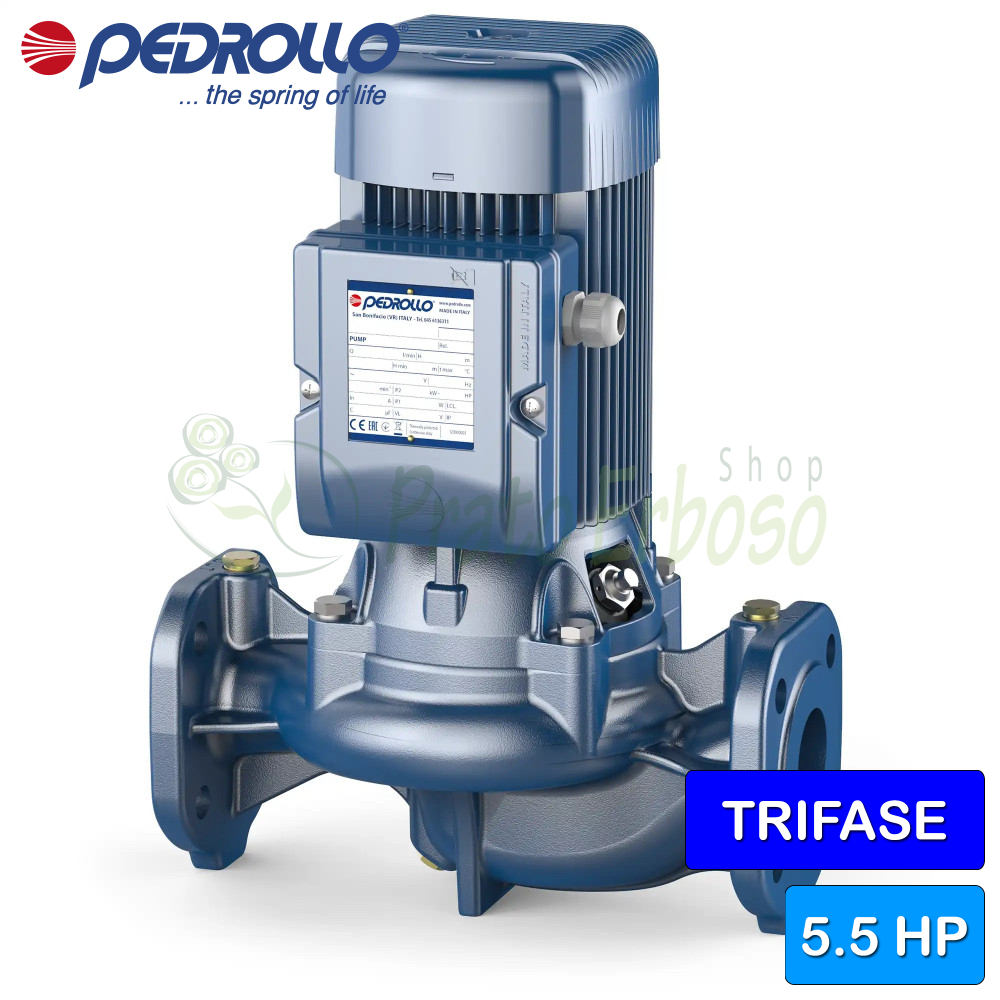

WR 65/160C - 5.5 HP three-phase centrifugal electric pump
Flow rate up to 1000 l/min. Head up to 27 m. 4 kW (5.5 HP) motor.
The Pedrollo WR 65/125C centrifugal electric pump can be used for moving clean water, without abrasive parts, or liquids that are chemically non-aggressive towards the materials from which the pump is made.
A special feature of this pump is the identical size of the suction port and the delivery port.
The WR 65/125C is recommended in the agricultural, civil and industrial sectors, particularly in heating, air conditioning, cooling and circulation systems.
It has a flow rate that varies from 300 to 1000 litres per minute with a head of 16 to 27 metres.
The WR 65/125C must be powered by a three-phase voltage, has a horsepower of 5.5 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +110.
The manometric suction capacity reaches up to 7 metres.
The pump's compact size makes it easy to install. Pedrollo uses materials such as cast iron and stainless steel to make it robust and durable.
Installation must be carried out in well-ventilated, closed areas or in any case protected from the elements.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 4
- Power (HP)
- 5.5
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 550
- Min. head (m.)
- 6
- Max. head (m.)
- 16
- Jobs
- air conditioning systems, irrigation
- Max. liquid temperature (°C)
- +110°C
- Motor voltage
- 230 V, 400V
- Height (cm)
- 43.2
- Width (cm)
- 34.0
- Depth (cm)
- 22.0
- Weight (Kg)
- 29
- Warranty (years)
- 2
