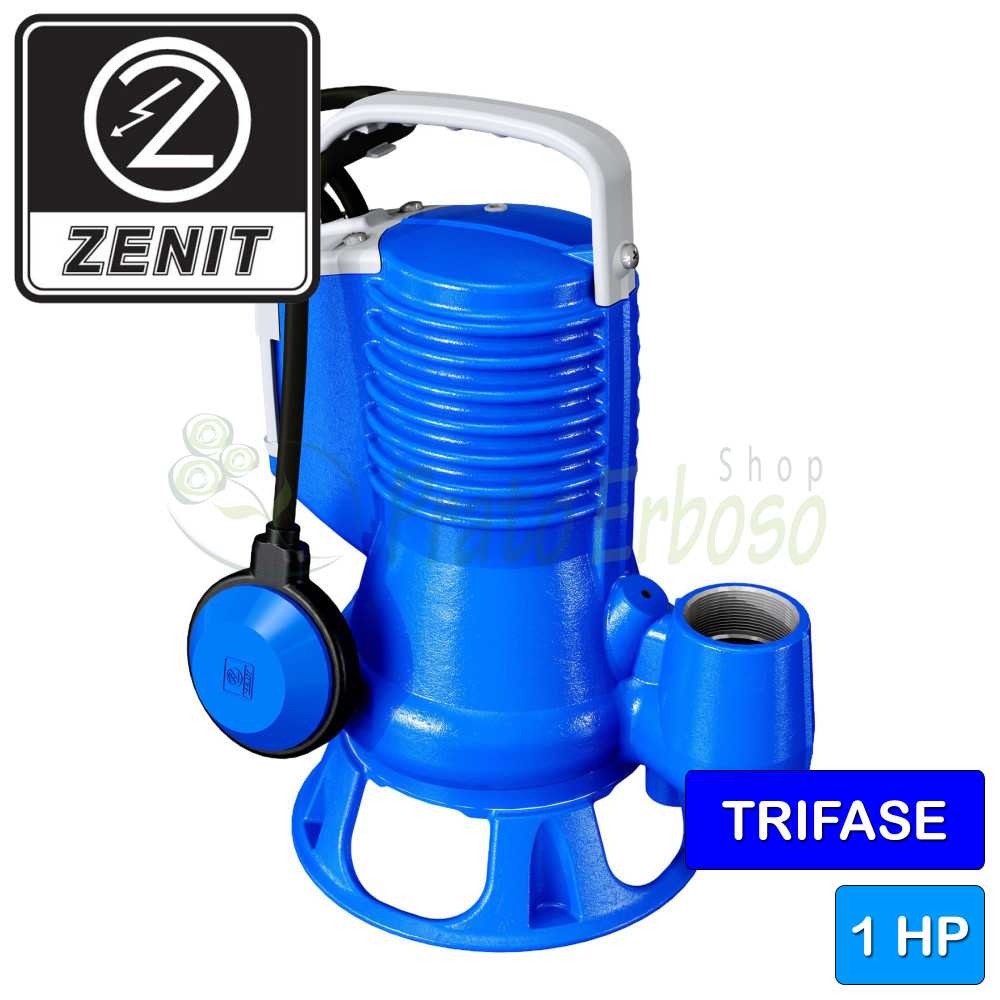

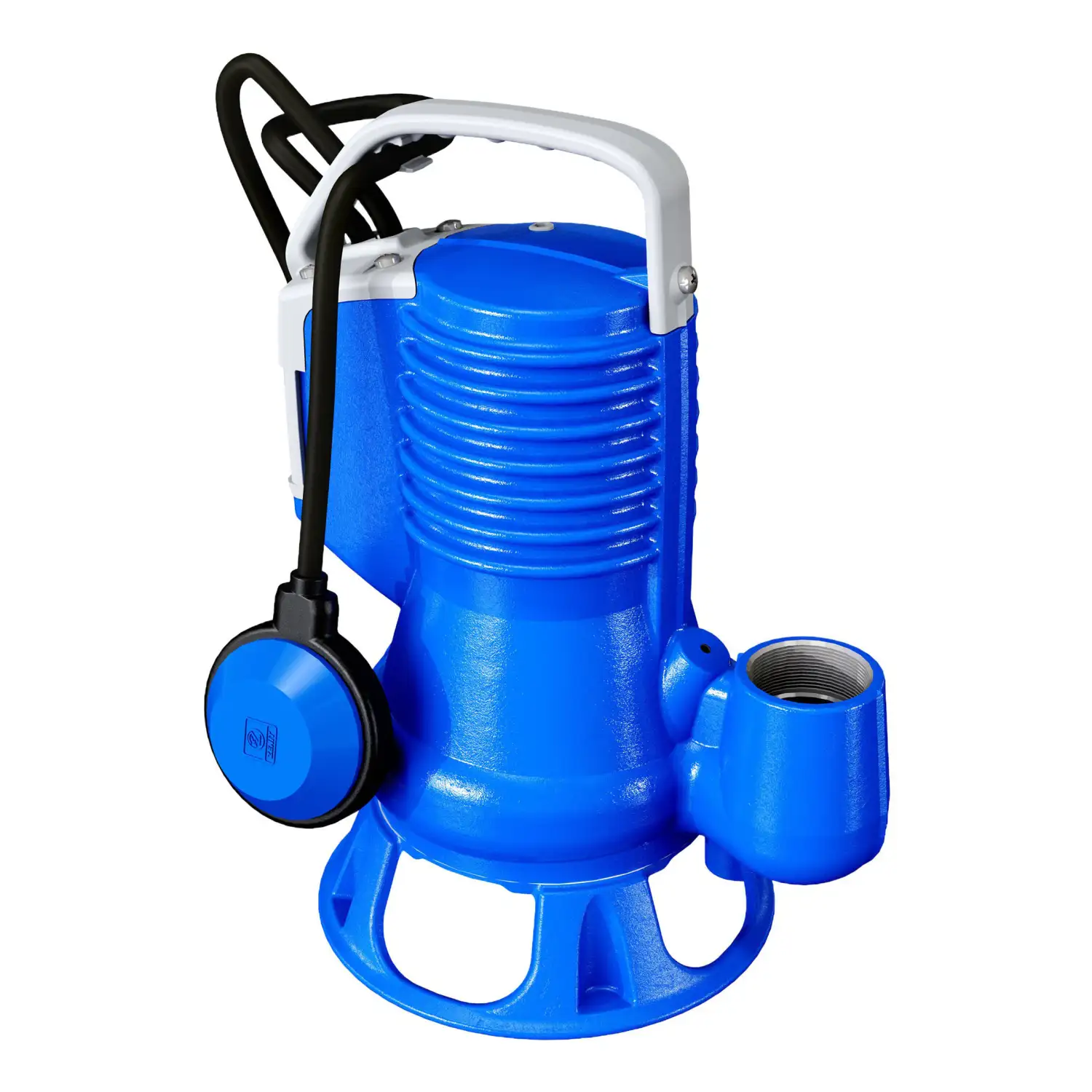

100/2/G40V A1BT5NCQTRG - 1 HP three-phase VORTEX electric pump for waste water
Flow rate up to 420 l/min (25.2 m³/h). Head up to 11.4 m. 0.75 kW (1 HP) motor. With float switch.
The 100/2/G40V A1BT5NCQTRG submersible electric pump from the DG bluePRO series by Zenit is ideal for the domestic and professional sectors.
Suitable for heavy-duty use in the presence of contaminated biological liquids, sewage, rainwater and seepage water.
It has a maximum flow rate of 420 litres per minute and a maximum head of 11.4 metres.
The distinguishing feature of the 100/2/G40V A1BT5NCQTRG is the vortex impeller which allows the passage of solid bodies.
It can be installed up to 20 meters below water level.
Made from materials such as cast iron and steel, Zenit has created a solid product suitable for even the most extreme conditions.
The cable supplied with the 100/2/G40V A1BT5NCQTRG is 5 meters.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- Max. flow rate (l./min.)
- Min. head (m.)
- Max. head (m.)
- Cable length (m.)
- Jobs
- slightly dirty waters, water supply, drainage
- Max. liquid temperature (°C)
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
- Warranty (years)
- 2
