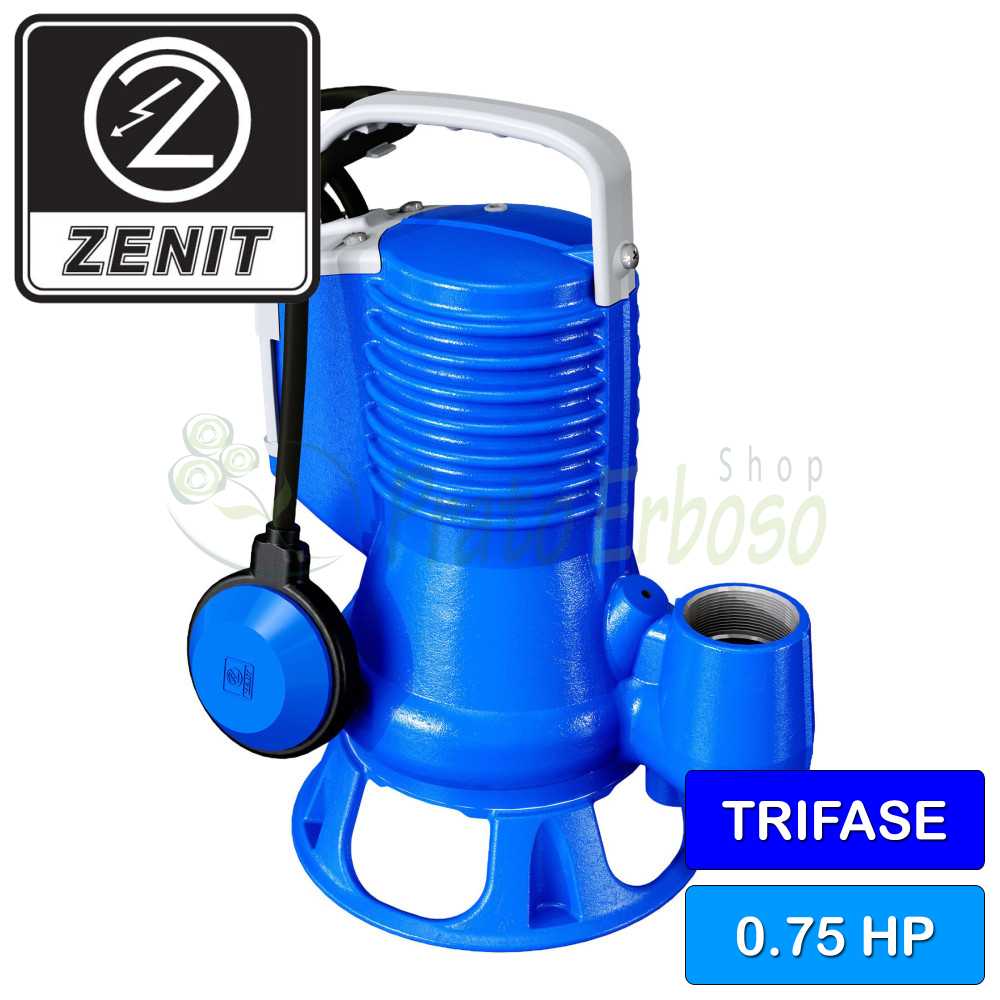

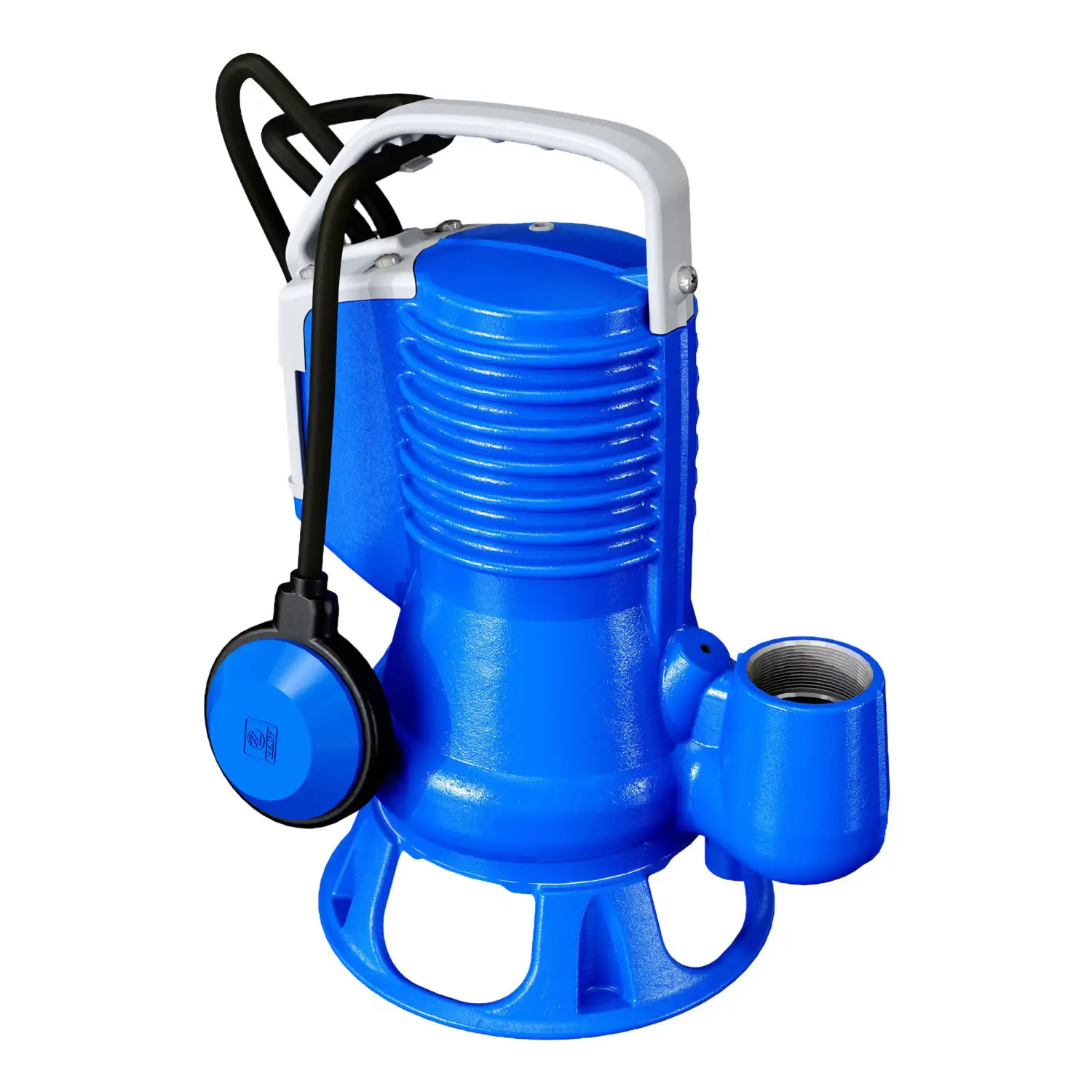

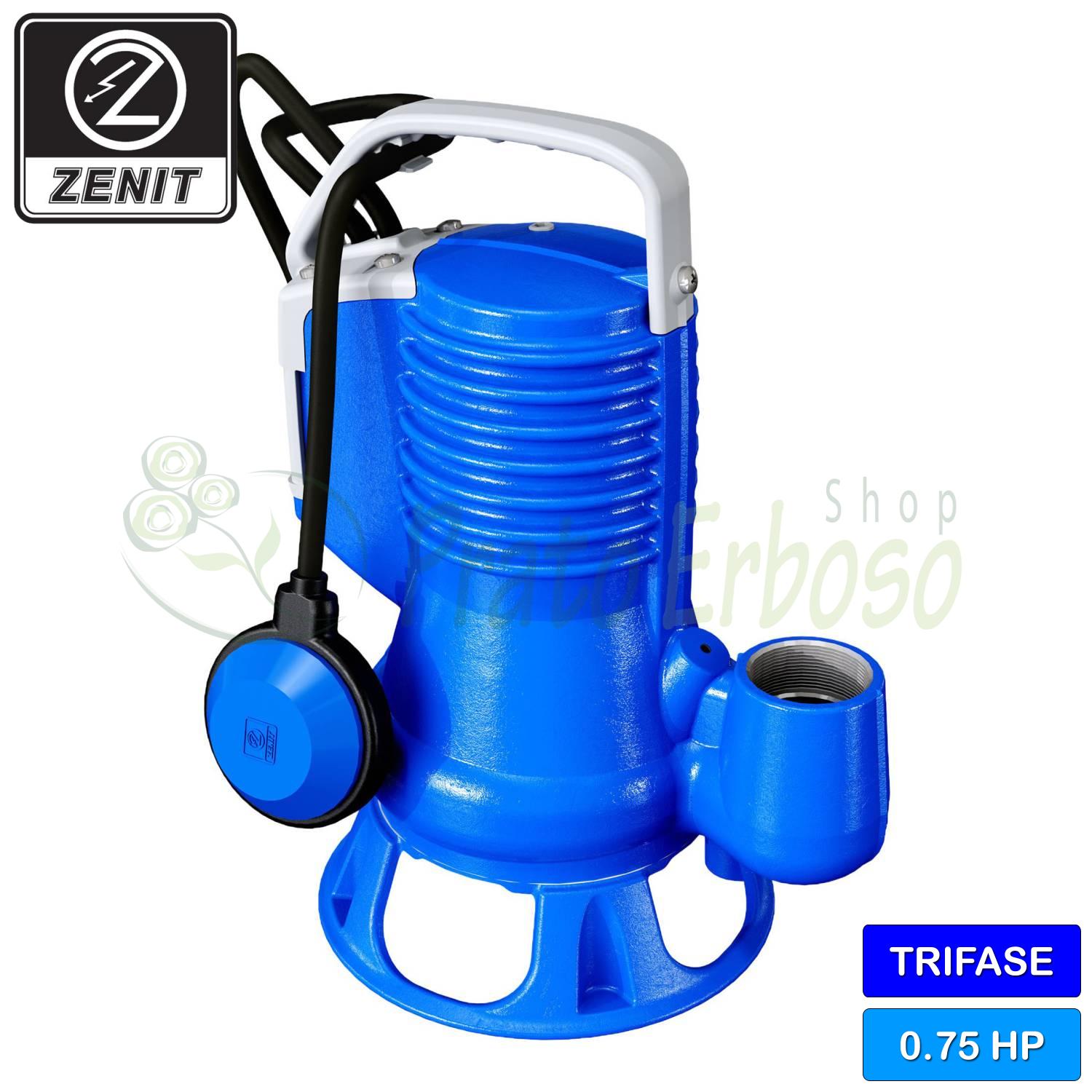

75/2/G40V A1BT5NCQTRG - 0.75 HP three-phase VORTEX electric pump for waste water
Flow rate up to 360 l/min (21.6 m³/h). Head up to 10.2 m. 0.37 kW (0.50 HP) motor. With float switch.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 |
Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. |
Thursday 22 January - Friday 23 January |
 |
Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. |
Thursday 22 January - Friday 23 January |
 |
DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. |
Thursday 22 January - Friday 23 January |
 |
Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. |
tomorrow |
 |
Ritiro in negozio | Choose where to collect your order within 24/48 hours. |
tomorrow |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 January - Friday 23 January
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 January - Friday 23 January
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 January - Friday 23 January
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
tomorrow
The Zenit DG bluePRO series 75/2/G40V A1BT5NCQTRG submersible electric pump is suitable for use with soiled biological liquids, sewage, rainwater, and seepage water. In both domestic and industrial applications.
Equipped with a vortex impeller, this allows the pump to filter solids up to 50 millimetres.
It has a maximum flow rate of 360 litres per minute and a maximum head of 10.2 metres.
The 75/2/G40V A1BT5NCQTRG can be installed up to 20 meters underwater. It boasts an IP 68 certification.
The use of materials such as cast iron, stainless steel and the double mechanical seal make this pump solid and robust.
The supplied cable 75/2/G40V A1BT5NCQNAE is 5 metres long.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- Max. flow rate (l./min.)
- Min. head (m.)
- Max. head (m.)
- Cable length (m.)
- Jobs
- slightly dirty waters, water supply, drainage
- Max. liquid temperature (°C)
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
- Warranty (years)
- 2
