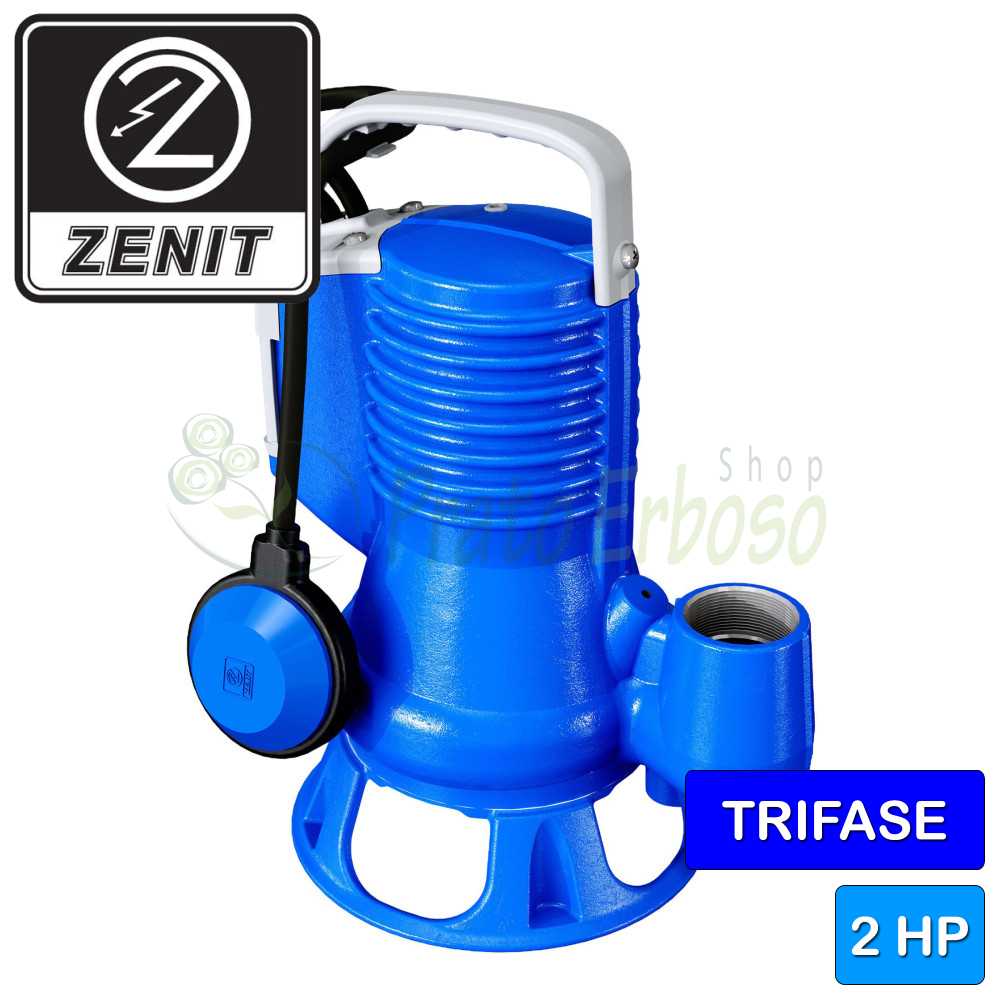

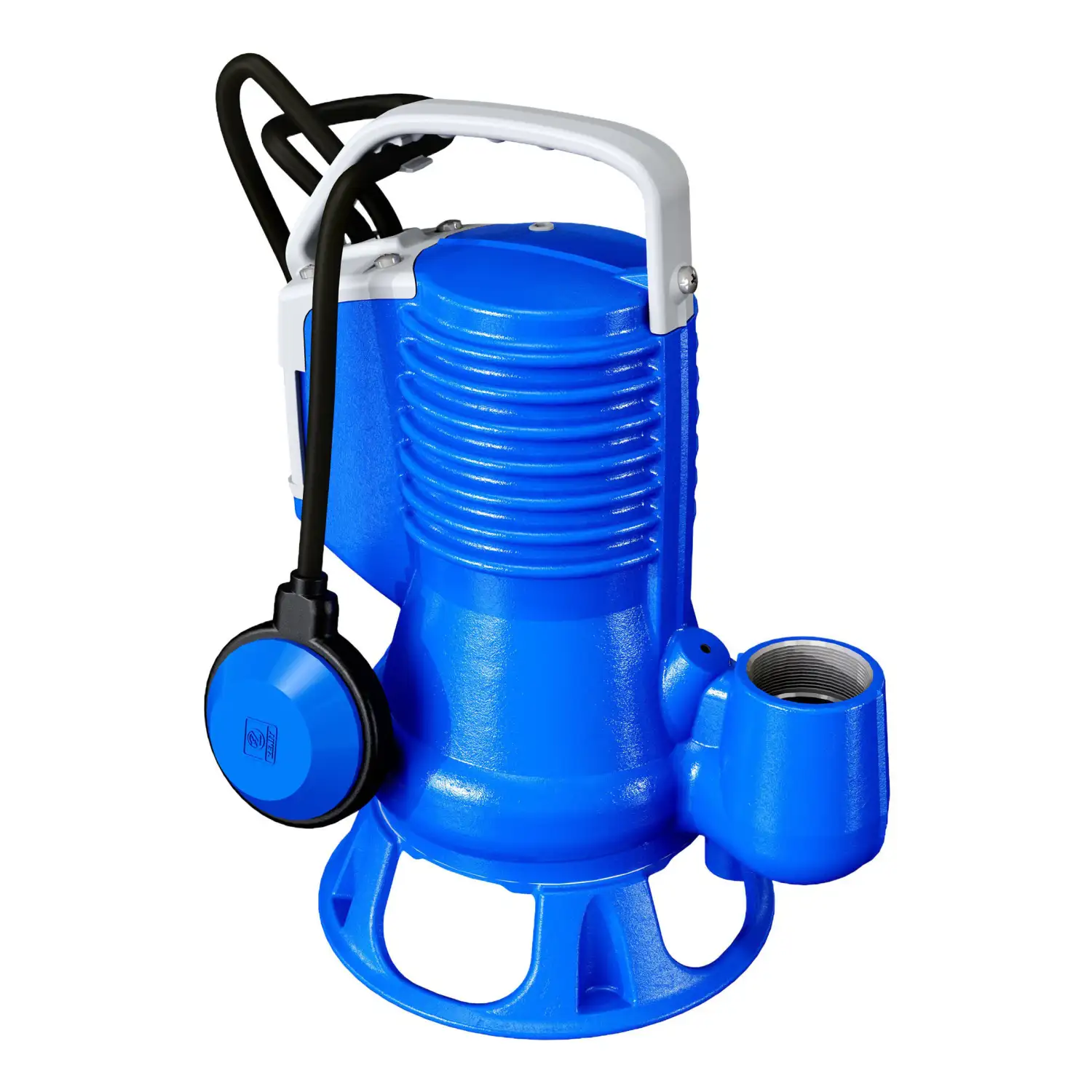

200/2/G50V A1CT5NCQTRG - 2 HP three-phase VORTEX electric pump for waste water
Flow rate up to 720 l/min (43.2 m³/h). Head up to 15.3 m. 1.5 kW (2 HP) motor. With float switch.
The Zenit 200/2/G50V A1CT5NCQTRG submersible electric pump from the DG bluePRO series is suitable for use with soiled biological liquids, sewage, rainwater, and seepage water. In both domestic and industrial applications.
Equipped with a vortex impeller, this allows the pump to filter solids up to 50 millimetres.
It has a maximum flow rate of 720 litres per minute and a maximum head of 15.3 metres.
The 200/2/G50V A1CT5NCQTRG can be installed up to 20 meters underwater. It boasts an IP 68 certification.
The use of materials such as cast iron, stainless steel and the double mechanical seal make this pump solid and robust.
The supplied cable 200/2/G50V A1CT5NCQTRG is 5 metres long.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- Max. flow rate (l./min.)
- Min. head (m.)
- Max. head (m.)
- Cable length (m.)
- Jobs
- slightly dirty waters, water supply, drainage
- Max. liquid temperature (°C)
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
- Warranty (years)
- 2
Compare with Similar Products
200/2/G50V A1CT5NCQTRG - 2 HP three-phase VORTEX electric pump for waste waterThis product Flow rate up to 720 l/min (43.2 m³/h). Head up to 15.3 m. 1.5 kW (2 HP) motor. With float switch. |
75/2/G40V A1BT5NCQTRG - 0.75 HP three-phase VORTEX electric pump for waste waterFlow rate up to 360 l/min (21.6 m³/h). Head up to 10.2 m. 0.37 kW (0.50 HP) motor. With float switch. |
100/2/G40V A1BT5NCQTRG - 1 HP three-phase VORTEX electric pump for waste waterFlow rate up to 420 l/min (25.2 m³/h). Head up to 11.4 m. 0.75 kW (1 HP) motor. With float switch. |
150/2/G50V A1CT5NCQTRG - 1.5 HP three-phase VORTEX electric pump for waste waterFlow rate up to 600 l/min (36.0 m³/h). Head up to 12.3 m. 1.1 kW (1.5 HP) motor. With float switch. |
|
|---|---|---|---|---|
| Price |
Price
€936.96
-5%
€890.11
|
Price
€568.52
|
Price
€697.84
-5%
€662.95
|
Price
€805.20
-5%
€764.94
|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.5 | Power (Kw) 0.55 | Power (Kw) 0.75 | Power (Kw) 1.1 |
| Power (HP) | Power (HP) 2 | Power (HP) 0.75 | Power (HP) 1 | Power (HP) 1.5 |
| Delivery mouth | Delivery mouth 2" | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 2" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron |
| Crankshaft | Crankshaft AISI 420 stainless steel | Crankshaft AISI 420 stainless steel | Crankshaft AISI 420 stainless steel | Crankshaft AISI 420 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- |
| Min. head (m.) | Min. head (m.) -- | Min. head (m.) -- | Min. head (m.) -- | Min. head (m.) -- |
| Max. head (m.) | Max. head (m.) -- | Max. head (m.) -- | Max. head (m.) -- | Max. head (m.) -- |
| Cable length (m.) | Cable length (m.) -- | Cable length (m.) -- | Cable length (m.) -- | Cable length (m.) -- |
| Jobs | Jobs slightly dirty waters, water supply, drainage | Jobs slightly dirty waters, water supply, drainage | Jobs slightly dirty waters, water supply, drainage | Jobs slightly dirty waters, water supply, drainage |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- |
| Height (cm) | Height (cm) -- | Height (cm) -- | Height (cm) -- | Height (cm) -- |
| Width (cm) | Width (cm) -- | Width (cm) -- | Width (cm) -- | Width (cm) -- |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
