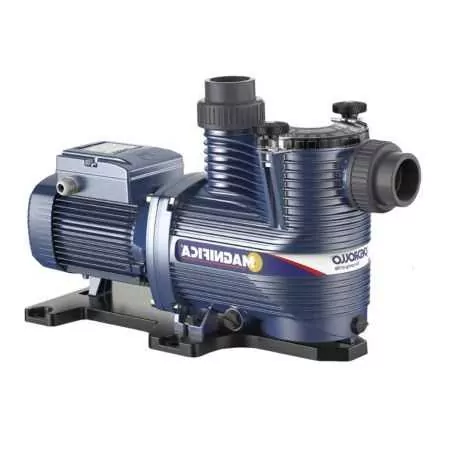

MAGNIFICA 3 - 1.5 HP three-phase electric pool pump

Name: MAGNIFICA 3 - 1.5 HP three-phase electric pool pump
Brand: Pedrollo
SKU: MAGNIFICA 3
Price: 442.96 EUR
Availability: InStock

Flow rate up to 525 l/min (30 m³/h). Head up to 15.5 m. 1.1 Kw (1.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The self-priming electric pump with pre-filter MAGNIFICA 3 by Pedrollo is suitable for the circulation and filtering of swimming pool water, especially for those that require large flow rates.

It has a flow rate that varies from 100 to 525 litres per minute with a head from 6 to 15.5 metres.

It is recommended for pools up to 180 cubic meters. Pool water with pH 6.5 – 8.4.

Installation should be carried out in well-ventilated areas protected from the elements with adequate space for maintenance.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 1.1
Power (HP): 1.5
Absorption at 230V (A): 5.4
Capacitor: 31.5 µF 450 VL
Suction mouth: 2"
Delivery mouth: 2"
Impeller: Noryl
Number of impellers: 1
Check valve: No
Degree of protection: IP 55
Minimum flow rate (l./min.): 100
Max. flow rate (l./min.): 525
Min. head (m.): 6
Max. head (m.): 15.5
Jobs: circulation in the pool
Max. liquid temperature (°C): +45°C
Height (cm): 35.3
Width (cm): 23.5
Depth (cm): 65.7
Weight (Kg): 19.4
Warranty (years): 2

Attachments

MAGNIFICA Technical Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo's MAGNIFICA series pumps.

Download (521.77KB)

MAGNIFICENT models and performance

TYPE

single phase

MAGNIFICENT 1

MAGNIFICENT 2

MAGNIFICENT 3

MAGNIFICENT 4

MAGNIFICENT 5

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2
2.2	3

PERFORMANCES
Q liters/min	H meters
100 ÷ 350	14.5 ÷ 4
100 ÷ 400	17 ÷ 4.5
100 ÷ 525	15.5 ÷ 6
100 ÷ 600	17.7 ÷ 7
100 ÷ 700	23 ÷ 8

MOUTH
asp.	send.
2"	2"

Q	m³/hour	0	6.0	9.0	12	15	18	21	24	30	36	42
Q	l/min	0	100	150	200	250	300	350	400	525	600	700
H	meters	14.5	13.5	12.3	10.7	8.8	6.5	4
		17	16	14.9	13.5	11.8	9.7	7.3	4.5
		15.5	14.9	14.4	13.9	13.2	12.3	11.3	10	6
		17.7	17.3	16.9	16.4	15.8	15.1	14.2	13.1	9.6	7
		23	22.2	21.8	21.2	20.5	19.7	18.8	17.7	14.4	11.9	8

Construction data of the MAGNIFICA 3-4-5

Bearings

Pump side motor bearing	6204 2RS
Opposite side engine bearing	6204 2RS

Tree holding

Type of seal	Single Mechanical Seal
Pump side model	AR-20R
LP diameter	20
LP fixed ring	Ceramic
LP rotating ring	Graphite
LP elastomer	NBR

Materials

1.0 - Pump body	Reinforced technopolymer
1.4 - Basic	Reinforced technopolymer
2.0 - Lid	Anti-UV polymer
2.1 - Seal holder cover	Reinforced technopolymer
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
5.1 - Diffuser	Reinforced technopolymer
6.0 - Motor holder	EN-AB 46100 aluminium
8.0 - Suction Grid/Filter	Reinforced technopolymer
