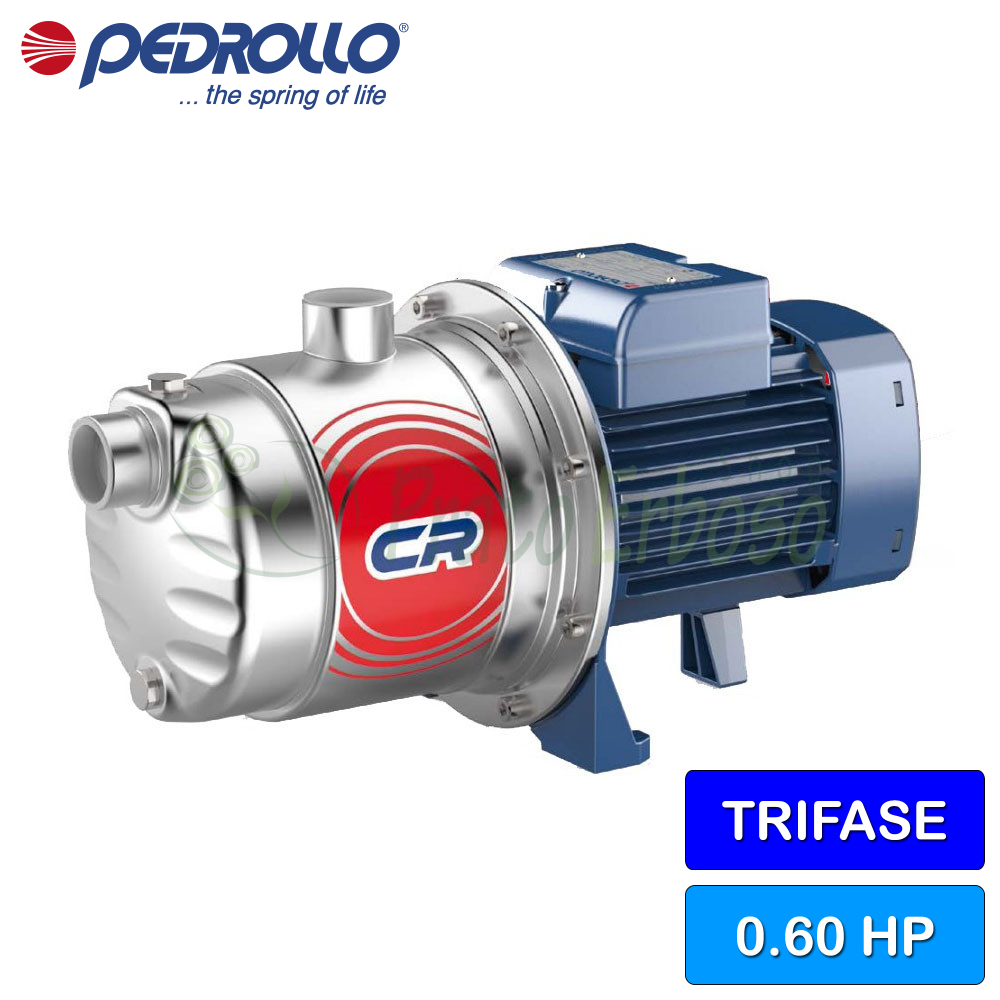

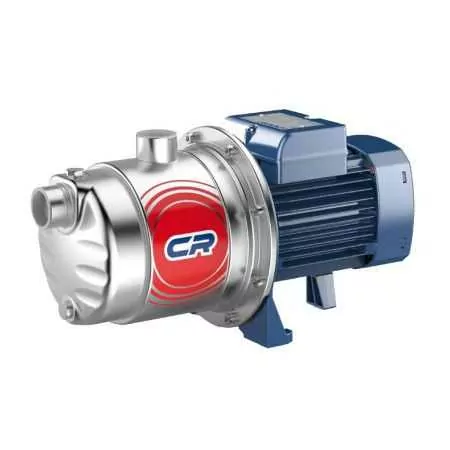

3CR 80 - 0.60 HP three-phase multi-impeller centrifugal electric pump

Name: 3CR 80 - 0.60 HP three-phase multi-impeller centrifugal electric pump
Brand: Pedrollo
SKU: 3CR 80
Price: 200.25 EUR
Availability: InStock

Flow rate up to 80 l/min (4.8 m³/h). Head up to 40 m. Motor 0.45 Kw (0.60 HP).

Variants:

Order it before 23:59 on Tuesday and receive it on Friday 13 February with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Friday 13 February - Monday 16 February
DHL - 4 days delivery	This courier delivers within 72/120 hours from the moment we entrust the products to him.	Tuesday 17 February - Wednesday 18 February
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Friday 13 February

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Friday 13 February - Monday 16 February

Carrier: DHL - 4 days delivery

Description: This courier delivers within 72/120 hours from the moment we entrust the products to him.

Estimated delivery:
Tuesday 17 February - Wednesday 18 February

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 13 February

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The 3CR 80 centrifugal electric pump from the 2-5CR series by Pedrollo stands out for its reliability and silence.

These features make it ideal for use in the domestic and civil sector.

Particularly for activities such as water distribution in conjunction with small or medium pressure tanks, for irrigation of vegetable gardens or gardens.

The 3CR 80 can pump clean water and liquids that are chemically non-aggressive for the components.

The pump body, cover and impellers are made of AISI 304 stainless steel and the motor shaft is made of AISI 431 stainless steel.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.45
Power (HP): 0.60
Absorption at 230V (A): 2.5
Current consumption at 400V (A): 1.5
Suction mouth: 1"
Delivery mouth: 1"
Pump body: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 3
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 5
Max. flow rate (l./min.): 80
Min. head (m.): 5
Max. head (m.): 40
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): +40°C
Height (cm): 18.2
Width (cm): 18.2
Depth (cm): 36.1
Weight (Kg): 7.3
Warranty (years): 2

Attachments

Technical data sheet 2-5CR

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo 2-5CR series pumps.

Download (391.38KB)

Models and performances 2-5 CR

TYPE

single phase

2CR 80

3CR 80

4CR 80

5CR 80

3CR 100

4CR 100

5CR 100

POWER
KW	HP
0.37	0.50
0.45	0.60
0.55	0.75
0.75	1
0.55	0.75
0.75	1
1.1	1.5

PERFORMANCES
Q liters/min	H meters
5 ÷ 70	27 ÷ 5
5 ÷ 80	40 ÷ 5
5 ÷ 80	52 ÷ 10
5 ÷ 80	67 ÷ 12
5 ÷ 120	38 ÷ 5
5 ÷ 130	50 ÷ 5
5 ÷ 130	63 ÷ 8

MOUTH
asp.	send.
1"	1"

Q	m³/hour	0	0.3	0.6	0.9	1.2	1.5	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0	6.6	7.2	7.8
Q	l/min	0	5	10	15	20	25	30	40	50	60	70	80	90	100	110	120	130
H	meters	27	26	25	24	22.5	21	20	16.5	13	9	5
		40	38	37	36	34.5	33	31	27	22.5	17	11	5
		52	50	49	47	44.5	42	40	34	28.5	22.5	16	10
		67	66	64	62	59	56	53	45.5	37.5	29.5	20.5	12
		38	37	36	35	34.5	33.5	33	31	28	26	23	20	17	13.5	10	5
		50	50	49	48	47	46	45	42	39.5	37	34	30.5	26.5	22	17	11	5
		63	62	61.5	60.5	59.5	58	57	53.5	50.5	46.5	42.5	38	33	28	22	15	8

Construction data of the 2CR 3CR

Bearings

Pump side motor bearing	6202 ZZ-C3
Opposite side motor bearing	6201 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-13
LP diameter	13
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Materials

1.0 - Pump Body	EN 1.4301 stainless steel (AISI 304)
2.1 - Seal holder cover	EN 1.4301 stainless steel (AISI 304)
3.0 - Impeller	EN 1.4301 stainless steel (AISI 304)
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
5.1 - Diffuser	Reinforced technopolymer
5.2 - Shim Ring	POM acetal resin
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
