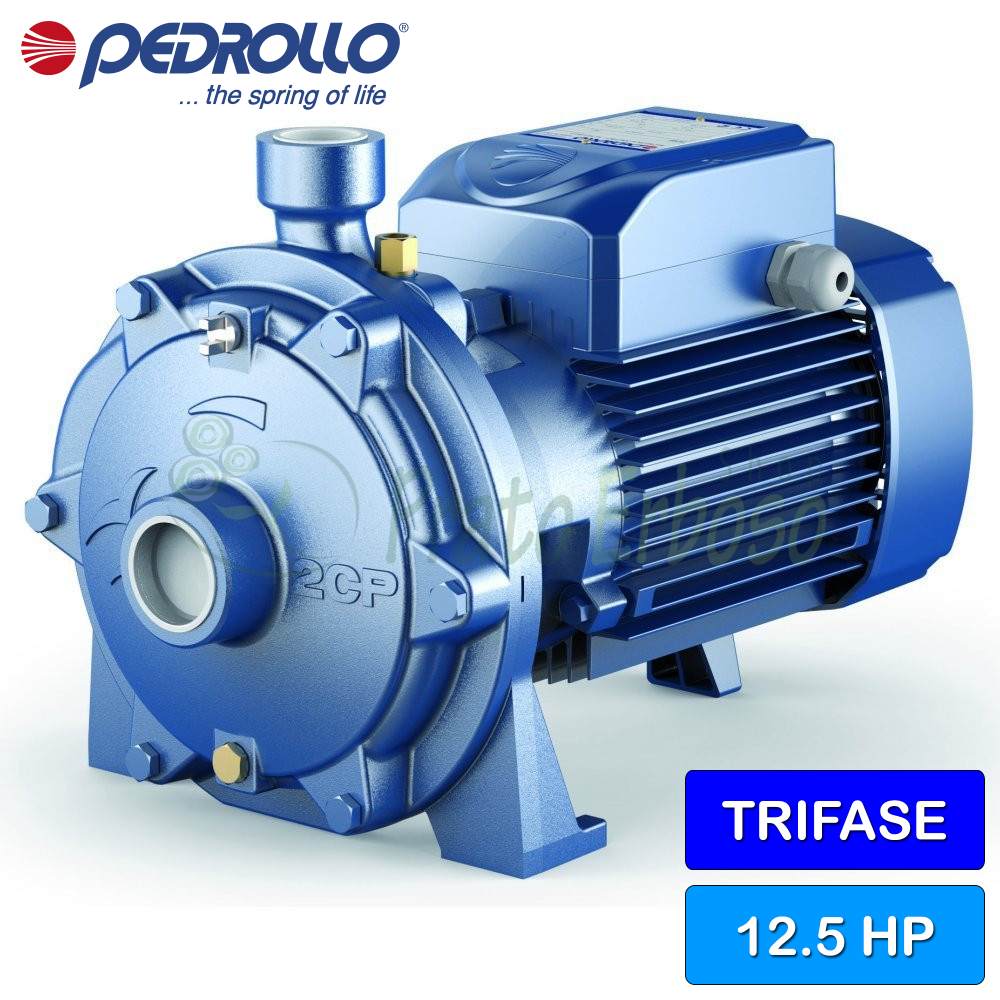

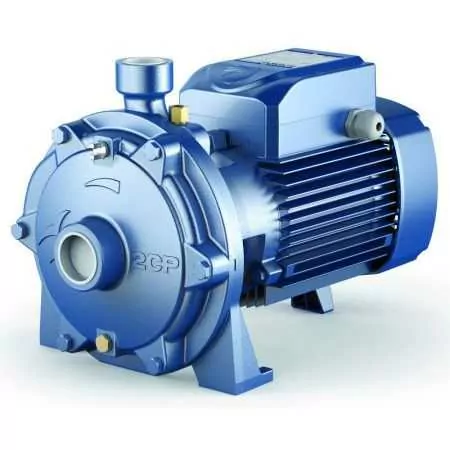

2CP 40/200B - 12.5 HP three-phase twin-impeller centrifugal pump
Flow rate up to 450 l/min (27 m³/h). Head up to 96 m. 9.2 kW (12.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 5 February - Friday 6 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 5 February - Friday 6 February |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 6 February - Monday 9 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 5 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Thursday 5 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 5 February - Friday 6 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 5 February - Friday 6 February
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 6 February - Monday 9 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 5 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Thursday 5 February
The Pedrollo 2CP 40/200B twin-impeller centrifugal electric pump is recommended for water distribution in conjunction with pressure tanks, for increasing network pressure and for fire-fighting units.
It can pump clean water and liquids that are chemically non-aggressive for the pump components.
Its adaptability and the guarantee of maintaining high yields make it suitable for use in the domestic, civil and industrial sectors.
To create the 2CP 40/200B, Pedrollo used cast iron, brass and stainless steel for a robust and long-lasting result.
The flow rate ranges from 100 to 450 litres and the head from 61 to 96 metres.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 9.2
- Power (HP)
- 12.5
- Current consumption at 400V (A)
- 17.5
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 2
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 450
- Min. head (m.)
- 61
- Max. head (m.)
- 97
- Jobs
- water supply, pressurization systems, fire prevention systems
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 35.5
- Width (cm)
- 29.8
- Depth (cm)
- 56.6
- Weight (Kg)
- 90
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6308 ZZ- C3 |
| Opposite side motor bearing | 6308 ZZ- C3 |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-32 FU |
| LP diameter | 32 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Materials
| 1.1 - Aspiring Body | Cast iron GJL 200 EN 1561 |
| 1.2 - Pressing Body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46136 |
